Home >> Toyota >> 2003 >> RAV4 Base, FWD, Automatic >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Components

Seat Belt: Components

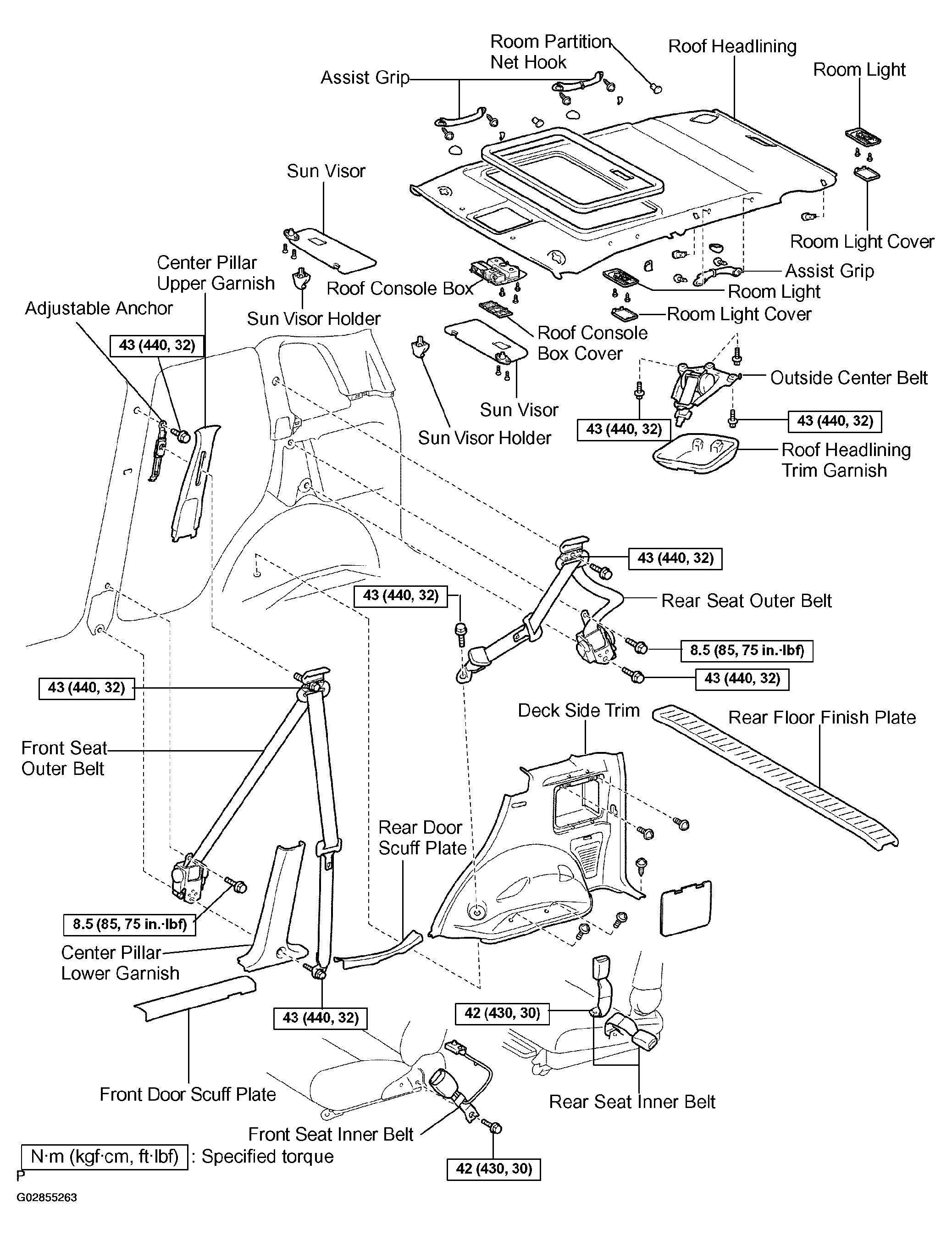

Fig 1: Exploded View Of Seat Belt Components
G02855263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
