Tilt Steering Column: Disassembly

NOTE: When using a vise, do not overtighten it.

REMOVE COLUMN UPPER BRACKET AND COLUMN UPPER CLAMP
1. Using a centering punch, mark the center of the 2 tapered-head bolts.
2. Using a3-4mm (0.12-0.16 in.) drill, drill into the 2 bolts.
3. Using a screw extractor, remove the 2 bolts, column upper clamp and column upper bracket.

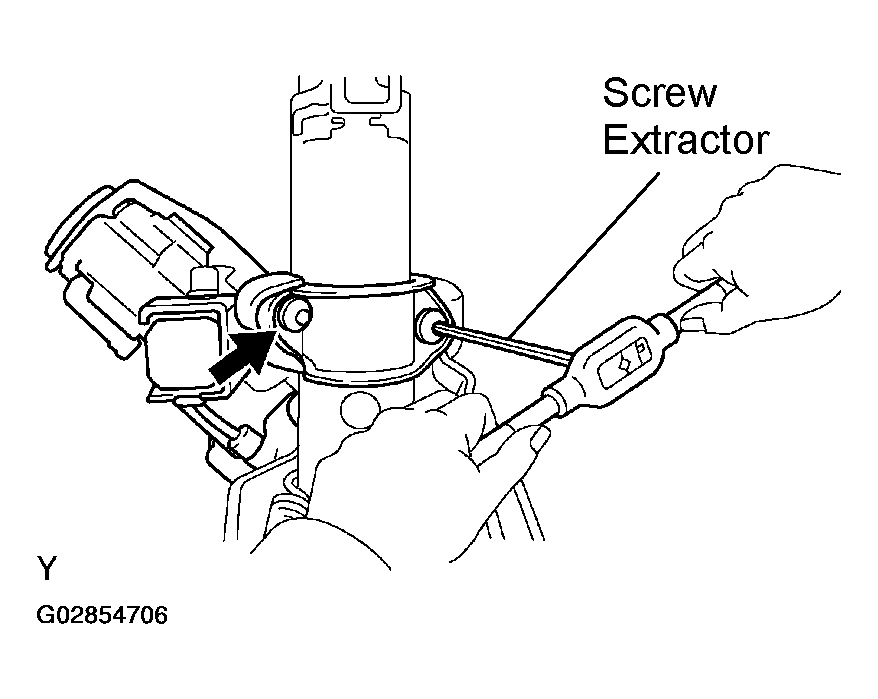

  Fig 1: Removing Column Upper Bracket & Column Upper Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BRACKET SPACER AND NO. 1 SUPPORT COLLARS

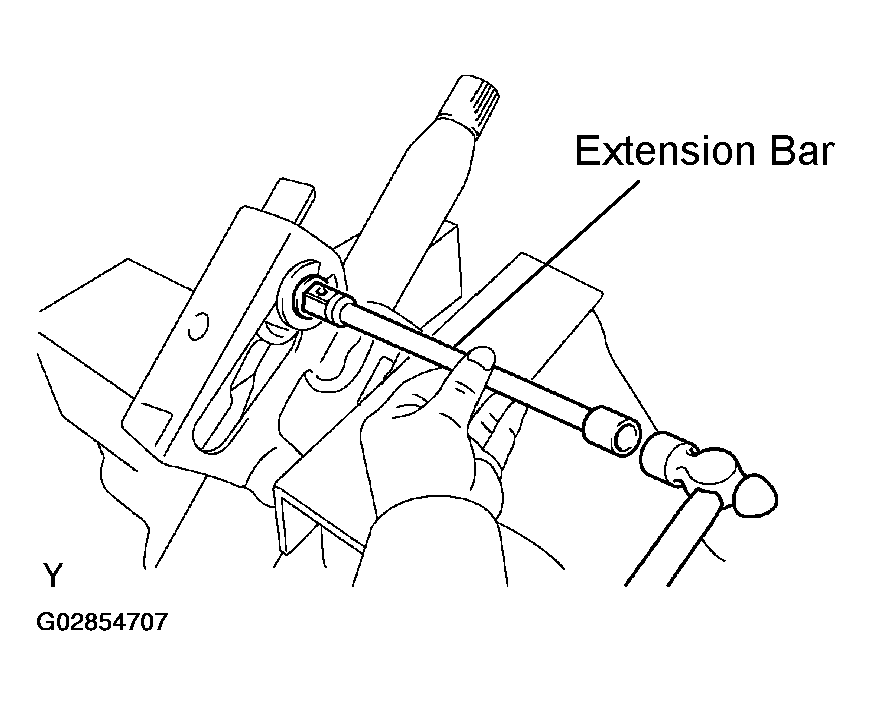

Fig 2: Removing Bracket Spacer & No. 1 Support Collars
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using an extension bar and a hammer, tap out the bracket spacer.

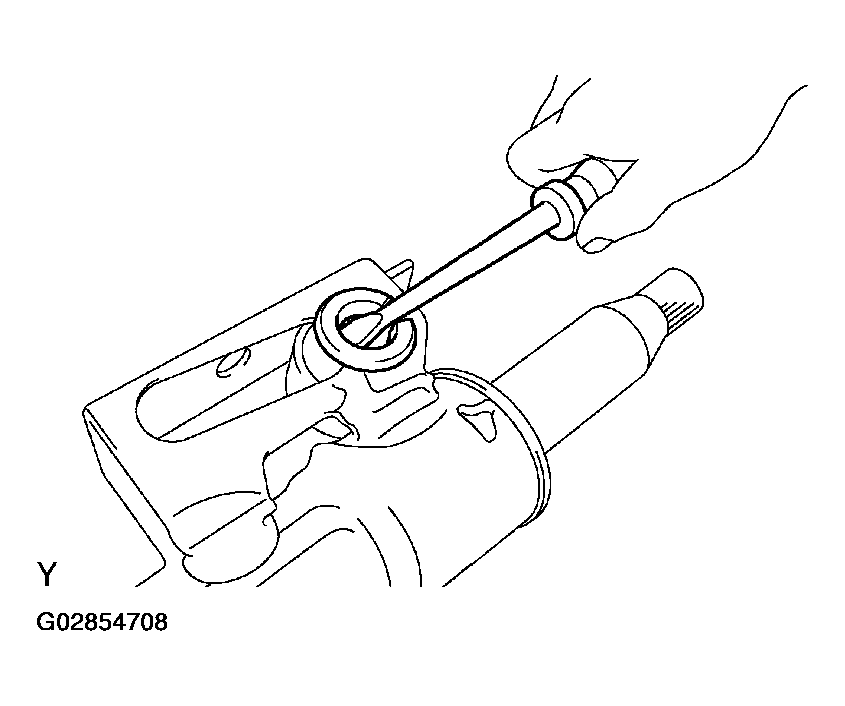

2. Using a screwdriver, remove the 2 No. 1 support collars.
REMOVE TILT LEVER AND BREAK AWAY BRACKET
1. Remove the tilt spring.

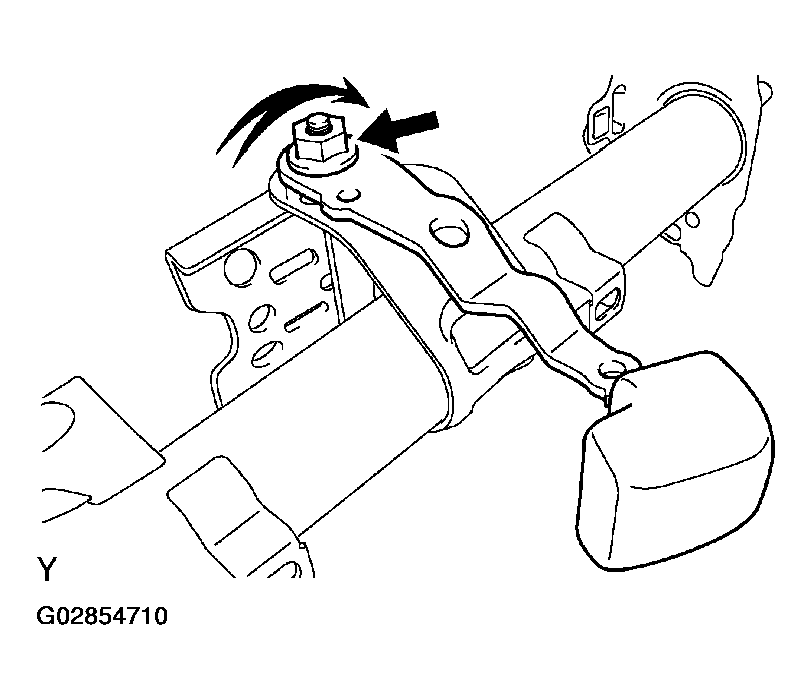

  Fig 3: Removing Tilt Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the No. 2 tilt lever lock bolt and No. 1 support reinforce.

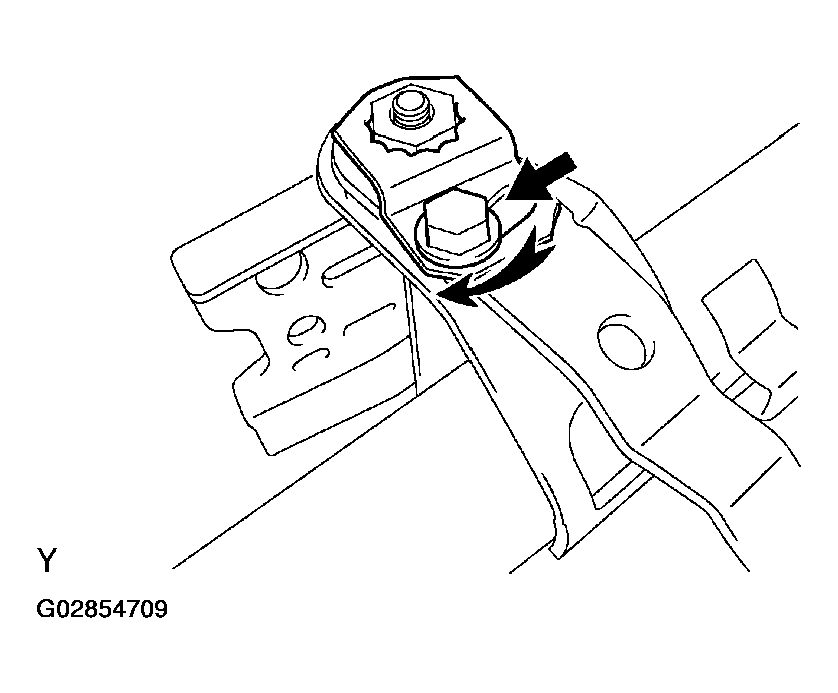

  Fig 4: Removing No. 2 Tilt Lever Lock Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: This bolt is left-handed one.
3. Remove the adjusting nut, tilt lever, stopper, tilt lever lock bolt and break away bracket.

  Fig 5: Removing Adjusting Nut, Tilt Lever Lock Bolt & Break Away Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: This nut is left-handed one.
4. Remove the No. 2 support collar from the break away bracket.
REMOVE MAIN SHAFT ASSEMBLY AND MAIN SHAFT BEARING
1. Using a snap ring expander, remove the snap ring on the upper side.

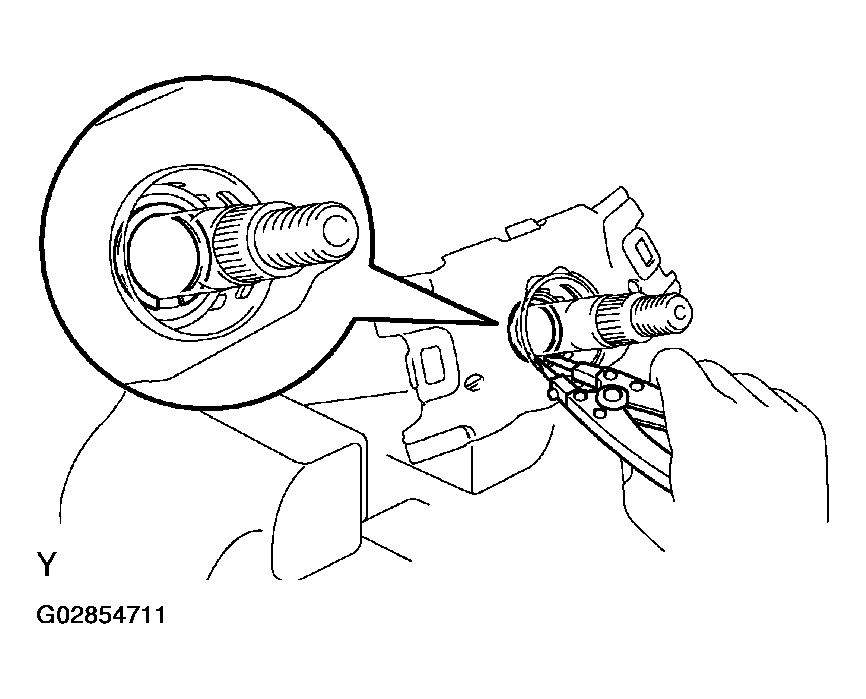

  Fig 6: Removing Snap Ring On Upper Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

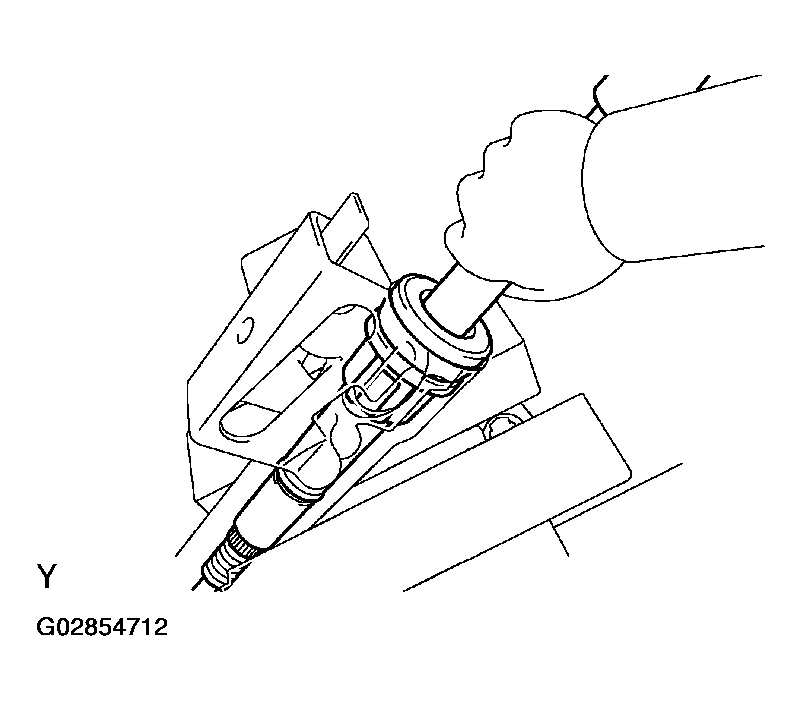

2. Pull out the main shaft assembly and main shaft bearing.
3. Using a snap ring expander, remove the snap ring on the lower side.
