Repair and Diagnosis: Electrical: Horns: Inspection

INSPECT HORN SWITCH
1. Check that no continuity exists between terminal 6 of the connector and body ground.
2. Check that continuity exists between terminal 6 of the connector and body ground when the horn contact plate is pressed against the steering spoke assembly.

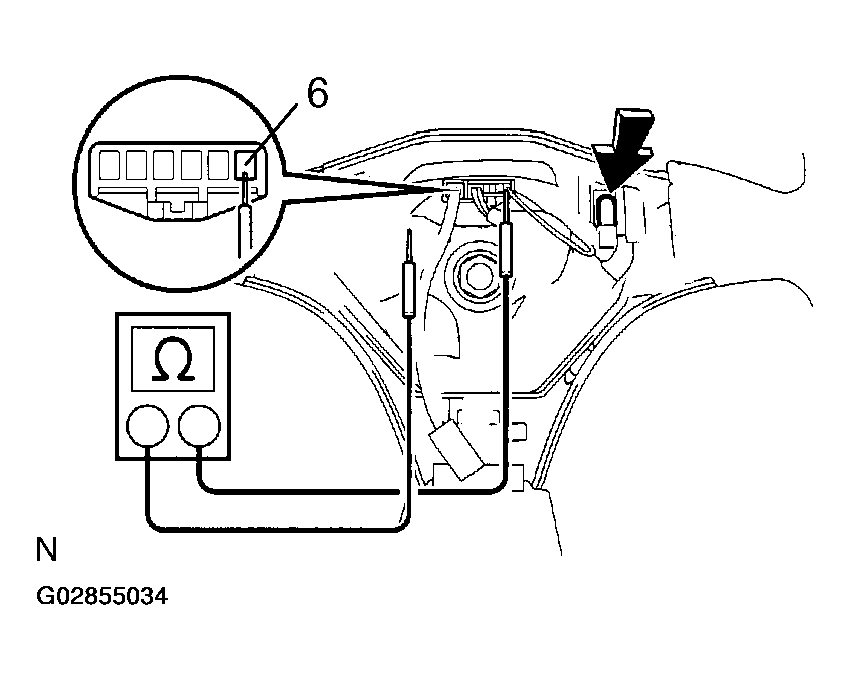

  Fig 1: Checking Continuity Exists Between Terminal 6 And Ground
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If continuity is not as specified, repair or replace the steering wheel or wire harness as necessary.
INSPECT HORN OPERATION

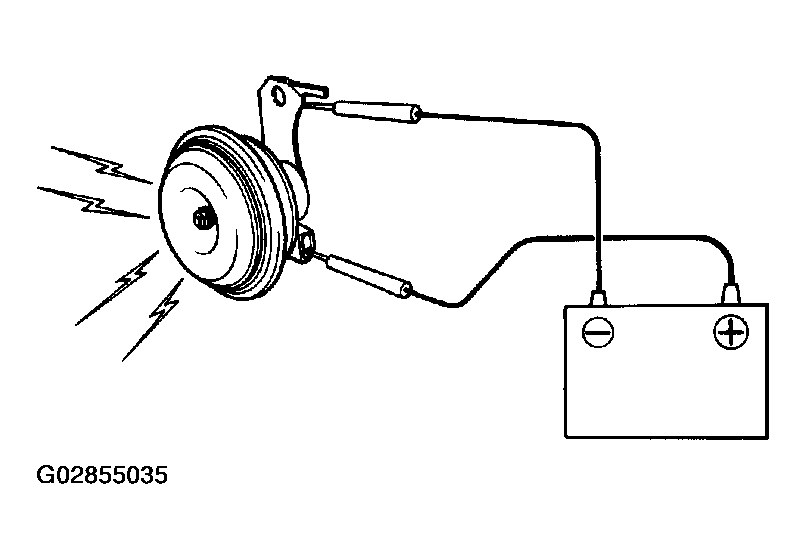

Fig 2: Inspecting Horn Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the positive (+) lead from the battery to the terminal and negative (-) lead to the horn body and check that the horn blows.

If operation is not as specified, replace the horn.

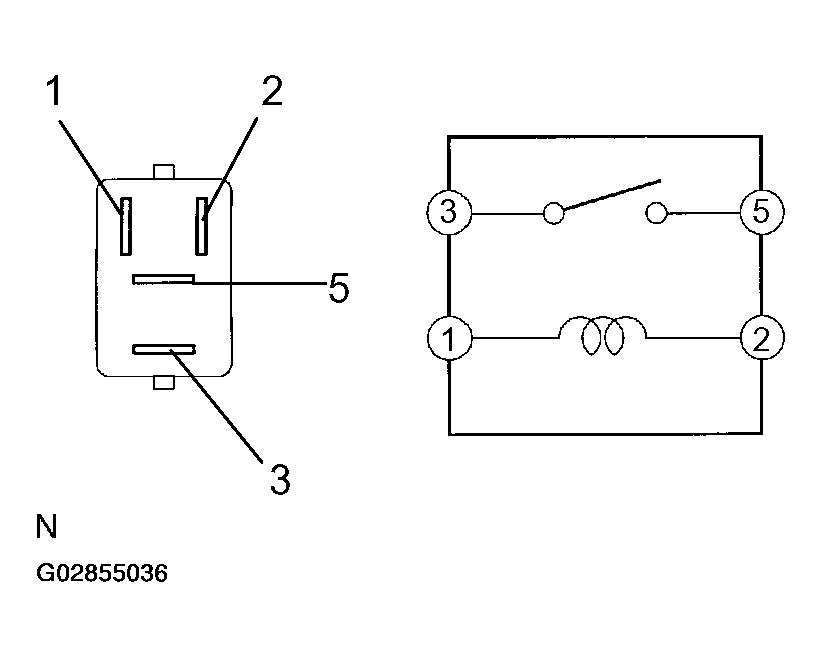

Fig 3: Identifying Horn Relay Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT HORN RELAY (Marking: HORN) CONTINUITY

HORN RELAY CONTINUITY

Condition	Tester Connection	Specified Condition
Constant	1 - 2	Continuity
Apply B+ Between Terminals 1 And 2.	3-5	Continuity

If continuity is not as specified, replace the relay.
