Front Brake Speed Sensor: Removal

Disconnect Speed Sensor Connector
1. Remove the screws and fender liner.
2. Disconnect the speed sensor connector.

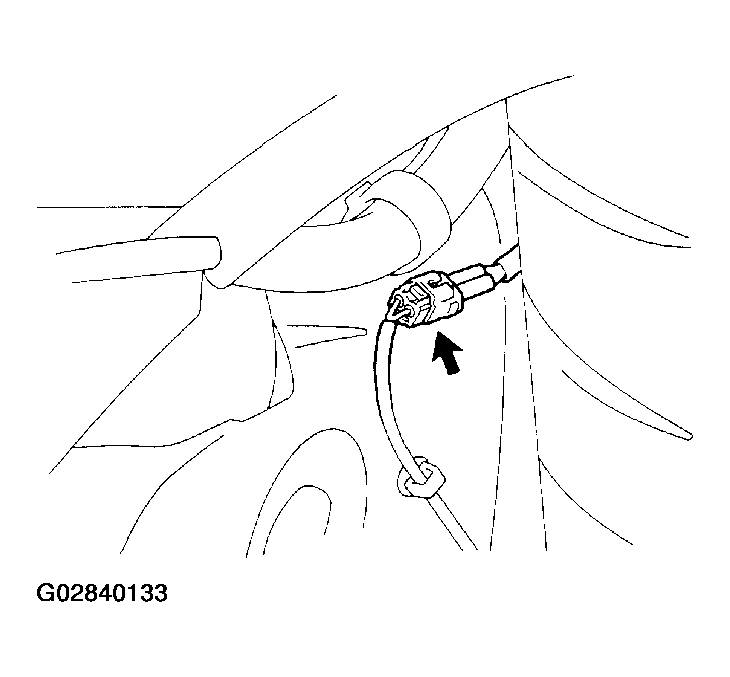

  Fig 1: Disconnecting Speed Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Speed Sensor
1. Remove the speed sensor from the steering knuckle.

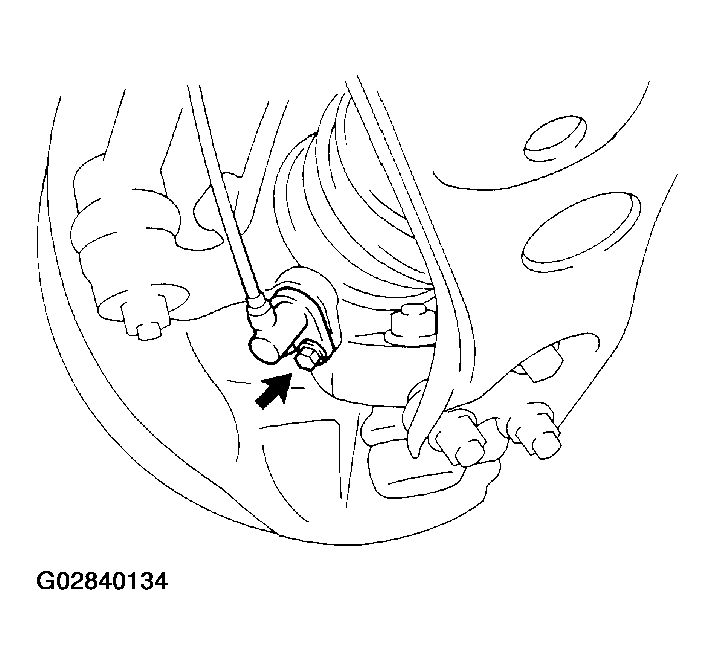

  Fig 2: Removing Speed Sensor From Steering Knuckle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)
2. Remove the bolt, flexible hose and speed sensor harness clamp from the shock absorber.
  Torque: 29 N.m (300 kgf.cm, 21 ft.lbf)
3. Remove the resin clip and clamp bolt holding the sensor harness to the body.
  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
