Repair and Diagnosis: Electrical: Gauges: Clock: Troubleshooting

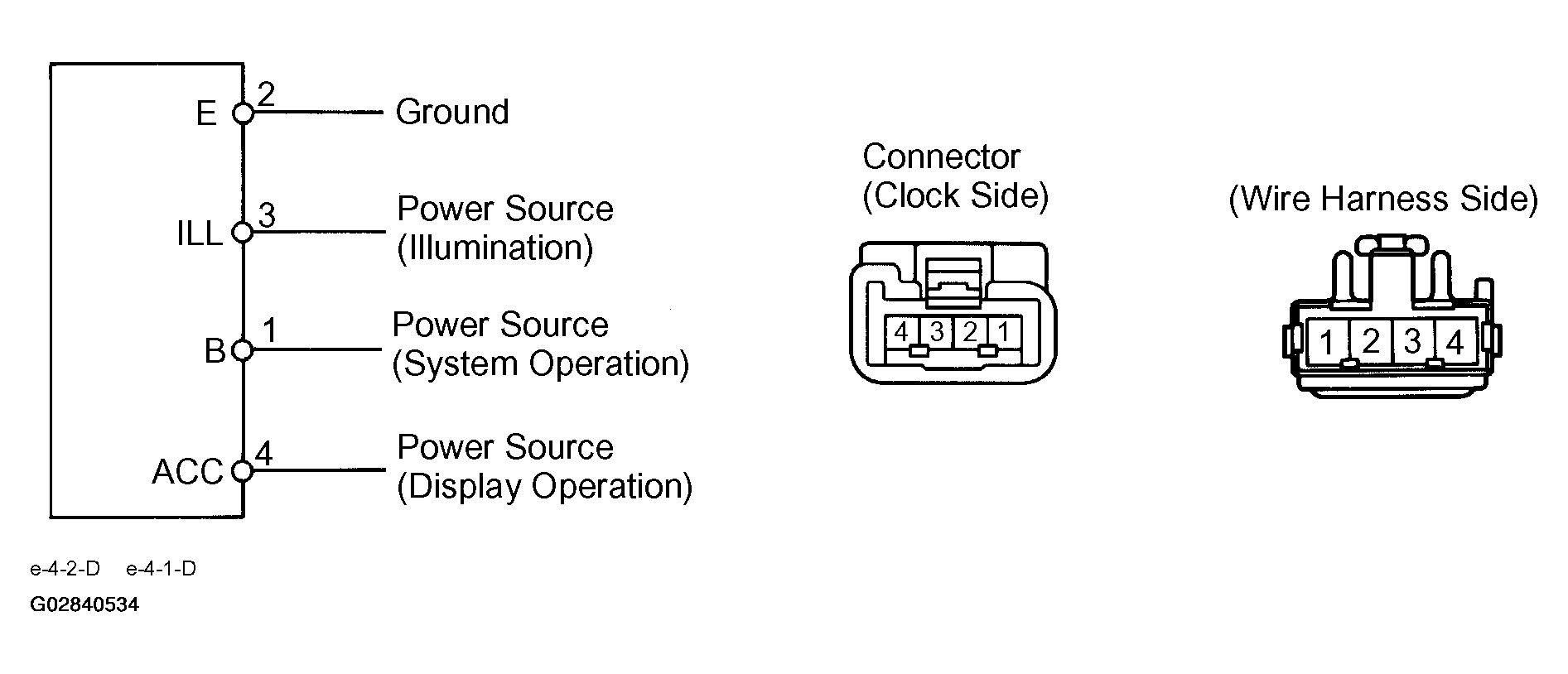

Fig 1: Identifying Clock Circuit & Terminal Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

+/- 1.5 seconds / day (AT DC 13 V, 20°C)

1. CLOCK WILL NOT OPERATE
   1. Check that the battery positive voltage is 10 - 16 V. If voltage is not as specified, replace the battery.
   2. Check that the DOME fuse is not blown. If the fuse is blown, replace the fuse and check for short circuit.
   3. Troubleshoot the clock as follows.
      NOTE: Inspect the connector on the wire harness side.

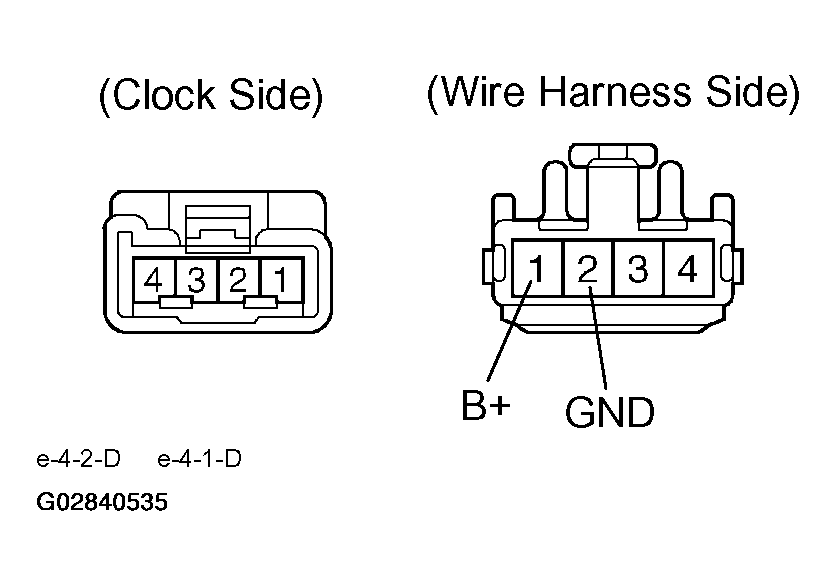

      Fig 2: Identifying Clock Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

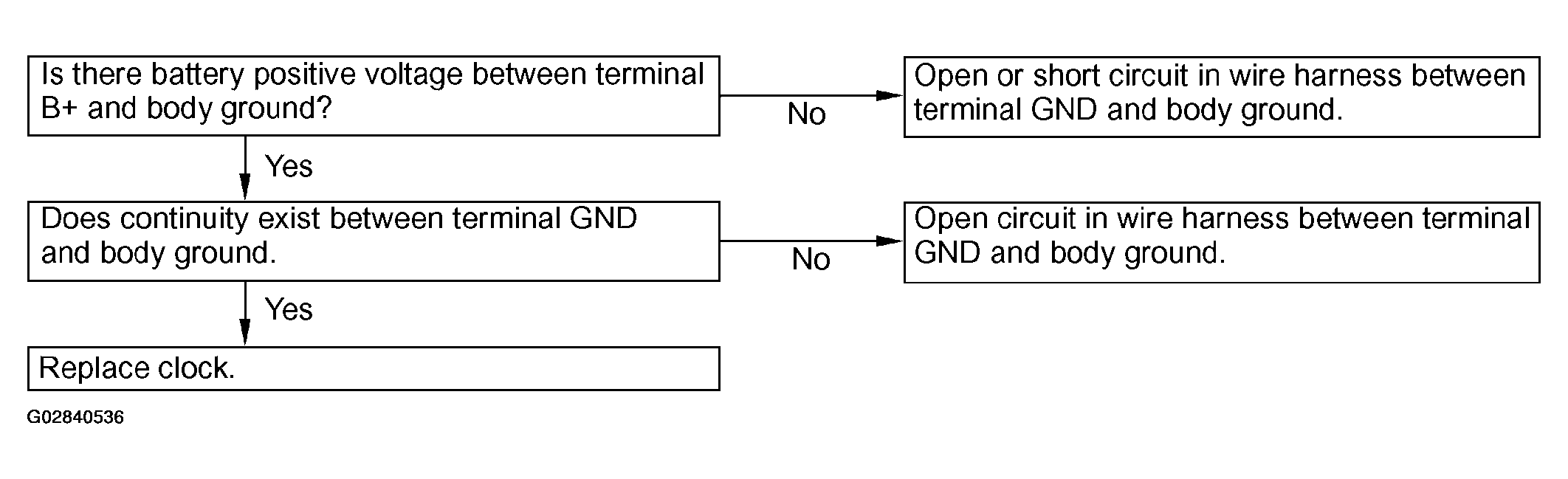

      Fig 3: Clock Will Not Operate Flowchart

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. CLOCK LOSES OR GAINS TIME
   1. Check that the battery positive voltage is 10 - 16 V. If voltage is not as specified, replace the battery.

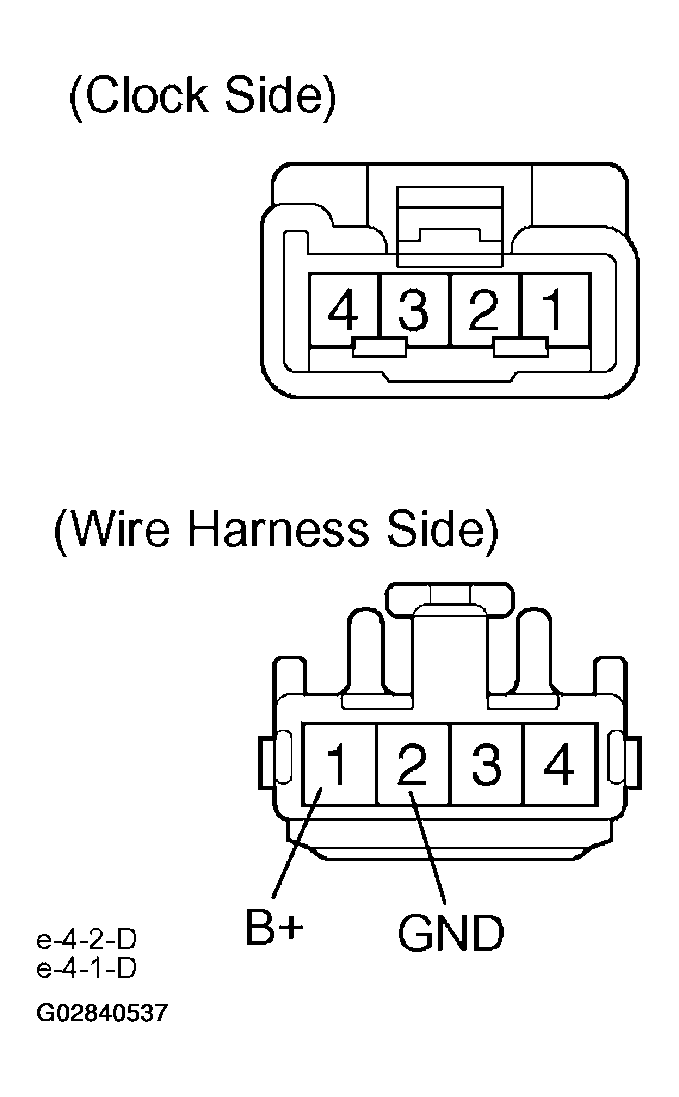

   Fig 4: Identifying Terminals For Testing Battery Voltage
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Inspect the error of the clock. Allowable error (per day): +/- 1.5 seconds (AT DC 13 V, 20 °C) +/- 4 seconds (AT DC 10 to 16 V, -20 to 80 °C)

      If the error exceeds the allowable error, replace the clock.

   3. Check that the clock adjusting button is caught in position, and does not return. If the button is not returned, repair or replace the clock.
   4. Troubleshoot the clock as follows.
      NOTE: Inspect the connector on the wire harness side.

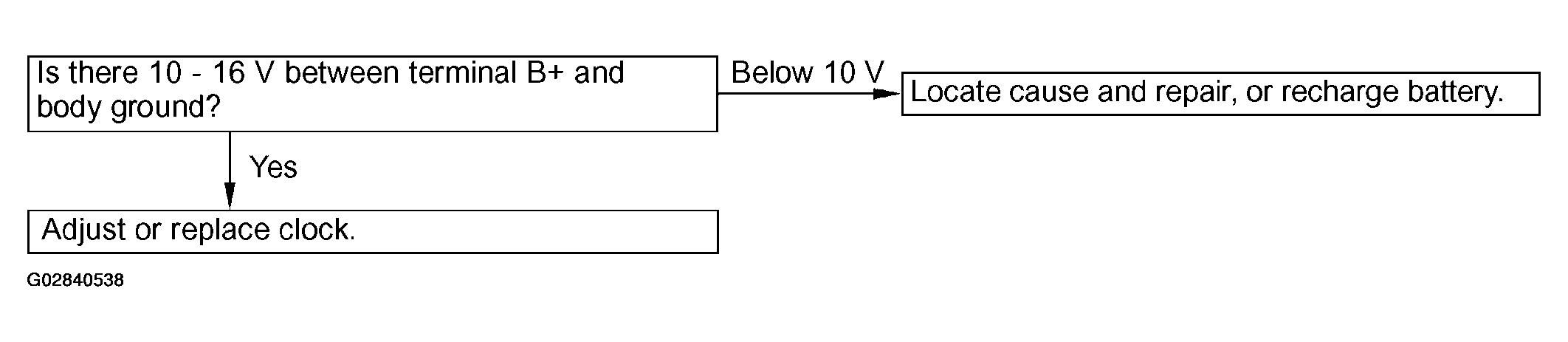

      Fig 5: Clock Loses Or Gains Time Flowchart

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
