Inspect Inner Mirror Assembly

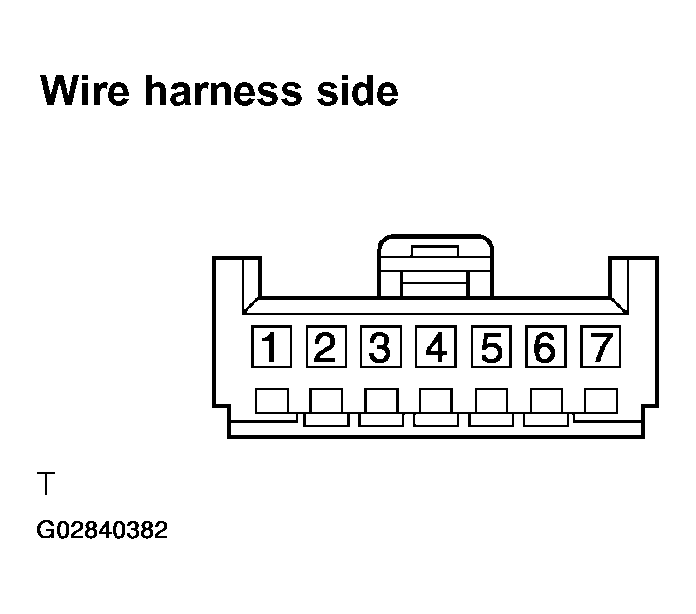

Disconnect the connector from the inner mirror assembly and inspect the connector on the wire harness side, as shown.
TESTER SPECIFIED CONDITION
| Tester Connection | Condition | Specification |
|---|---|---|
| 6 - Ground | Constant | Continuity |
| 7 - Ground | Ignition Switch OFF Or ACC | No Voltage |
| 7 - Ground | Ignition Switch ON | Battery Voltage |
If continuity is not as specified, replace the inner mirror assembly.
