Tilt Steering Column: Disassembly
NOTE:
When using a vise, do not overtighten it.
- Remove Ignition Key Cylinder Illumination
- Remove Column Upper Bracket And Column Upper Clamp
- Using a centering punch, mark the center of the 2 tapered-head bolts.
- Using a 3-4 mm (0.12-0.16 in.) drill, drill into the 2 bolts.

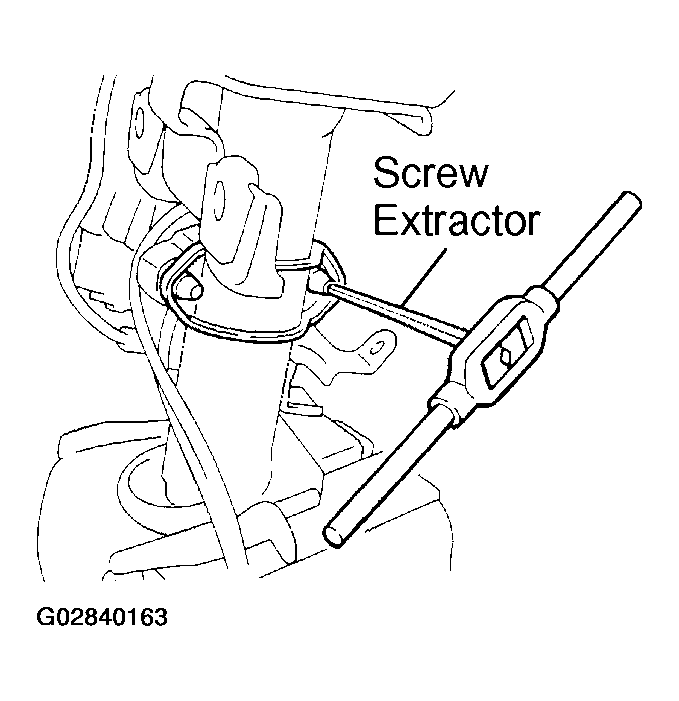

- Using a screw extractor, remove the 2 bolts, column upper bracket and column upper clamp.
- Remove Shift Lever
Remove the screw and shift lever.
- Remove Shift Lever Housing

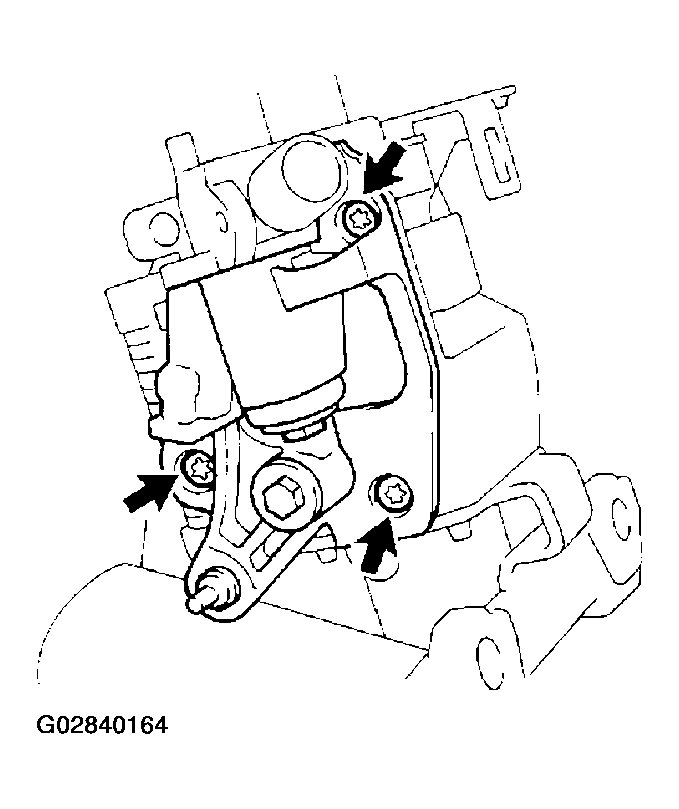

Remove the 3 torx screws and shift lever housing.
- Remove Park Lock Cable (See PARK LOCK CABLE )
- Remove Release Lever Spring
- Remove Turn Signal Bracket
Remove the 2 torx screws and turn signal bracket.
- Remove Steering Column Housing With Main Shaft Assembly

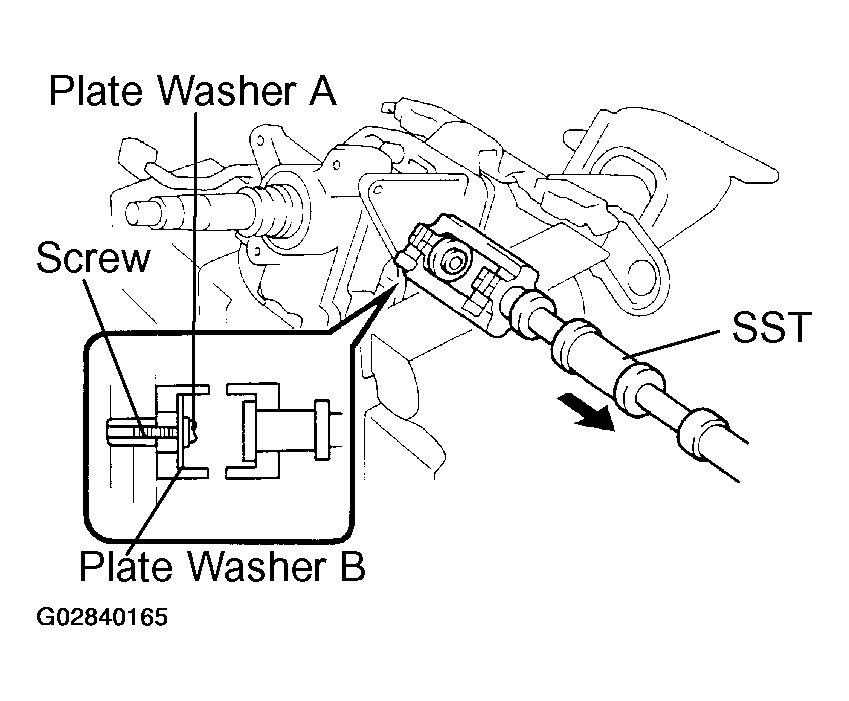

- Set SST, plate washer (18 and 36 mm outer diameter) and screw (4.0 mm diameter, 0.7 mm pitch, 15.0 mm length), as shown in the illustration.
And then remove the 2 pivot pins.
SST 09910-00015 (09911-00011, 09912-00010)
Reference
Plate washer A (18 mm): 90562 - 04012
Plate washer B (36 mm): 90201 - 10201
Screw: 90154 - 40015
- Remove the steering column housing with the main shaft assembly from the column tube assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: Do not bend the universal joint of the main shaft assembly more than 20°. - Remove the housing support, tilt spring and spring guide from the steering column.
- Set SST, plate washer (18 and 36 mm outer diameter) and screw (4.0 mm diameter, 0.7 mm pitch, 15.0 mm length), as shown in the illustration.
- Remove Steering Column Housing Support
- Remove the 4 torx bolts and steering column housing support.
- Remove the 2 tilt No. 1 stoppers.
- Remove Lower Shaft Bushing And Lower Shaft Adapter

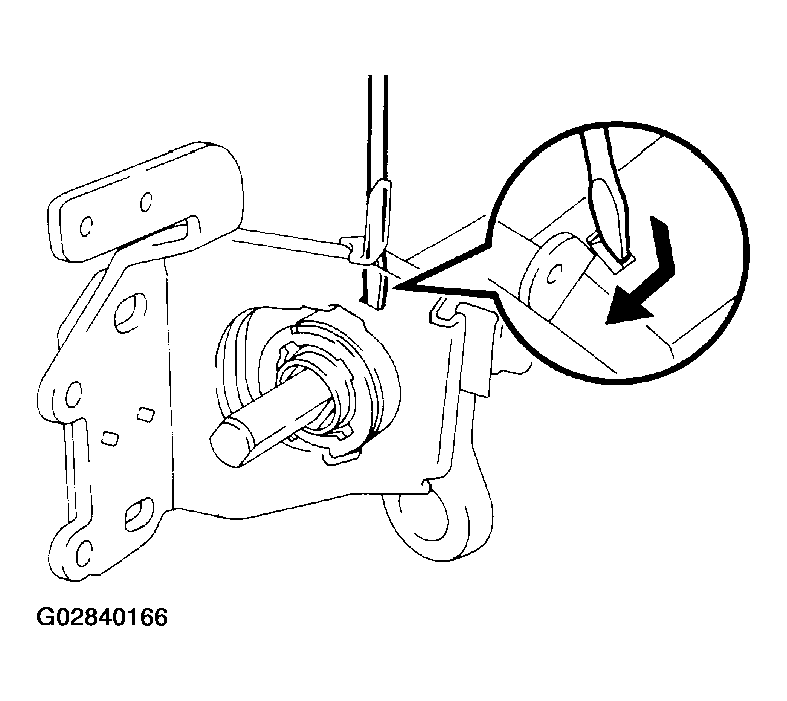

Using a screwdriver, remove the lower shaft bushing and lower shaft adapter from the column tube assembly.
- Remove Main Shaft Assembly
- Install SST to the main shaft assembly, as shown in the illustration.
SST 09612-07010
- Using SST, compress the compression spring.NOTE: Do not bend the universal joint of the main shaft assembly more than 20°.NOTE: Hold the main shaft assembly with your hand so that it does not rotate.

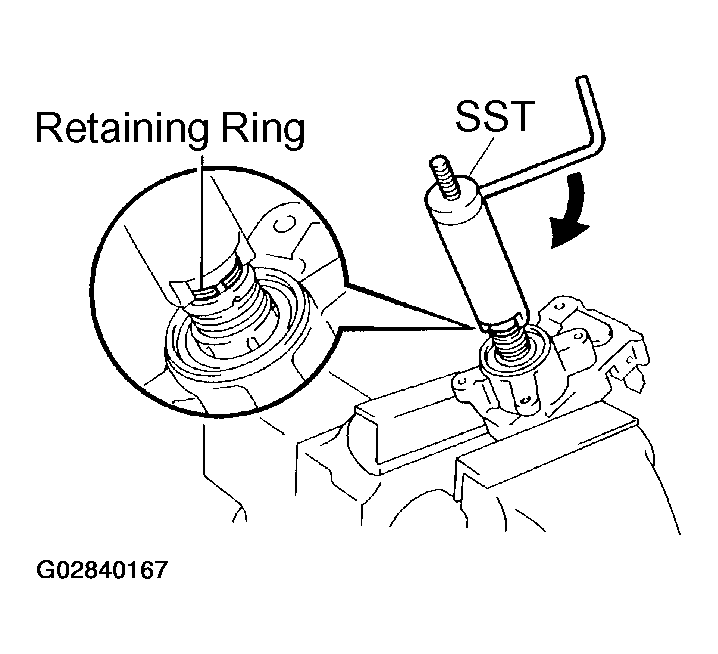

- Using a screwdriver, remove the retaining ring.
- Remove the spring retainer, compression spring, upper bearing inner race seat and inner race.
- Install SST to the main shaft assembly, as shown in the illustration.
- Remove Tilt Lever
Remove the tilt lever lock shaft and tilt lever.
