Rear Wheel Alignment: Inspection

Measure Vehicle Height (See INSPECTION )
NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specification.
Inspect Camber

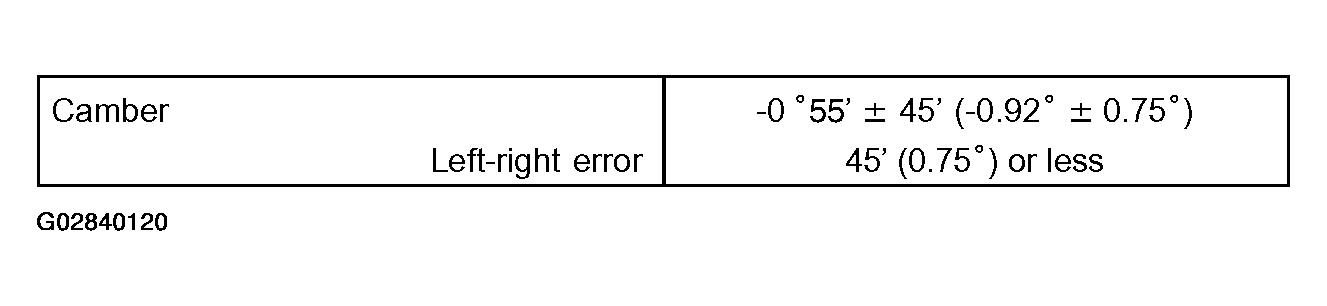

Fig 1: Camber Specifications Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Camber is not adjustable. If the measurement is not within the specifications, inspect the suspension parts for damaged and/or worn-out and replace them if necessary.
Inspect Toe-In

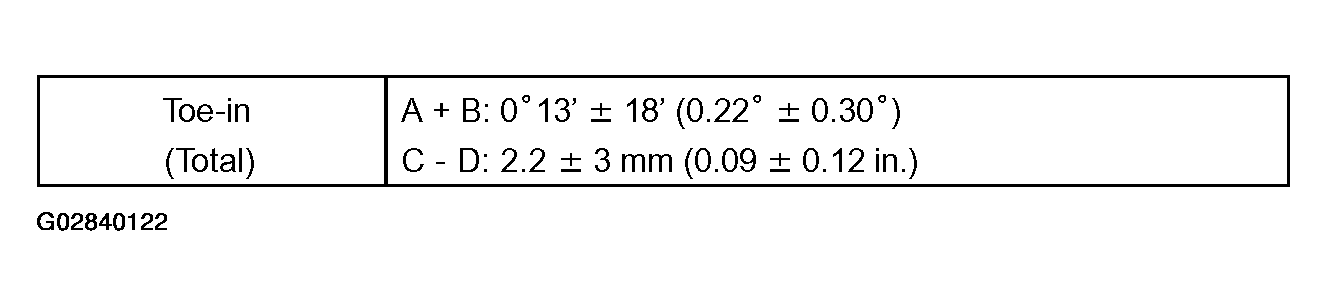

Fig 2: Toe-In Specifications Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

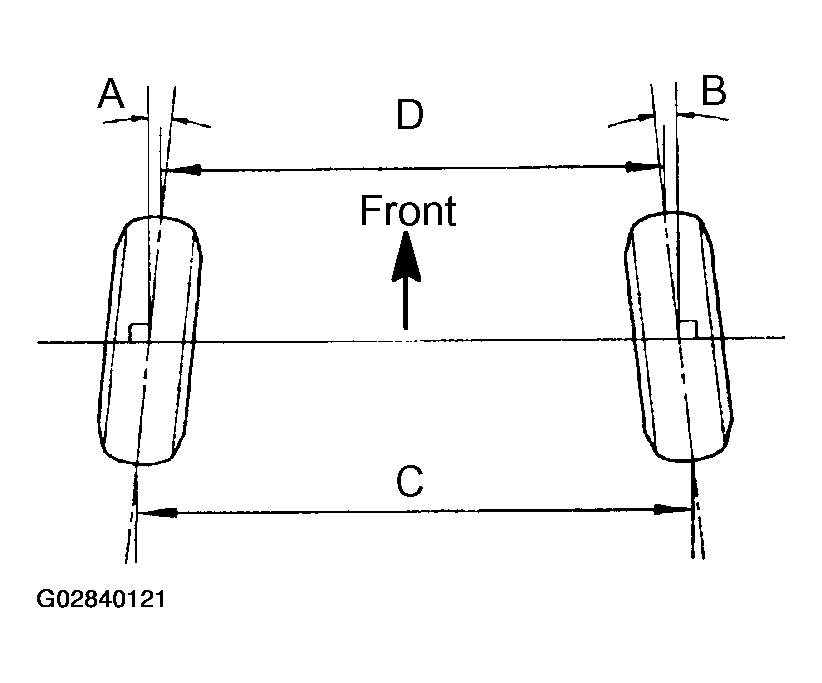

Fig 3: Inspecting Toe-In
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the toe-in is not within the specification, inspect and replace the suspension parts as necessary.
