Power Mirror Control System: Inspection
- Leftside:

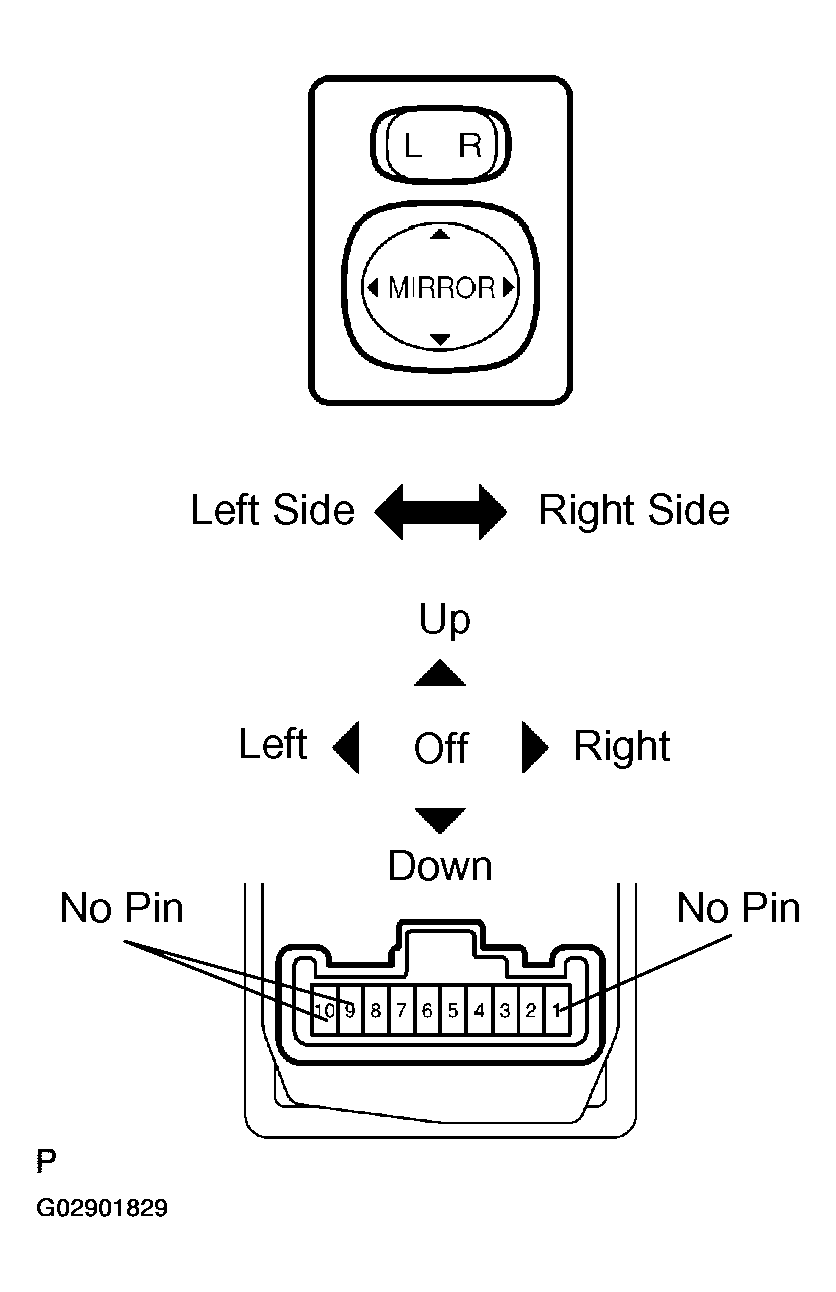

- INSPECT MIRROR SWITCH CONTINUITY
MIRROR SWITCH CONTINUITY - LEFT SIDESwitch Position Tester Connection Specified Condition OFF ..... No Continuity UP 4 -8, 7 - 6 Continuity DOWN 4 - 7, 6 - 8 Continuity LEFT 5 -8, 7 - 6 Continuity RIGHT 5 - 7, 6 - 8 Continuity If the continuity is not as specified.
- Right side:
- INSPECT MIRROR SWITCH CONTINUITY
MIRROR SWITCH CONTINUITY - RIGHT SIDESwitch Position Tester Connection Specified Condition OFF ..... No Continuity UP 3 -8, 7 - 6 Continuity DOWN 3 - 7, 6 - 8 Continuity LEFT 5 -8, 7 - 6 Continuity RIGHT 5 - 7, 6 - 8 Continuity If the continuity is not as specified, replace the switch.
- 2UZ-FE:

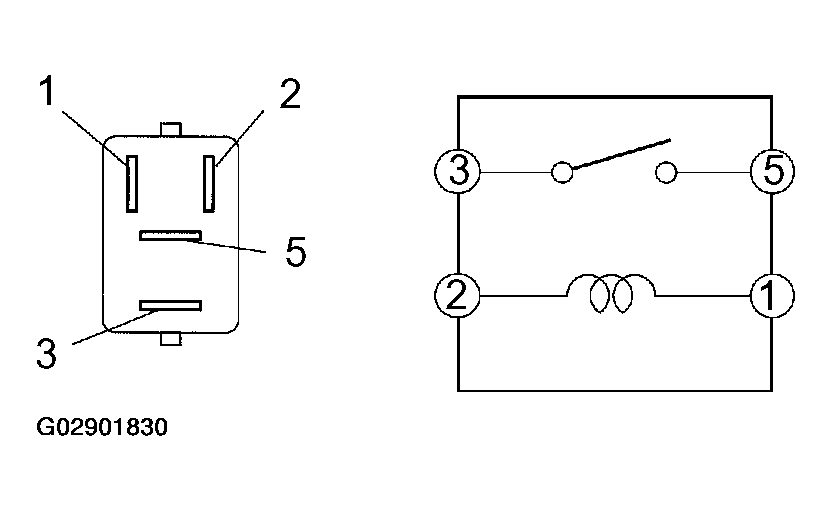

- INSPECT ACC CUT RELAY CONTINUITY
ACC CUT RELAY CONTINUITY - 2UZ-FECondition Tester Connection Specified Condition Constant 1 - 2 Continuity Apply B+ Between Terminals 1 And 2 3 - 5 Continuity If the continuity is not as specified, replace the relay.
- INSPECT MIRROR MOTOR OPERATION

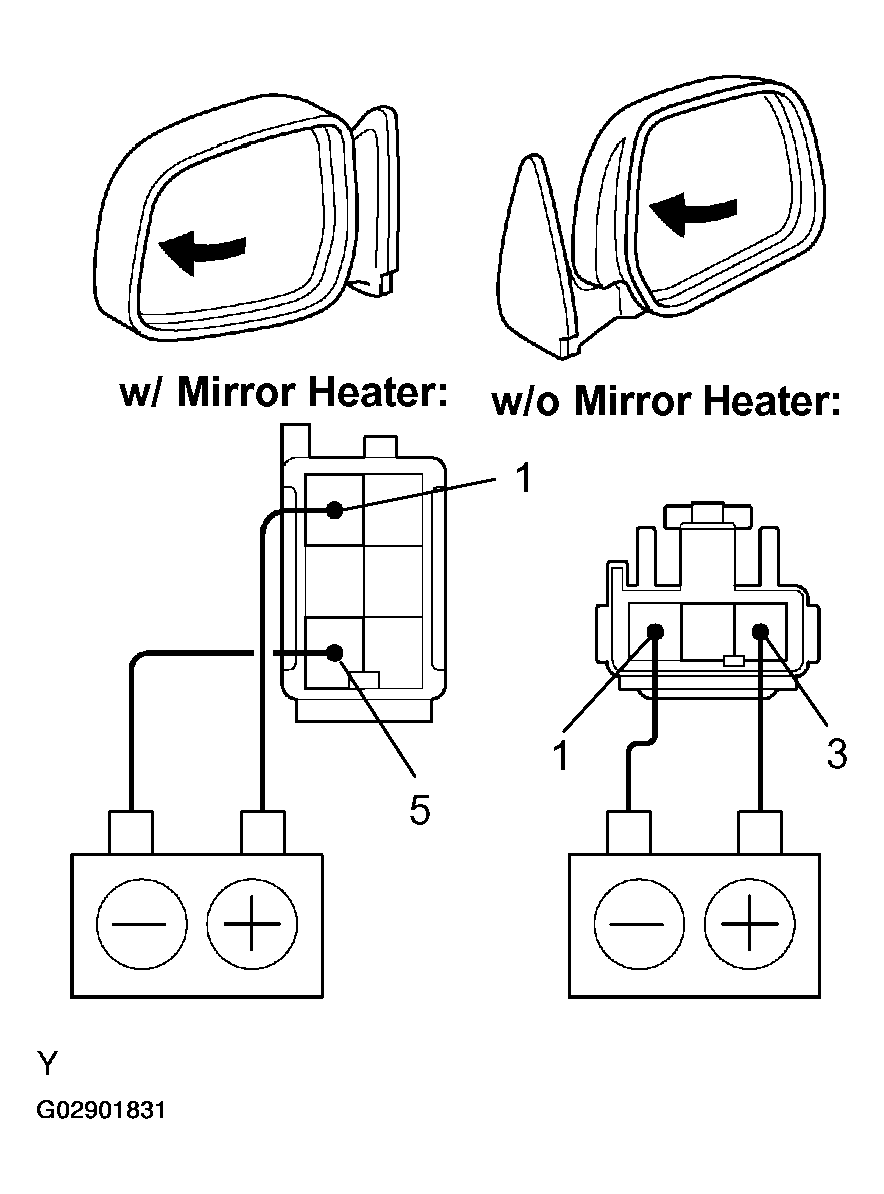

- Connect the positive (+) lead from the battery to terminal 1 (3) and the negative (-) lead to terminal 5 (1). Check that the mirror turns left.
(*): w/o Mirror heater.

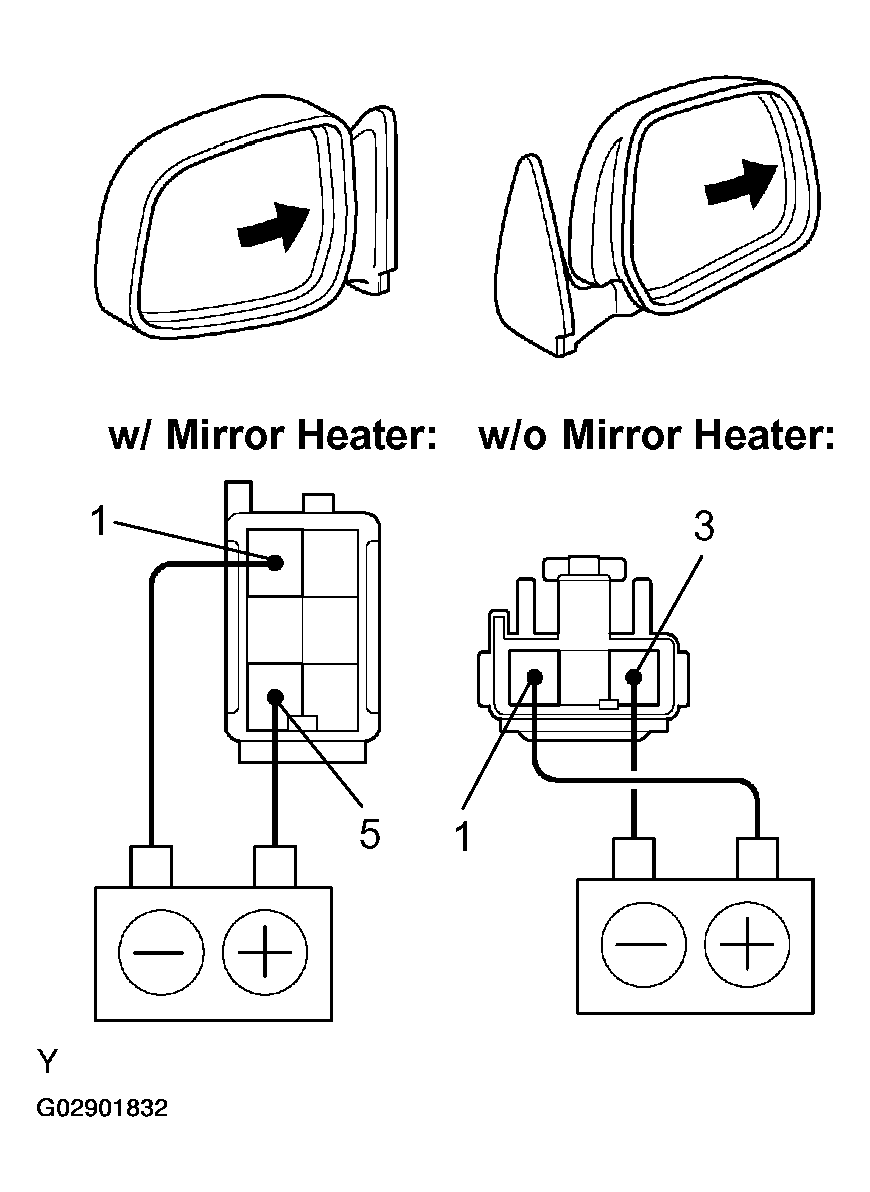

- Reverse the polarity, check that the mirror turns right.

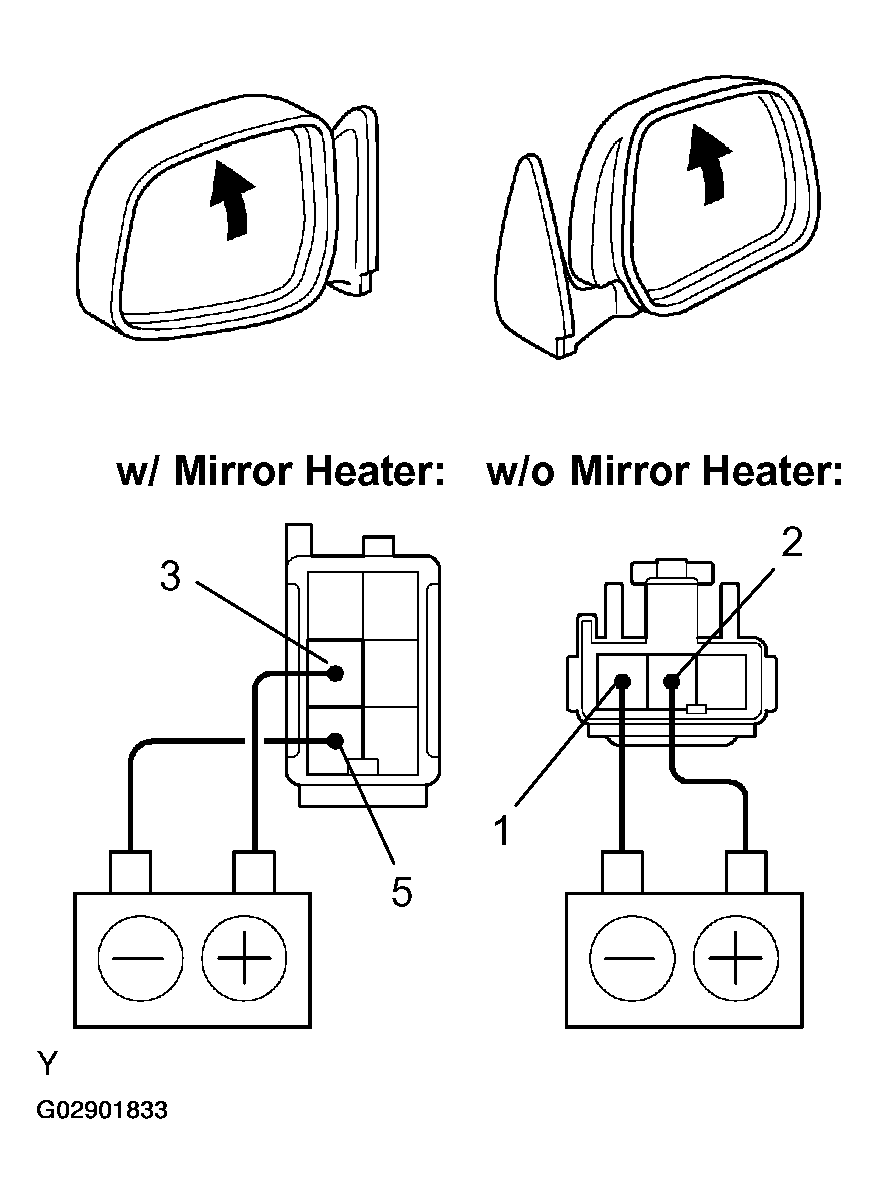

- Connect the positive (+) lead from the battery to terminal 3 (2) and the negative (-) lead to terminal 5 (1). Check that the mirror turns upward.
(*): w/o Mirror heater.

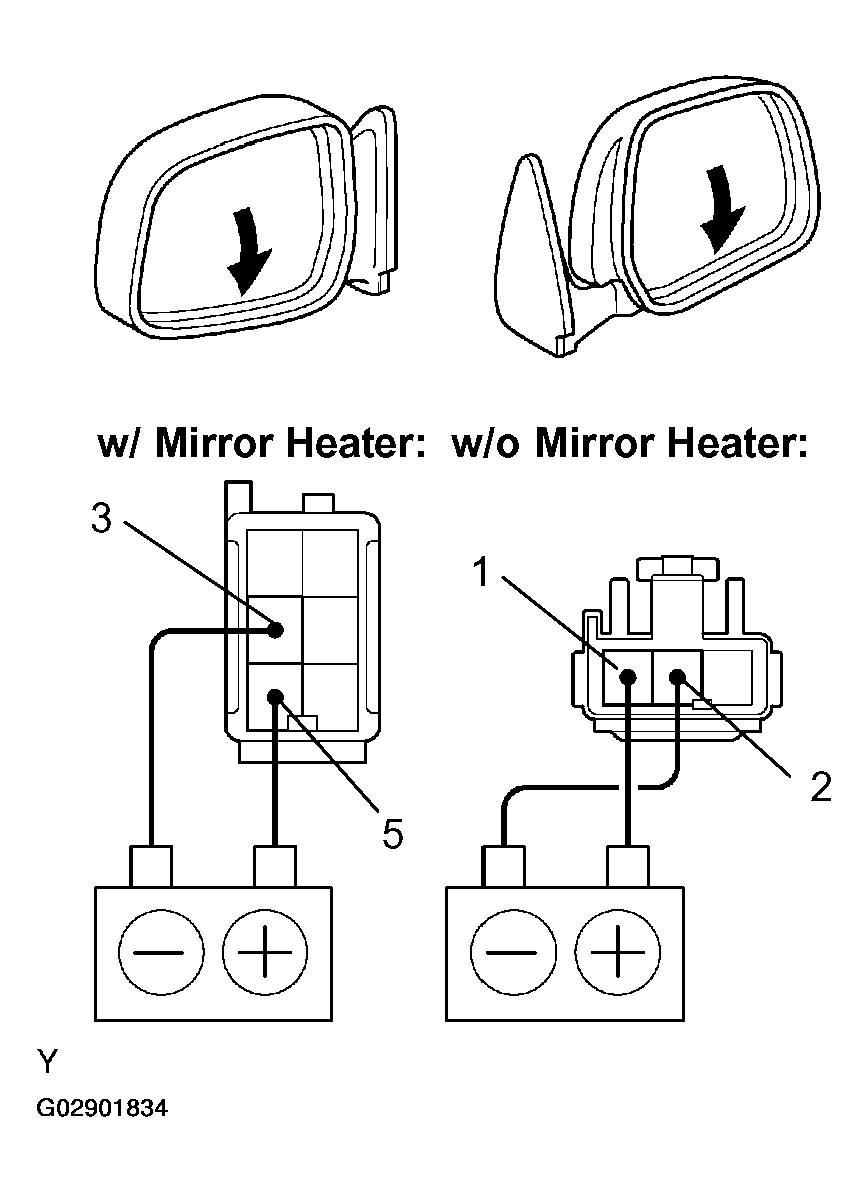

- Reverse the polarity, check that the mirror turns downward.
If the operation is not as specified, replace the mirror assembly.
- Connect the positive (+) lead from the battery to terminal 1 (3) and the negative (-) lead to terminal 5 (1). Check that the mirror turns left.
