Home >> Toyota >> 2003 >> Tundra Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Back Window Glass >> Components

Back Window Glass: Components

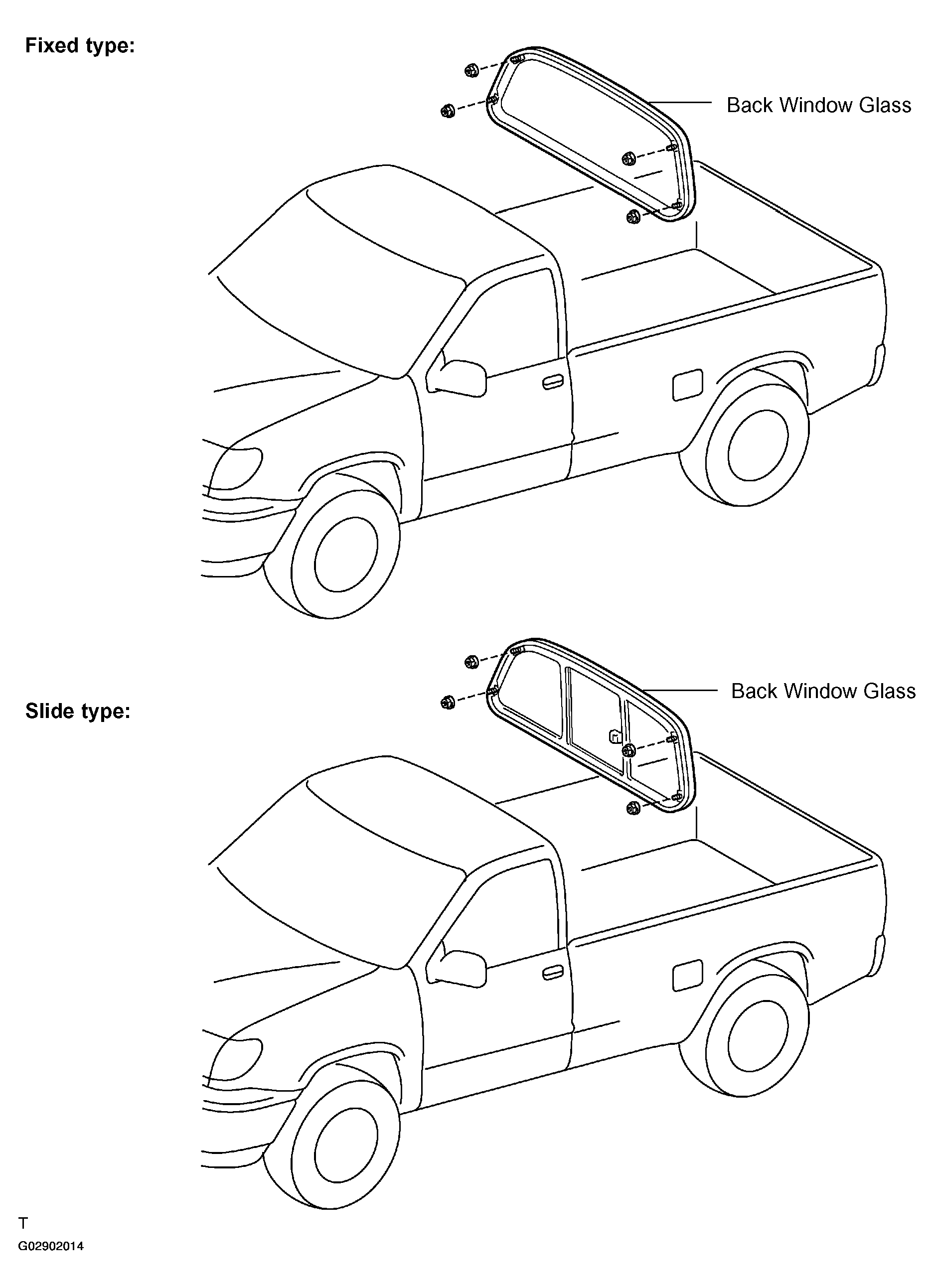

Fig 1: Locating Back Window Components (1 Of 2)
G02902014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

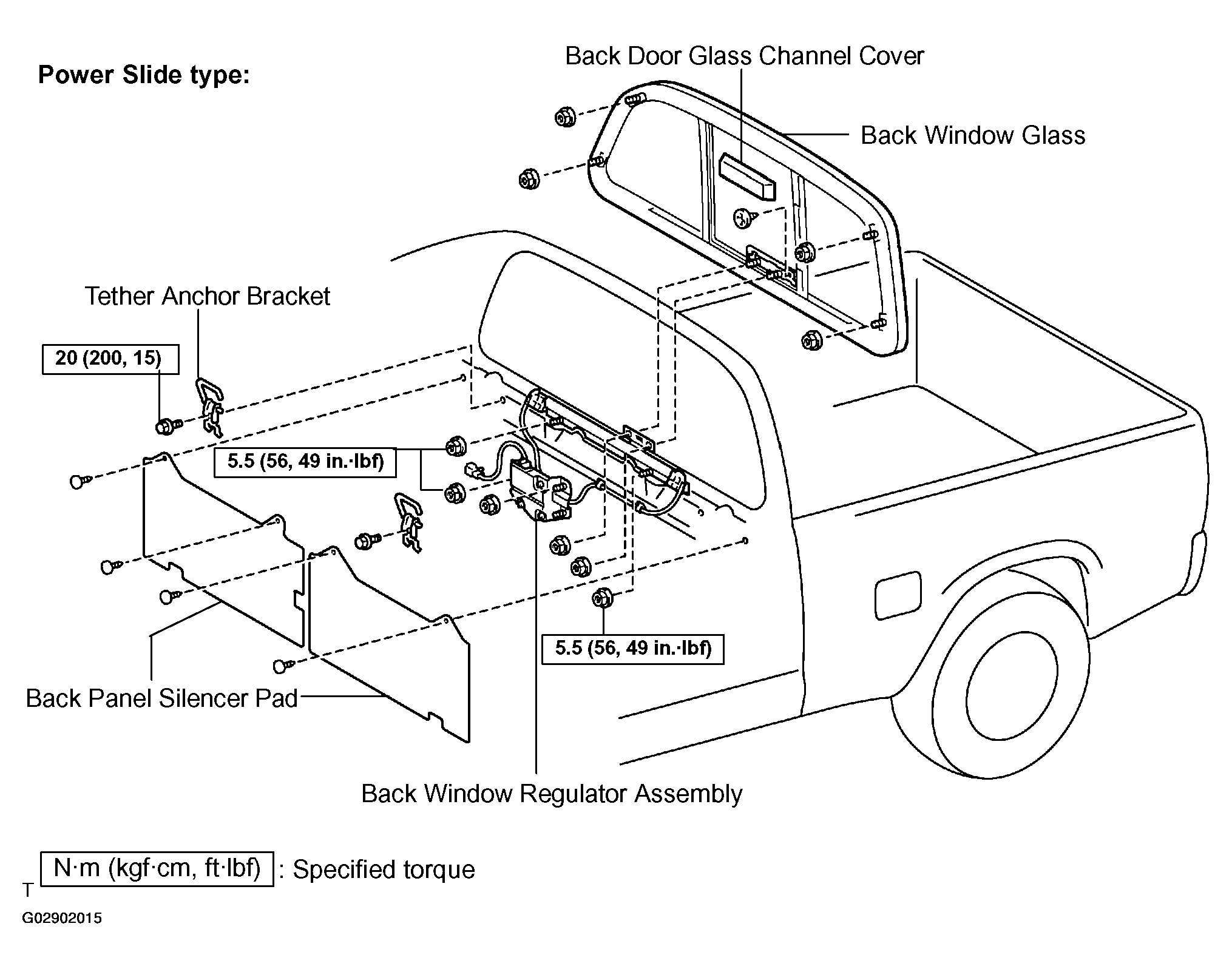

Fig 2: Locating Back Window Components (2 Of 2)
G02902015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
