Body & Frame: Windows: Windshield: Removal

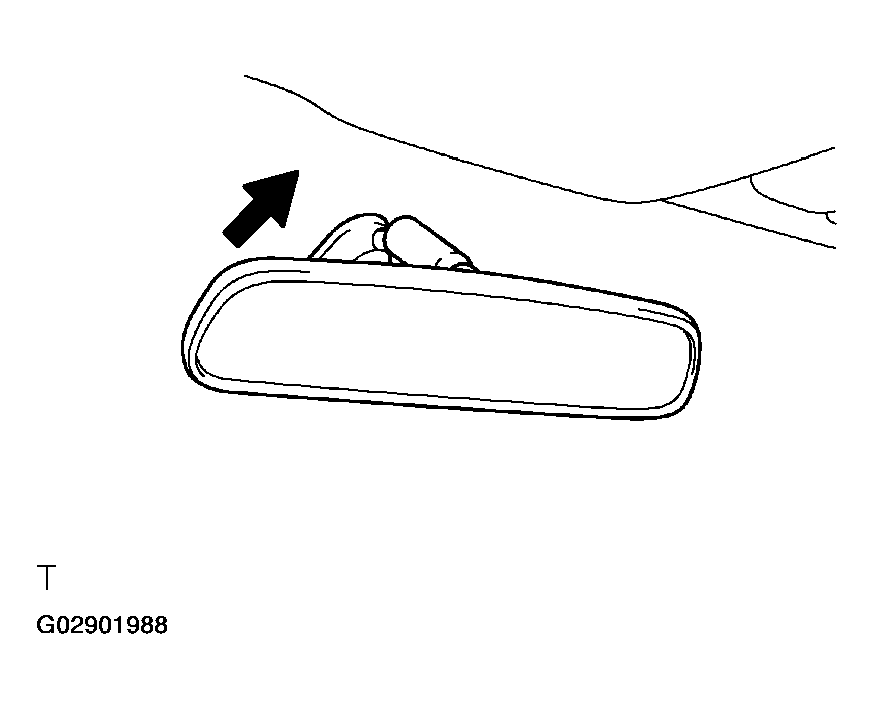

Remove the inner rear view mirror as shown in the illustration.

Fig 1: Removing Inner Rear View Mirror

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

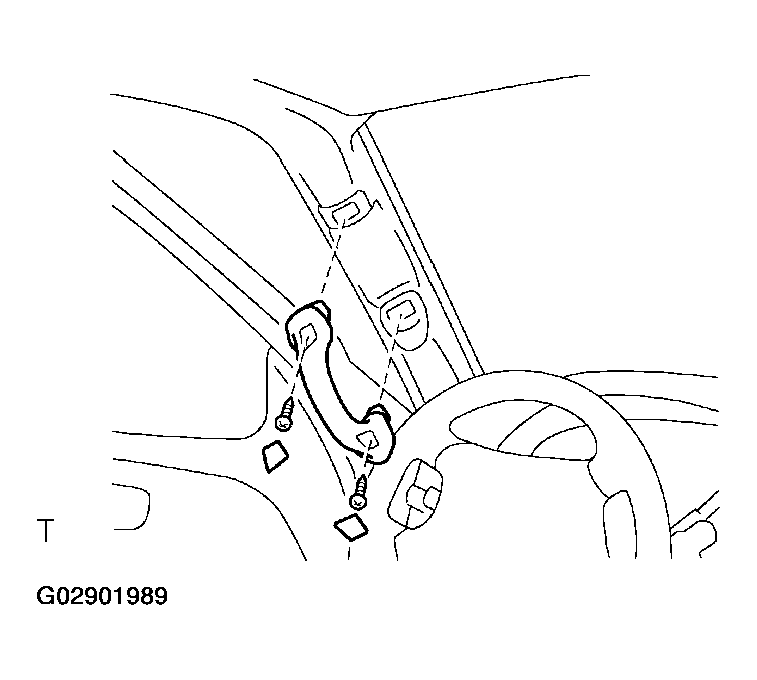

Fig 2: Removing Assist Grips

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, remove the caps.
   NOTE: Tape the screwdriver tip before use.
2. Driver's side:
   1. Using a torx driver, remove the 2 torx screws and assist grip.
   2. Torx driver: T30 (Part No.09041- 00030 or locally manufactured tool)
3. Passenger's side:
   1. Using a torx driver, remove the 4 torx screws and 2 assist grips.
   2. Torx driver: T30 (Part No.09041- 00030 or locally manufactured tool)
4. REMOVE FRONT PILLAR GARNISH

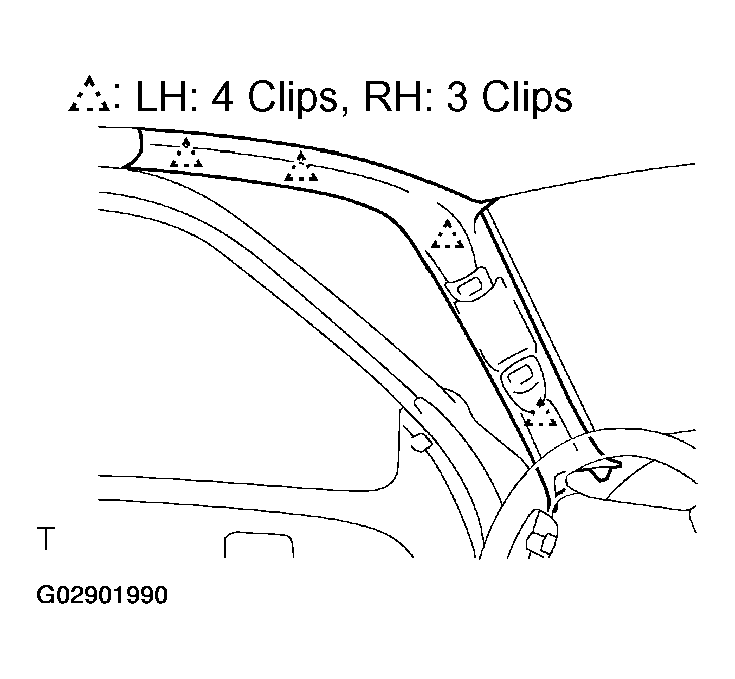

   Fig 3: Removing Front Pillar Garnish

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Using a screwdriver, remove the front pillar garnish.
      NOTE: Tape the screwdriver tip before use.
   2. Employ the same manner described above to the other side.
5. REMOVE SUN VISORS
   1. Remove the 4 screws and 2 sun visors.
   2. w/ Light:
      1. Disconnect the connector.
6. REMOVE SUB-VISORS

   Remove the 4 screws and 2 sub-visors.

7. REMOVE FRONT PERSONAL LIGHT

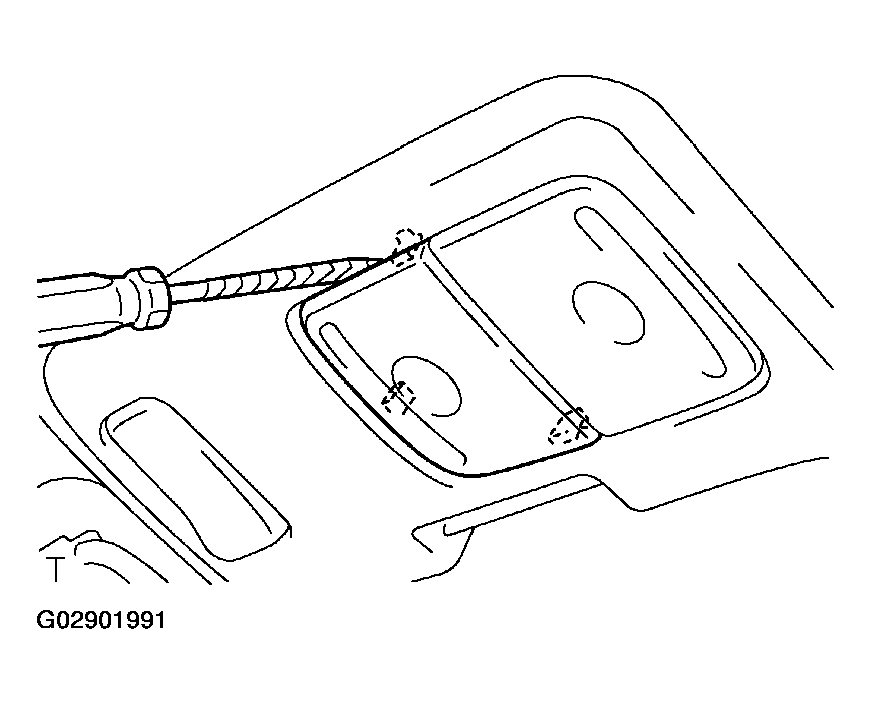

   Fig 4: Removing Front Personal Light

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Using a screwdriver, remove the left side lens.
      NOTE: Tape the screwdriver tip before use.

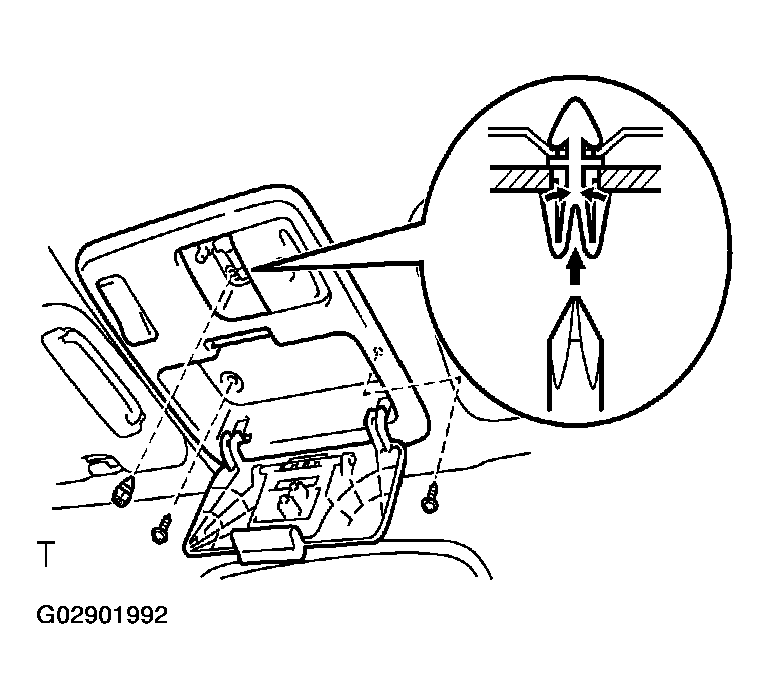

   2. Remove the 2 screws.
   3. Using a screwdriver, rotate the clip by 90° and remove it.
      NOTE: Tape the screwdriver tip before use.
   4. Remove the front personal light, then disconnect the connector.
8. REMOVE SUN VISOR HOLDERS
   Fig 5: Removing Sun Visor Holders

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove the 2 screws and 2 sun visor holders.

9. REMOVE FRONT PART OF ROOF HEADLINING
10. REMOVE WIPER ARMS
    1. Using a screwdriver, remove the 2 caps.
       NOTE: Tape the screwdriver tip before use.
    2. Remove the 2 nuts and wiper arms.
11. REMOVE COWL LOUVER

    Remove the 8 screws, 6 clips and cowl louver.

12. REMOVE FRONT PART OF ROOF SIDE RAIL WEATHERSTRIP LH AND RH

    Pull the front part of roof side rail weatherstrip LH and RH to remove it.

13. REMOVE WINDSHIELD OUTSIDE MOULDING
    1. Remove the 4 screws and windshield outside moulding.
    Fig 6: Removing Windshield Outside Moulding
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Employ the same manner described above to the other side.
14. REMOVE WINDSHIELD OUTSIDE UPPER MOULDING

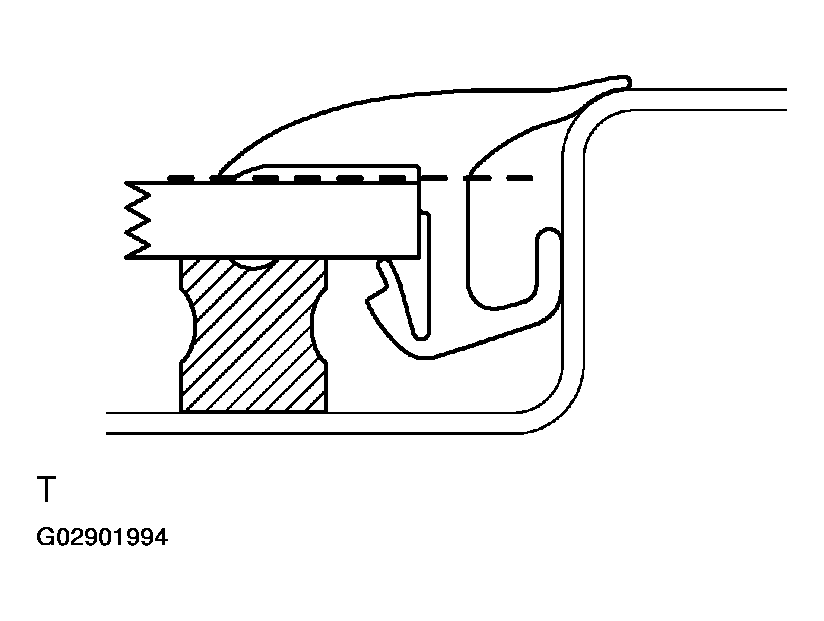

    1. Using a knife, cut off the moulding as shown in the illustration.
       NOTE: Do not damage the body with the knife.
    2. Remove the remaining moulding.
    Fig 7: Removing Remaining Moulding

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. REMOVE WINDSHIELD GLASS
    Fig 8: Removing Windshield Glass

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

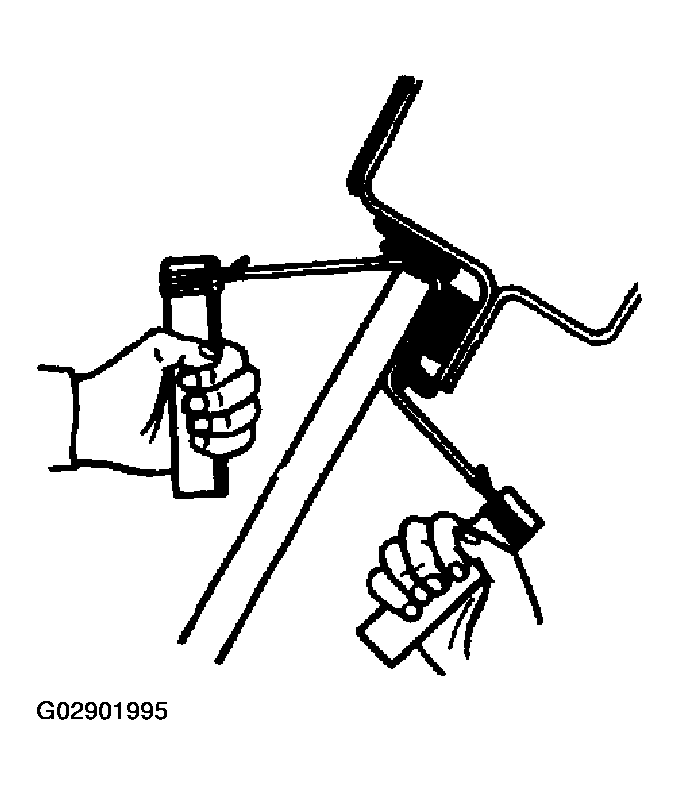

    1. Push piano wire through between the body and glass from the interior.
    2. Tie both wire ends to wooden blocks or similar objects.
       NOTE: Apply protective tape to the outer surface to keep the surface from being scratched.
       Fig 9: Identifying Front Glass

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       NOTE: When separating the glass, take care not to damage the paint and exterior ornaments. To prevent scratching the safety pad when removing the windshield, place a plastic sheet between the piano wire and safety pad.

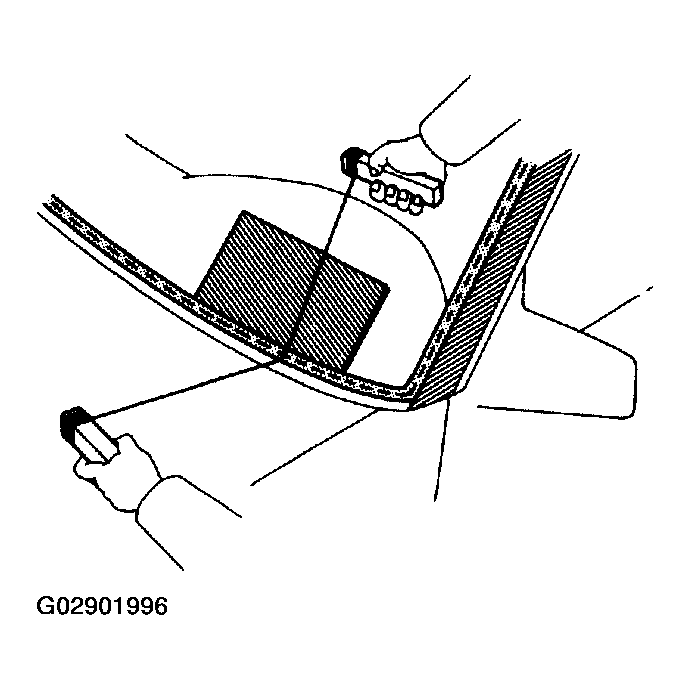

    3. Cut the adhesive by pulling the piano wire around it.
    4. Remove the glass.
       NOTE: Leave as much of the adhesive on the body as possible when cutting off the glass.
