Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

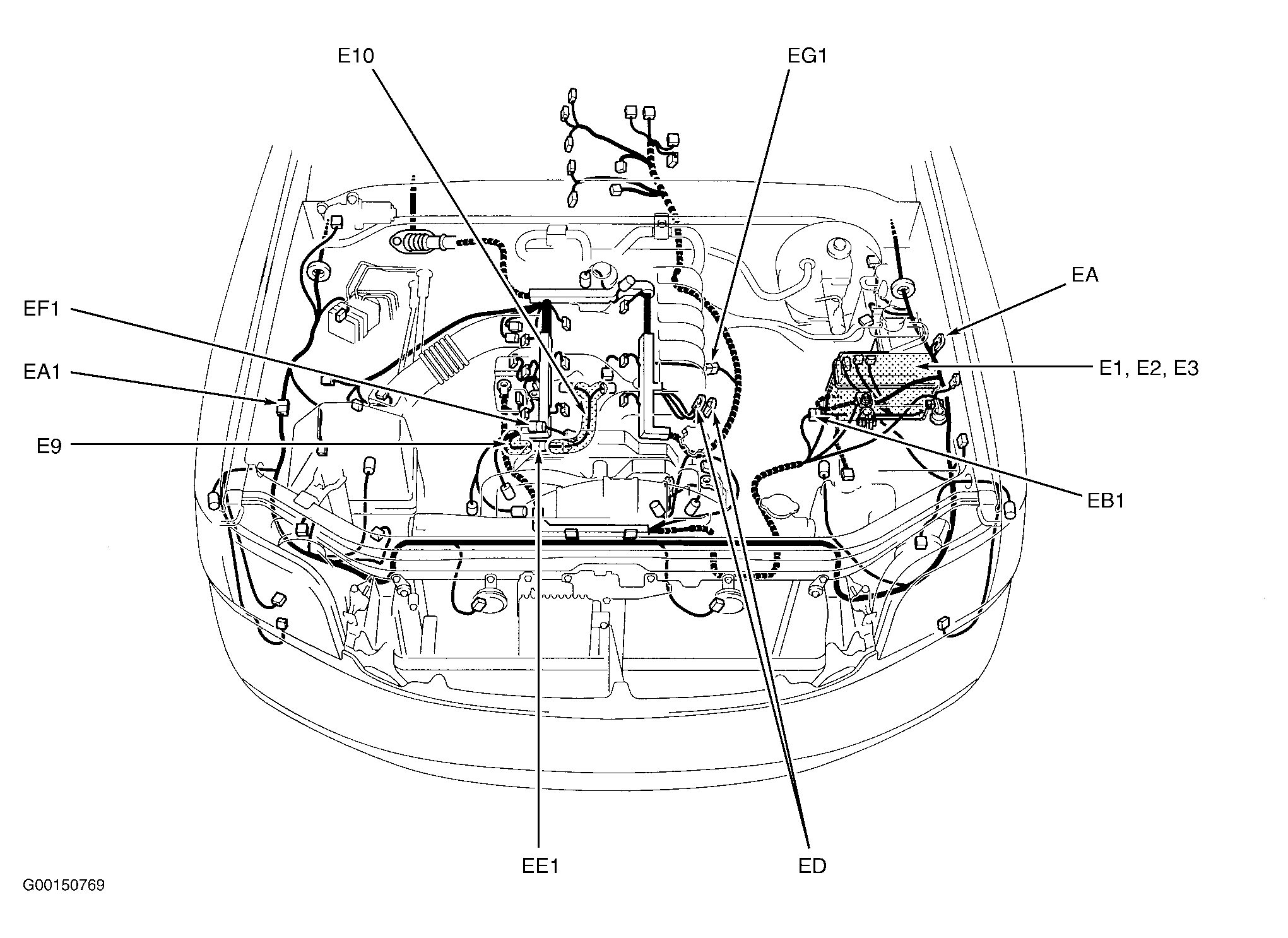

Fig 1: Engine Compartment (3.4L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

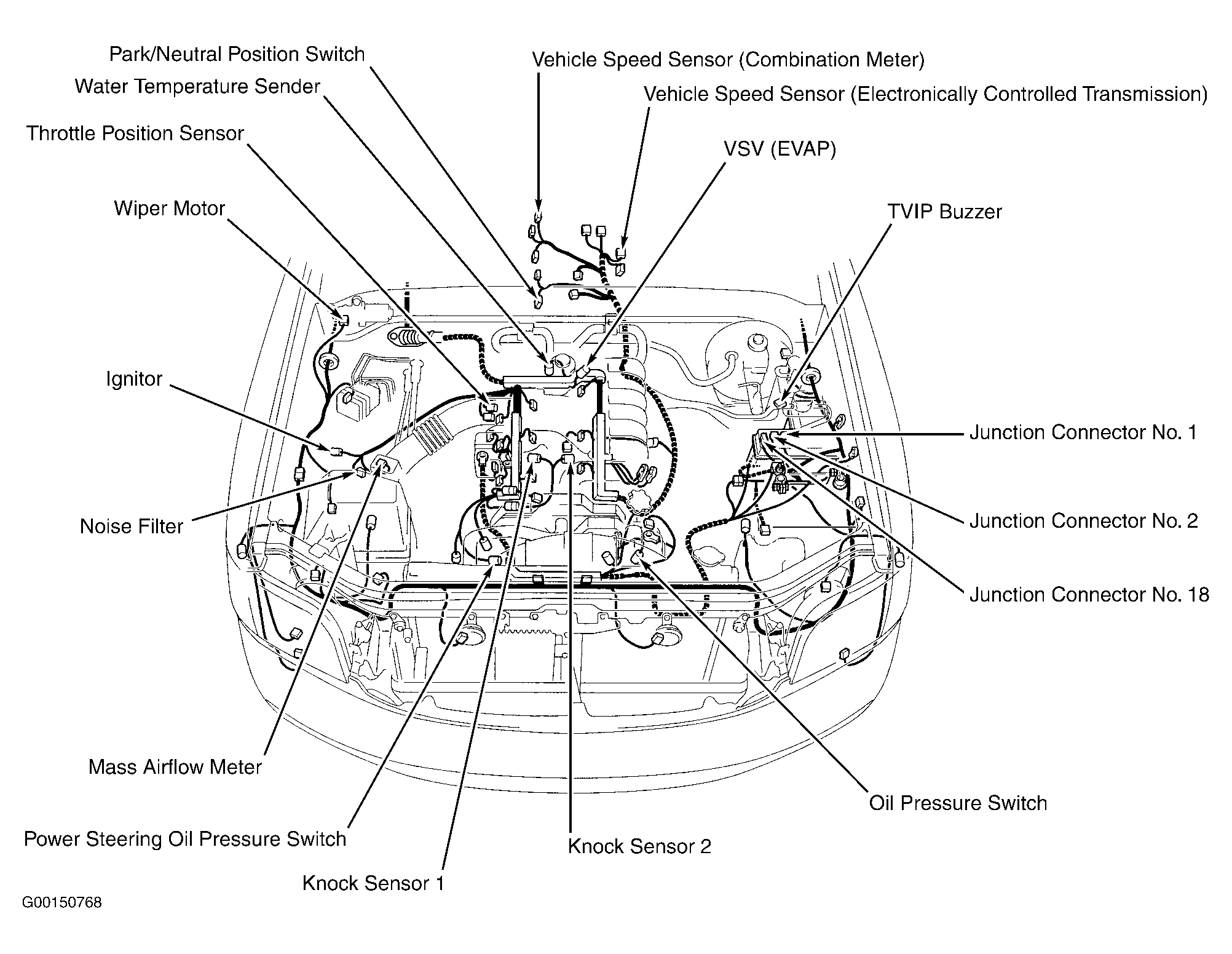

Fig 2: Engine Compartment (3.4L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Compartment (3.4L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

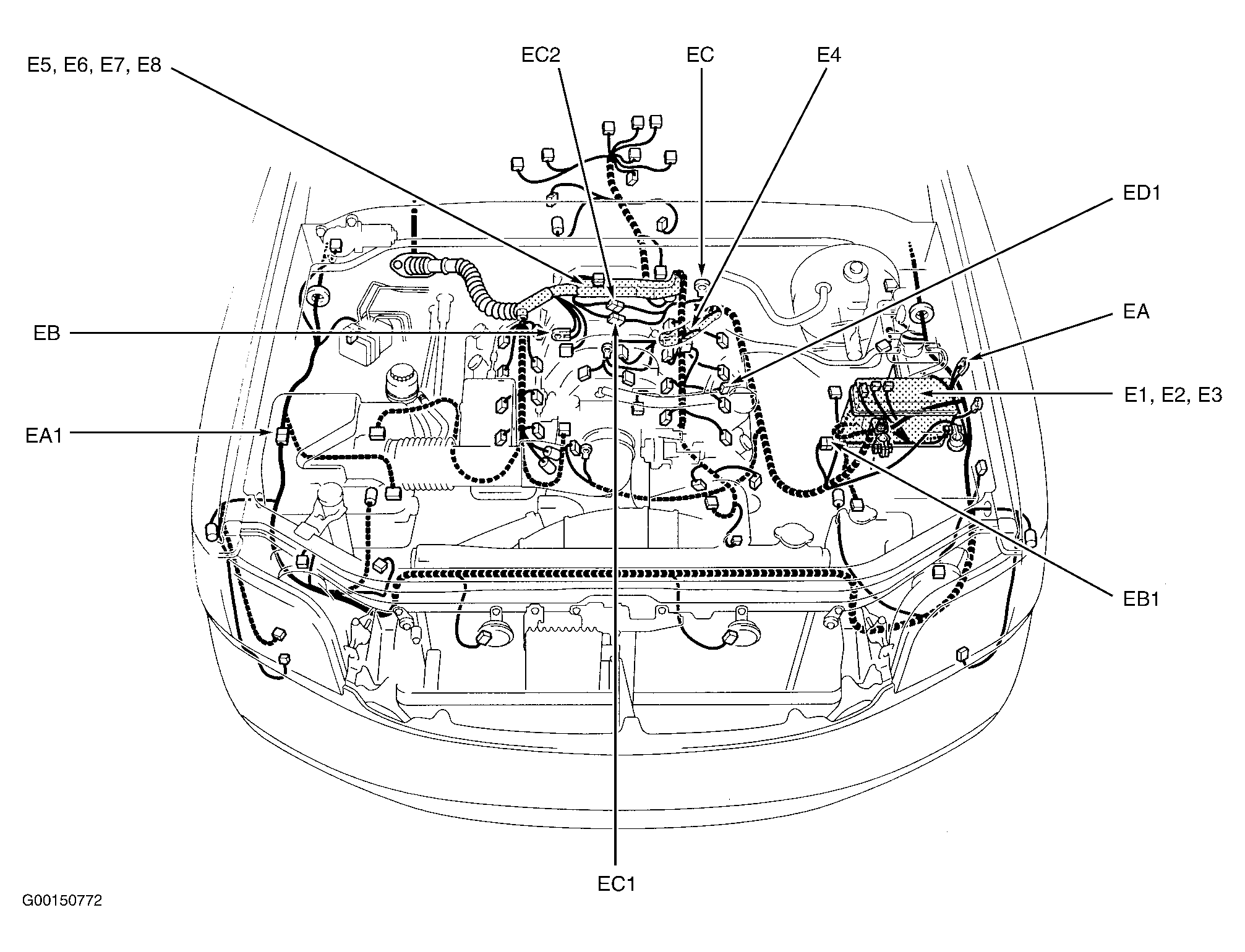

Fig 4: Engine Compartment (4.7L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Engine Compartment (4.7L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Engine Compartment (4.7L)

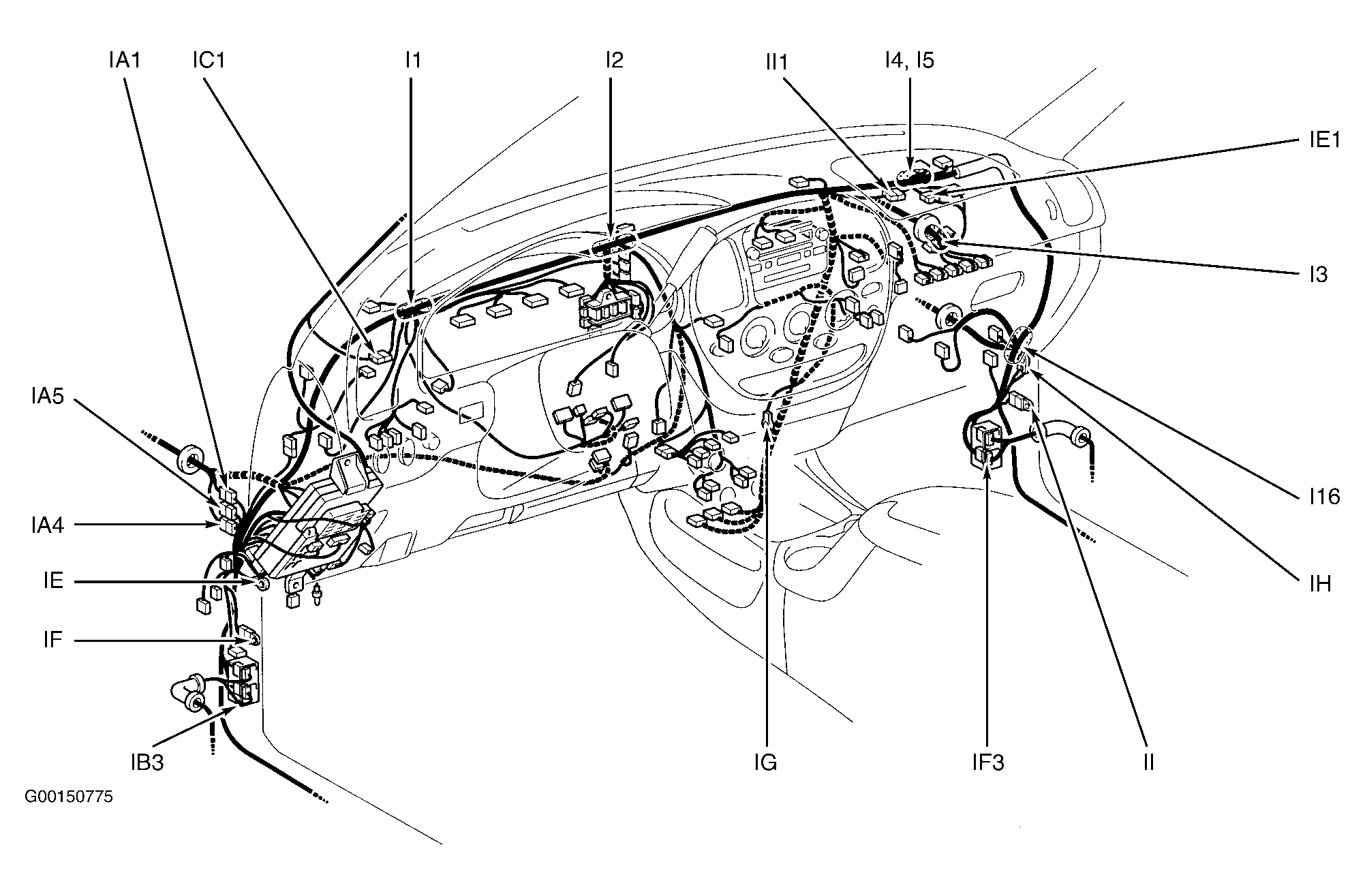

Fig 7: Dash

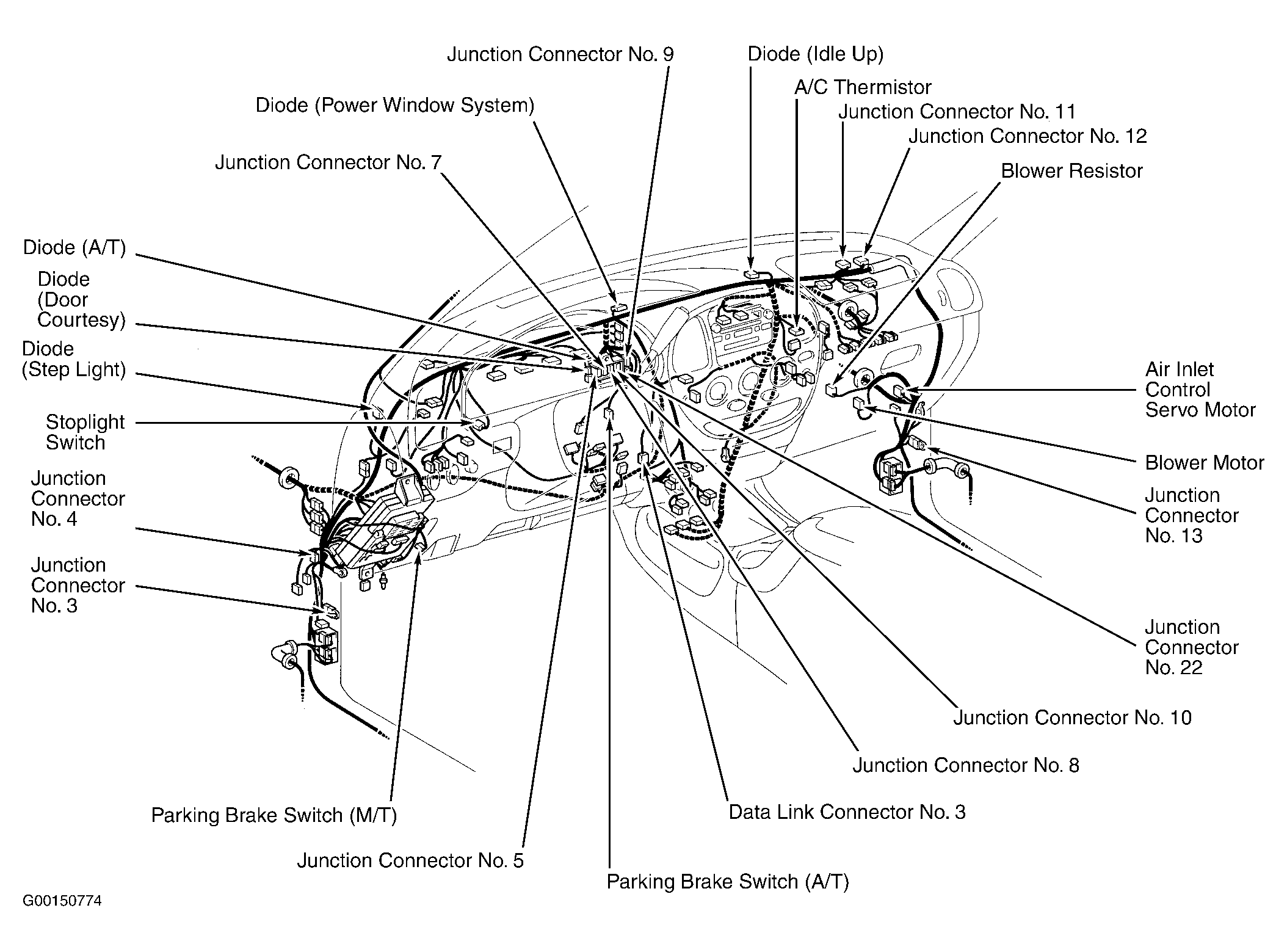

Fig 8: Dash

Fig 9: Dash
