Instrument Panel: Components

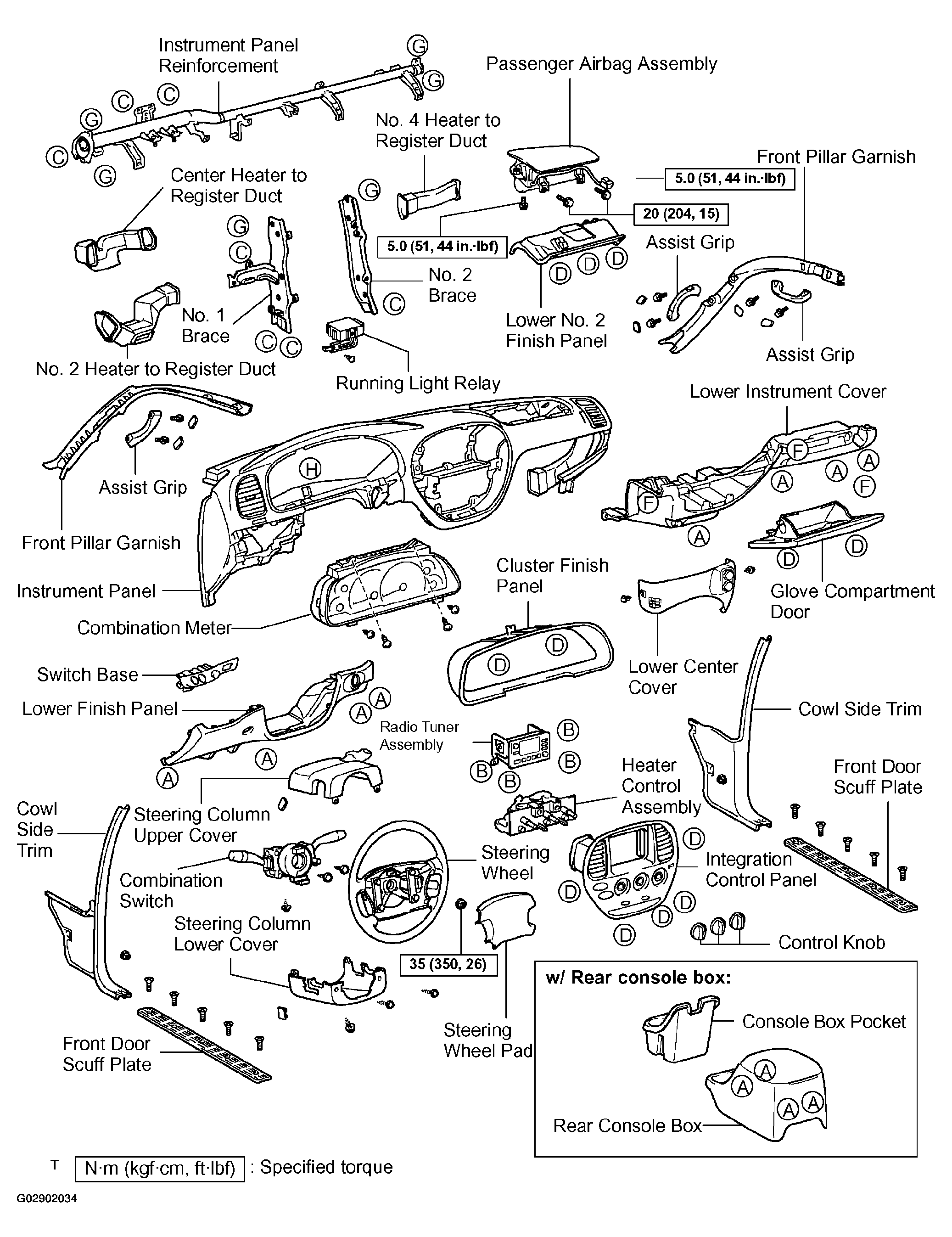

Fig 1: Exploded View Of Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

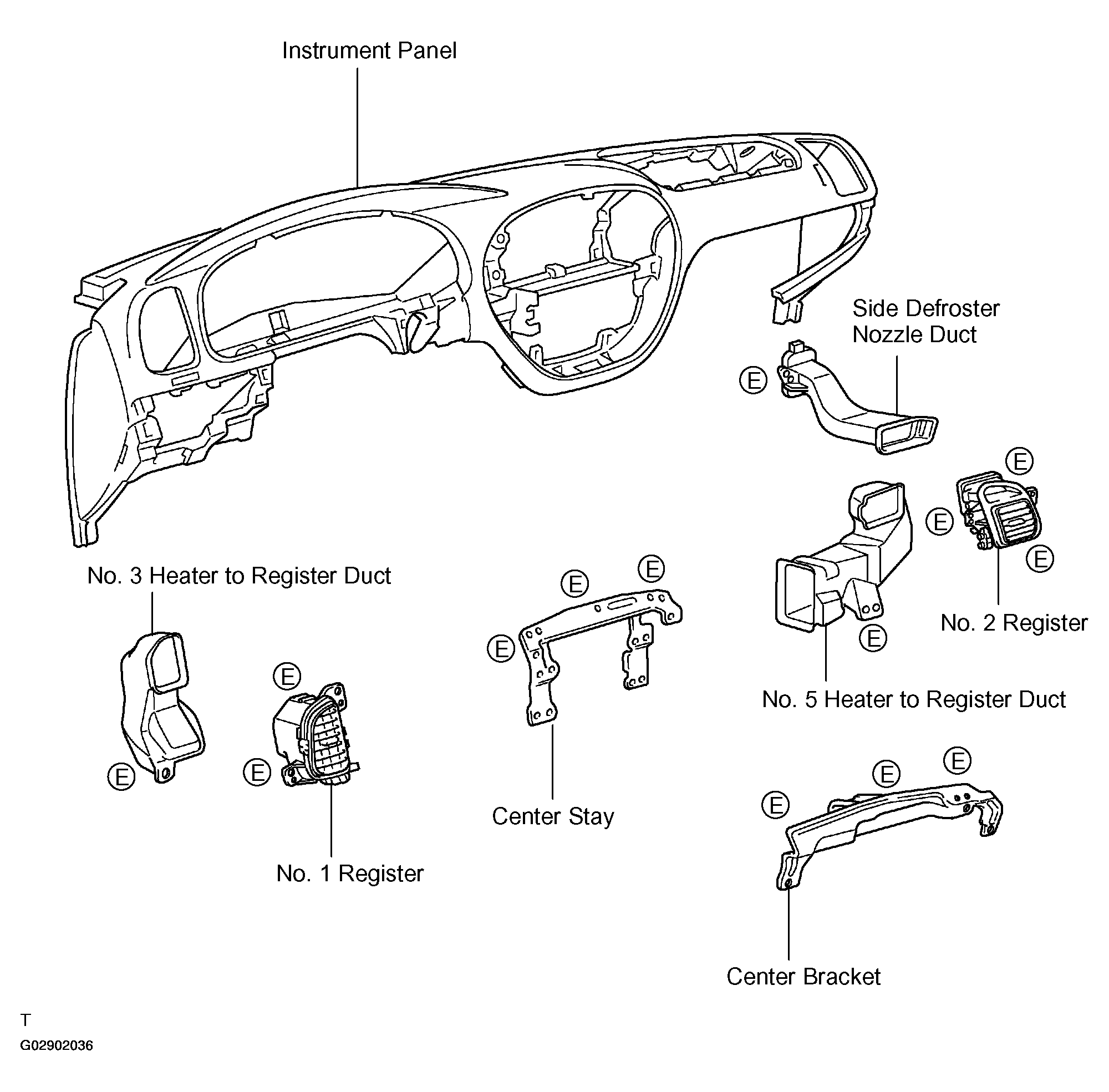

Fig 2: Exploded View Of Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

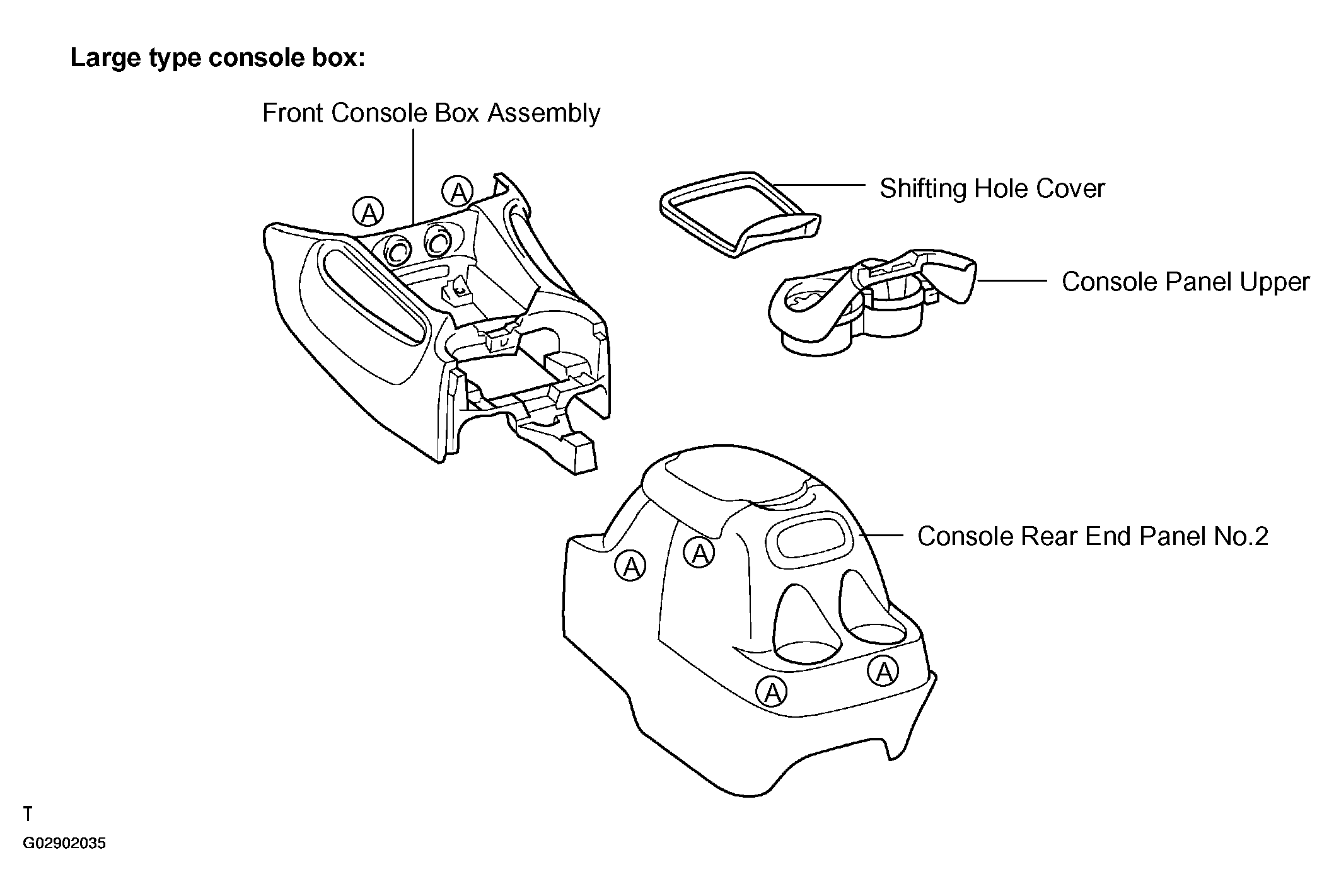

Fig 3: Exploded View Of Components (3 Of 3)

NOTE: The shapes and sizes of the screws, bolts and nuts are indicated in the table below. The codes (A-H) correspond to those indicated in Fig 1-Fig 3 .

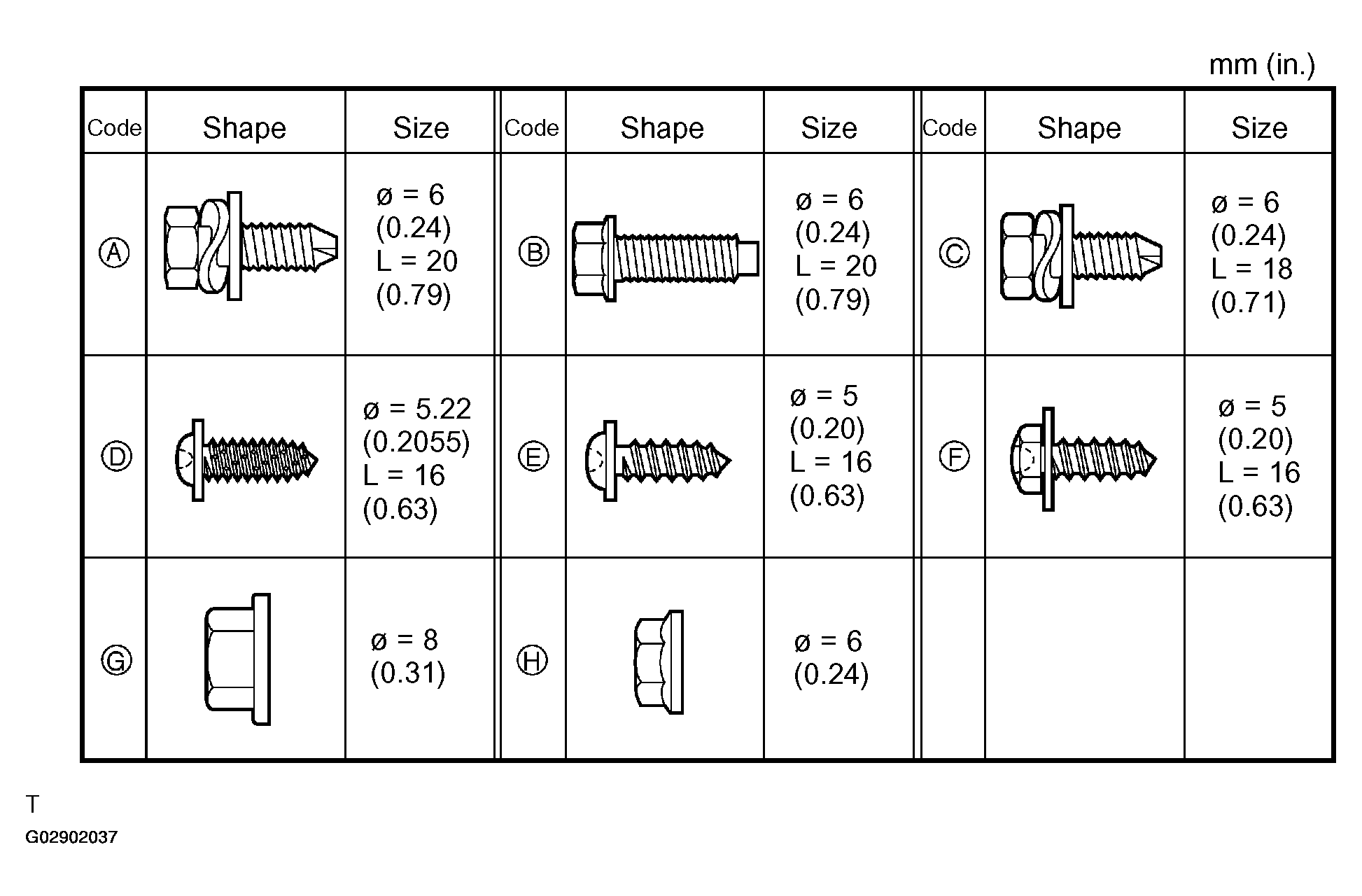

Fig 4: Different Sizes Of Screws Of Instrument Panel
