Home >> Toyota >> 2003 >> Tundra Base, Automatic >> Repair and Diagnosis >> Steering >> Steering Column >> Steering Column Shift Assembly >> Components

Steering Column Shift Assembly: Components

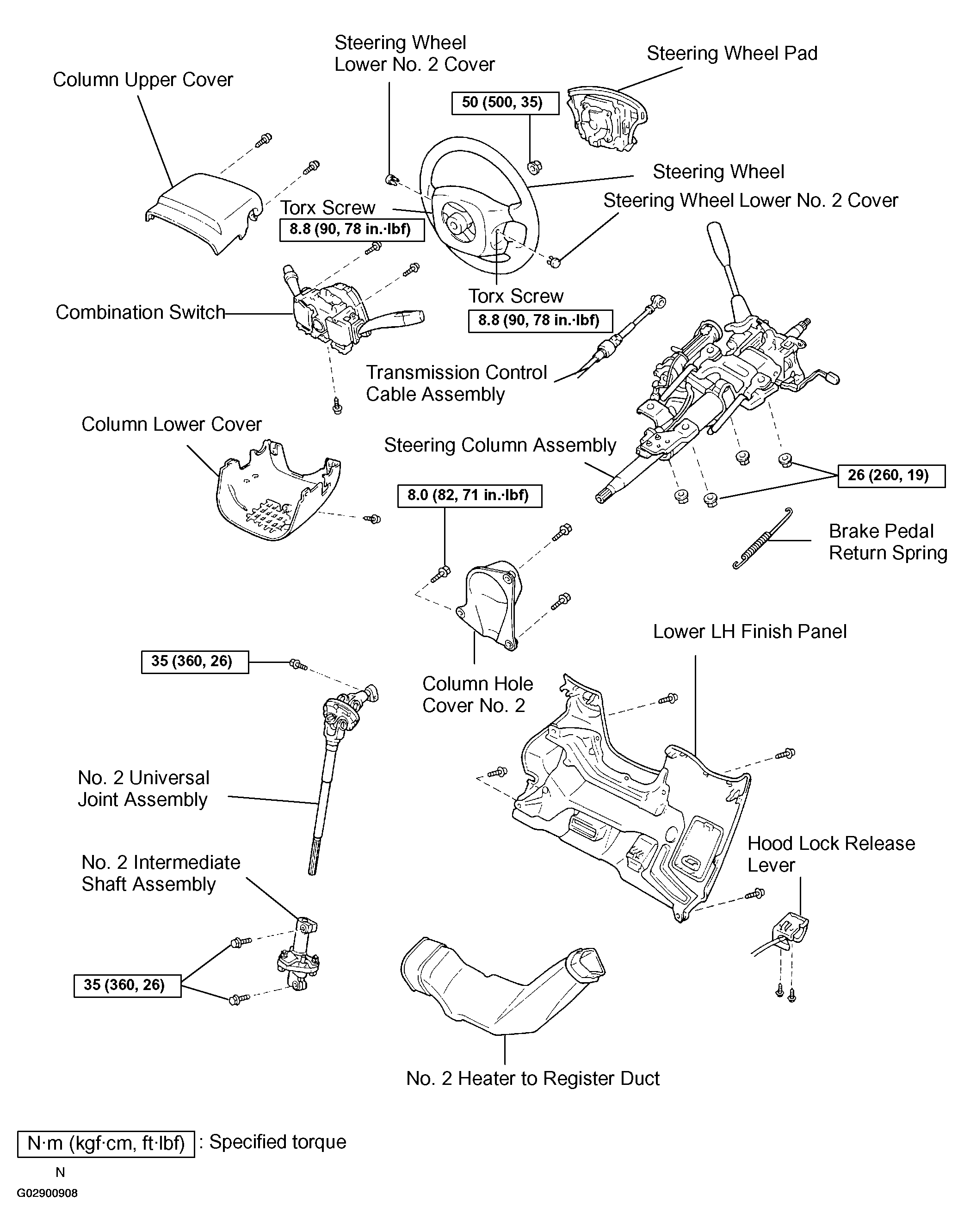

Fig 1: Exploded View Of Column Shift Assembly Components (1 Of 2)
G02900908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

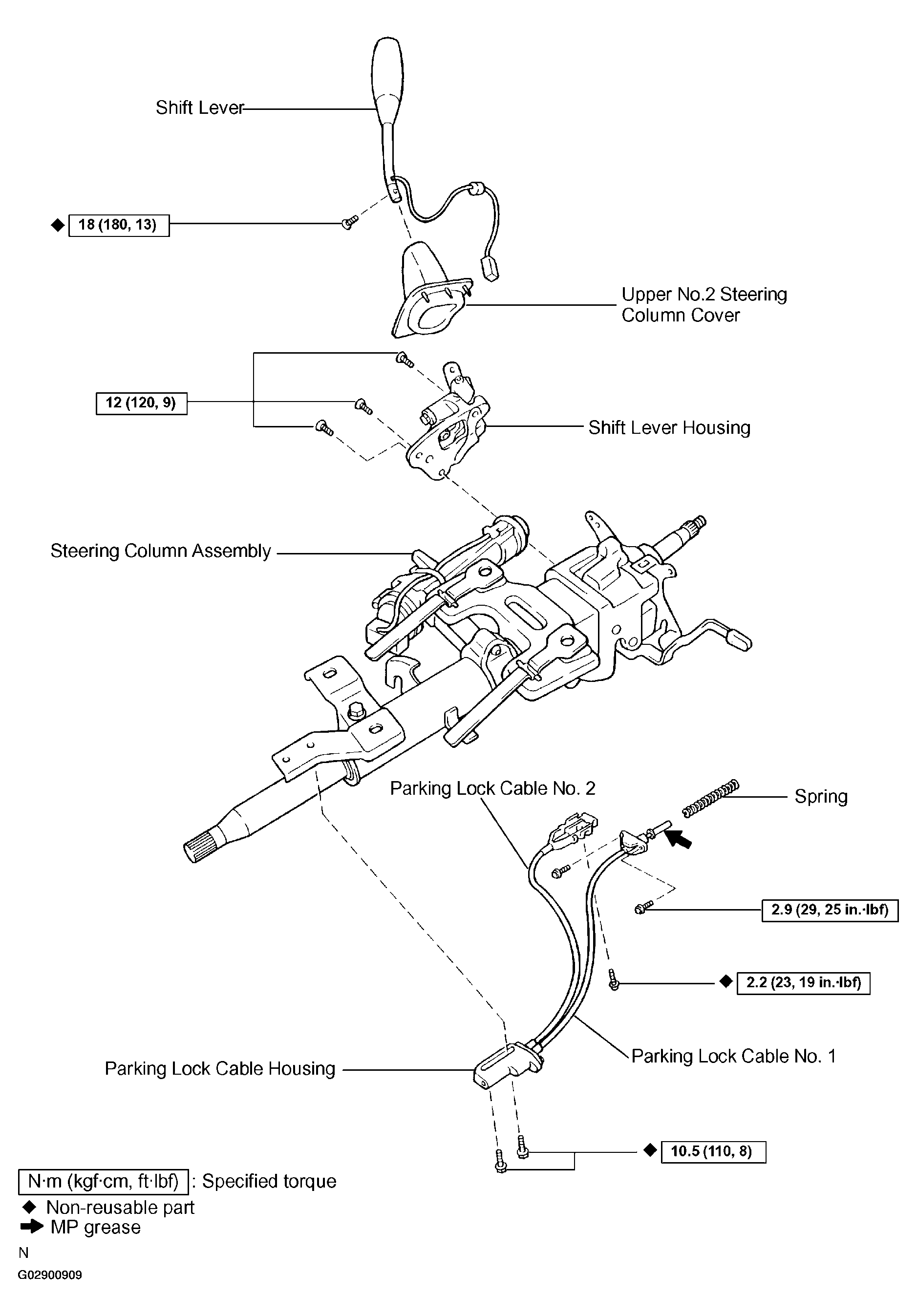

Fig 2: Exploded View Of Column Shift Assembly Components (2 Of 2)
G02900909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
