Back Window Glass: Removal

REMOVE REAR SEAT (See REMOVAL )
REMOVE ROOF SIDE INNER GARNISH

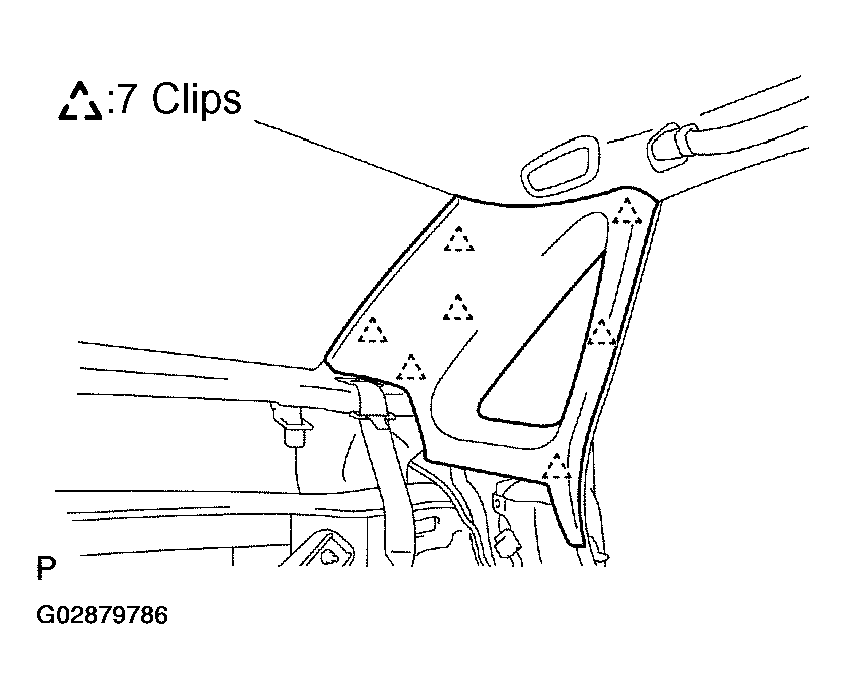

1. Using a screwdriver, remove the roof side inner garnish.
  HINT:

  Tape the screwdriver tip before use.
2. Employ the same manner described above to the other side.
Fig 1: Removing Roof Side Inner Garnish
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HIGH-MOUNTED STOP LIGHT

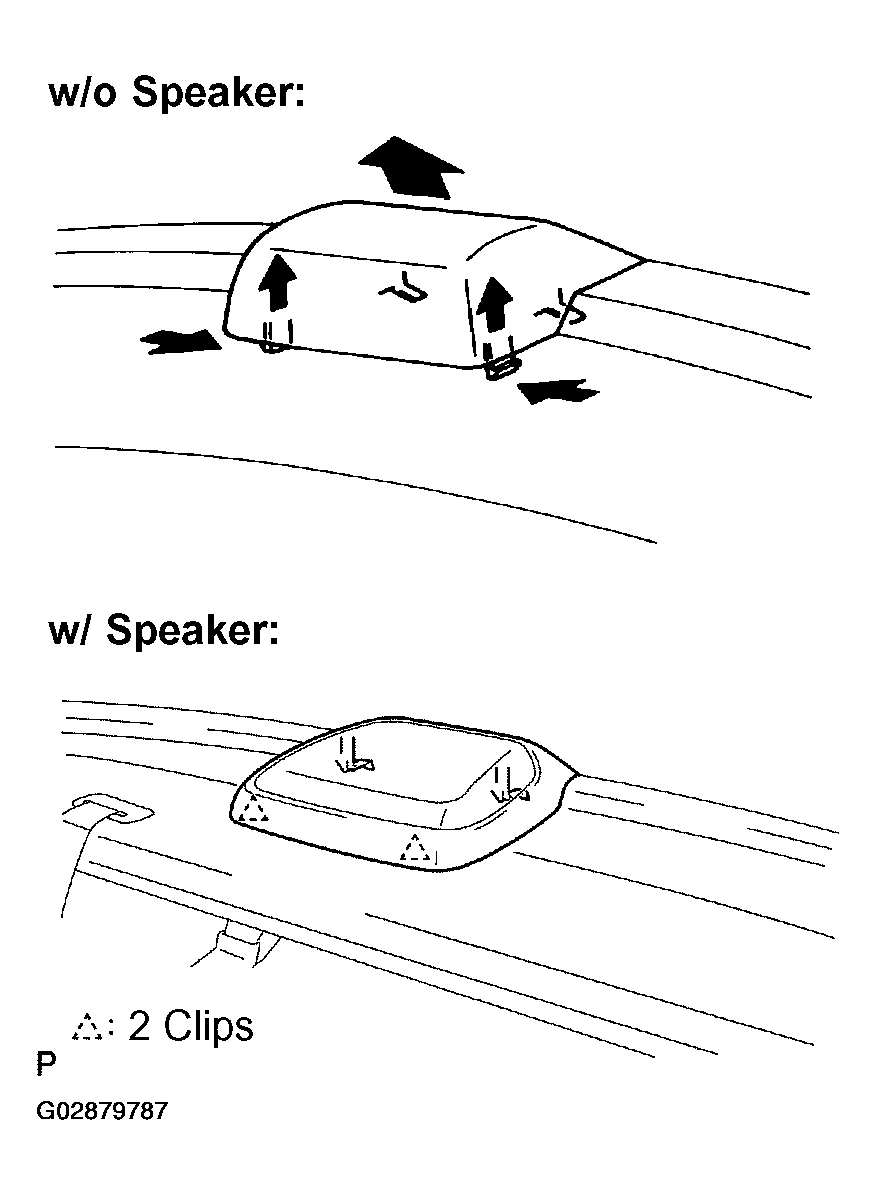

Remove the high-mounted stop light as shown in Fig 2 , then disconnect the connector.

Fig 2: Removing High-Mounted Stop Light
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PACKAGE TRAY TRIM
1. Using a screwdriver, remove the 3 rear seat belt bezel.
  HINT:

  Tape the screwdriver tip before use.

  Fig 3: Removing Rear Seat Belt Bezel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

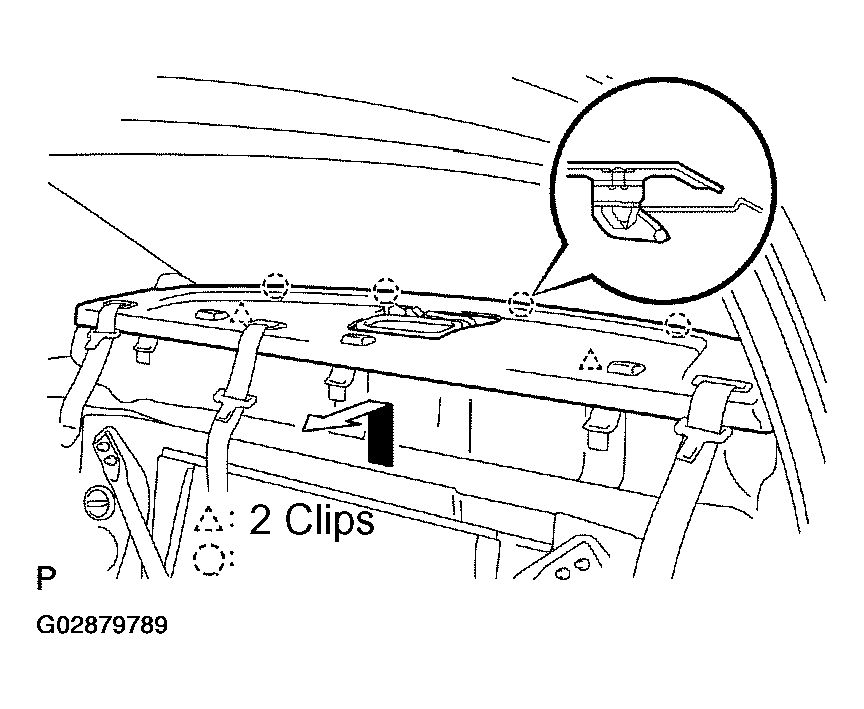

2. Remove the package tray trim as shown in Fig 4 .
REMOVE UPPER BLACK SILENCER

Fig 4: Removing Package Tray Trim
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/Rear personal light:
REMOVE REAR PERSONAL LIGHT

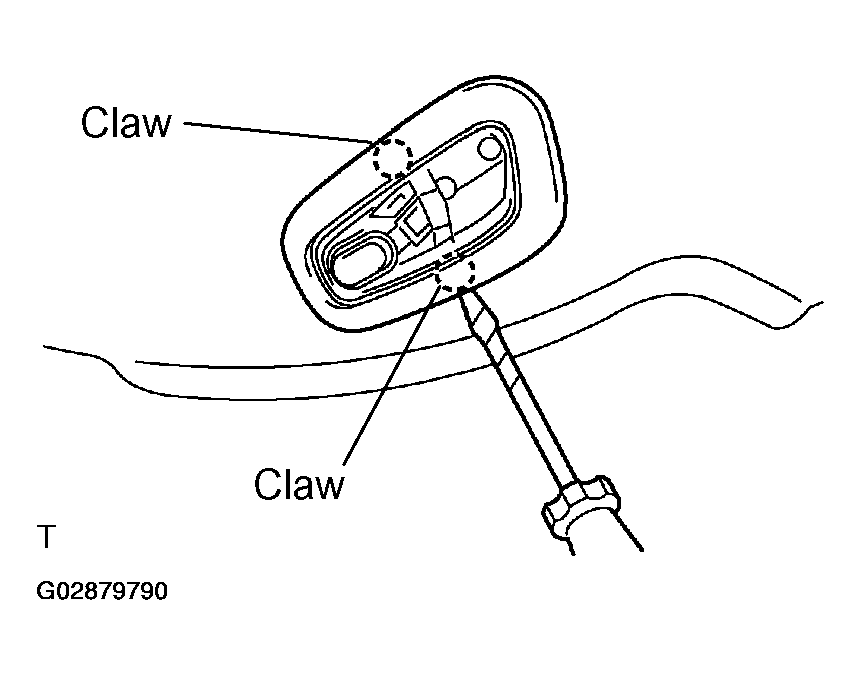

1. Using a screwdriver, remove the rear personal light, then disconnect the connector.
  HINT:

  Tape the screwdriver tip before use.
2. Employ the same manner described above to the other side.

  Fig 5: Removing Rear Personal Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROOF HEADLINING

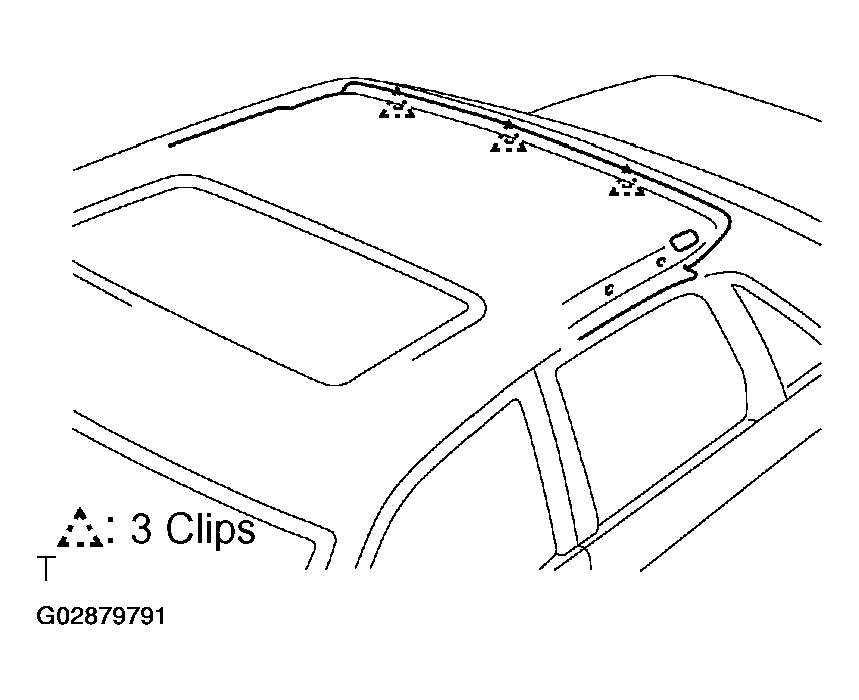

Disengage the 3 clips and remove the rear side of roof headlining.
DISCONNECT DEFOGGER WIRE CONNECTOR

Fig 6: Removing Rear Side Of Roof Headlining
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BACK WINDOW MOULDING
1. Using a knife, cut off the moulding as shown in Fig 7.
  NOTE: Do not damage the body with the knife.
2. Remove the remaining moulding.

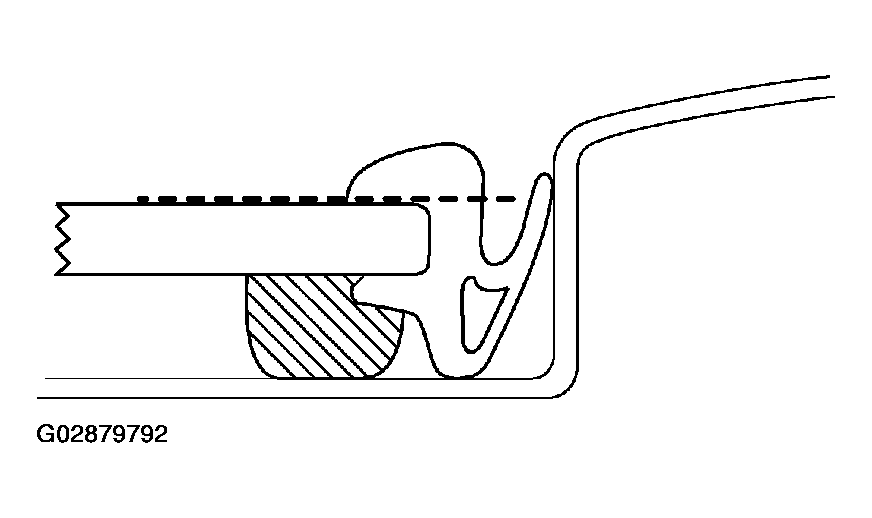

Fig 7: Cutting Off Moulding
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BACK WINDOW GLASS

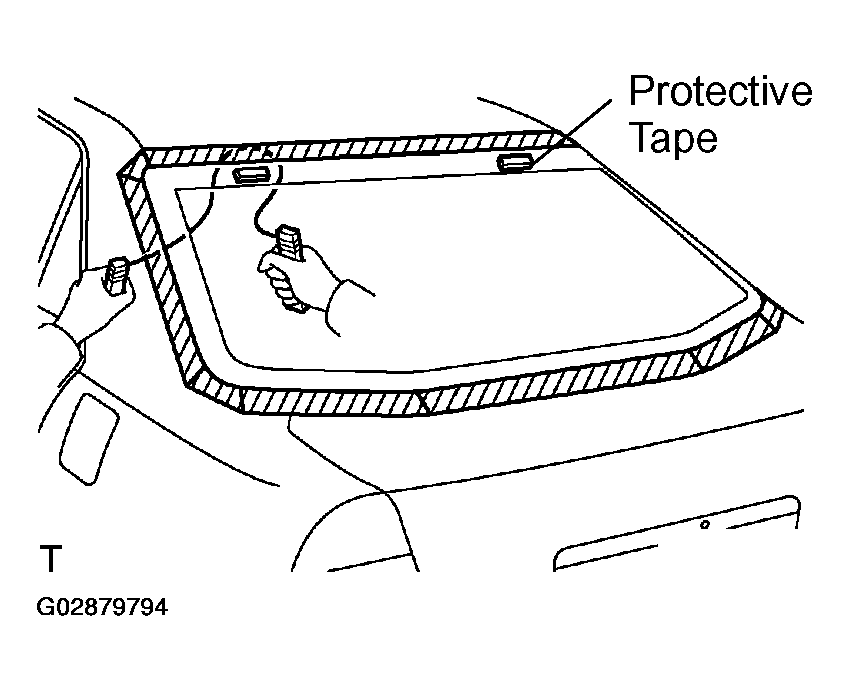

1. Insert a piano wire between body and glass and let it pass through.
2. Tie both wire ends to wooden blocks or similar objects.
  HINT:

  Apply protective tape to the outer surface to keep the surface from being scratched.

  NOTE: When separating the glass, take care not to damage the paint and exterior.

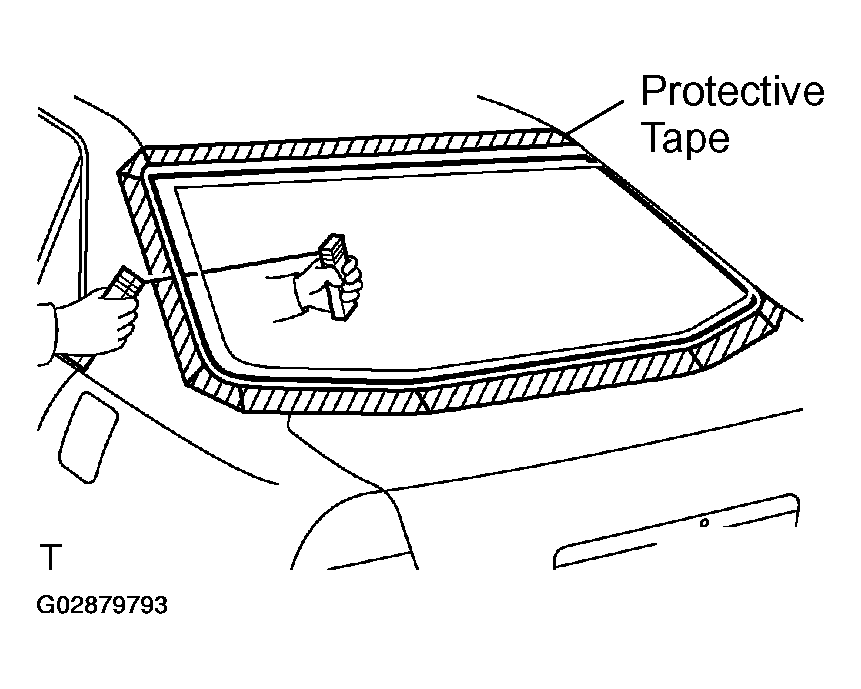

  Fig 8: Inserting Piano Wire Between Body And Glass
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Cut the adhesive by pulling the piano wire around it.
  HINT:

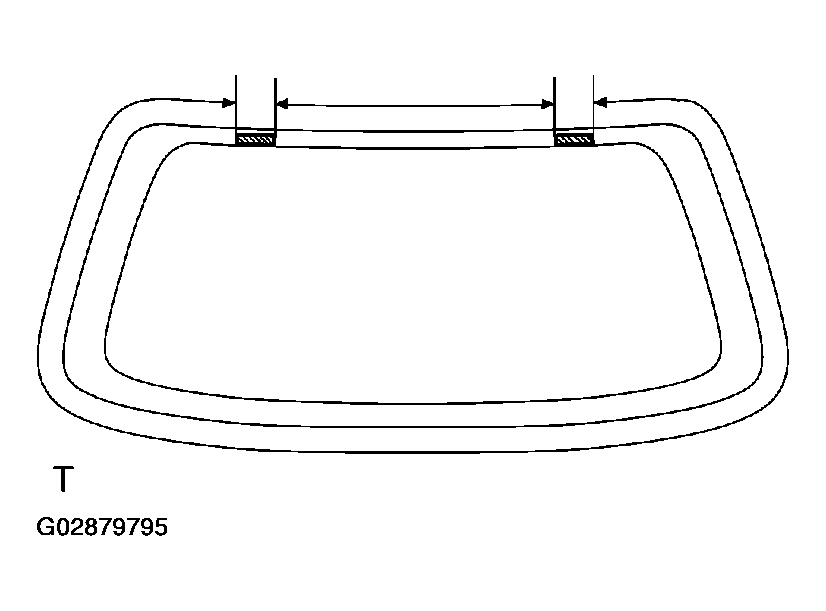

  Cut the adhesive areas as shown in Fig 9 , leaving the adhesive where the stoppers are.

  Fig 9: Cutting Adhesive By Pulling Piano Wire Around It
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

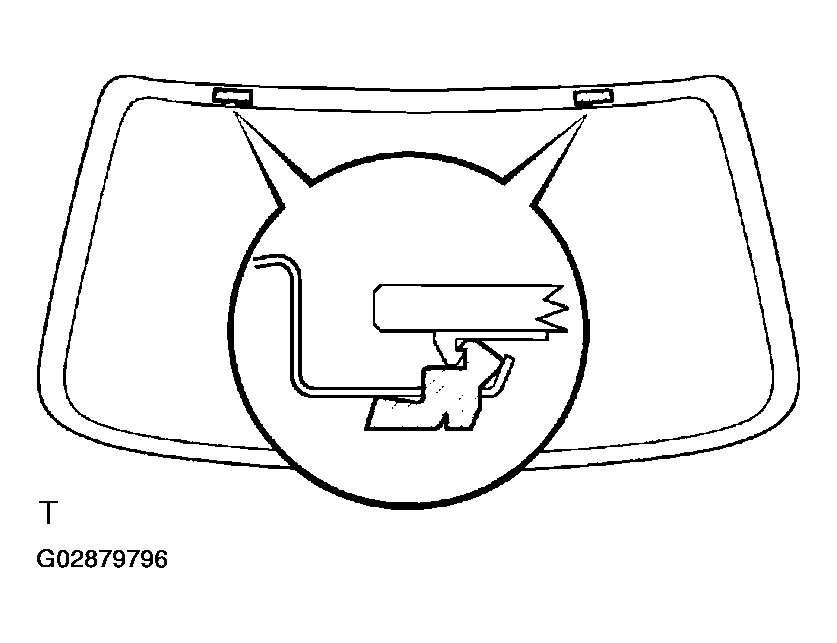

4. Let the piano wire pass as shown in Fig 10 , cut off the adhesive sticking to the stoppers.
  NOTE: Do not damage the glass stoppers.

  Fig 10: Passing Piano Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Disengage the stoppers, then remove the glass.
NOTE: Leave as much of the adhesive on the body as possible when cutting off the glass.

Fig 11: Disengaging Stoppers And Removing Glass
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
