Home >> Toyota >> 2004 >> Avalon XLS >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System >> Location

Power Window Control System: Location

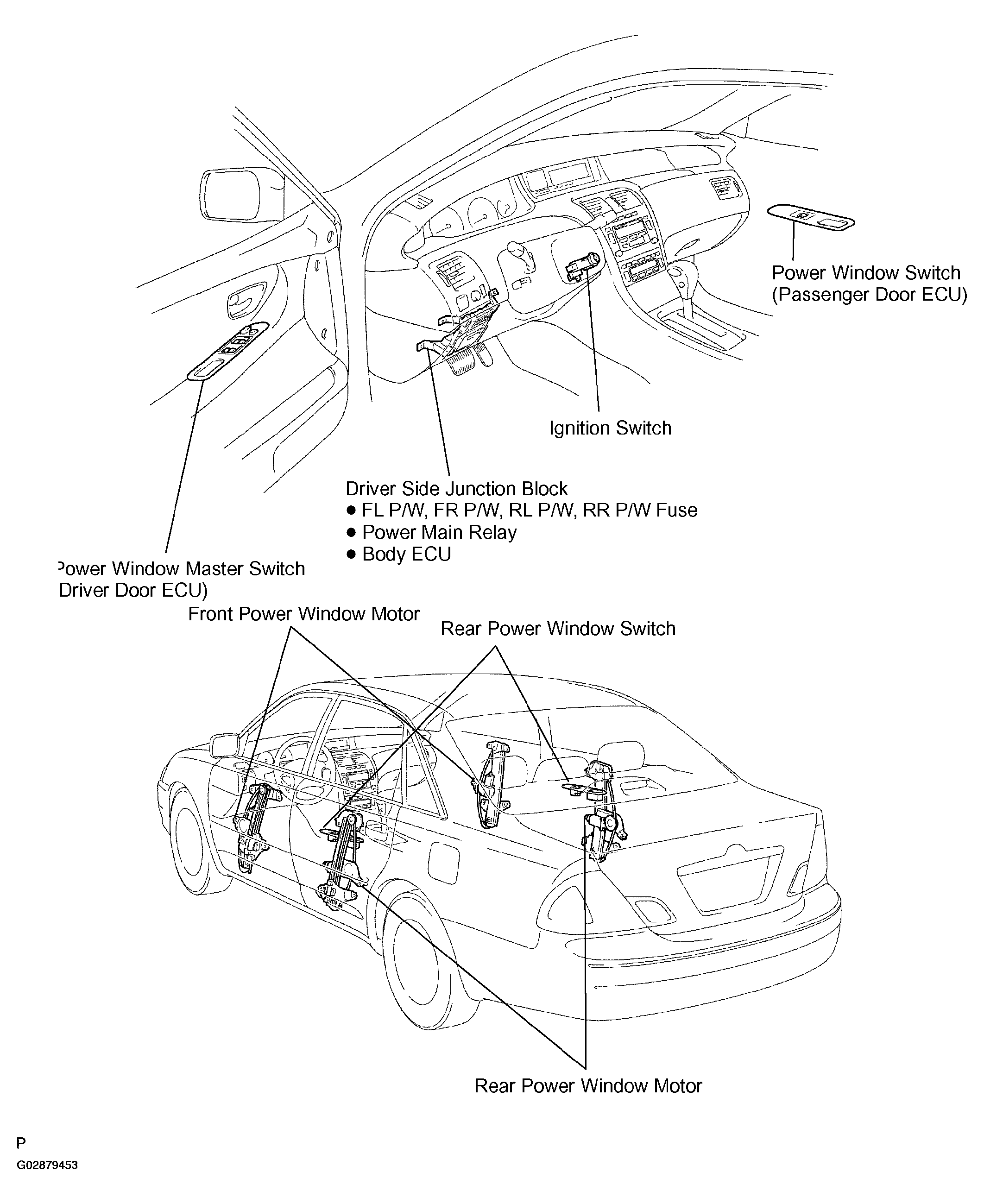

Fig 1: Locating Components

G02879453

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
