Combination Meter: Disassembly

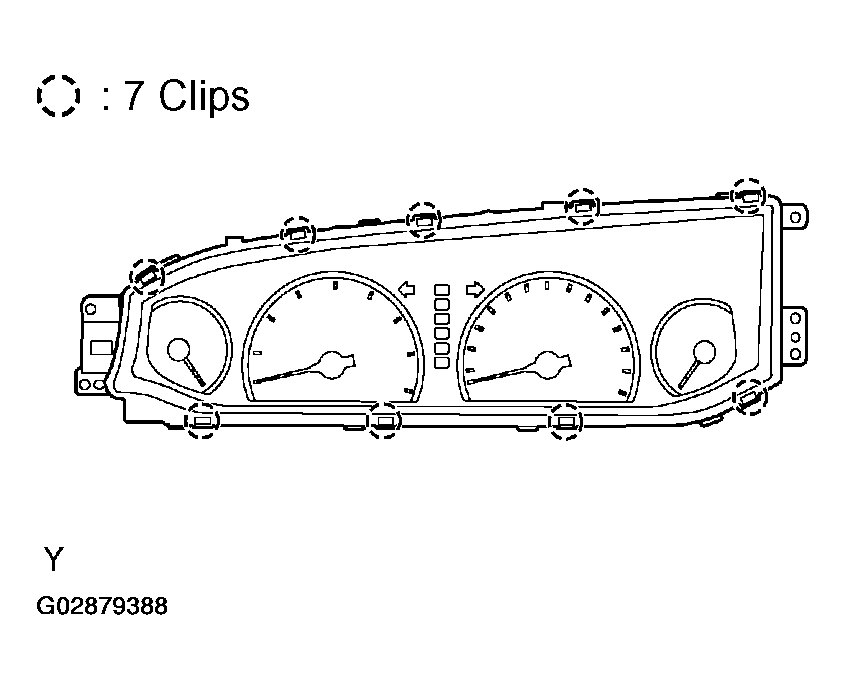

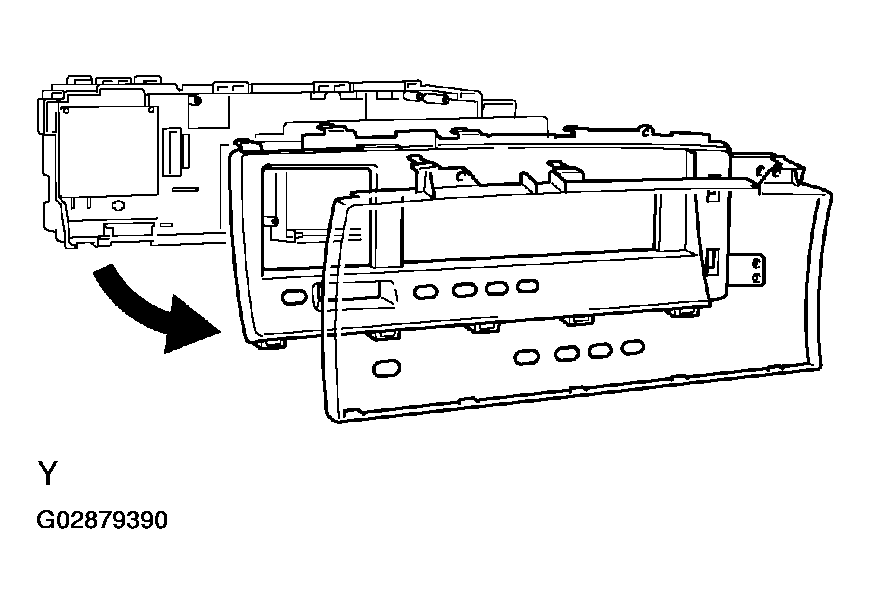

Remove combination meter glass and meter plate.

Fig 1: Removing Combination Meter Glass And Meter Plate

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

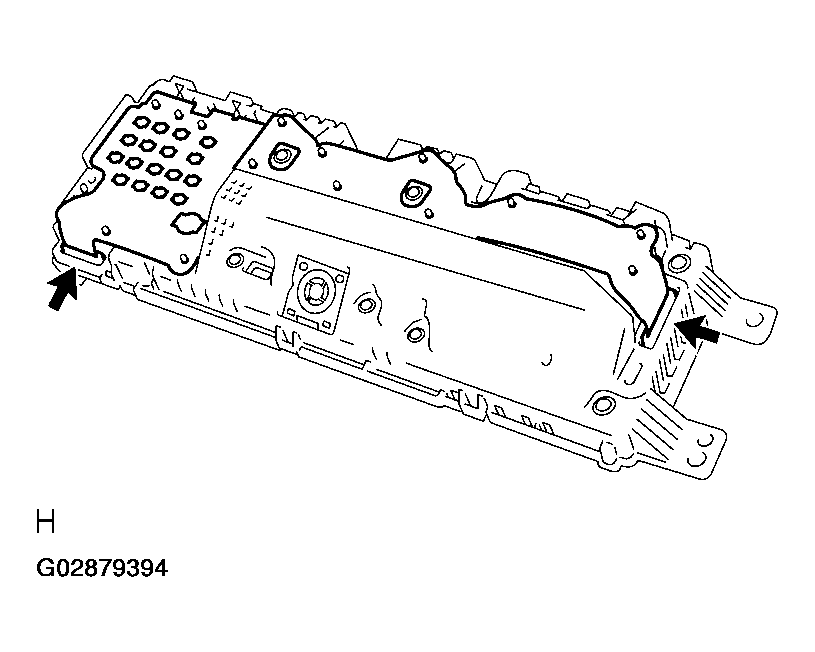

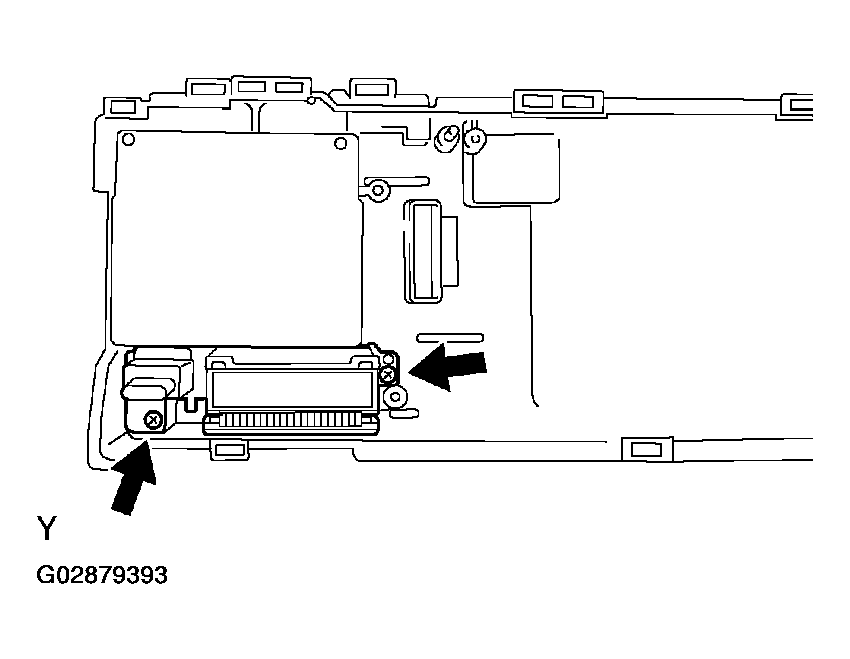

1. Remove the circuit plate.
2. Disconnect the connector.
   Fig 2: Removing Multi Information Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

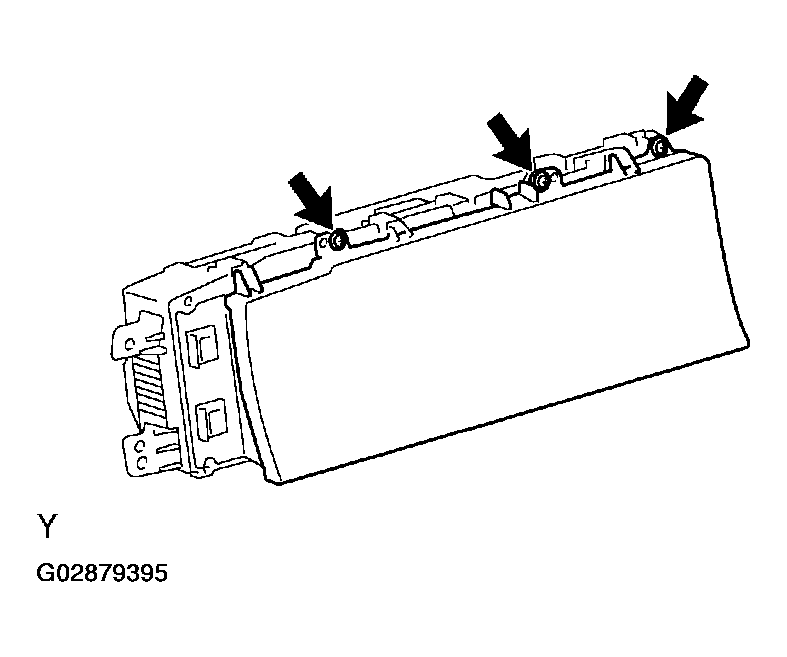

3. Remove the multi information display glass and plate.
   Fig 3: Removing Multi Information Display Glass And Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

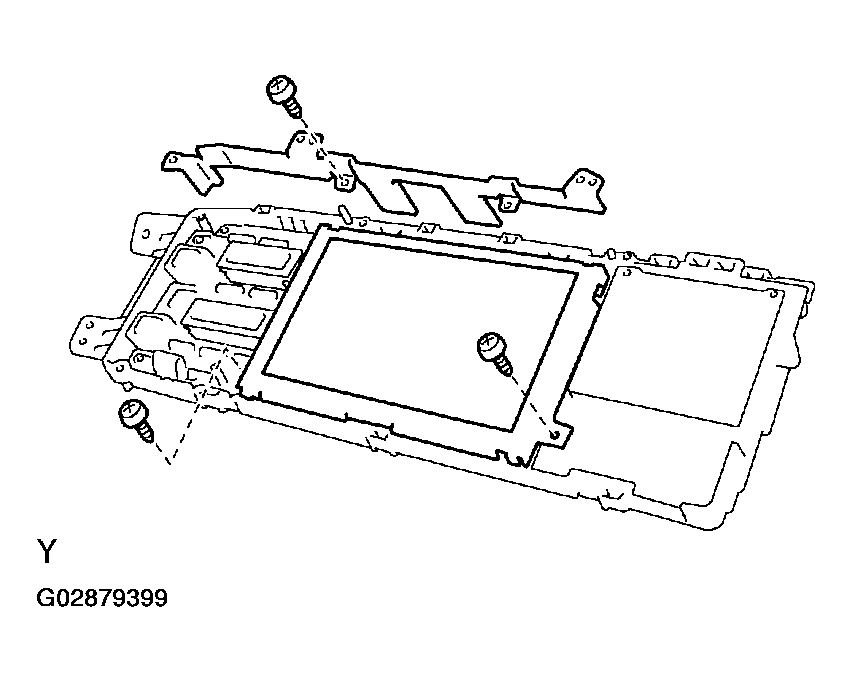

4. Remove the 2 screws.
5. Disconnect the cold cathode tube with plate.
   Fig 4: Removing Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

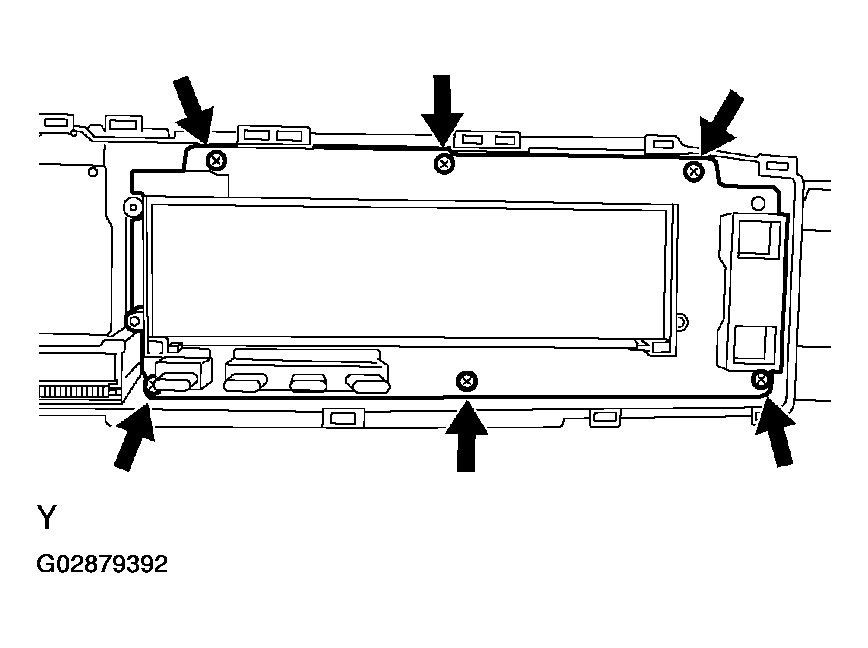

6. Remove the 6 screws.
7. Remove the multi information display.
   Fig 5: Removing Multi Information Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

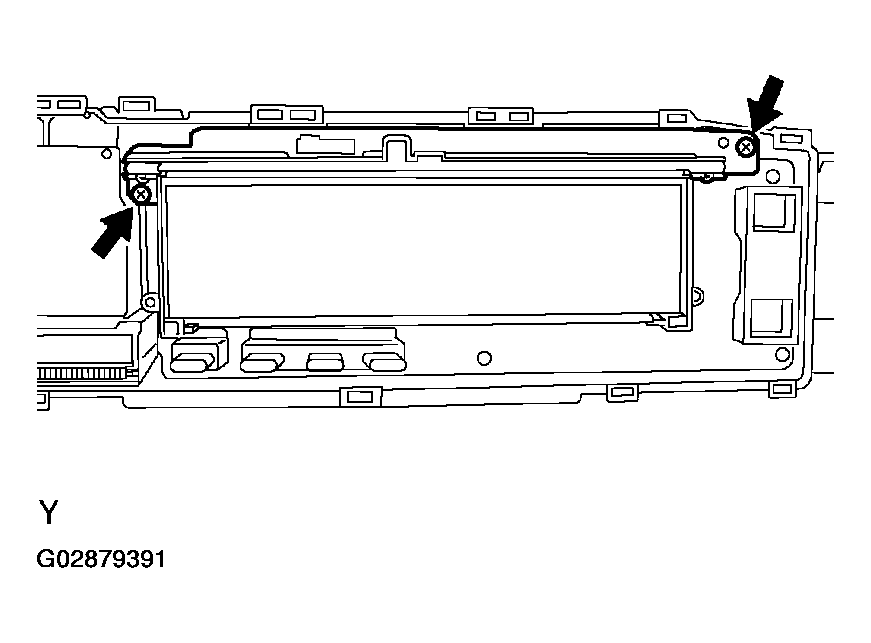

8. Remove the 2 screws.
9. Remove the No. 2 multi information display.

Fig 6: Removing No. 2 Multi Information Display

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

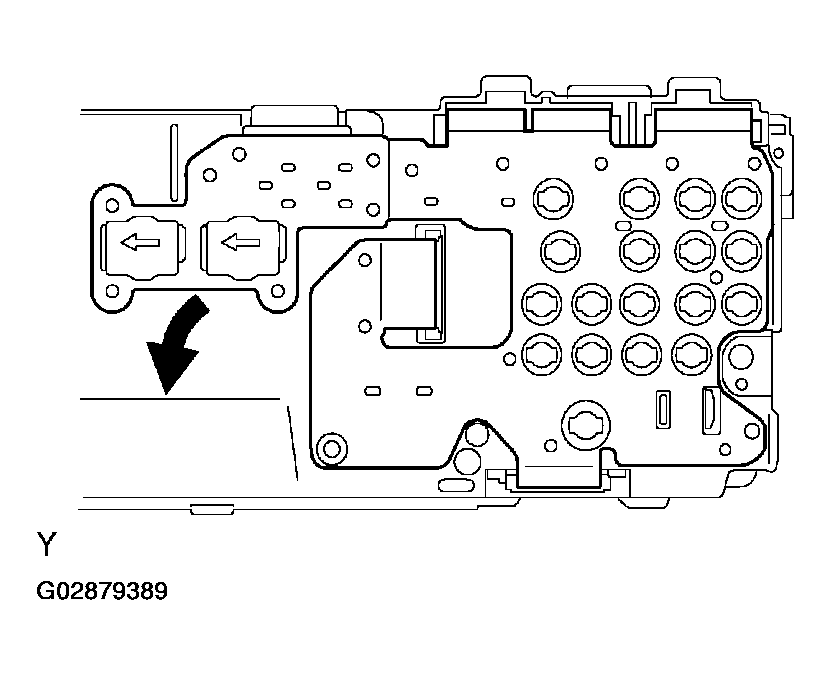

1. Remove the circuit plate.
2. Disconnect the connector.
   Fig 7: Removing Circuit Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

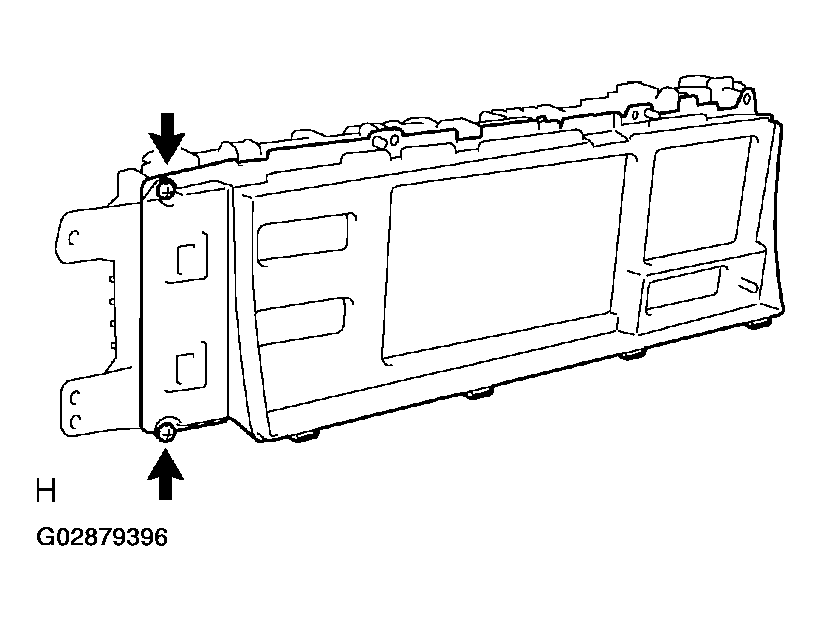

3. Remove the 2 screws.
4. Remove the multi information display glass.
   Fig 8: Removing Multi Information Display Glass

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 2 screws.
6. Remove the multi information display plate.
   Fig 9: Removing Multi Information Display Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Remove the 8 screws.
   Fig 10: Removing Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

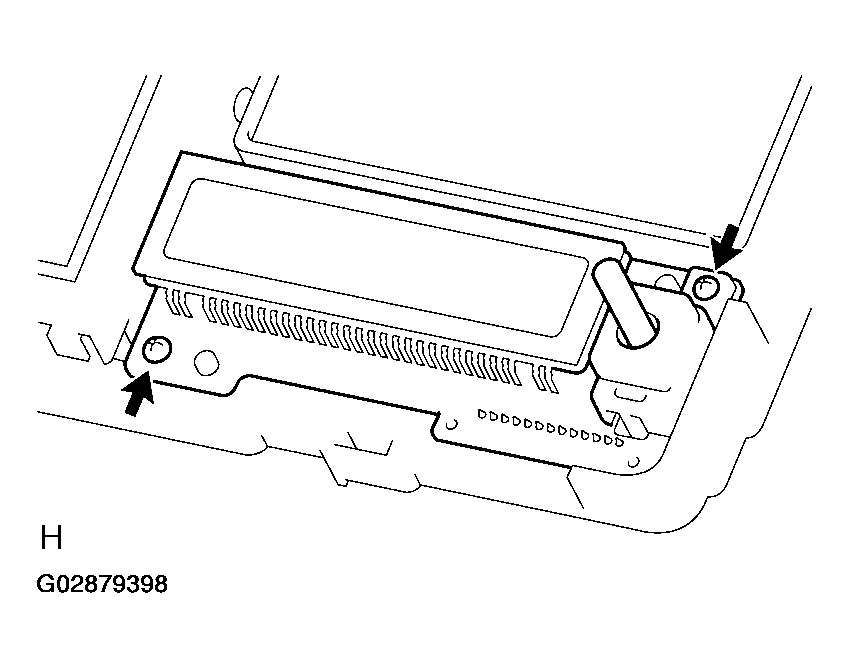

8. Remove the 2 screws and center display computer No. 2.
   Fig 11: Removing Screws And Center Display Computer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

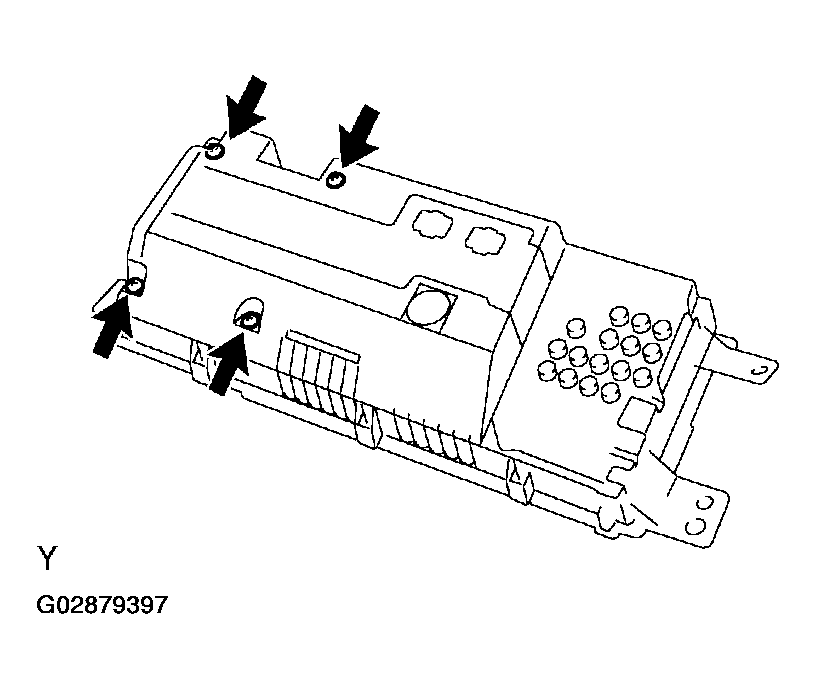

9. Remove the 3 screws and the plate.
10. Remove the connector and multi information display.
11. Remove the 2 screws and multi information computer.
12. Remove the accessary meter cover.

Fig 12: Removing Screws And Plate

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
