Instrument Panel: Components

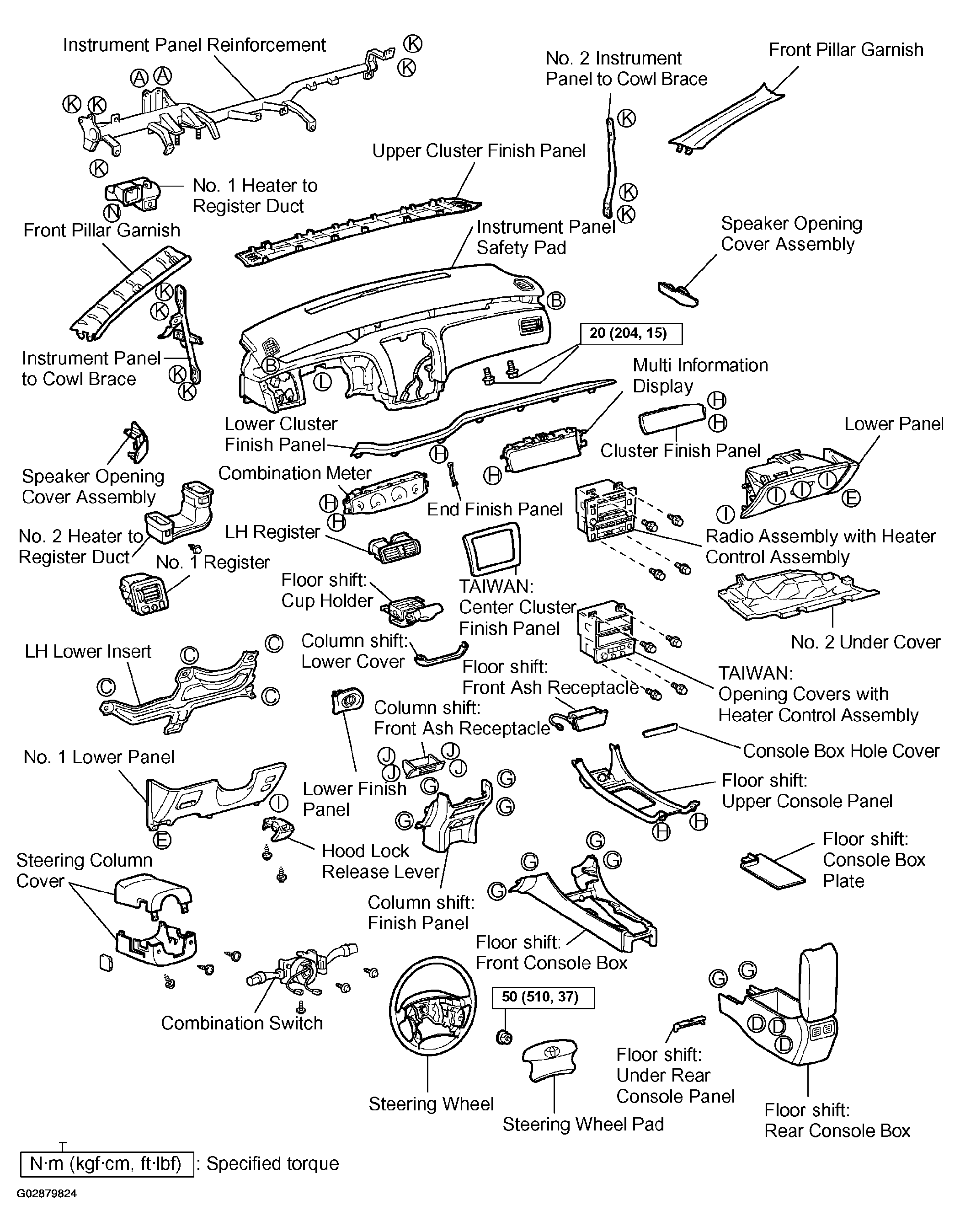

Fig 1: Identifying Instrument Panel Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

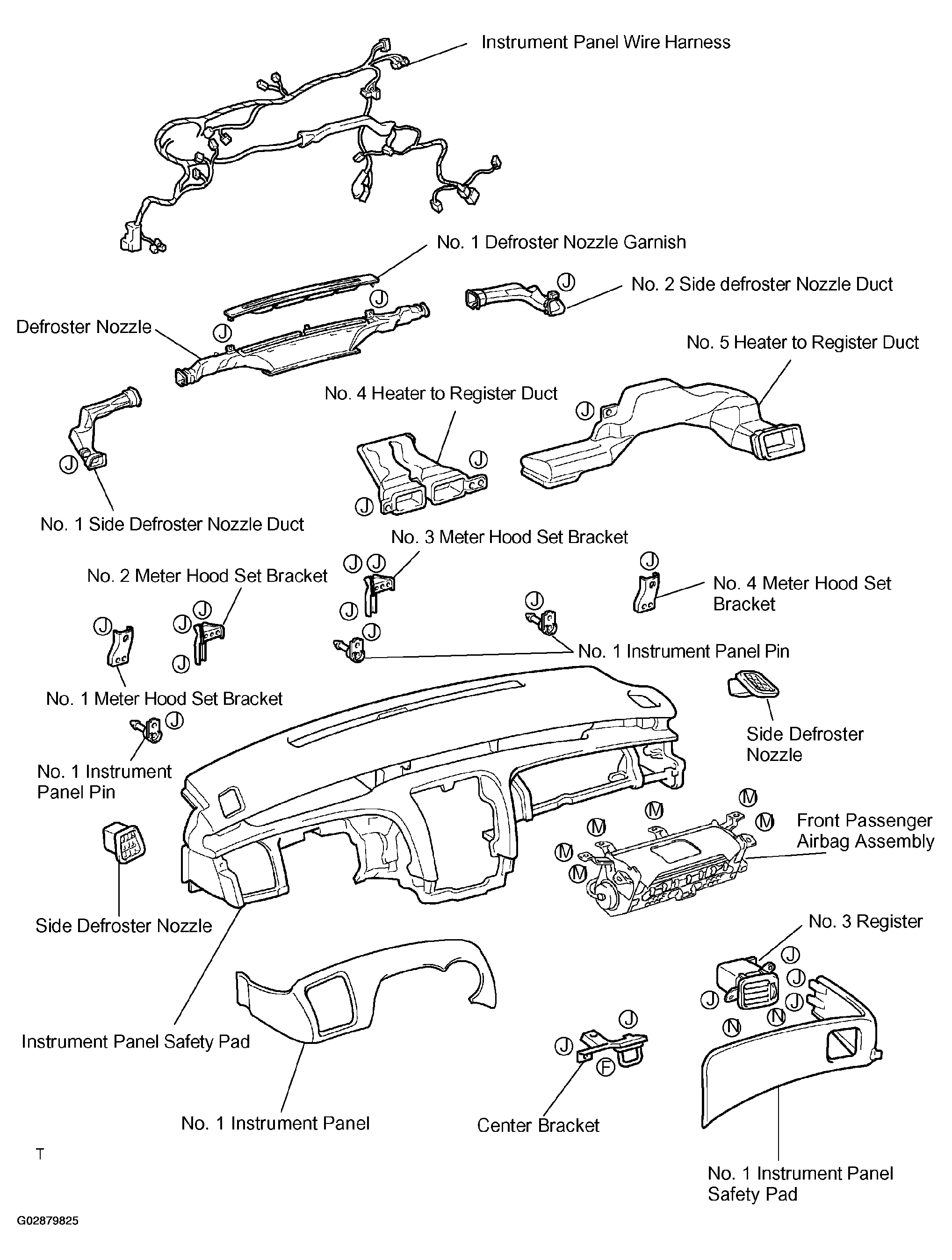

Fig 2: Identifying Instrument Panel Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Screw shapes and sizes are indicated in Fig 3 . The codes ("A" - "N") correspond to those indicated in Fig 2 .

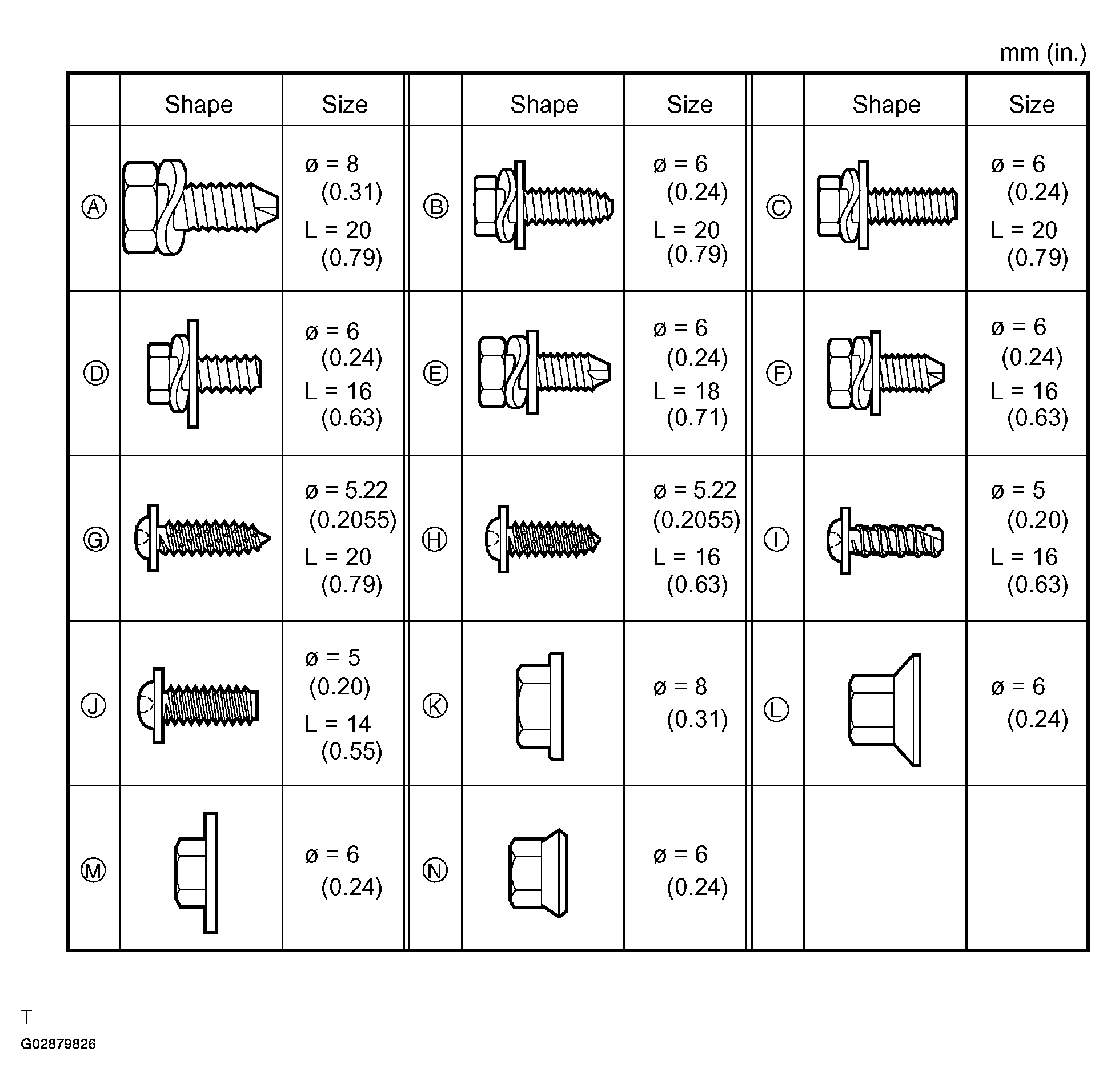

Fig 3: Screw Shapes And Sizes Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
