VSV For Pressure Switching Valve: Inspection

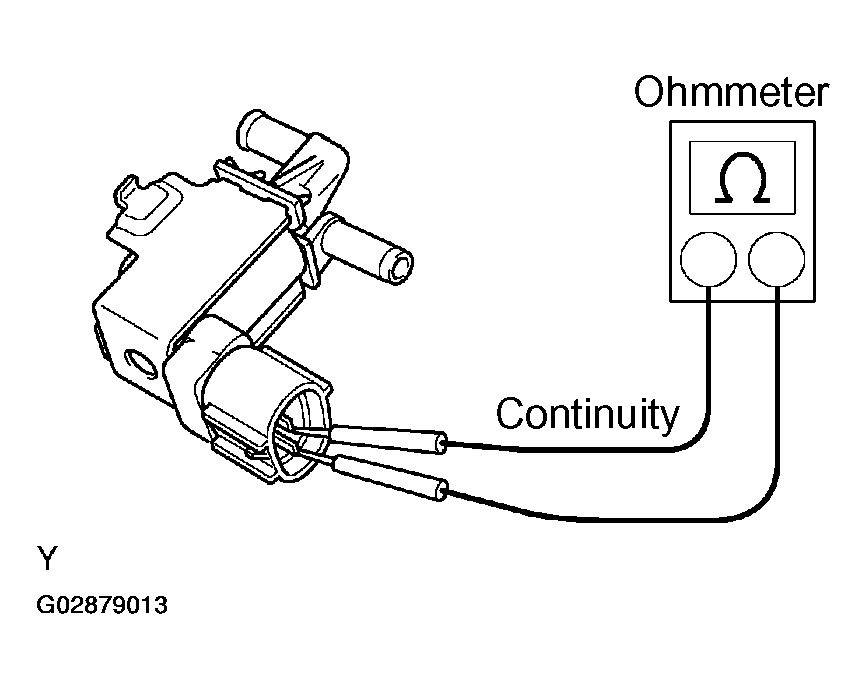

Using an ohm meter, check that there is continuity between the terminals.

Resistance:

If there is no continuity, replace the VSV.

Fig 1: Inspecting VSV For Open Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

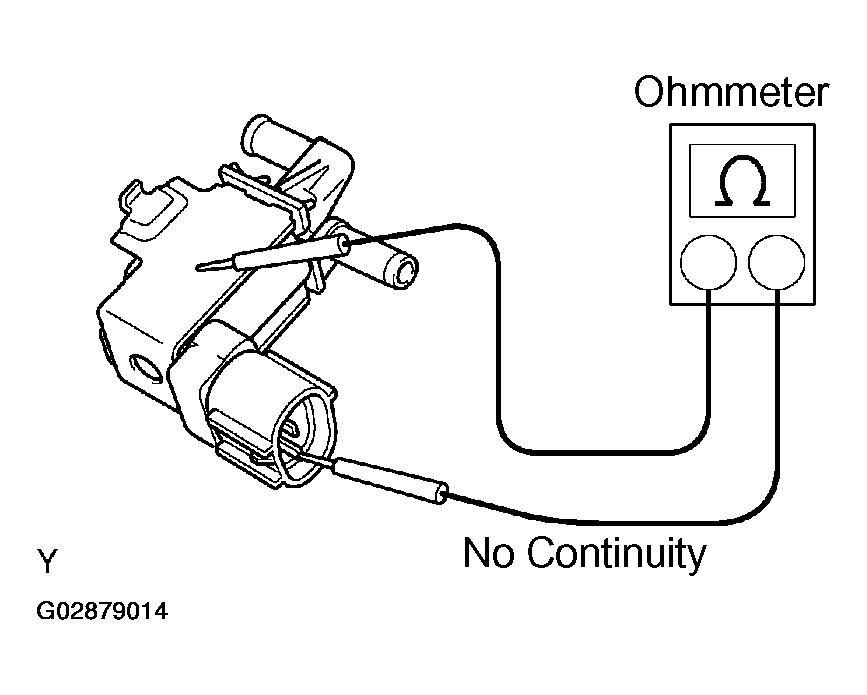

Using an ohmmeter, check that there is no continuity between each terminal and the body.

If there is continuity, replace the VSV.

Fig 2: Inspecting VSV For Ground

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

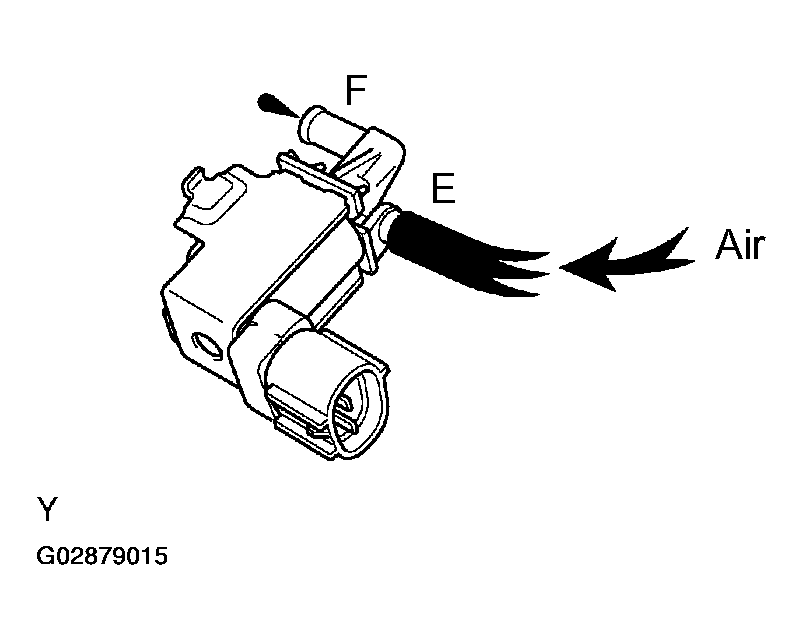

1. Check that air does not flow from ports E to F.

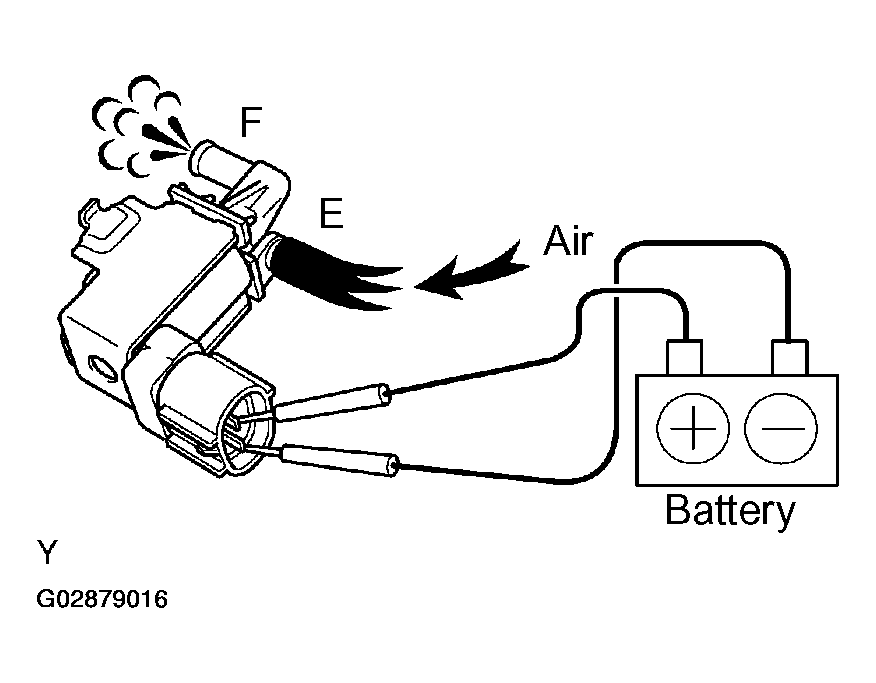

   Fig 3: Inspecting VSV Operation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply battery positive voltage across the terminals.
3. Check that air flows from ports E to F.

If operation is not as specified, replace the VSV.
