Home >> Toyota >> 2004 >> Avalon XLS >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Engine Ignition System >> Camshaft Position Sensor >> Components

Camshaft Position Sensor: Components

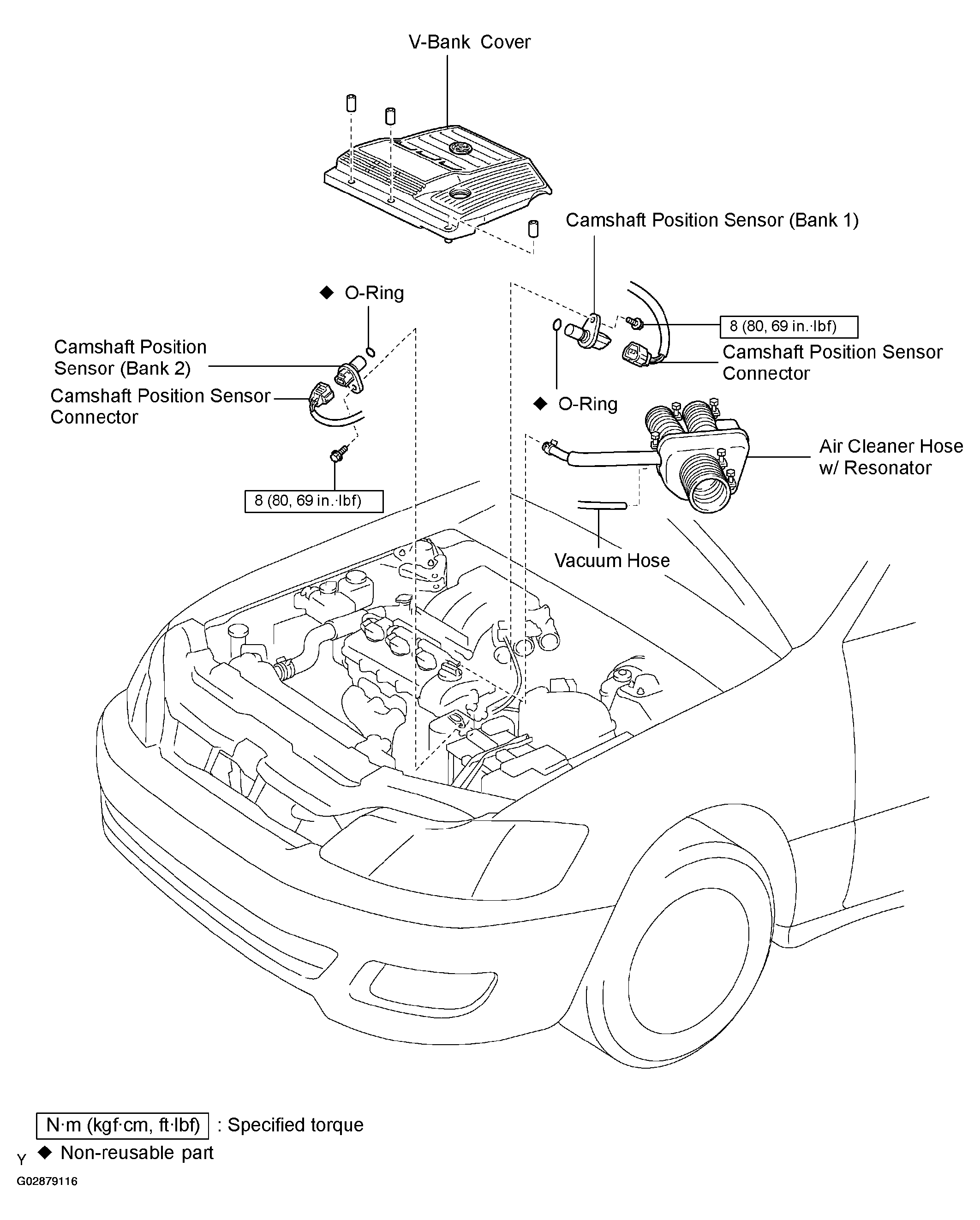

Fig 1: Identifying Camshaft Position Sensor
G02879116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
