IGNITION RELAY (No.2): Inspection

REMOVE IGNITION RELAY (Marking: IG2)

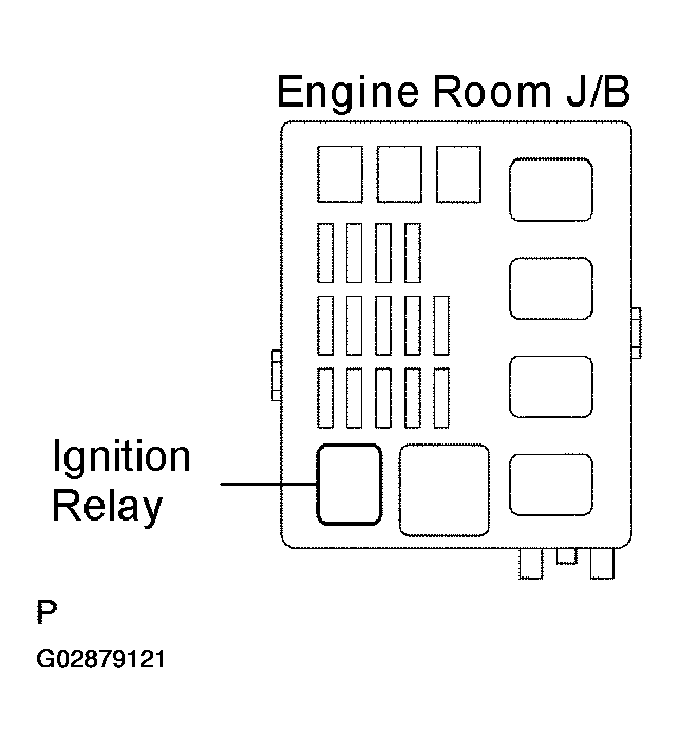

Fig 1: Removing Ignition Relay
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT IGNITION RELAY
1. Inspect the relay continuity.
  1. Using an ohmmeter, check that there is continuity between terminals 1 and 2.
    If there is no continuity, replace the relay.
  2. Check that there is no continuity between terminals 3 and 5.
    If there is continuity, replace the relay.

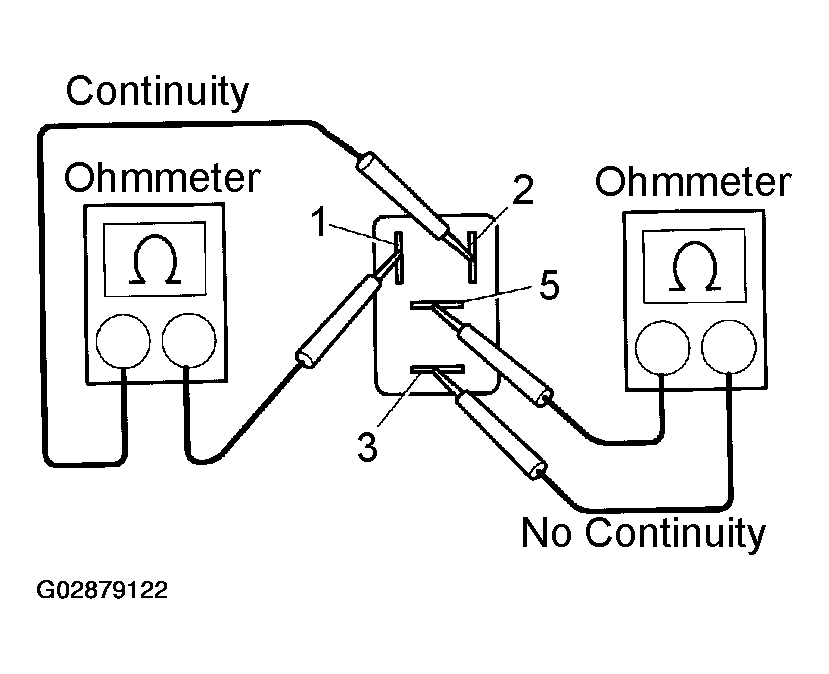

  Fig 2: Inspecting Relay Continuity
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the relay operation.
  1. Apply battery positive voltage across terminals 1 and 2.
  2. Using an ohmmeter, check that there is continuity between terminals 3 and 5.
    If there is no continuity, replace the relay.
REINSTALL IGNITION RELAY

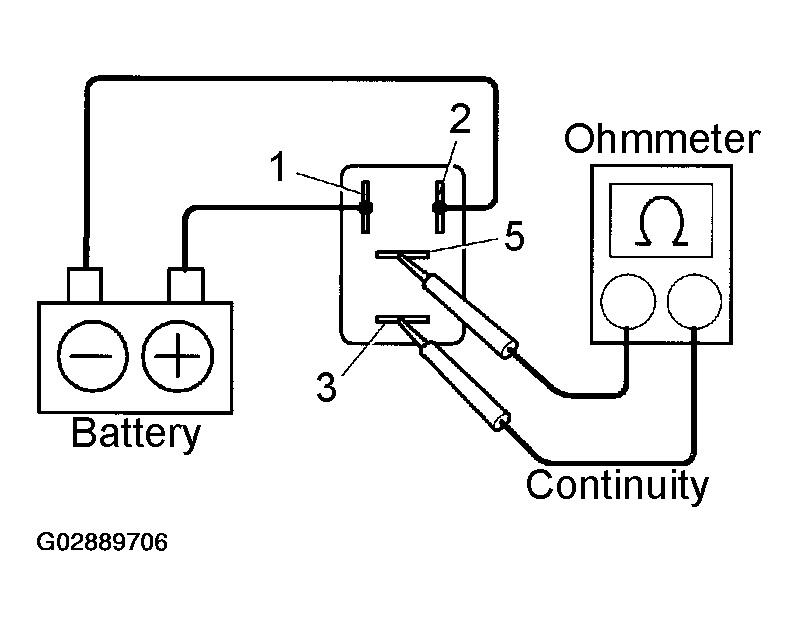

Fig 3: Inspecting Relay Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
