Camshaft Timing Oil Control Valve: Components

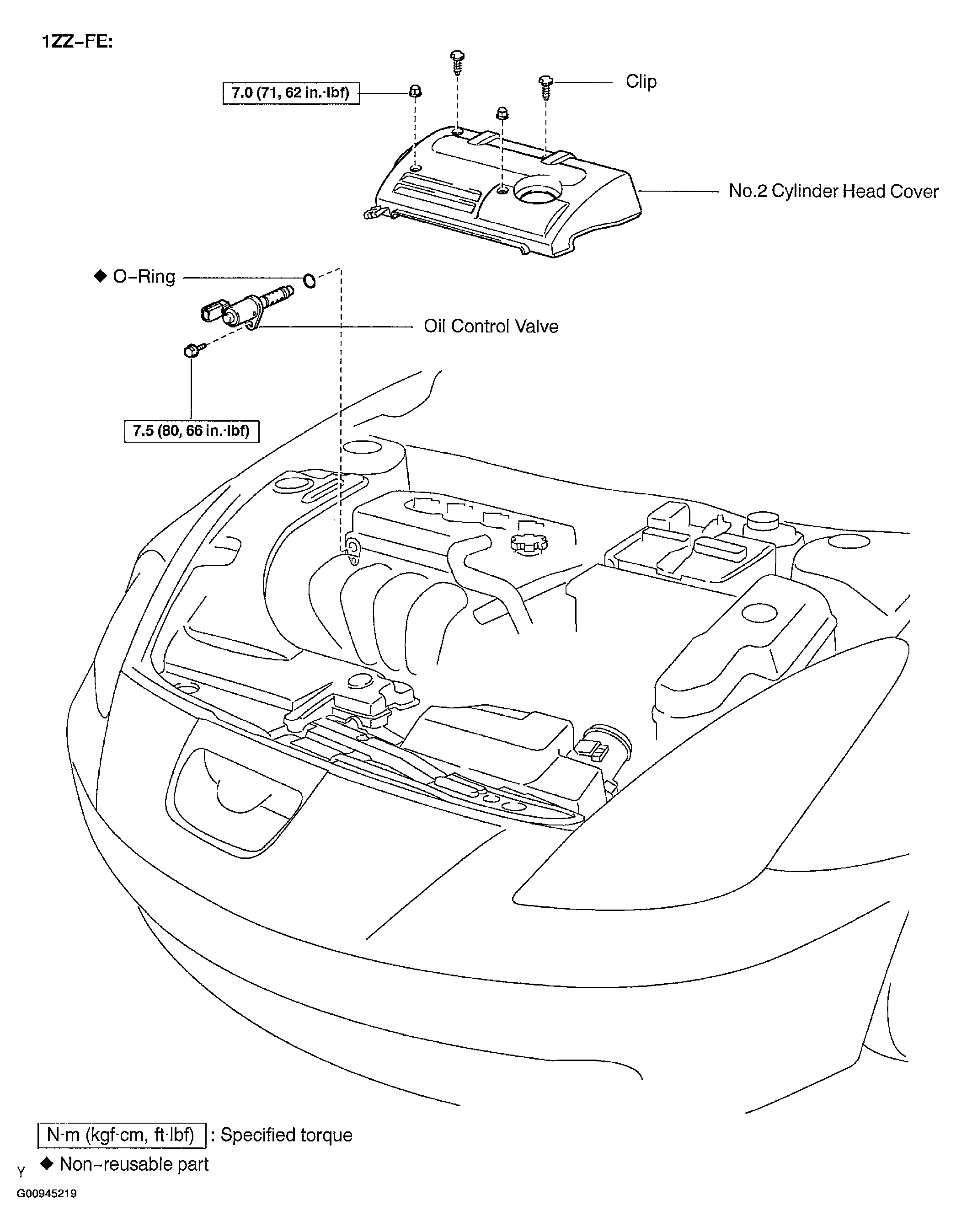

Fig 1: Camshaft Timing Oil Control Valve Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

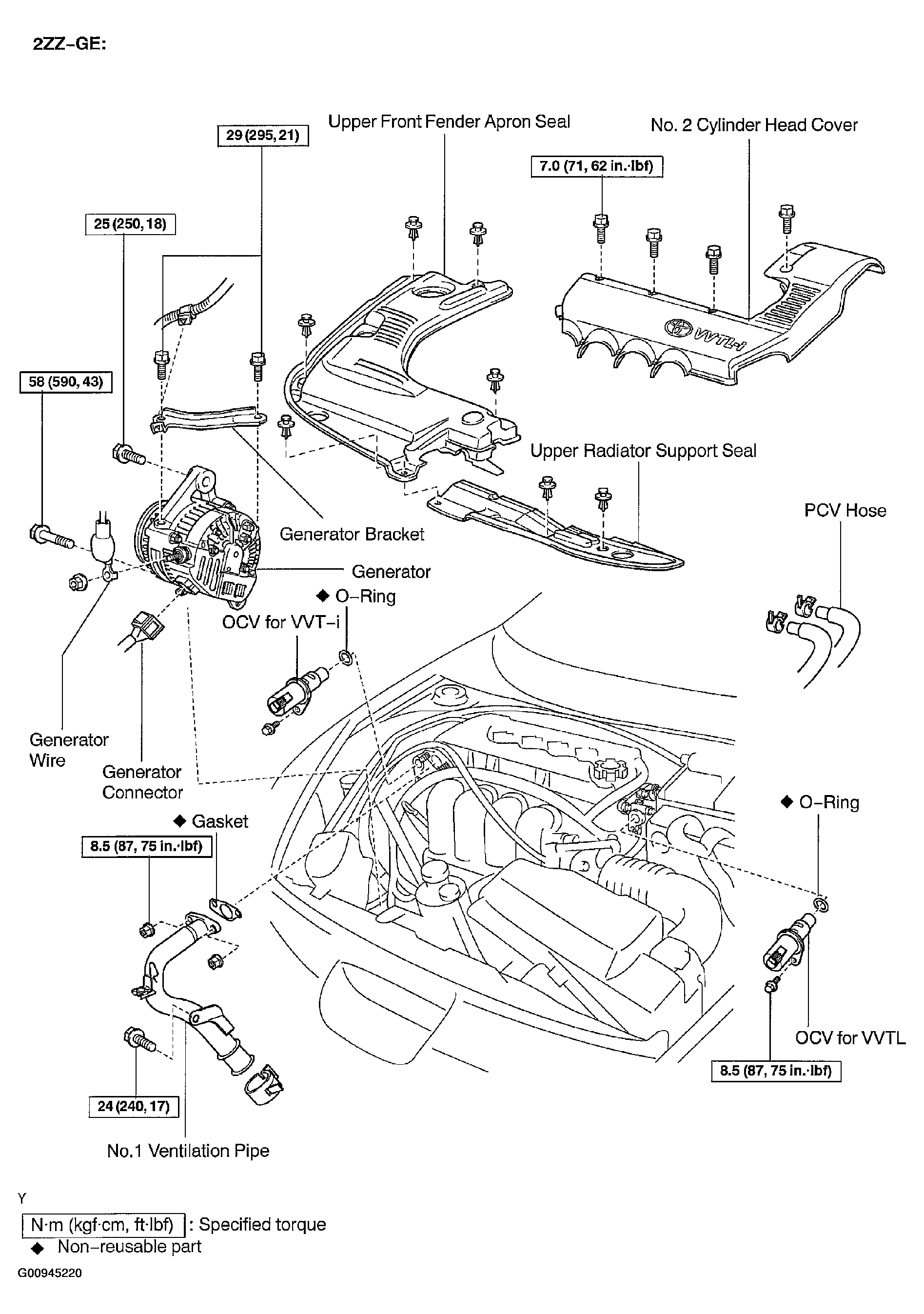

Fig 2: Camshaft Timing Oil Control Valve Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
