Engine Coolant Temperature (ECT) Sensor: Inspection

  1. DRAIN ENGINE COOLANT
  2. REMOVE NO. 2 CYLINDER HEAD COVER
  3. REMOVE ECT SENSOR
  4. INSPECT ECT SENSOR RESISTANCE

    Using an ohmmeter, measure the resistance between terminals 1 (E2) and 2 (THW).

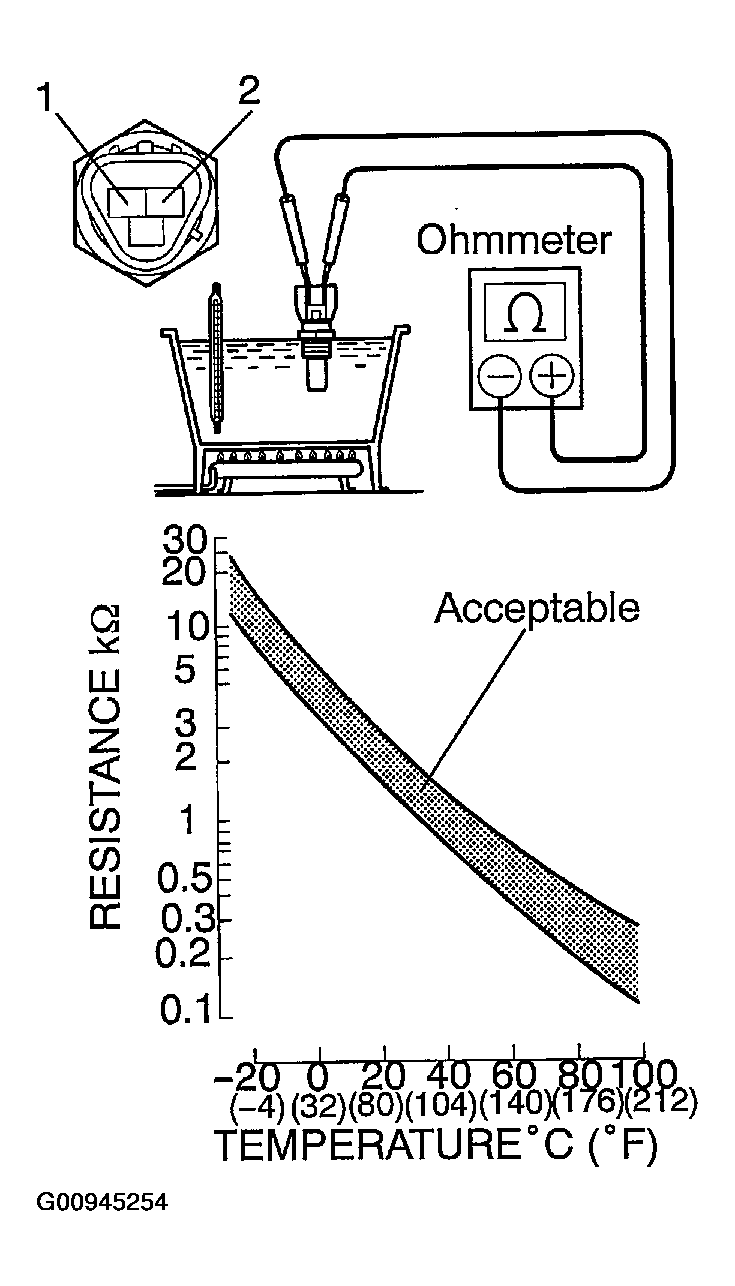

    Fig 1: Measuring Resistance Between Terminals 1 (E2) & 2 (THW) Using An Ohmmeter
    G00945254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Resistance: Refer to the graph

    If the resistance is not as specified, replace the ECT sensor.

  5. REINSTALL ECT SENSOR

    Install a new gasket to the ECT sensor.

  6. REINSTALL NO. 2 CYLINDER HEAD COVER
  7. FILL RADIATOR WITH ENGINE COOLANT
