Fuel Cut Rpm: Inspection

Allow the engine to warm up to normal operating temperature.

1. Connect the TOYOTA hand-held tester or OBD II scan tool to the DLC3.
2. Please refer to the TOYOTA hand-held tester or OBD II scan tool operators manual for further details.

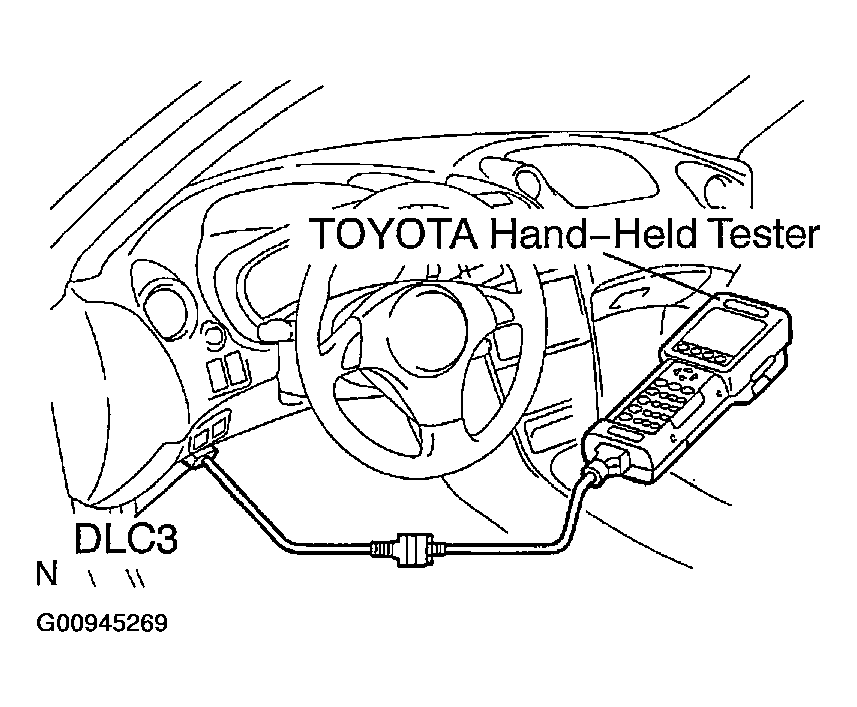

Fig 1: Connecting TOYOTA Hand Held Tester Or OBD II Scan Tool To DLC 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Increase the engine speed to at least 3,500 RPM.
2. Use a sound scope to check for injector operating noise.

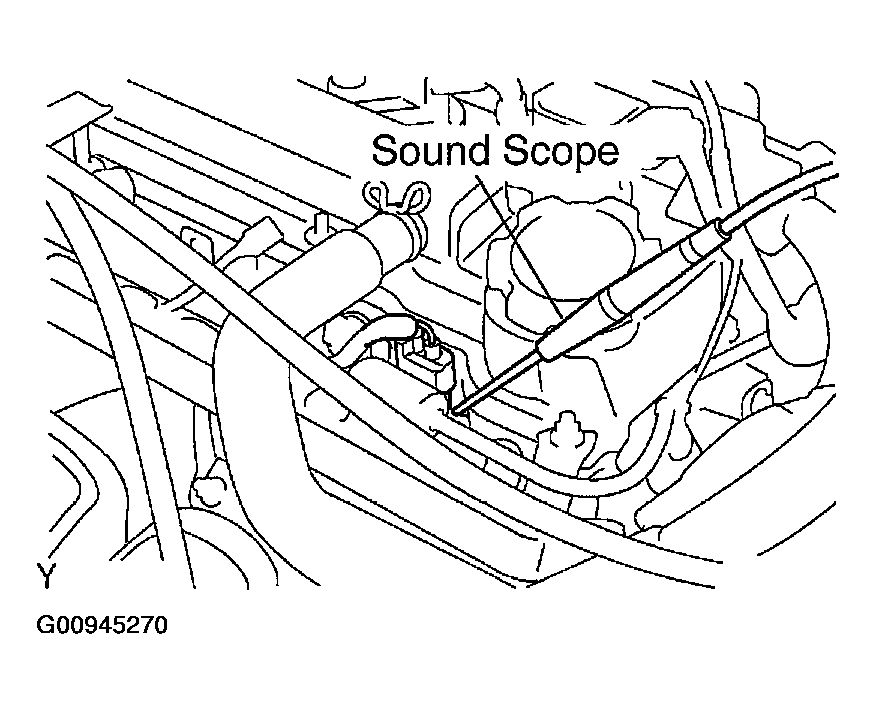

   Fig 2: Using Sound Scope To Check For Injector Operating Noise

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check that when the throttle lever is released injector, operation noise stops momentary and then resumes.

HINT:

Measure with the A/C OFF.

• Fuel return RPM: 1,400 RPM
