Fuel Pump: Disassembly

1. Using a small screwdriver, remove the No. 2 fuel suction support.
2. Remove the rubber cushion.

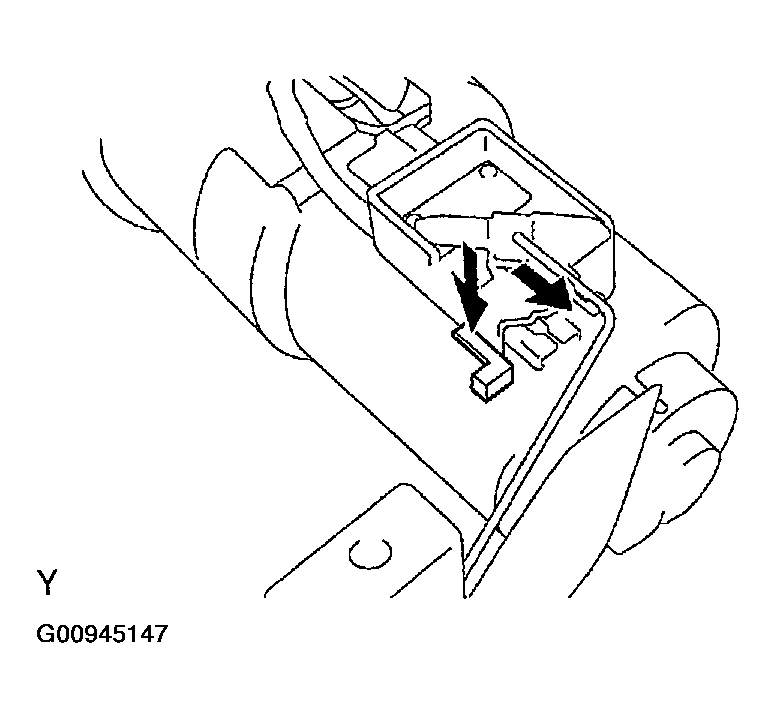

Fig 1: Removing No. 2 Fuel Suction Support Using A Small Screwdriver

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the fuel sender gauge connector and earth plate.
2. While pressing the lock of the fuel pump filter, slide the fuel sender gauge and remove it.

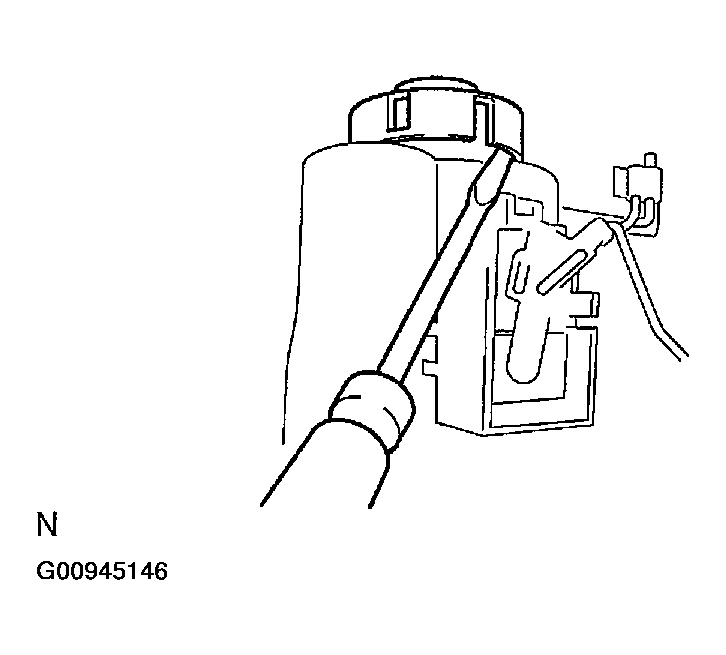

   Fig 2: Disconnecting Fuel Sender Gauge Connector & Earth Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a small screwdriver, remove the No. 1 fuel suction support.
   NOTE: Do not damage the fuel suction support and fuel suction plate.
4. Disconnect the fuel pump harness from the No. 1 fuel suction support and fuel pump.

Fig 3: Removing No. 1 Fuel Suction Support Using A Small Screwdriver

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pull off the joint clip and remove the vapor pressure sensor from No. 1 fuel suction support.

Remove the pump from the fuel filter.

Pull out the fuel pressure regulator and O-ring from the fuel filter.

Fig 4: Pulling Out Fuel Pressure Regulator & O-Ring From Fuel Filter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a small screwdriver, pry out the clip.
2. Pull out the suction filter.
   Fig 5: Prying Out Clip Using A Small Screwdriver

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
