Fuel Pump: Installation

1. Install the new gasket to the fuel pump assembly.
2. Install the fuel pump assembly to the fuel tank.
   NOTE:

   • Do not damage the fuel pump filter.
   • Be careful that the arm of the sender gauge should not bent.
3. Install the 8 bolts and fuel tank vent tube set plate from the fuel tank.
   • Torque: 4.0 N.m (40 kgf.cm, 35 in..lbf)

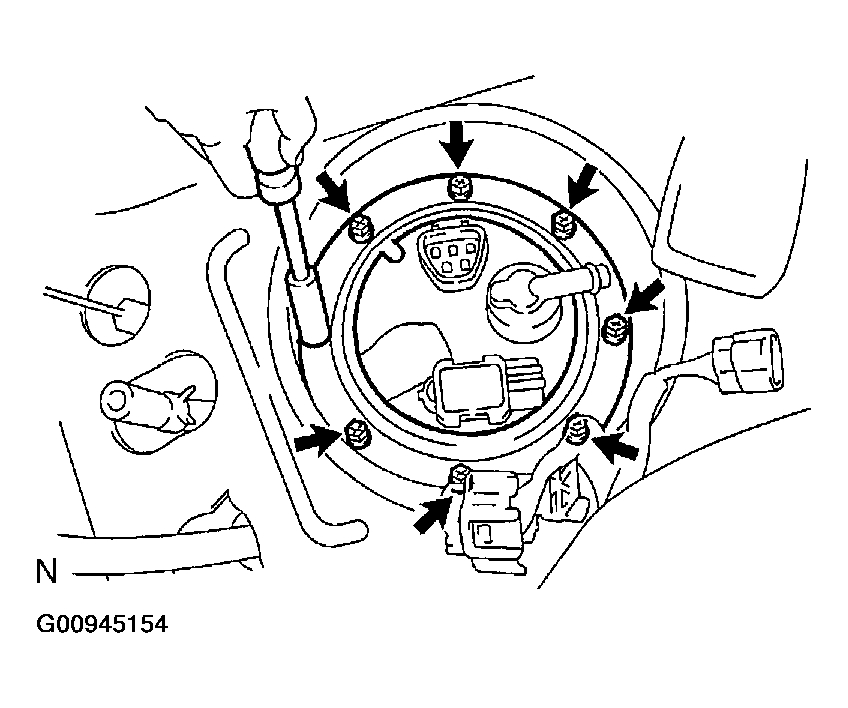

Fig 1: Installing Bolts & Fuel Tank Vent Tube Set Plate From Fuel Tank

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Clean up around the fuel tube.
2. Connect the fuel tube and emission tube to the fuel pump assembly.

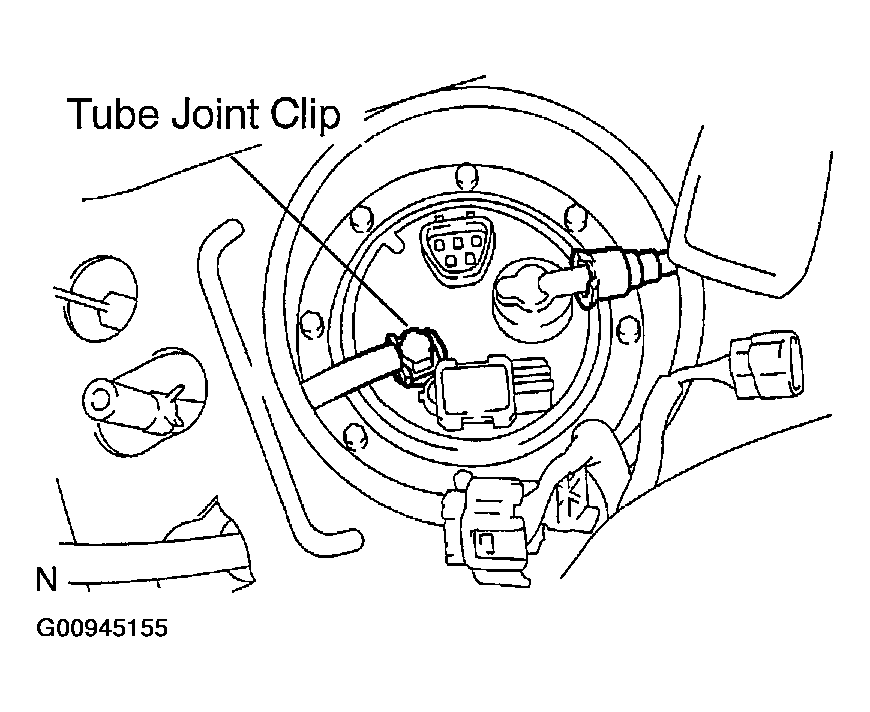

   Fig 2: Connecting Fuel Tube & Emission Tube To Fuel Pump Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the tube joint clip to the fuel suction plate.

HINT:

Start the engine, check for fuel leakage.

1. Install the service hole cover.
2. Install the floor carpet.
