Engine Ignition System: Removal

  1. REMOVE NO. 2 CYLINDER HEAD COVER
  2. REMOVE IGNITION COILS (WITH IGNITER) FROM SPARK PLUGS
    1. Remove the 2 bolts and disconnect the wire harness protector.
    2. Disconnect the 4 ignition coil connectors.
    3. Remove the 4 bolts and pull out the 4 ignition coils (with igniter).
      1. Torque: 9.0 N.m (92 kgf.cm, 79 in..lbf)

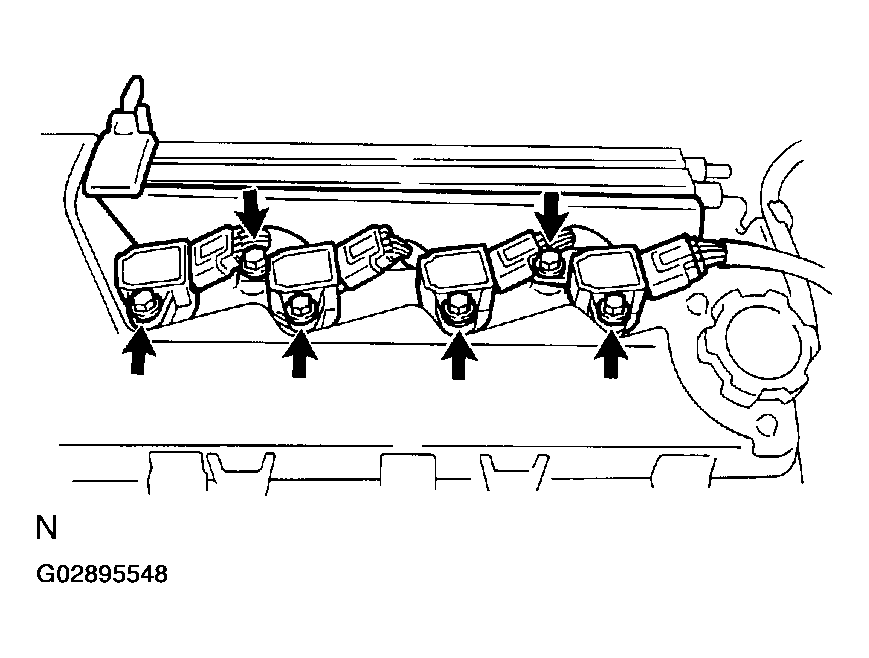

        Fig 1: Removing Ignition Coils (With Igniter) From Spark Plugs
        G02895548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
