Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

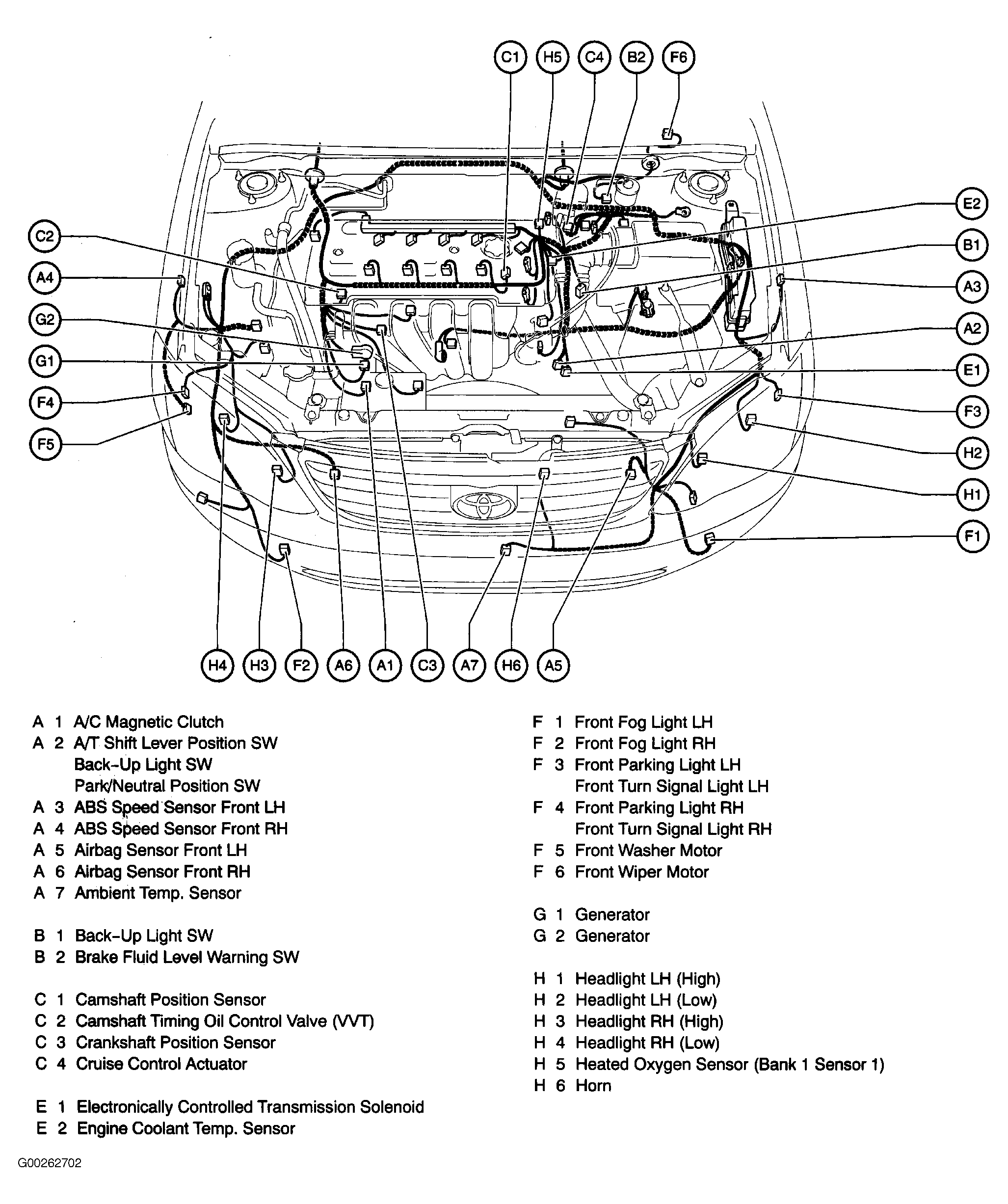

Fig 1: Engine Compartment

G00262702

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

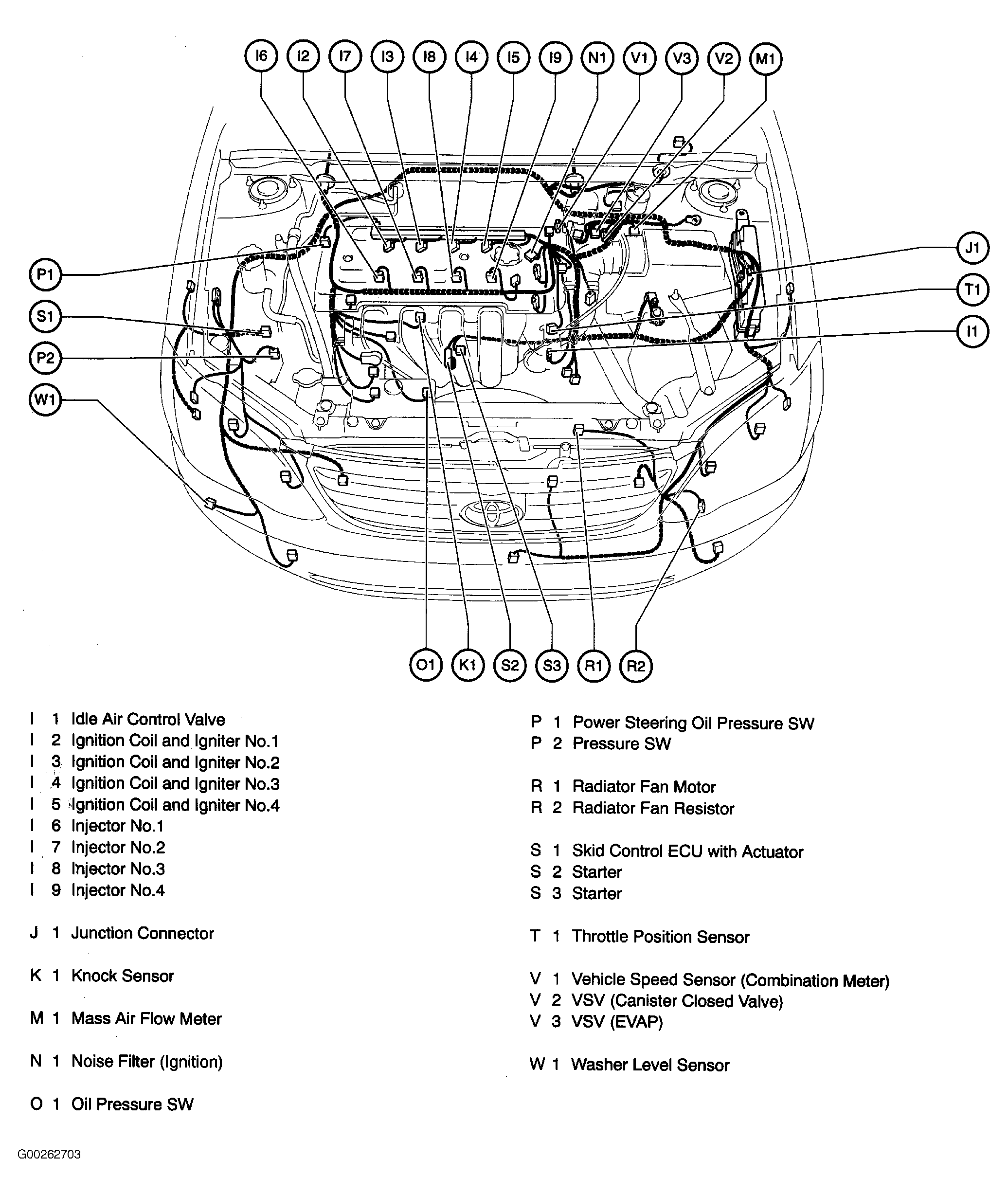

Fig 2: Engine

G00262703

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

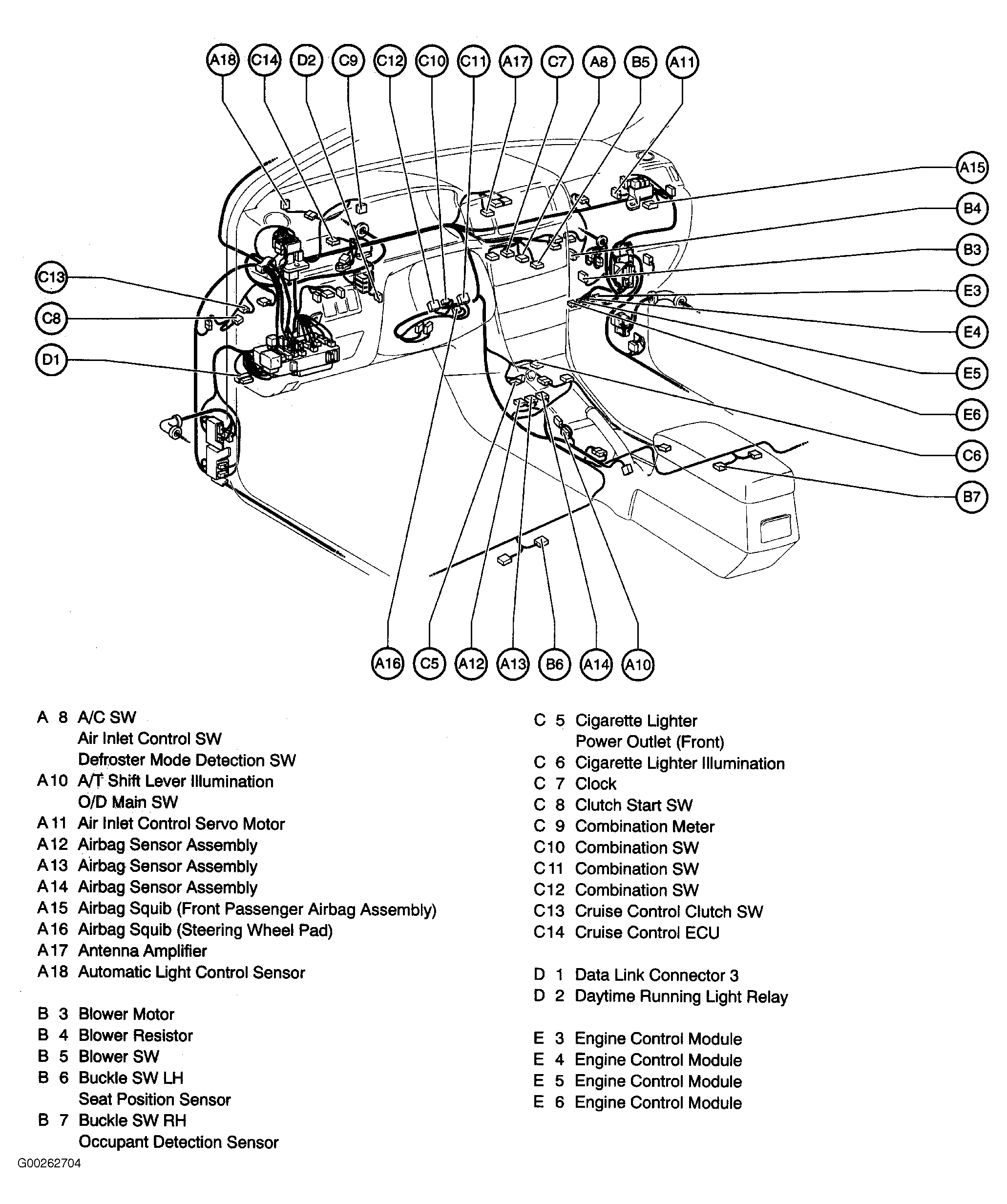

Fig 3: Dash & Center Console

G00262704

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Dash & Center Console

G00262705

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

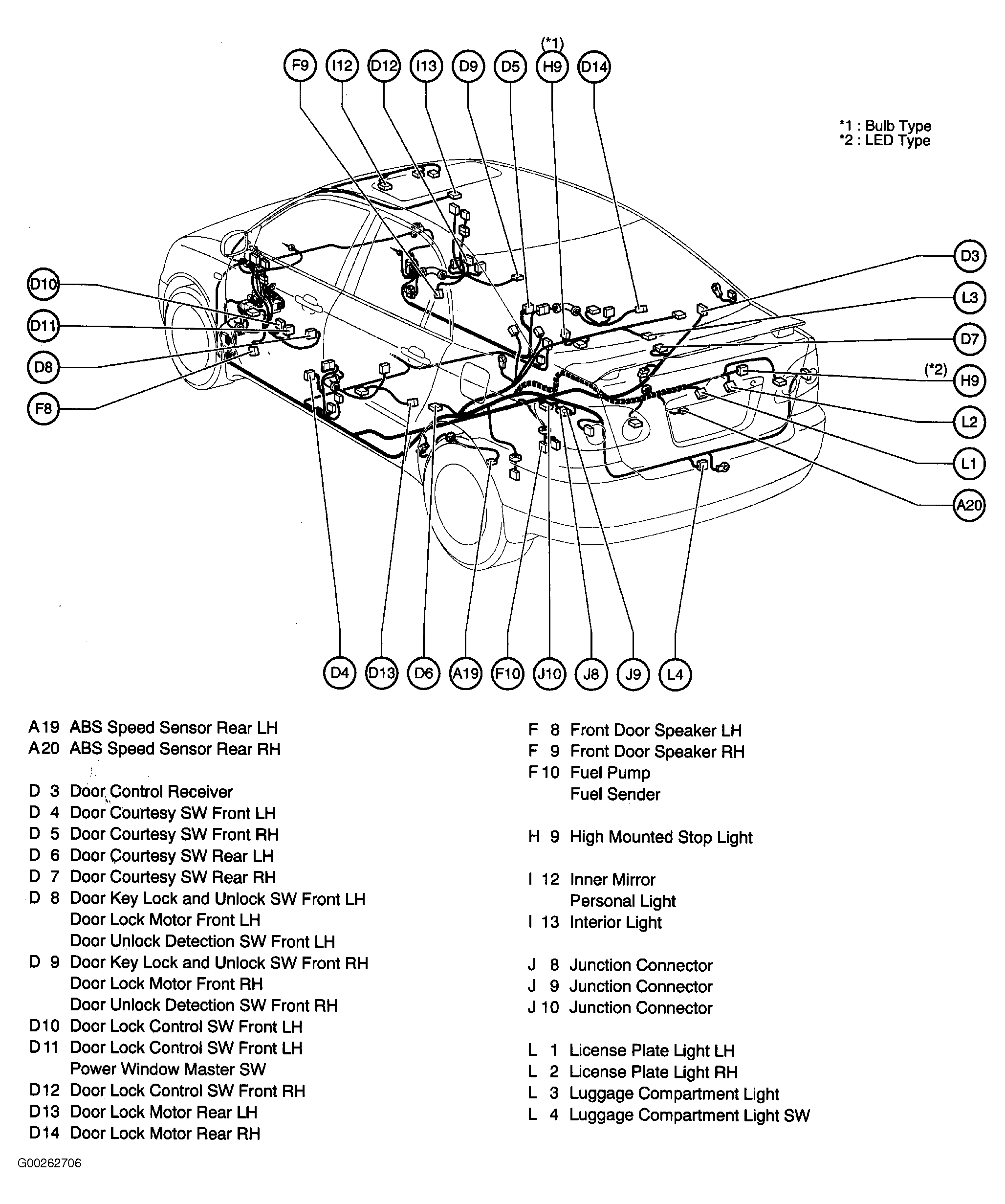

Fig 5: Vehicle Overview

G00262706

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

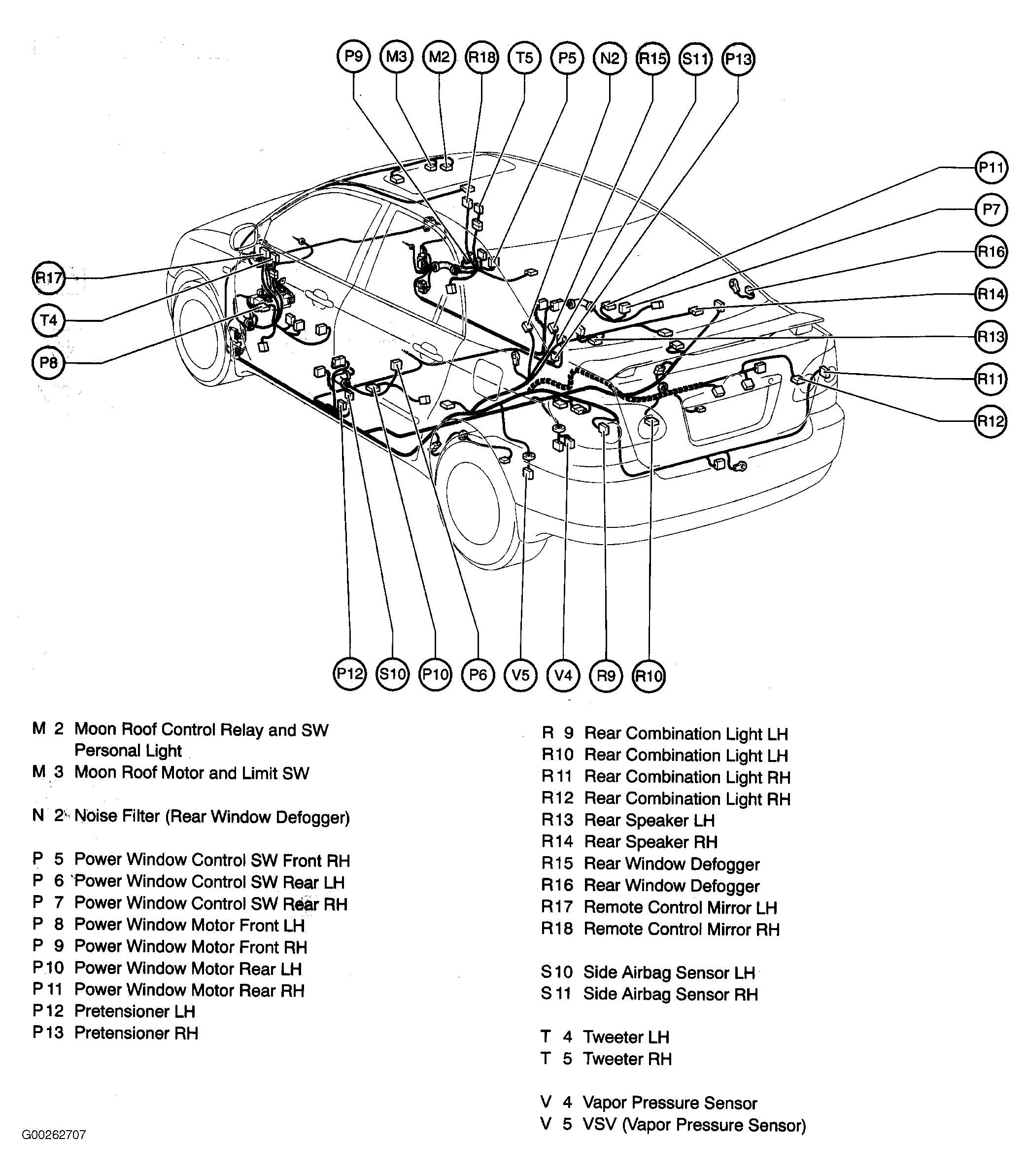

Fig 6: Vehicle Overview

G00262707

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

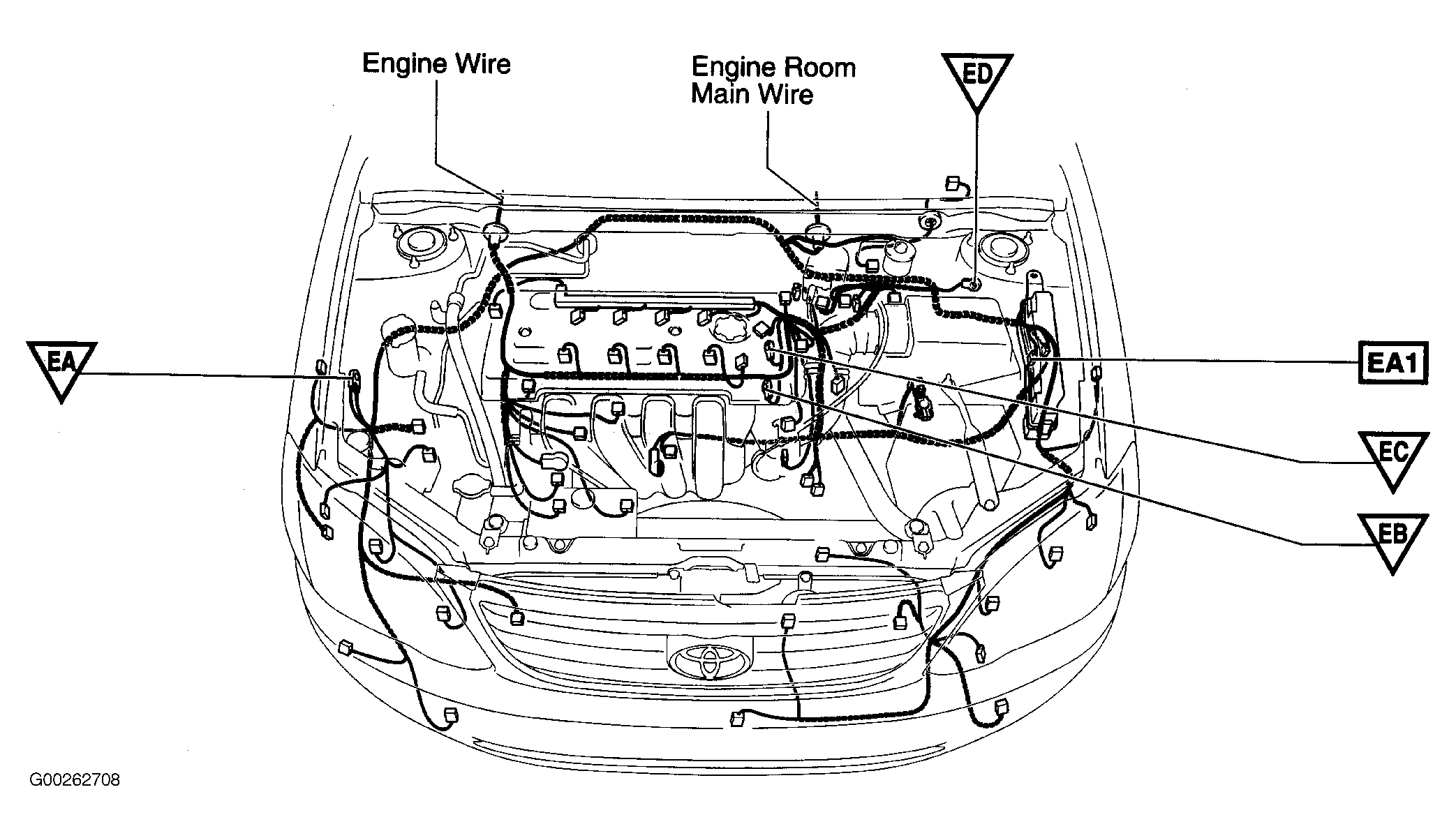

Fig 7: Engine Compartment

G00262708

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

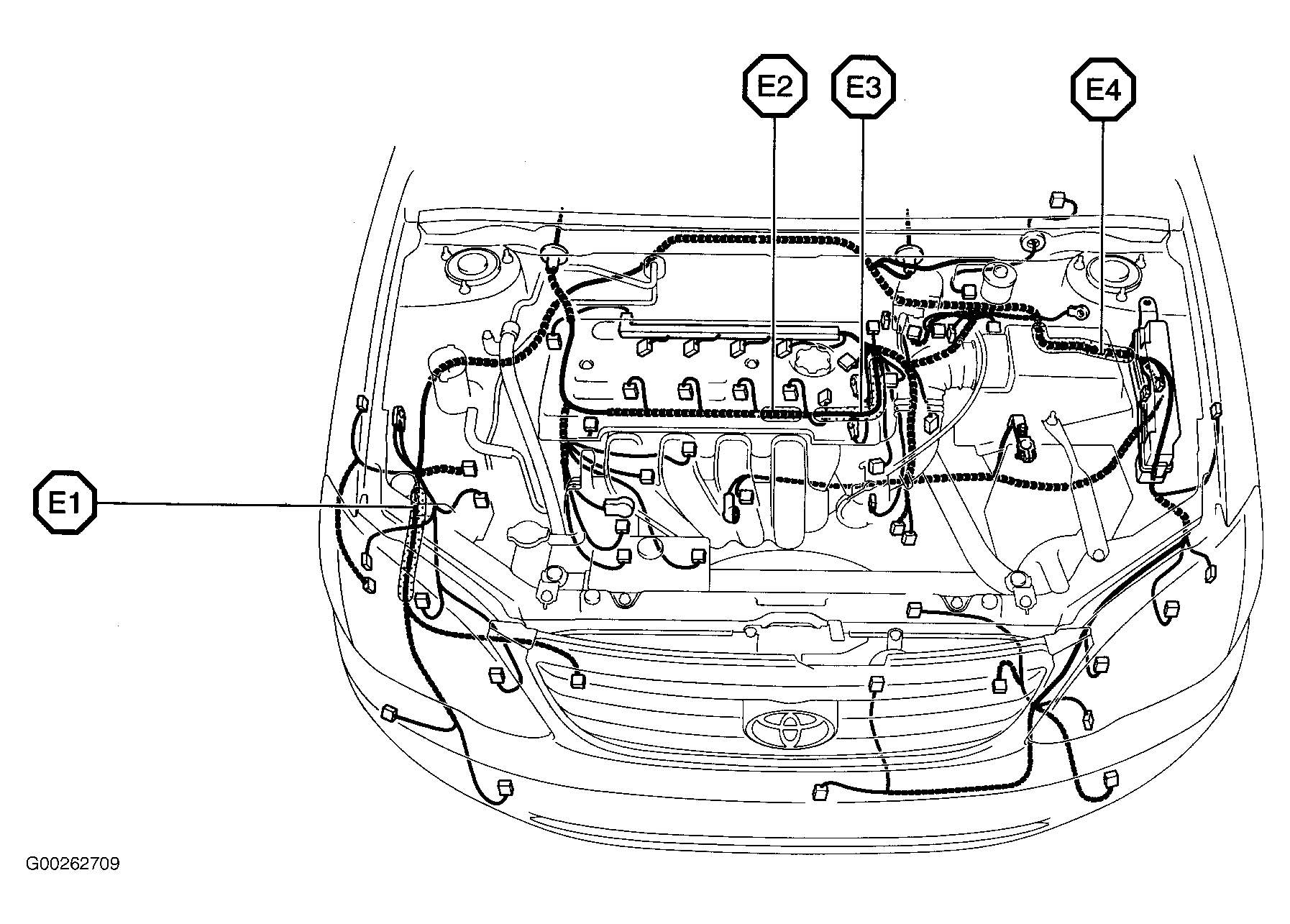

Fig 8: Engine Compartment

G00262709

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

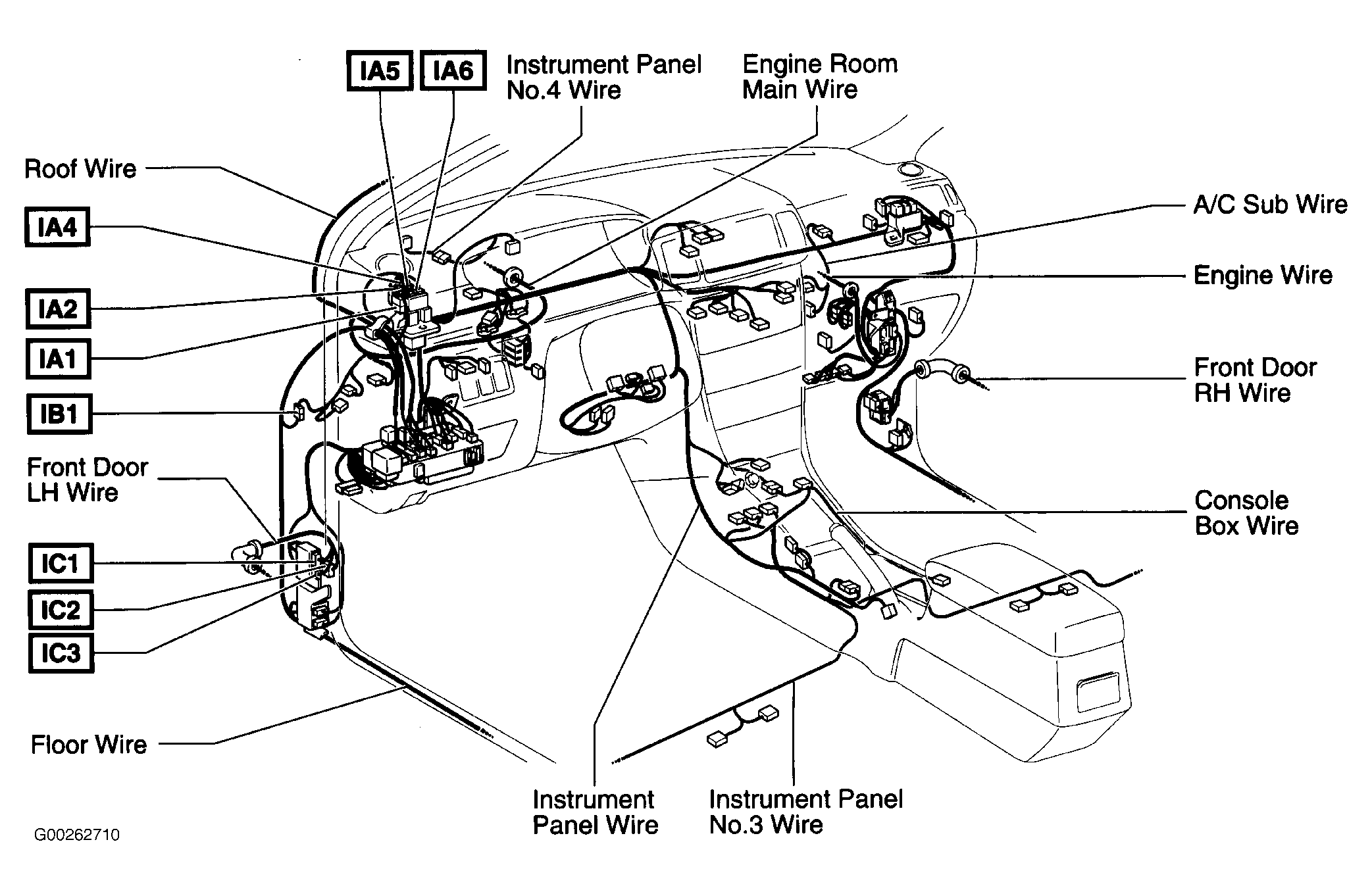

Fig 9: Dash

G00262710

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

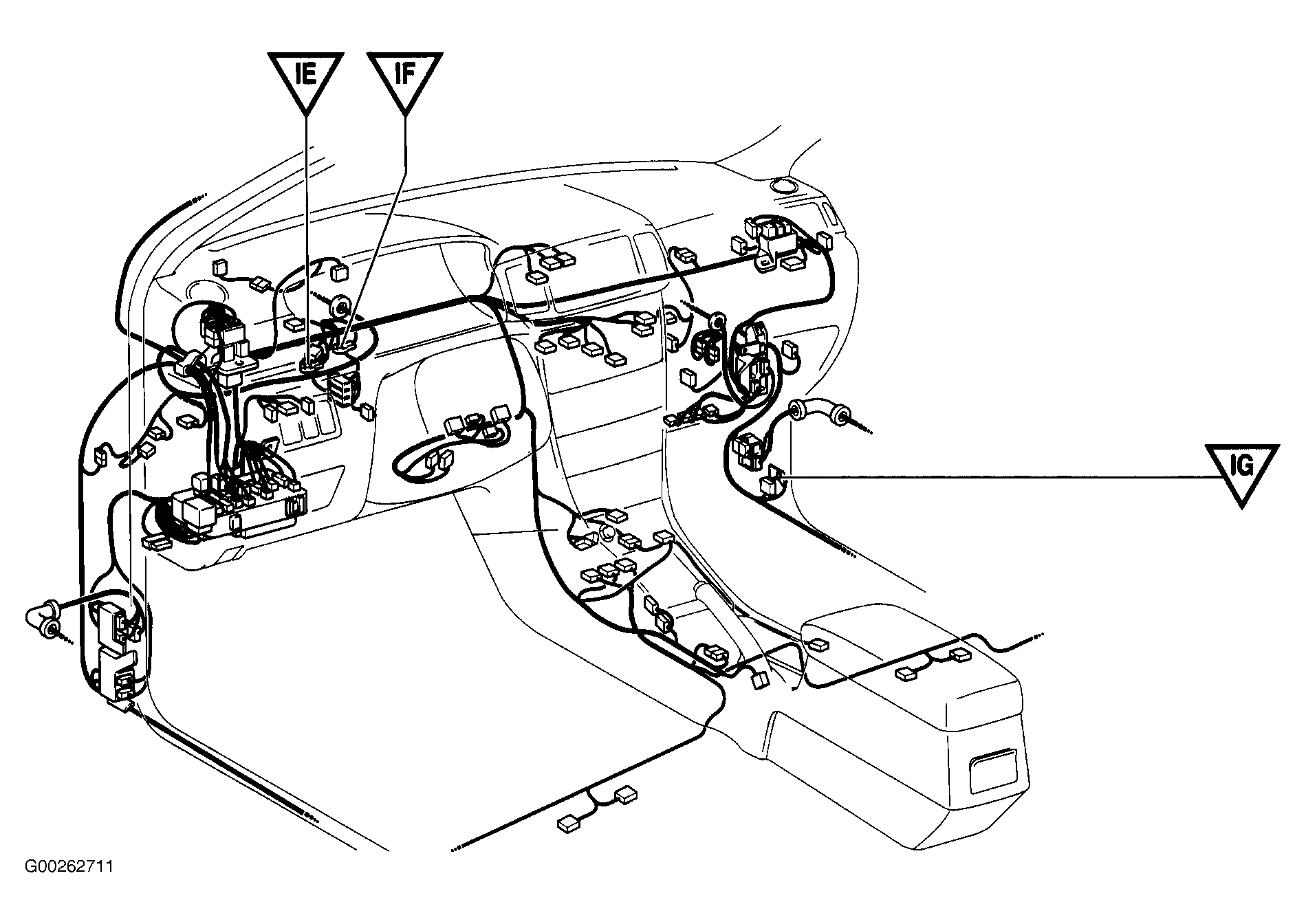

Fig 10: Dash

G00262711

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

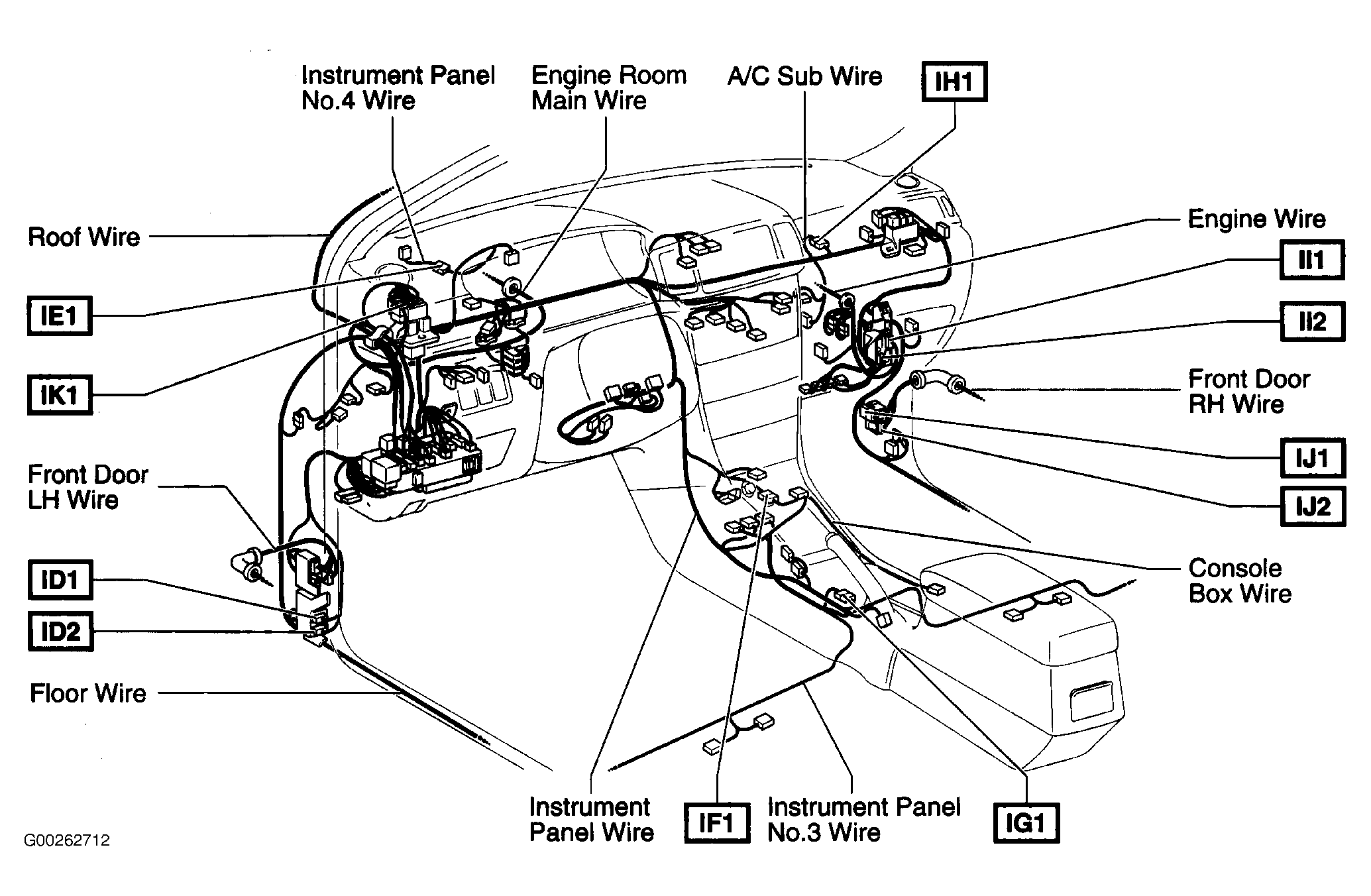

Fig 11: Dash & Center Console

G00262712

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

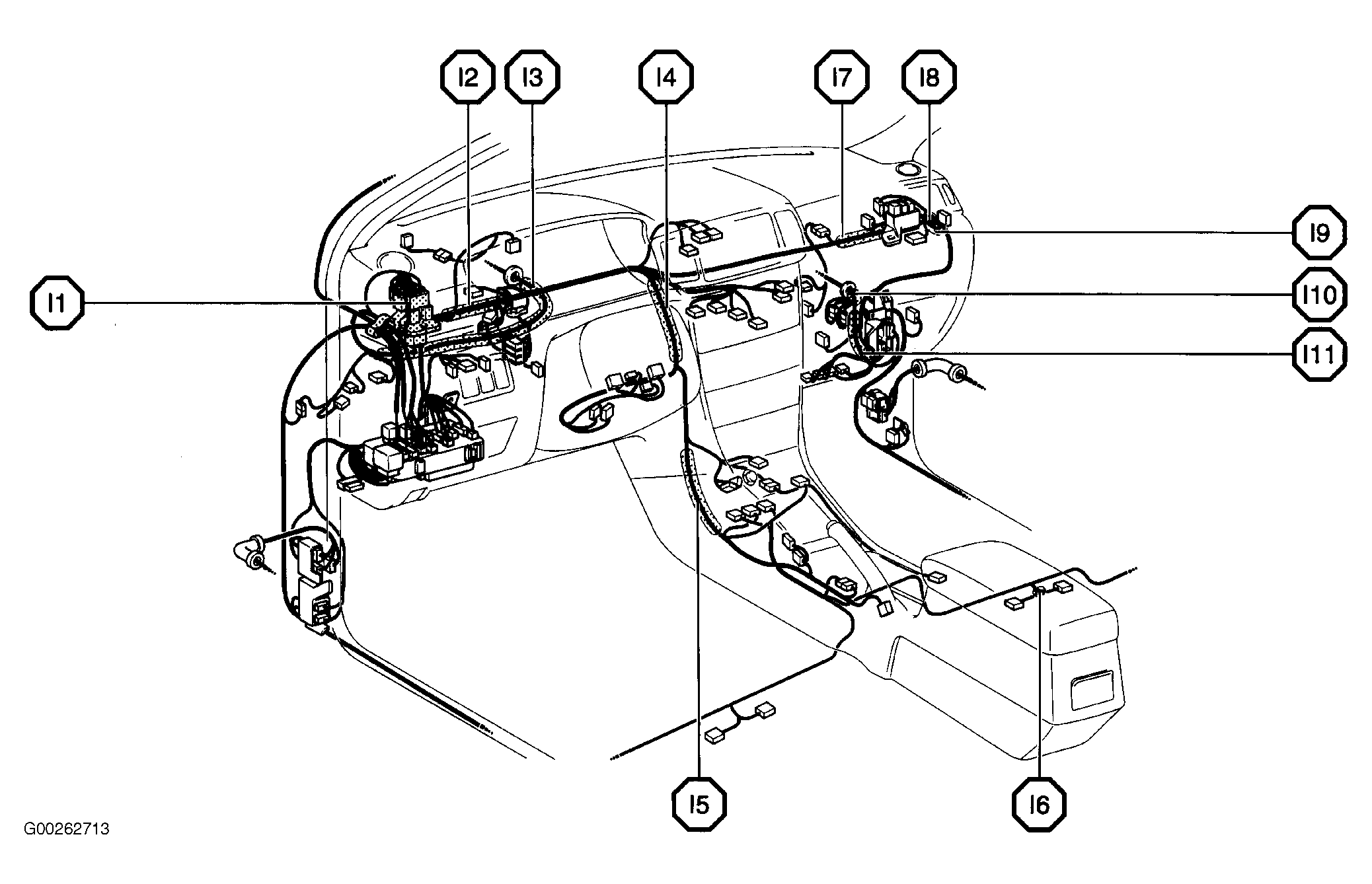

Fig 12: Dash & Center Console

G00262713

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

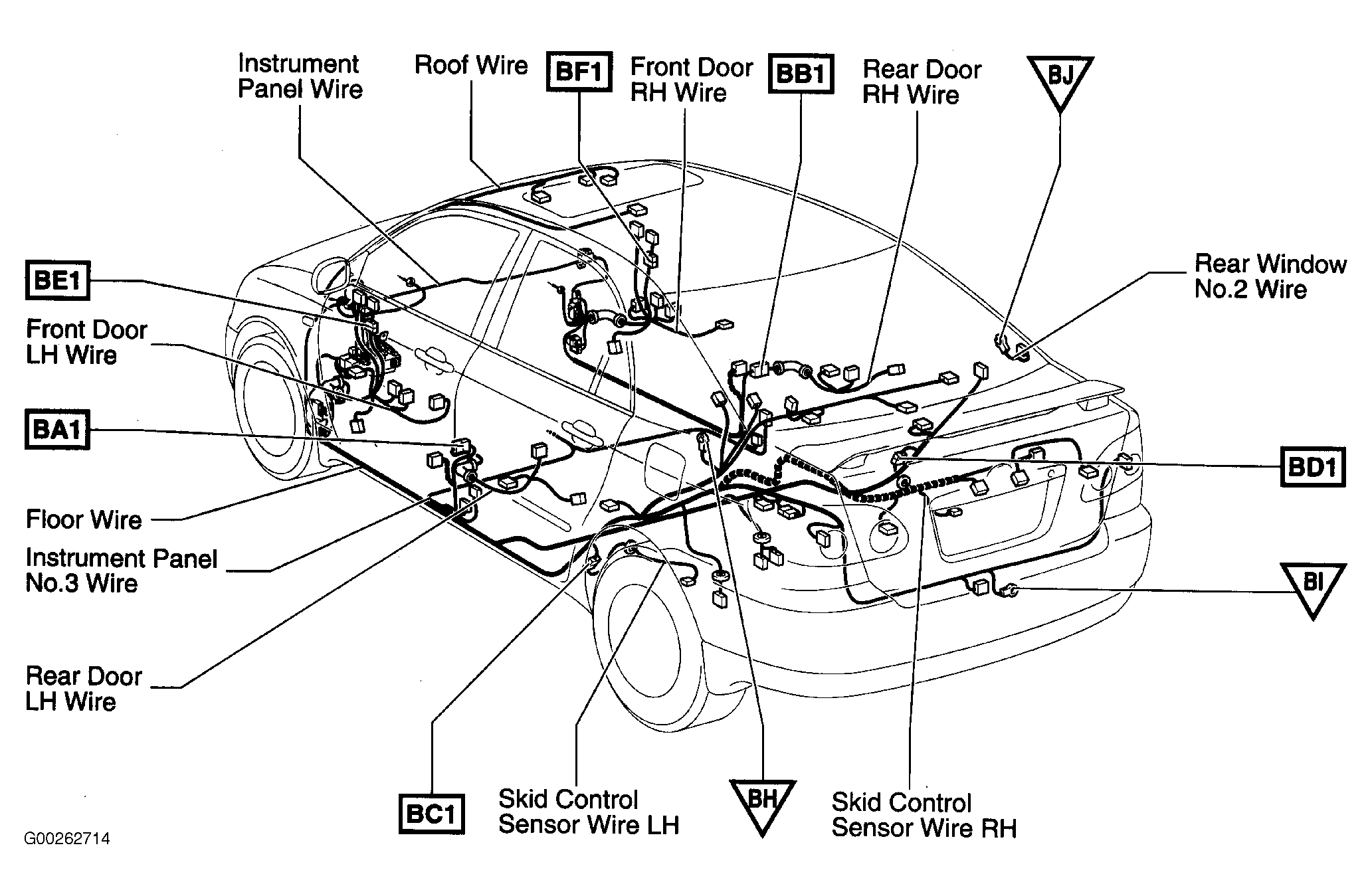

Fig 13: Vehicle Overview

G00262714

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Vehicle Overview

G00262715

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Engine Compartment

G00262716

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

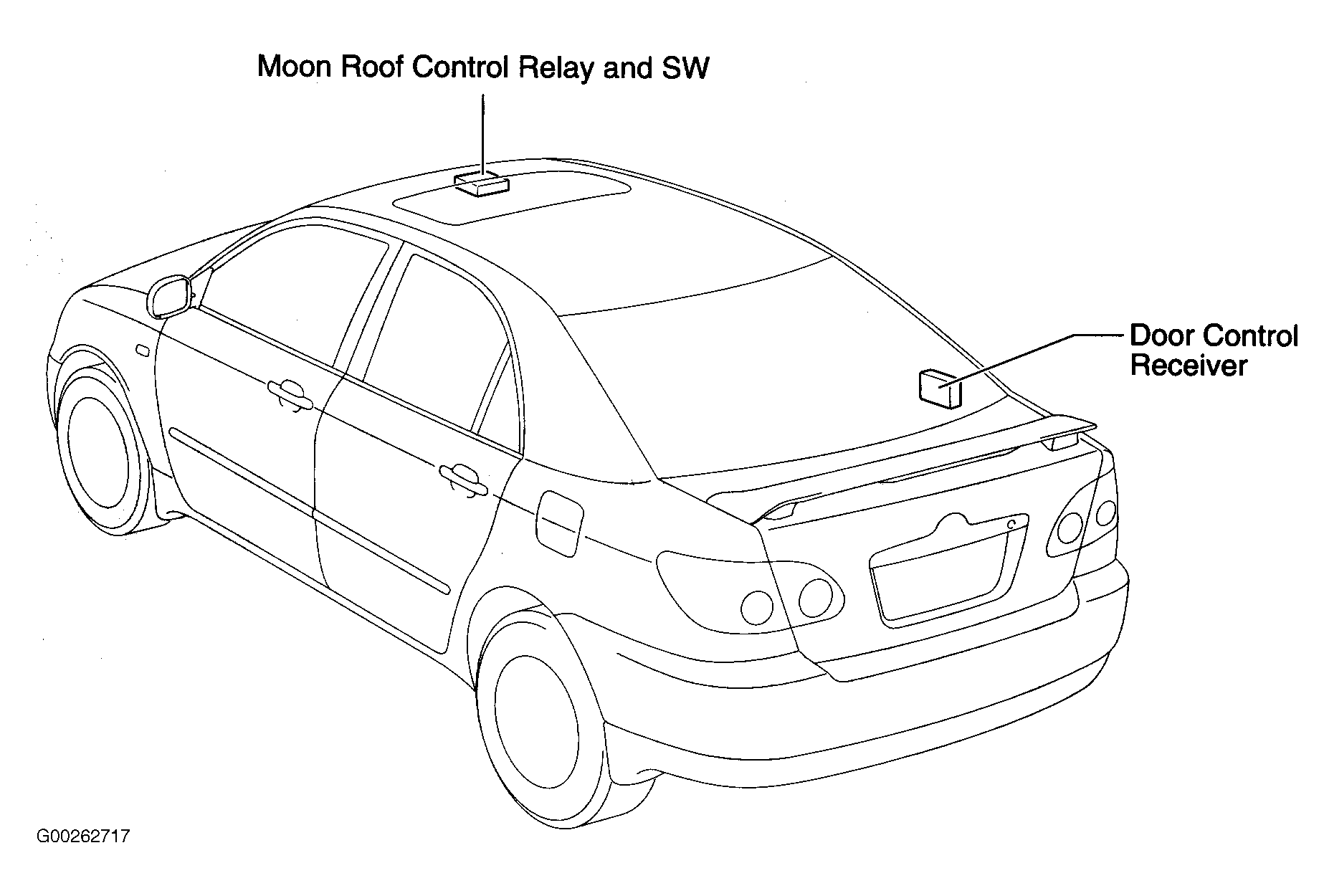

Fig 16: Vehicle Overview

G00262717

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Dash & Center Console

G00262718

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

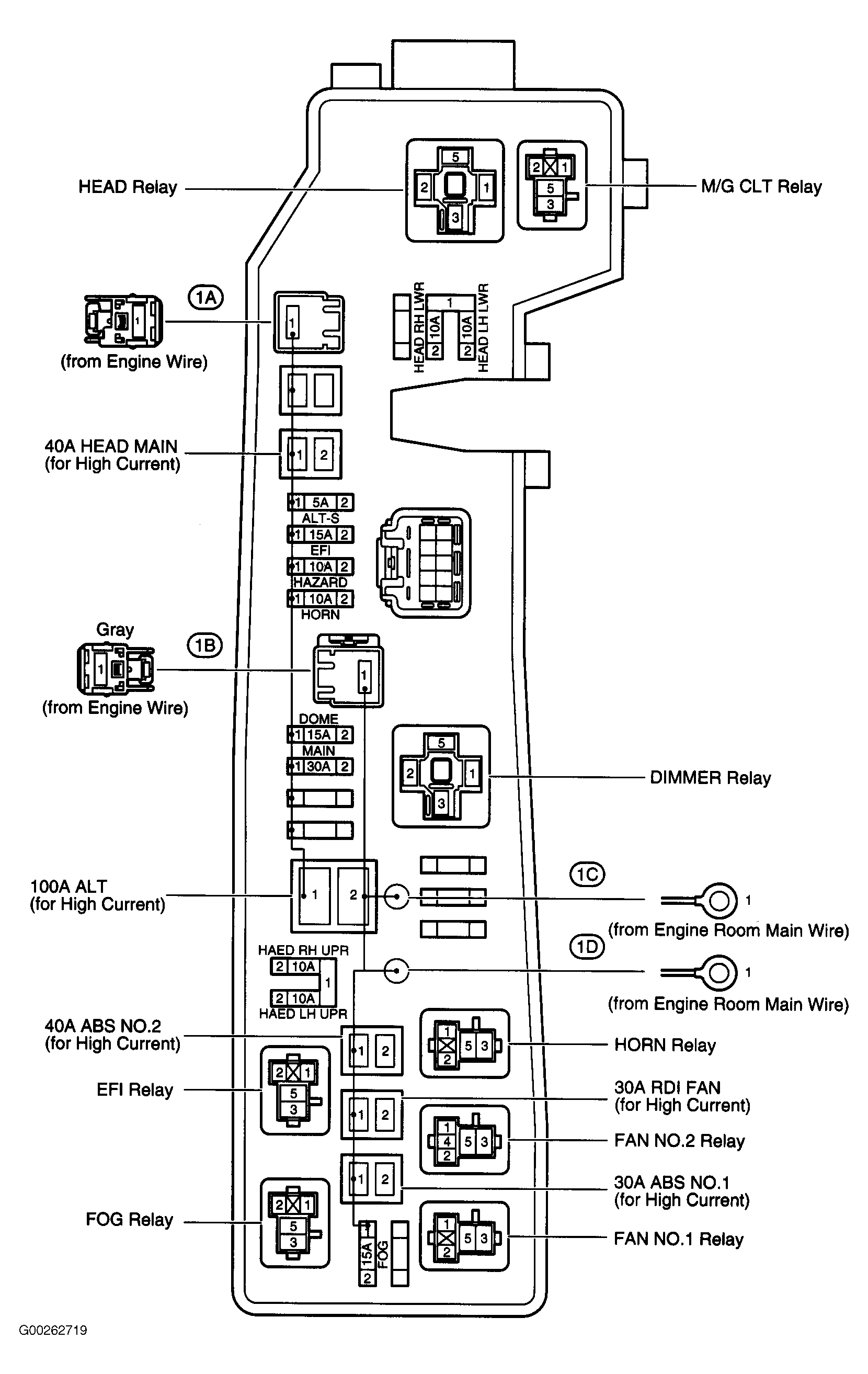

Fig 18: Engine Room R/B

G00262719

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

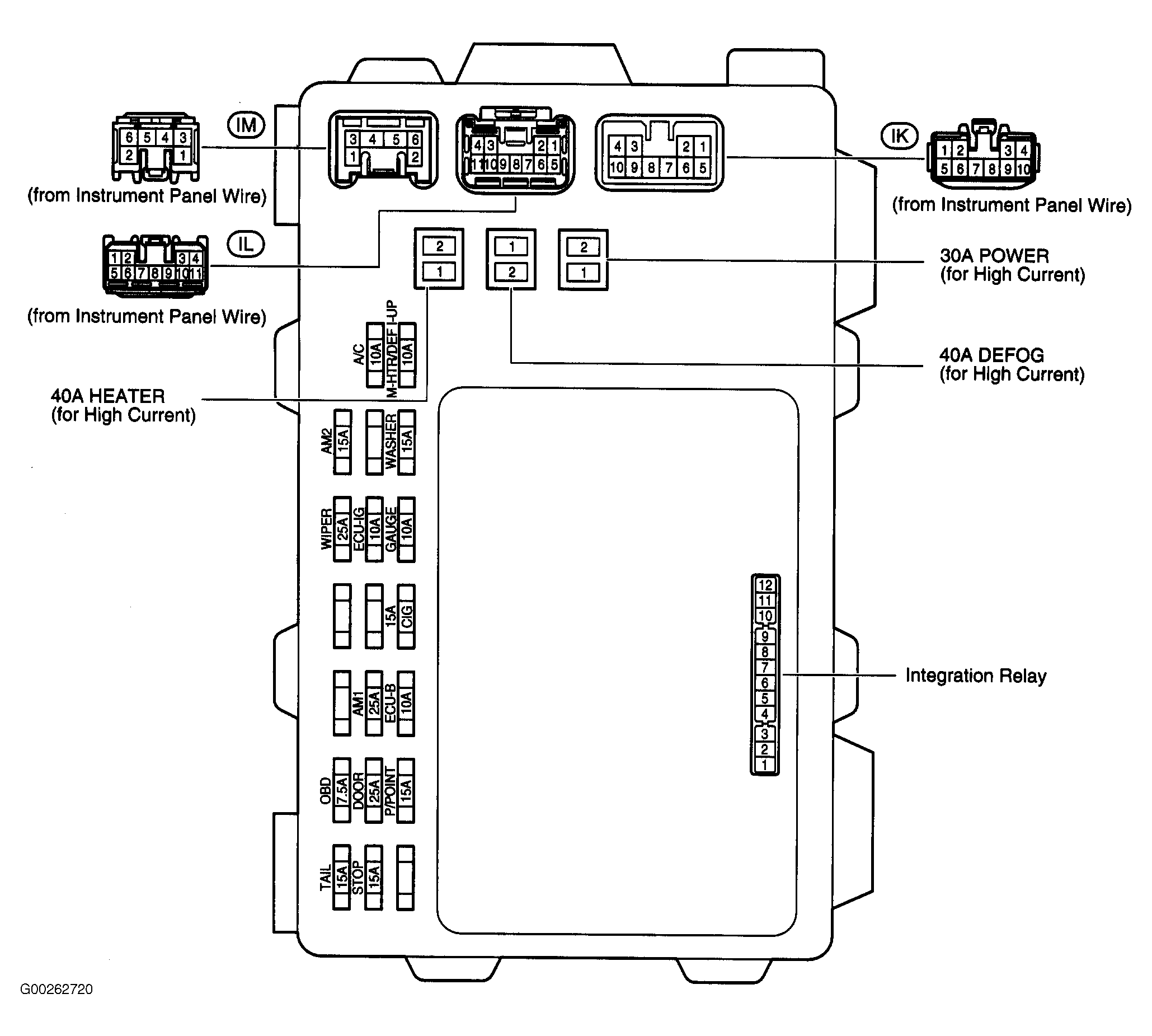

Fig 19: Instrument Panel J/B

G00262720

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

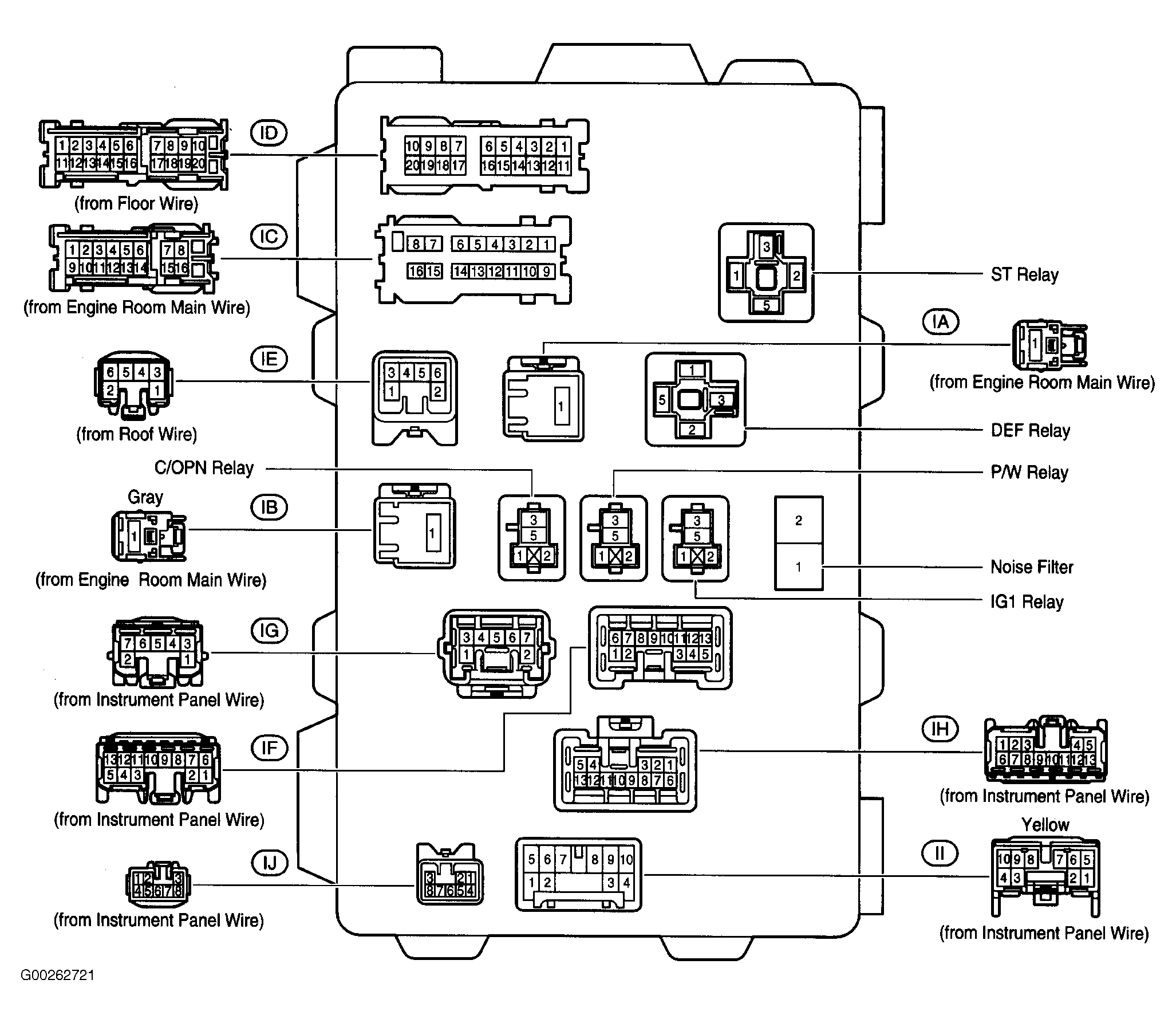

Fig 20: Instrument Panel J/B

G00262721

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

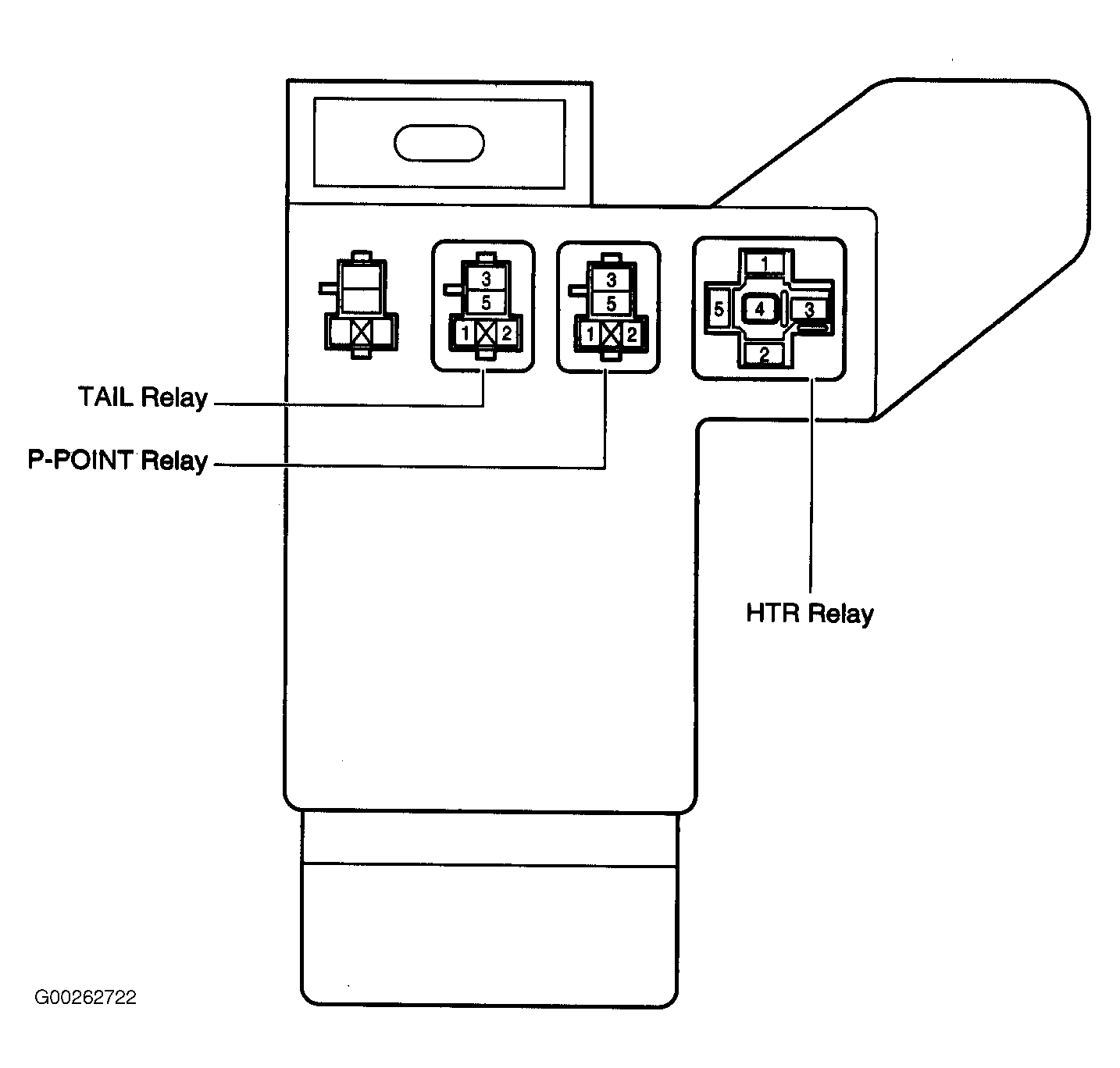

Fig 21: Right Hand R/B

G00262722

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
