Home >> Toyota >> 2004 >> Corolla LE, Automatic >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Engine Fuel System >> Fuel Tank ASSY >> Components

Fuel Tank ASSY: Components

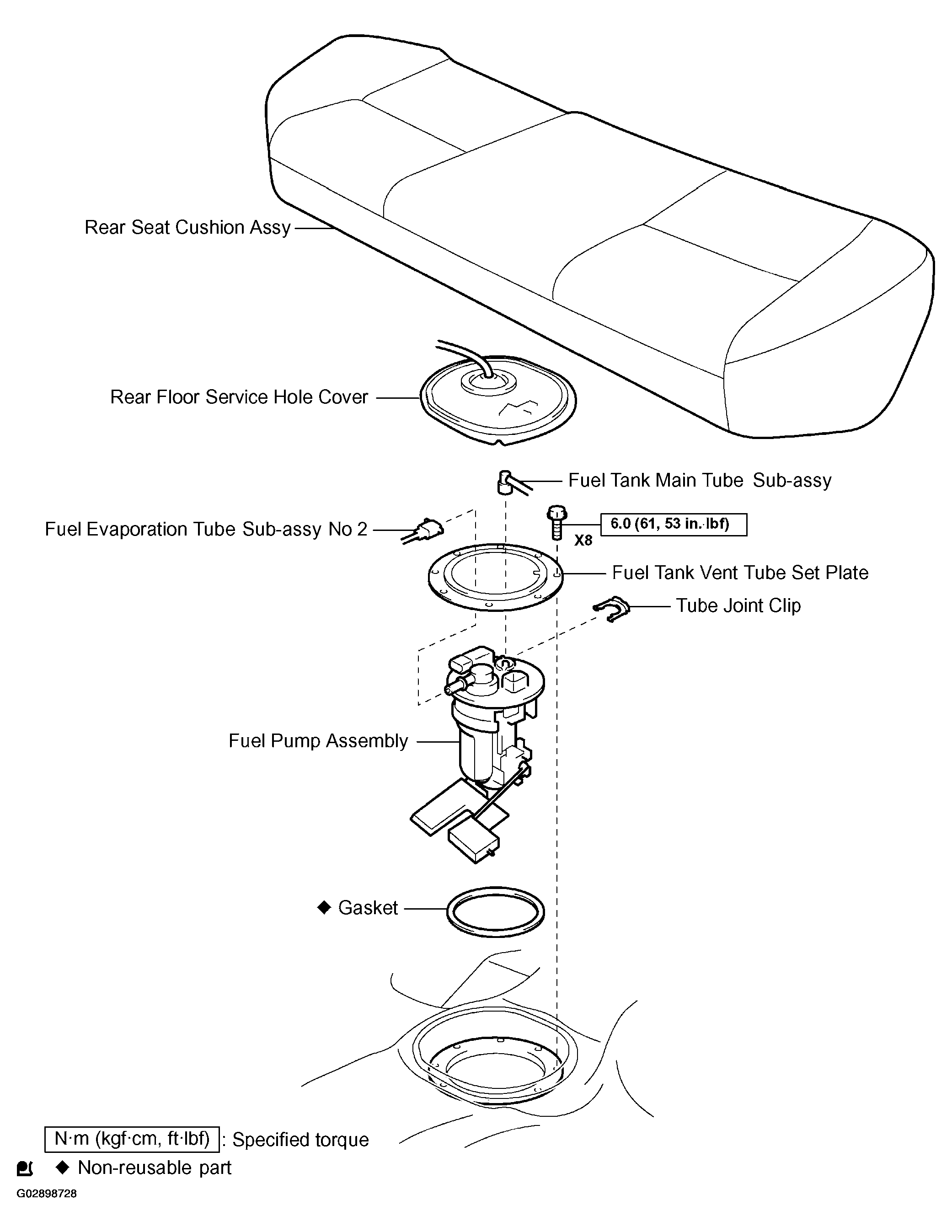

Fig 1: Identifying Fuel Tank Assy Components (1 Of 3)
G02898728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Fuel Tank Assy Components (2 Of 3)
G02898729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

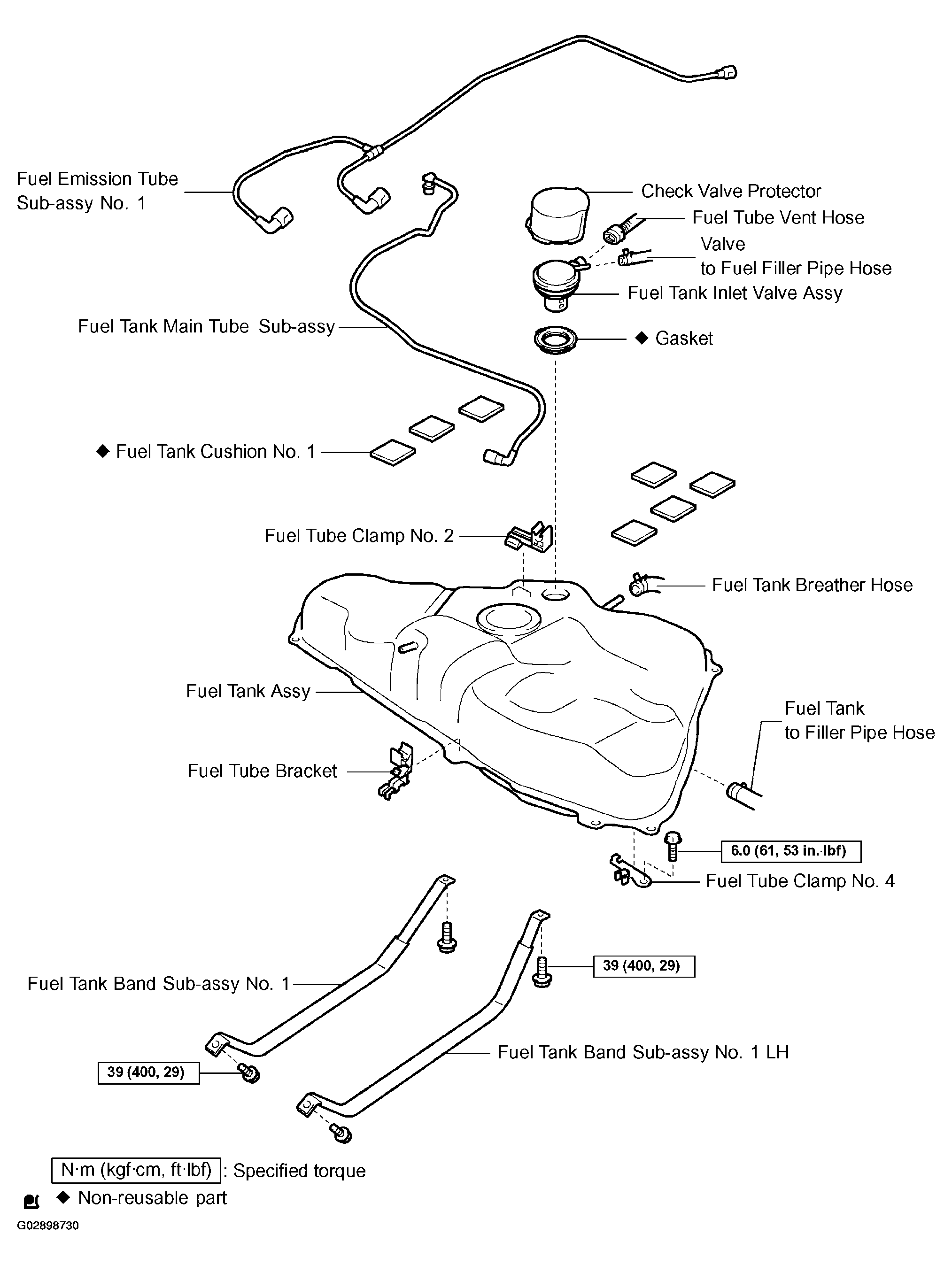

Fig 3: Identifying Fuel Tank Assy Components (3 Of 3)
G02898730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
