Terminals Of ECM

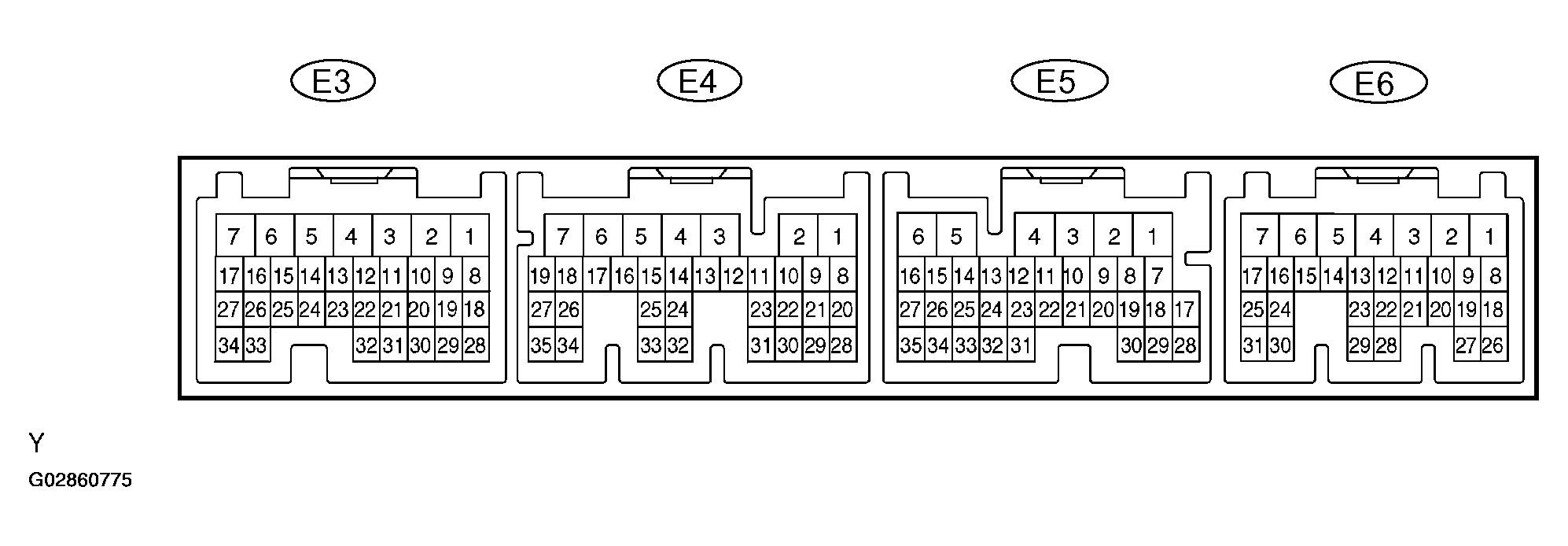

Fig 1: Locating Terminals Of ECM
G02860775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

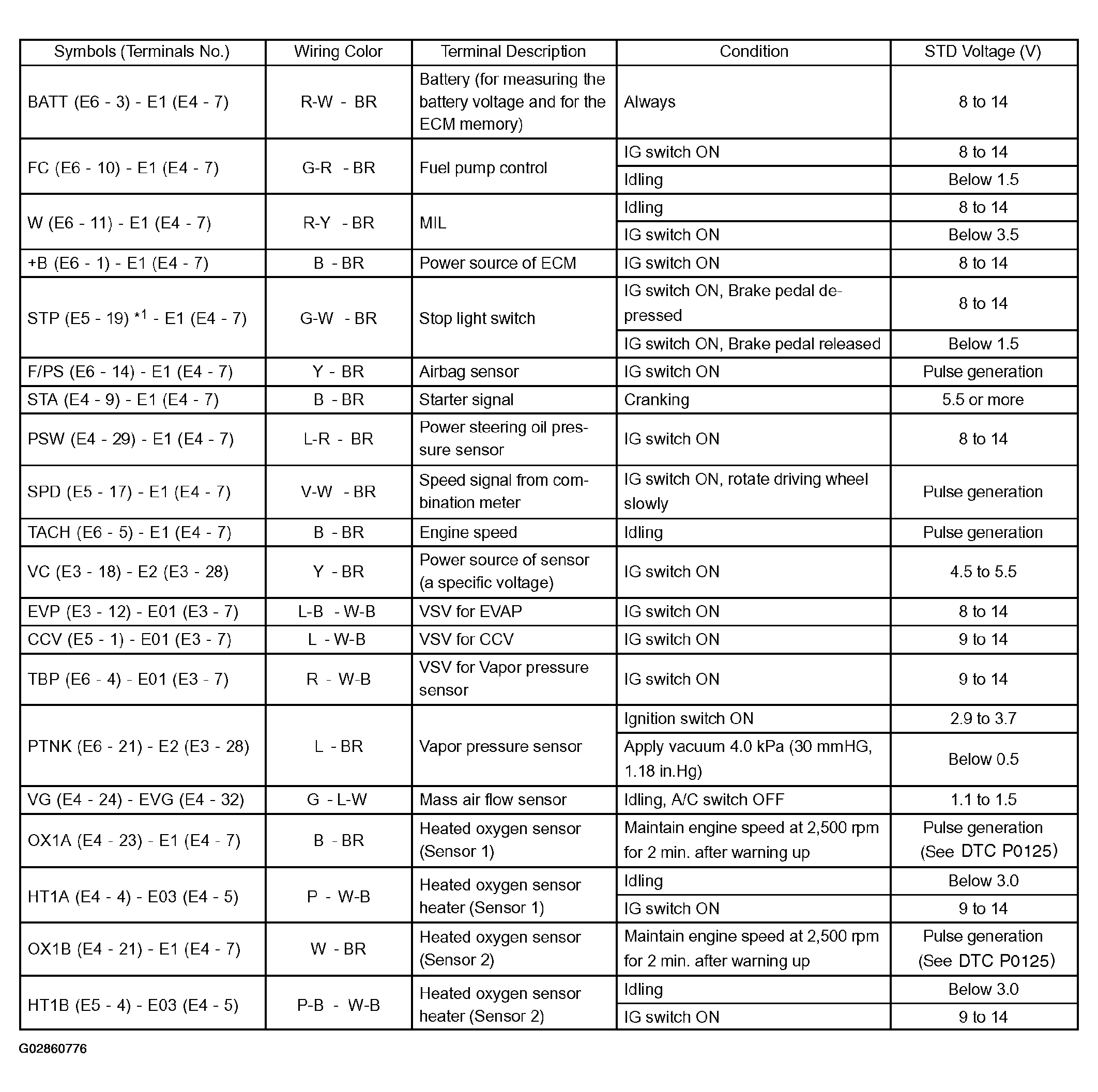

Fig 2: ECM Terminals Connector Voltage Chart (1 Of 2)
G02860776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

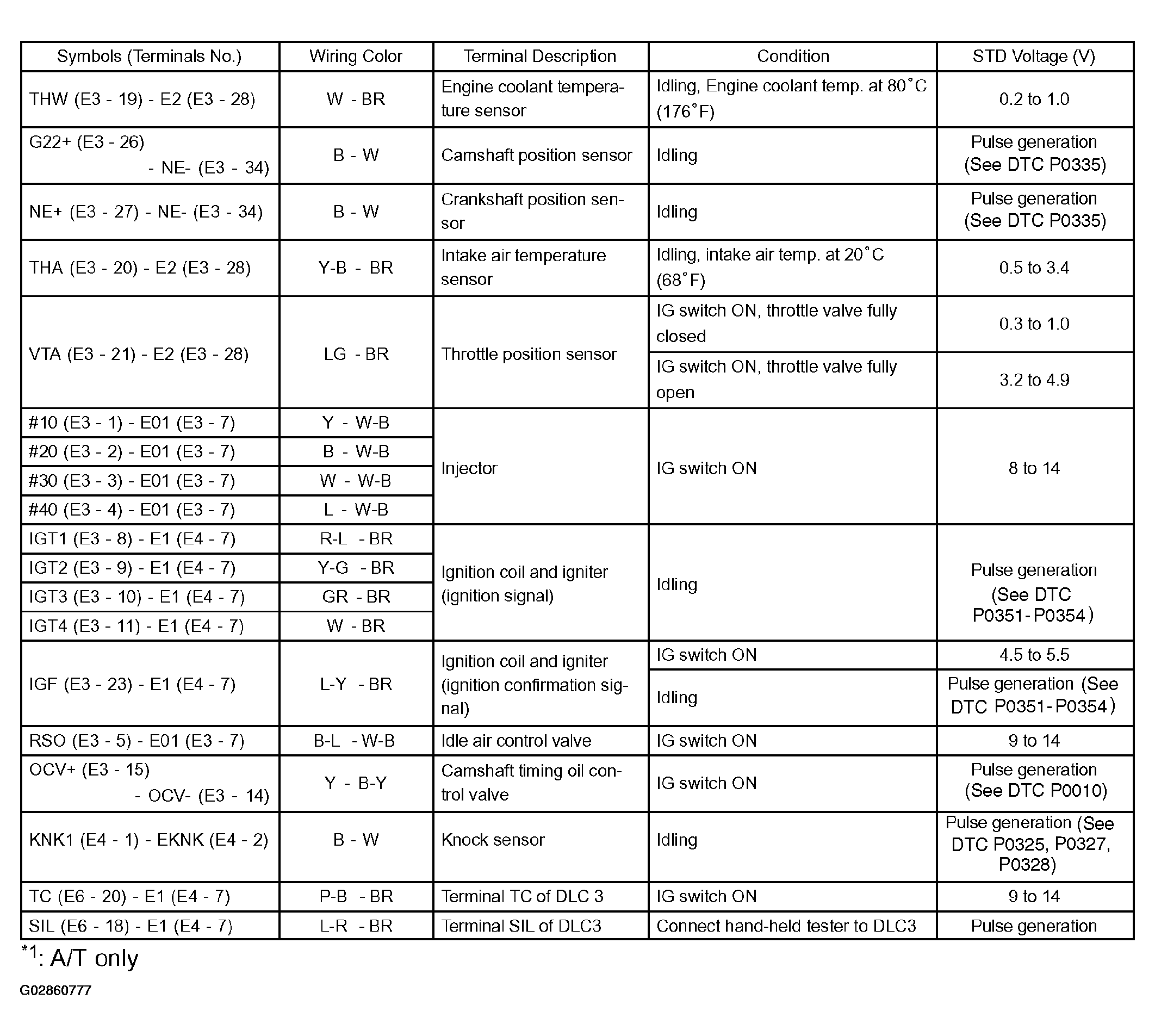

Fig 3: ECM Terminals Connector Voltage Chart (2 Of 2)
G02860777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
