Home >> Toyota >> 2004 >> ECHO 2D Sedan, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> SFI System >> Engine Coolant Temperature (ECT) Sensor >> Components

Engine Coolant Temperature (ECT) Sensor: Components

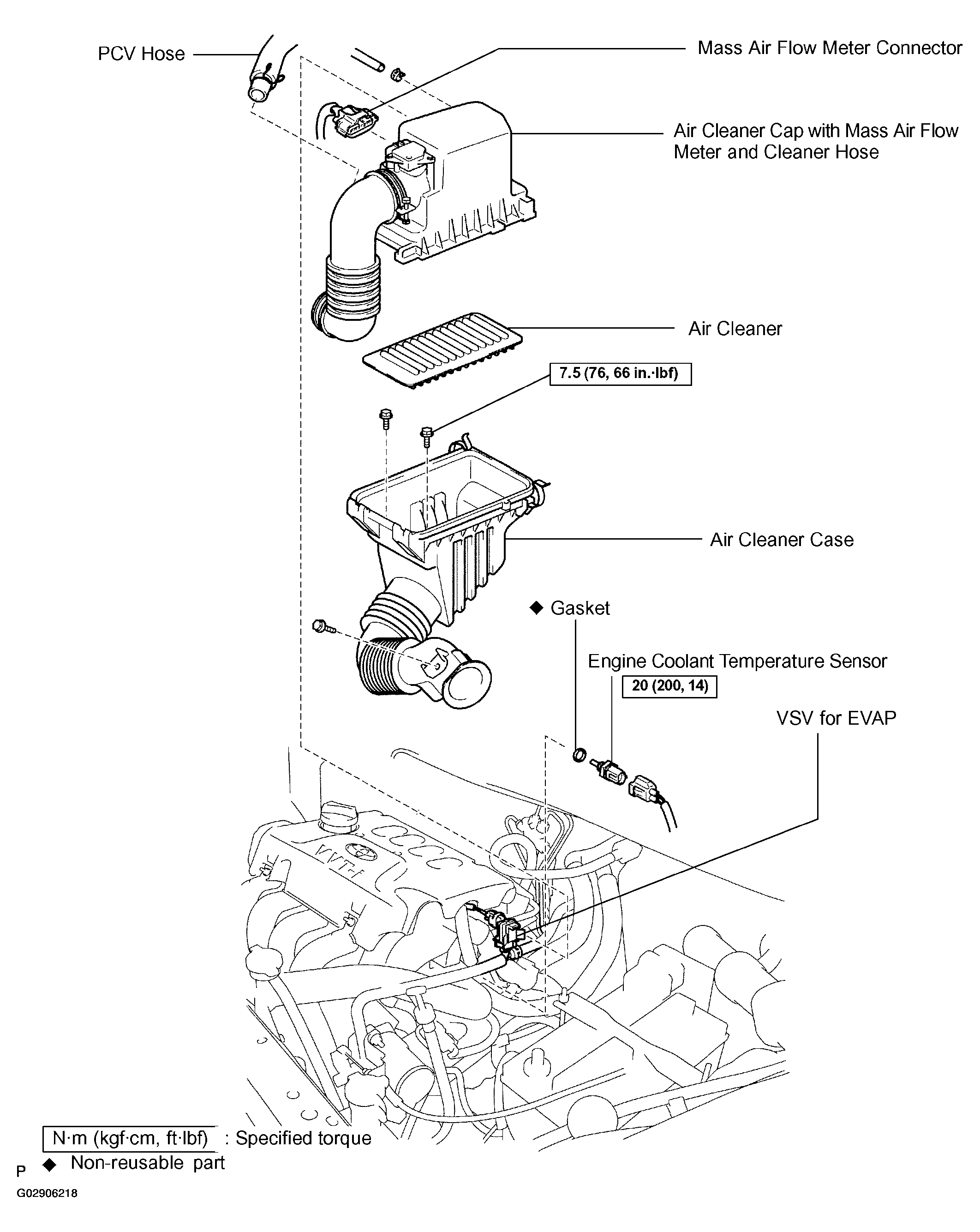

Fig 1: Identifying Engine Coolant Temperature (ECT) Sensor

G02906218

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
