Fuel Pump: Disassembly

1. Using a small screwdriver, remove the No. 2 fuel suction support.
2. Remove the rubber cushion and fuel pressure regulator.
3. Remove the O-ring from the pressure regulator.

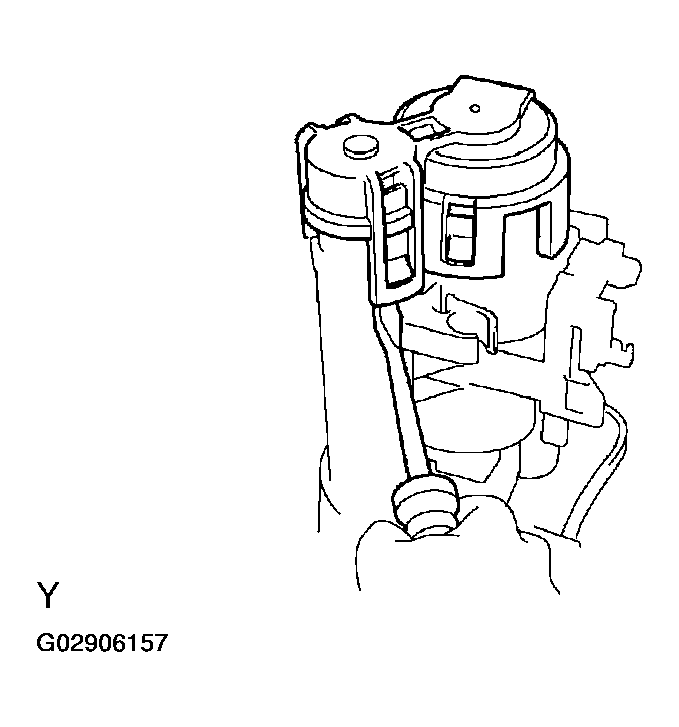

   Fig 1: Removing No. 2 Fuel Suction Support

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the fuel sender gauge connector.
2. Using a small screwdriver, remove the No. 1 fuel suction support.
   NOTE: Do not damage the fuel suction support and fuel suction plate.
3. Disconnect the fuel pump harness from the fuel pump.
4. Remove the O-ring from the No. 1 fuel suction support.

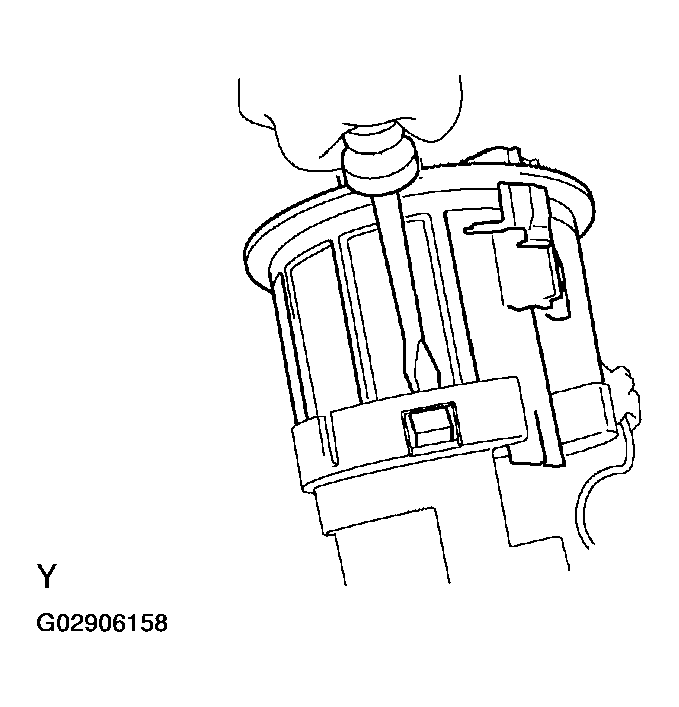

   Fig 2: Removing O-Ring From No. 1 Fuel Suction Support

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the joint clip and remove the vapor pressure sensor from No. 1 fuel suction support.

Fig 3: Removing Fuel Pump From Fuel Filter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the fuel pump from the fuel filter.
2. Remove the O-ring from the fuel pump.
