Fuel Pump: Reassembly

  1. INSTALL FUEL PUMP

    Connect the fuel pump to the fuel filter.

  2. INSTALL FUEL PRESSURE REGULATOR
    1. Install the O-ring to the pressure regulator.

      HINT:

      Apply a light coat of gasoline to a new O-ring, and install it to the pressure regulator.

    2. Connect the pressure regulator to the fuel filter.

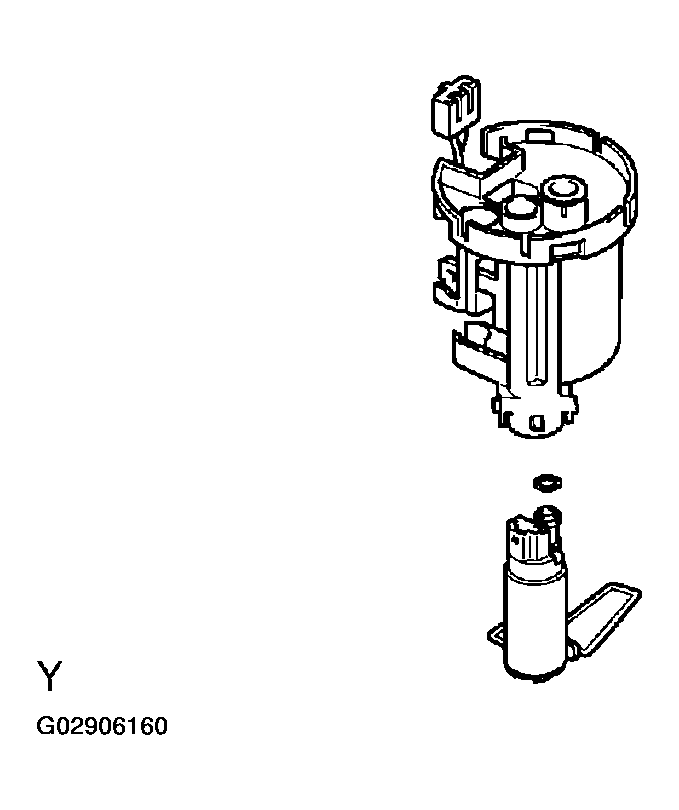

      Fig 1: Connecting Pressure Regulator To Fuel Filter
      G02906160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 FUEL SUCTION SUPPORT
    1. Connect the fuel pump harness to the No. 1 fuel suction support and fuel pump.
    2. Install the No. 1 fuel suction support to the fuel filter.
    3. Connect the fuel sender gauge connector and earth plate.
  4. INSTALL NO. 2 FUEL SUCTION SUPPORT
    1. Install the rubber cushion.
    2. Install the No. 2 fuel suction support to the No. 1 fuel suction support.
  5. INSTALL VAPOR PRESSURE SENSOR

    Install the vapor pressure sensor and connect the joint clip to the No. 1 fuel suction support.
