Throttle Body: Installation

  1. INSTALL THROTTLE BODY
    1. Install the throttle body and accelerator cable bracket with the bolt and 2 nuts.

      Torque: 30 N.m (305 kgf.cm, 22 ft.lbf)

    2. Connect the 2 water bypass hoses to the throttle body.

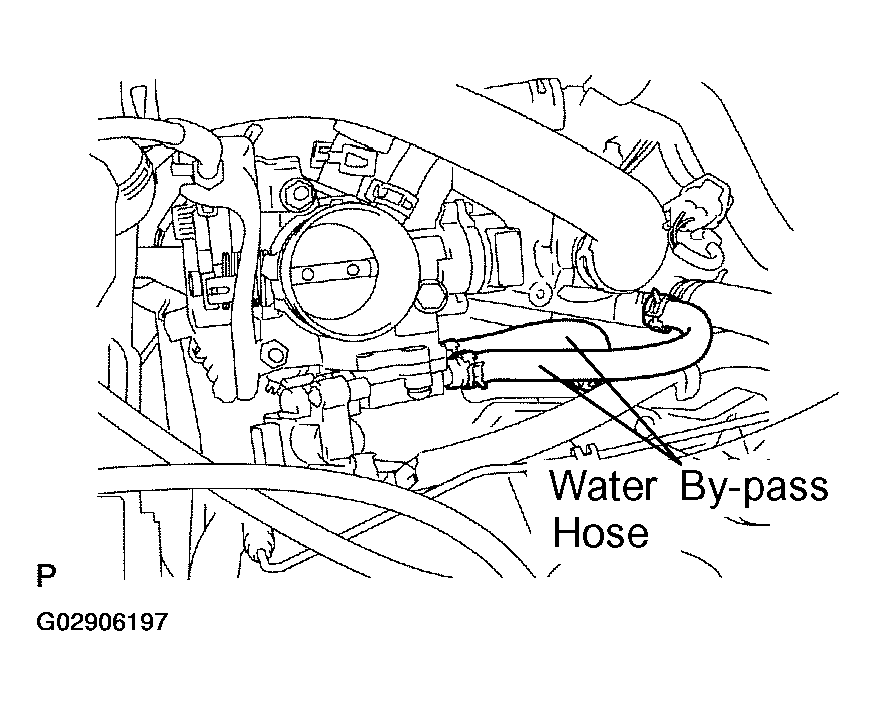

      Fig 1: Connecting Water Bypass Hoses To Throttle Body
      G02906197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the IAC valve connector.
    4. Connect the throttle position sensor connector.
    5. Connect the PCV hose to throttle body.
  2. INSTALL AIR CLEANER HOSE AND CAP
  3. FILL RADIATOR WITH ENGINE COOLANT

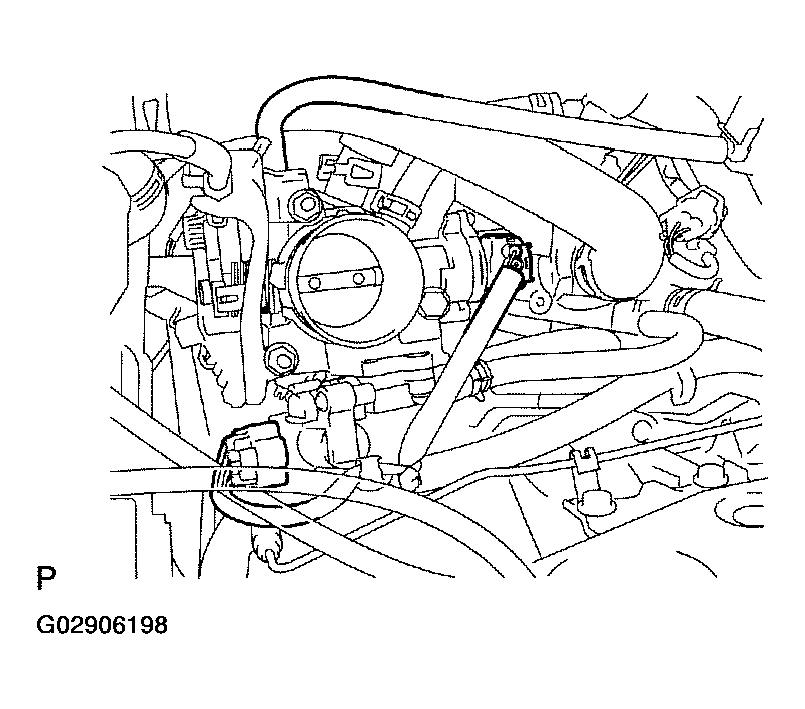

    Fig 2: Connecting IAC Valve Connector
    G02906198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
