Ignition Coil: Removal

  1. REMOVE NO. 2 CYLINDER HEAD COVER
  2. DISCONNECT 4 IGNITION COIL CONNECTORS

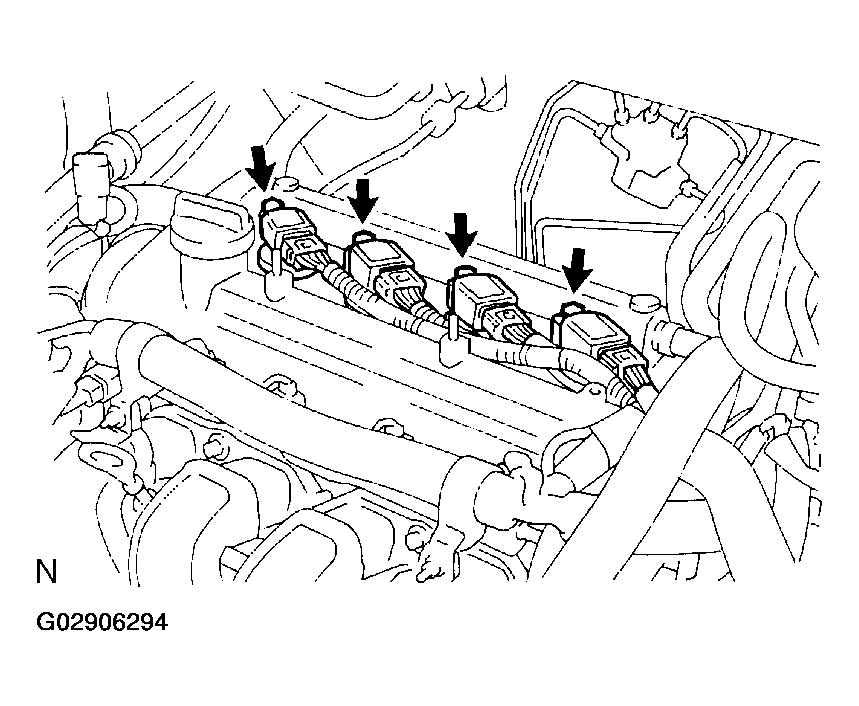

    Fig 1: Disconnecting Ignition Coil Connectors
    G02906294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE IGNITION COILS (WITH IGNITER) FROM SPARK PLUGS

    Remove the 4 bolts and pull out the 4 ignition coils (with igniter).

    Torque:  9.0 N.m (92 kgf.cm, 80 in.lbf)
