Automatic Transaxle Unit: Components

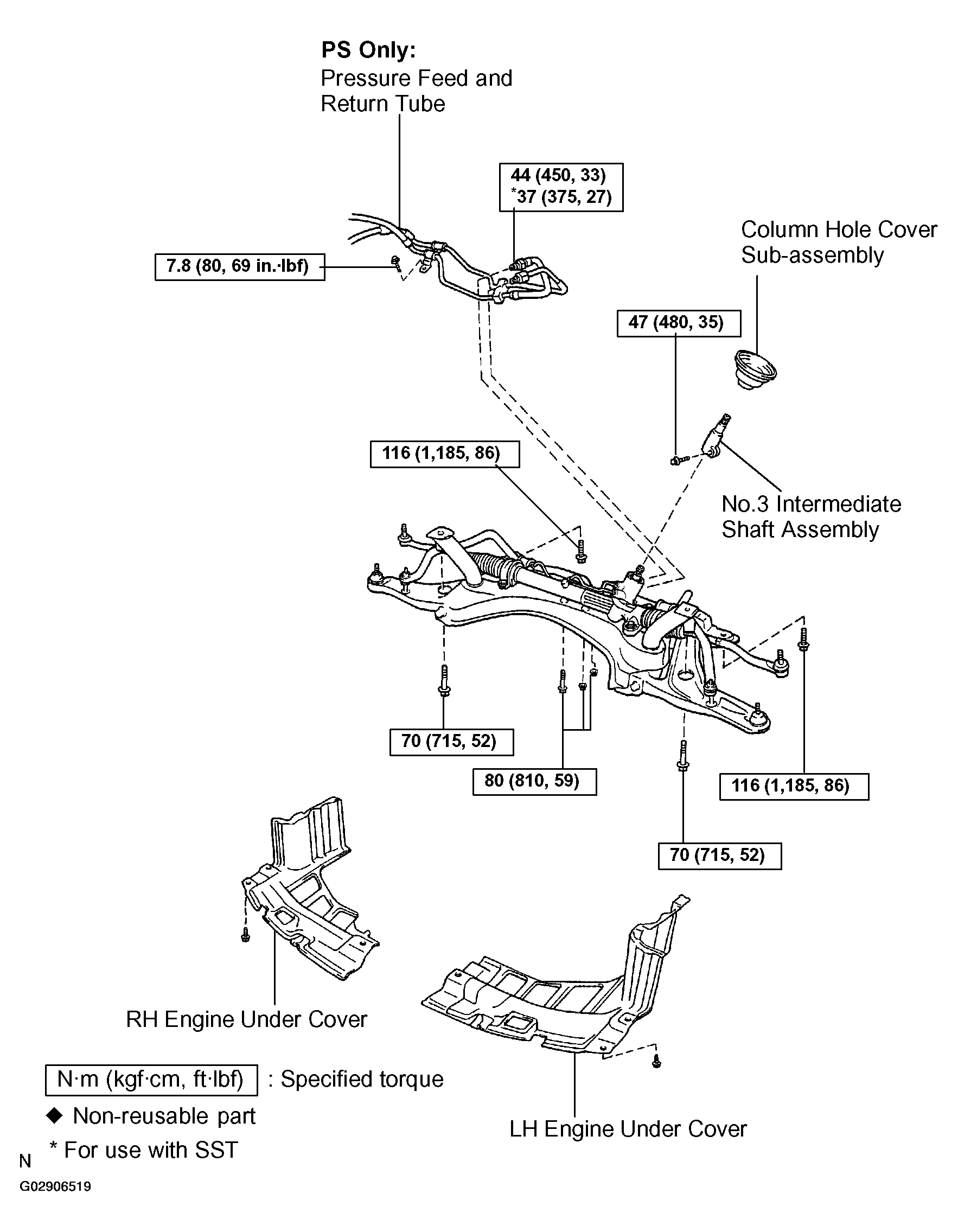

Fig 1: Identifying Automatic Transaxle Unit Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Automatic Transaxle Unit Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

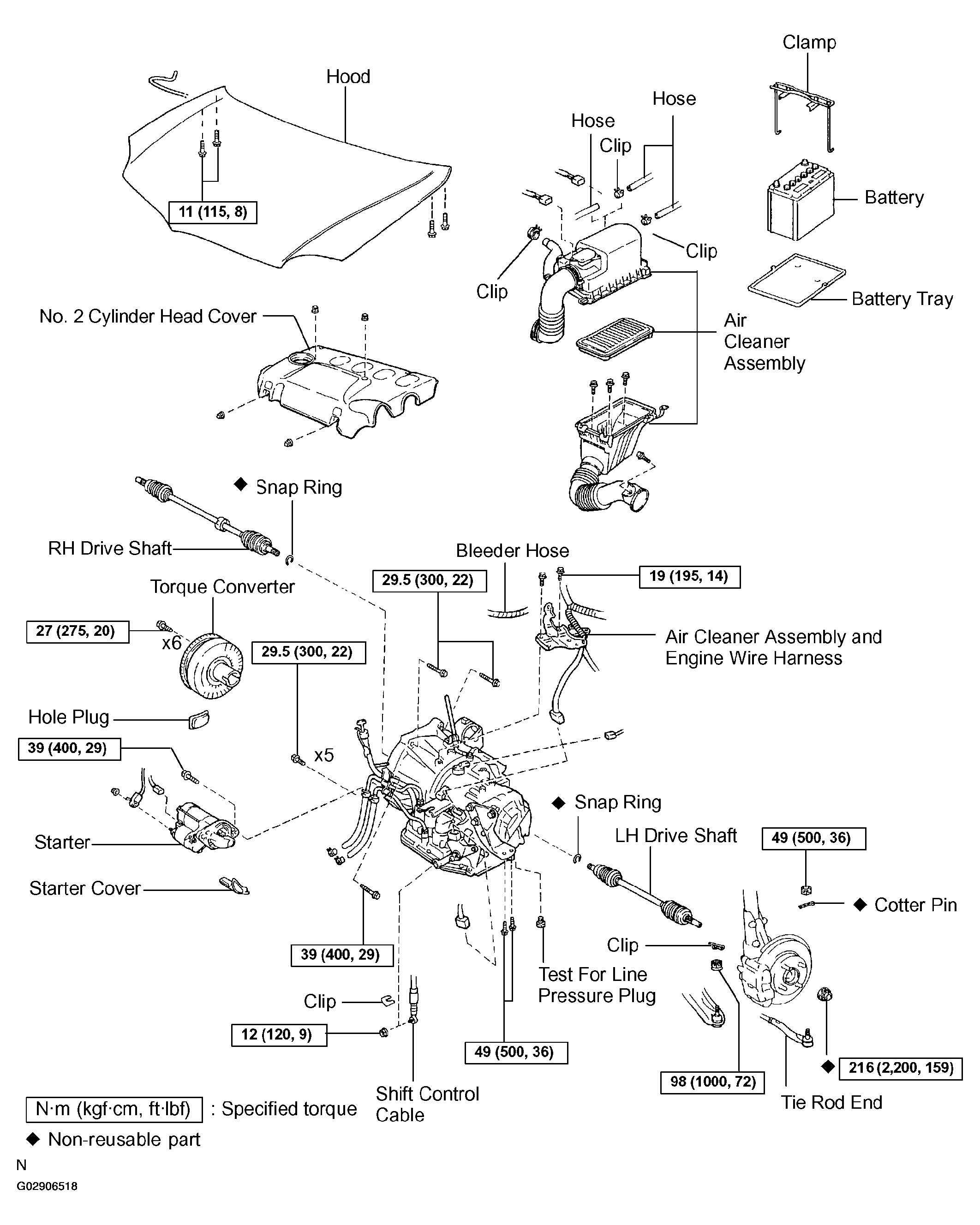

Fig 3: Identifying Automatic Transaxle Unit Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
