Automatic Transaxle Unit: Installation

Using calipers and a straight edge, measure the distance from the installed surfaced of the transaxle housing to the torque converter clutch.

Correct distance: 9.3 mm (0.366 in.)

Installation is in the reverse order of removal (See  REMOVAL   ).

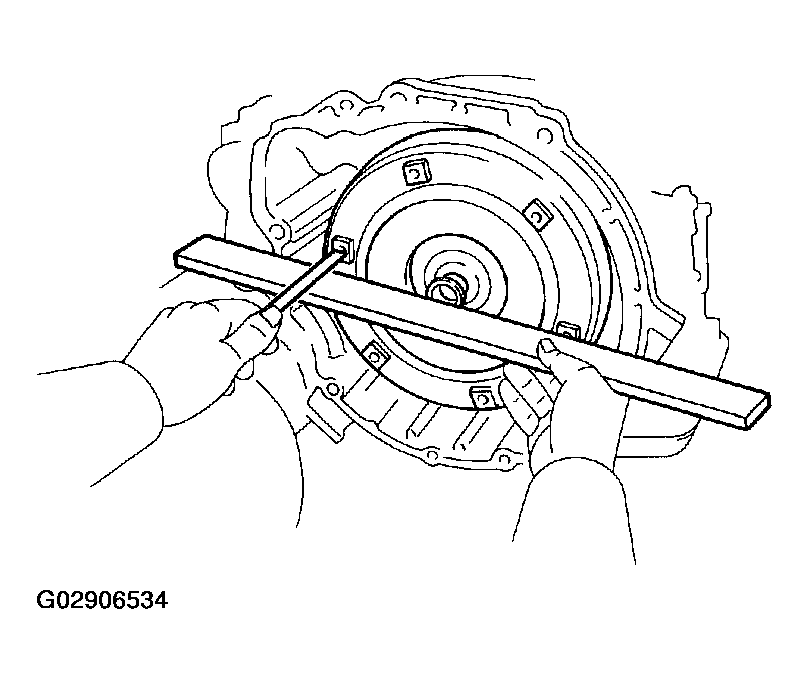

Fig 1: Installing Torque Converter Clutch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• After installation, adjust the park/neutral position switch (See PRE-CHECK ).
• Fill ATF and check fluid level (See PRE-CHECK ).
• Do test to drive the vehicle (See PRE-CHECK ).
