Home >> Toyota >> 2004 >> ECHO 2D Sedan, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission System >> Floor Shift Assembly >> Components

Floor Shift Assembly: Components

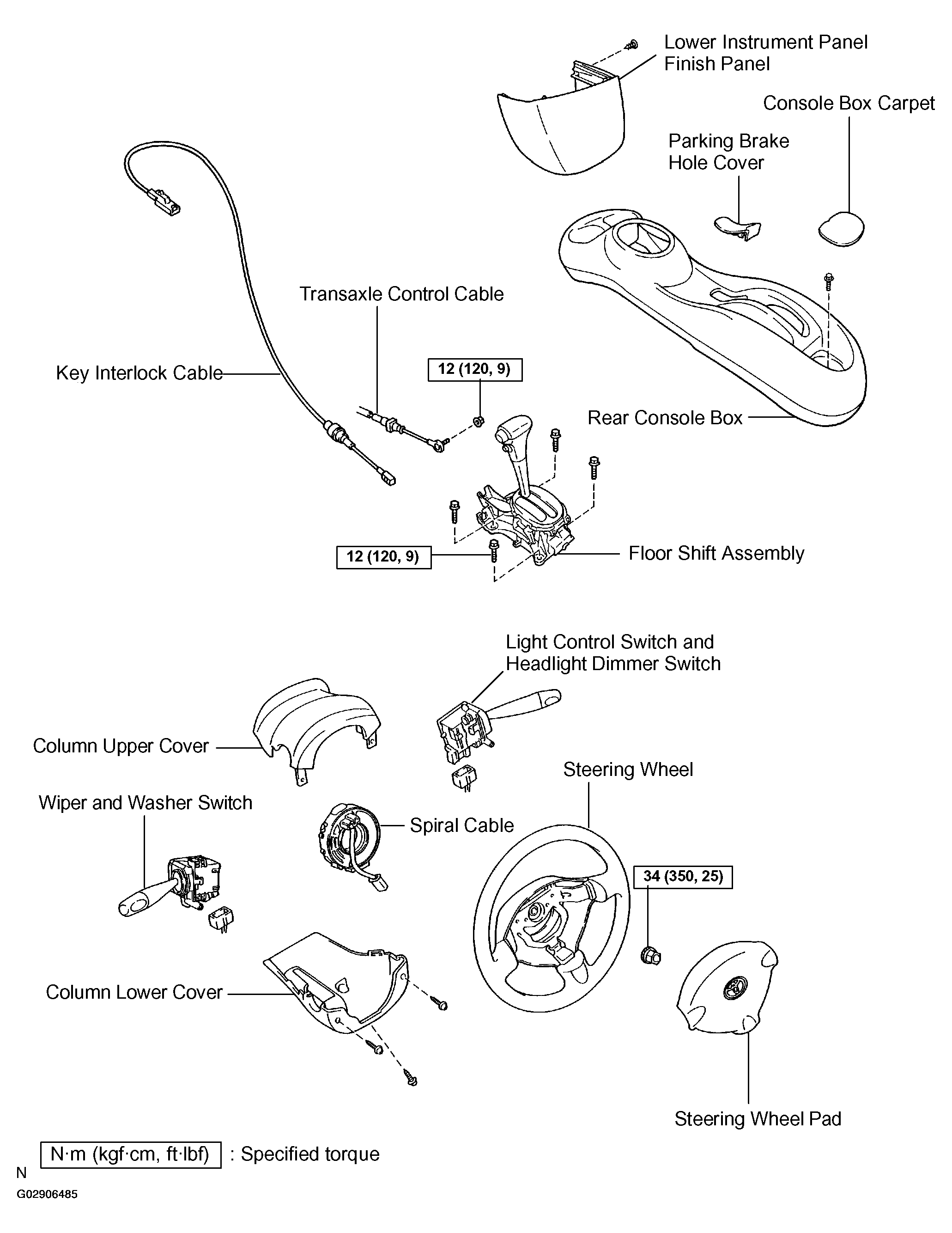

Fig 1: Identifying Floor Shift Assembly Components (1 Of 2)
G02906485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

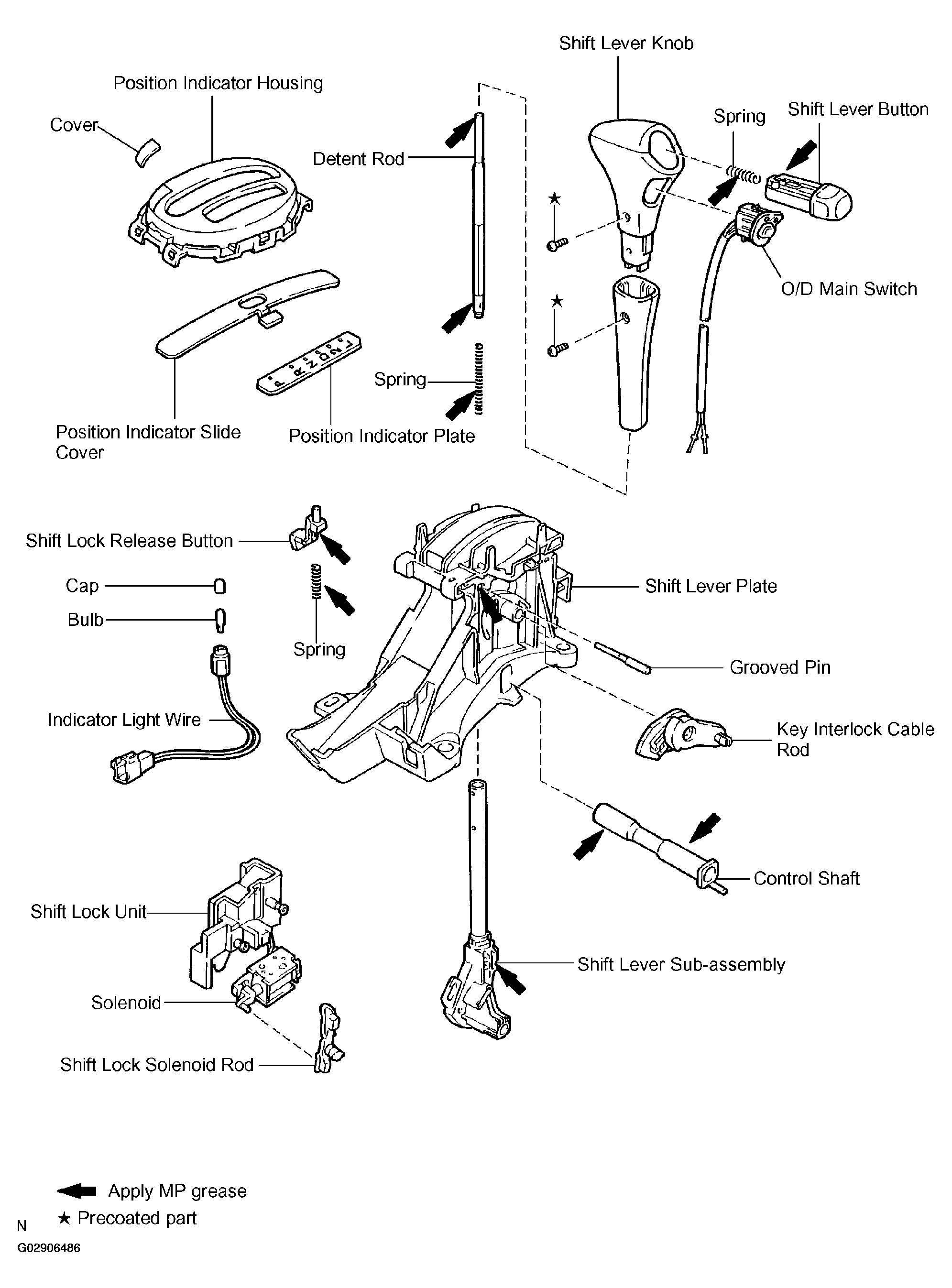

Fig 2: Identifying Floor Shift Assembly Components (2 Of 2)
G02906486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
