Abs Speed Sensor Front LH: Replacement

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE FRONT WHEEL
2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSY LH
3. REMOVE SPEED SENSOR FRONT LH

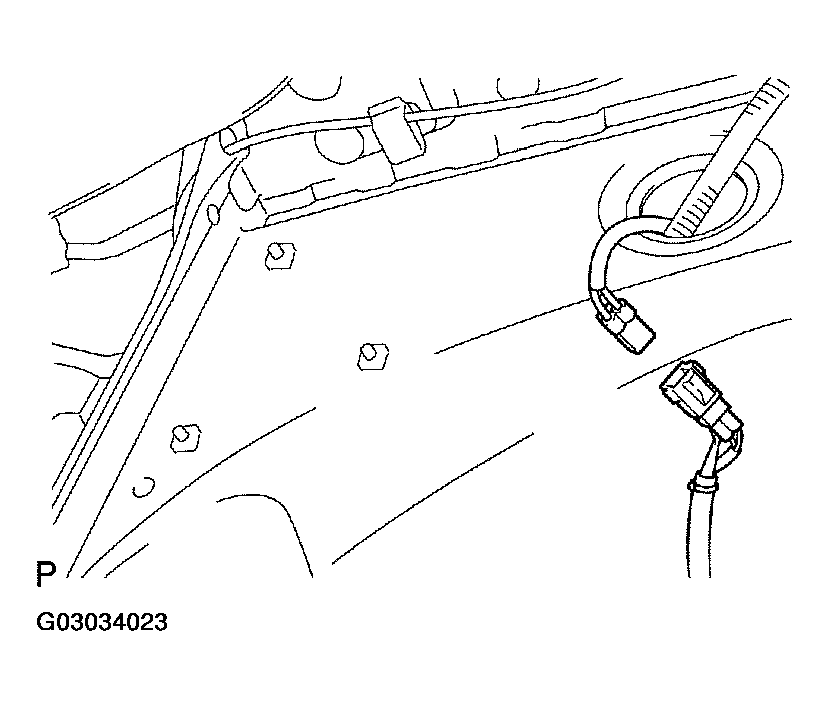

   1. Disconnect the speed sensor connector.
      Fig 1: Disconnecting Speed Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

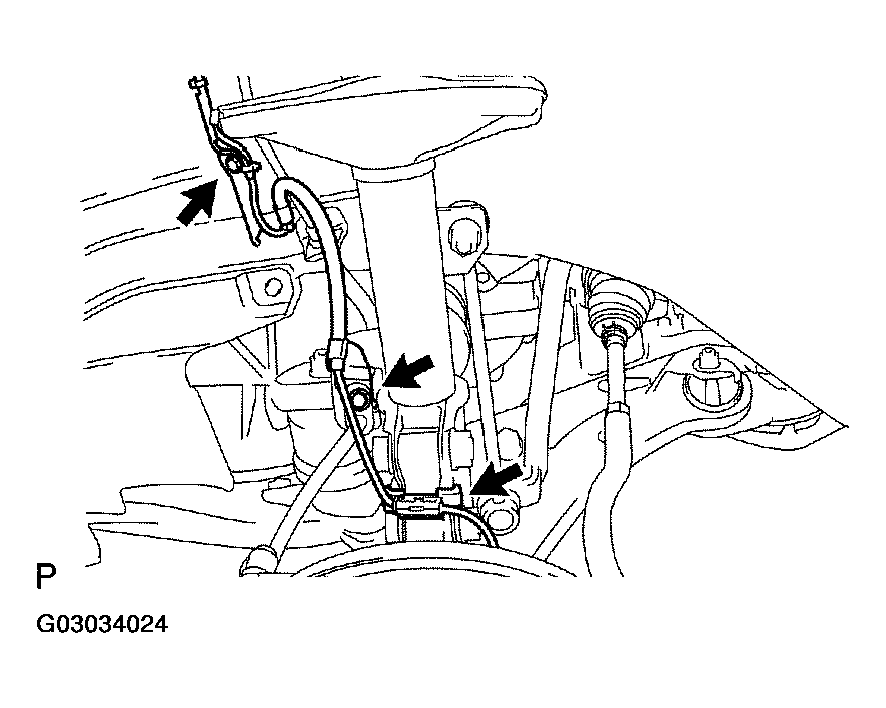

   2. Remove the 2 bolts and the clamp from the body and the shock absorber assy.
      Fig 2: Locating Shock Absorber Assys Bolts And Body Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Remove the bolt and the speed sensor front.
   NOTE: Prevent foreign matter from attaching to the sensor tip.
   Fig 3: Removing Speed Sensor Front Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL SPEED SENSOR FRONT LH

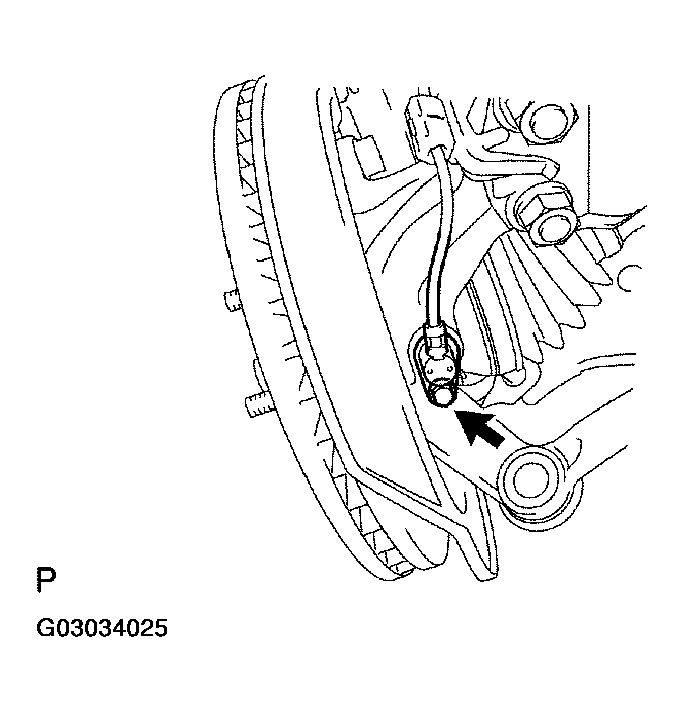

   1. Install the speed sensor front with the bolt.

      Torque: 8.0 NVm (82 kgfVcm, 71 in.Vlbf)

      NOTE: Prevent foreign matter from attaching to the sensor tip.
      Fig 4: Installing Speed Sensor Front Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

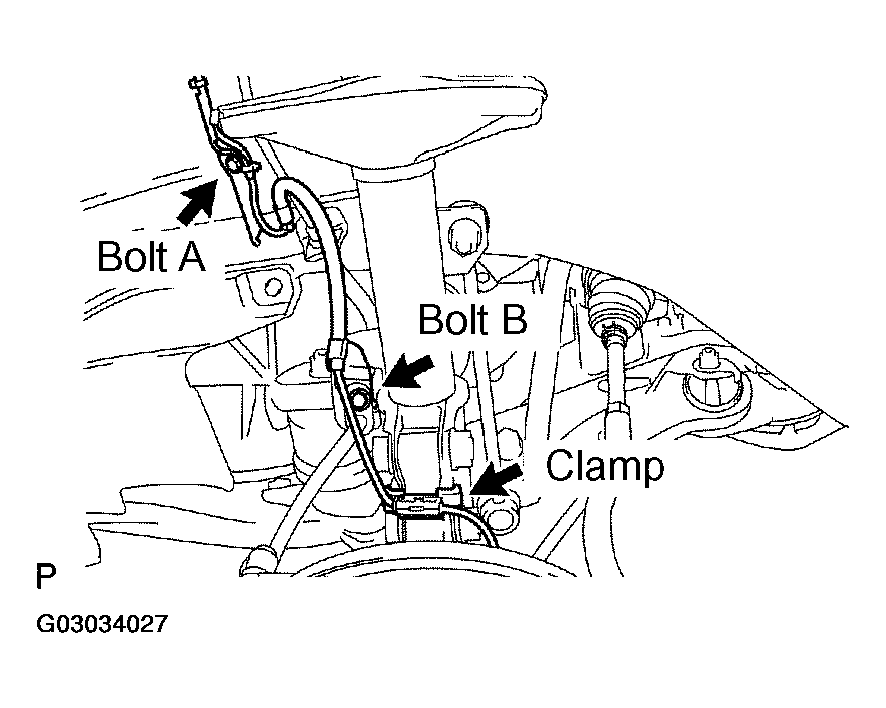

   2. Install the speed sensor front with the 2 bolts and the clamp.

      Torque:

      Bolt A: 5.0 NVm (51 kgfVcm, 44 in.Vlbf)

      Bolt B: 19 NVm (192 kgfVcm, 14 ftVlbf)

      NOTE: Do not twist the sensor wire when installing the sensor.
      Fig 5: Installing Speed Sensor Front Bolts And Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Connect the speed sensor connector.
   Fig 6: Connecting Speed Sensor Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSY LH
6. INSTALL FRONT WHEEL

   Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

7. CHECK ABS SPEED SENSOR SIGNAL (See  PRE-CHECK  )
