Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

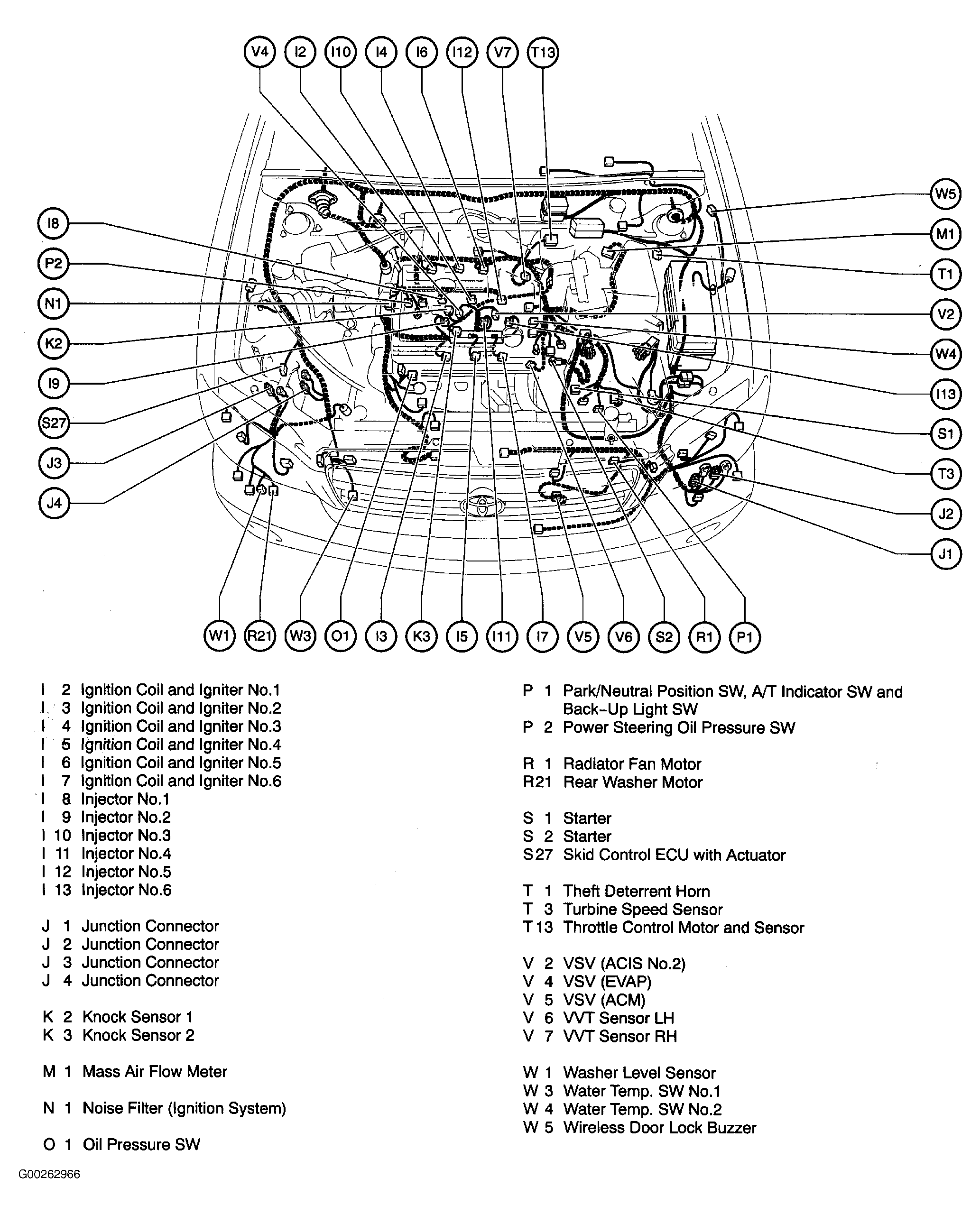

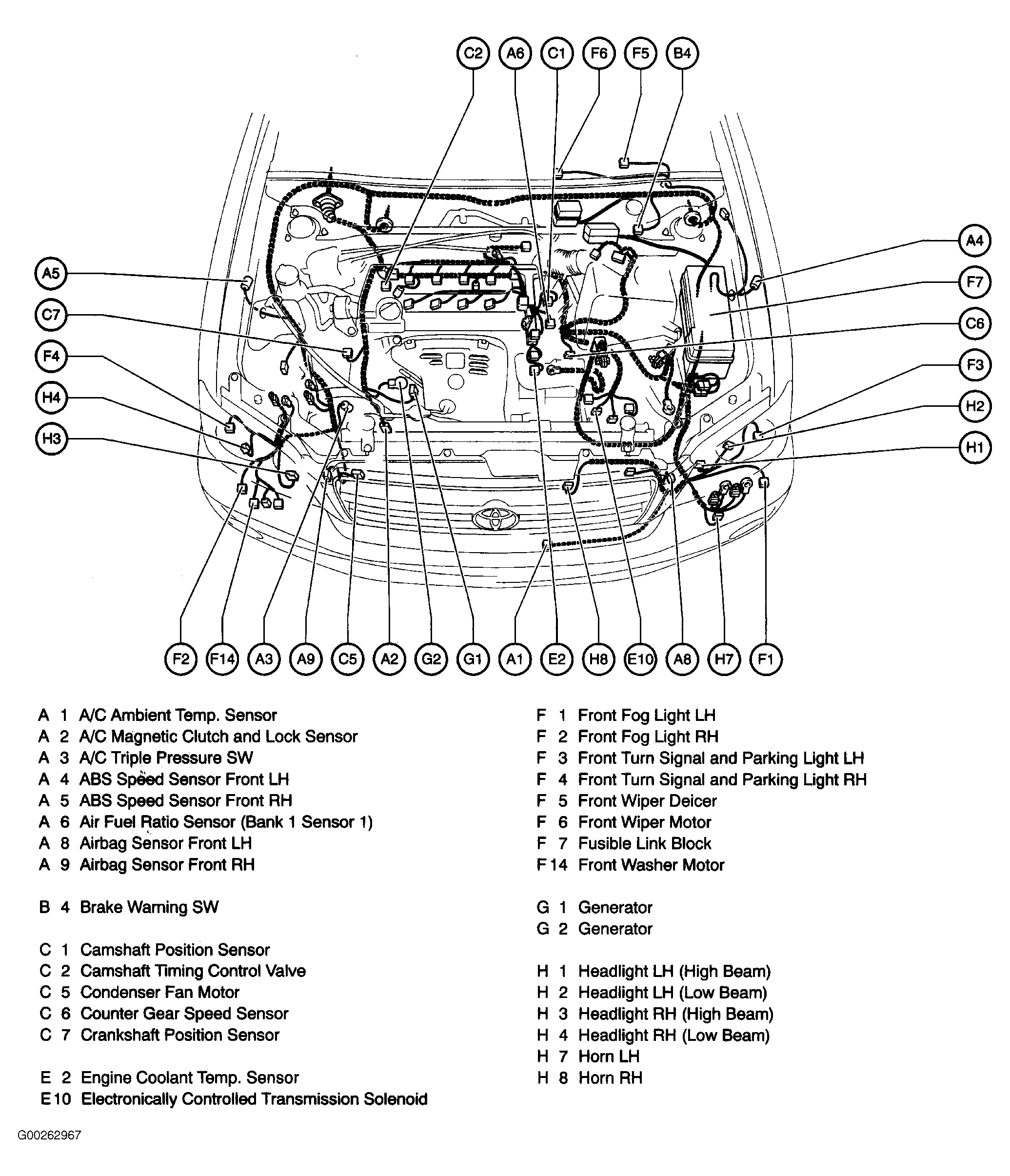

Fig 1: Engine Compartment (3.3L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

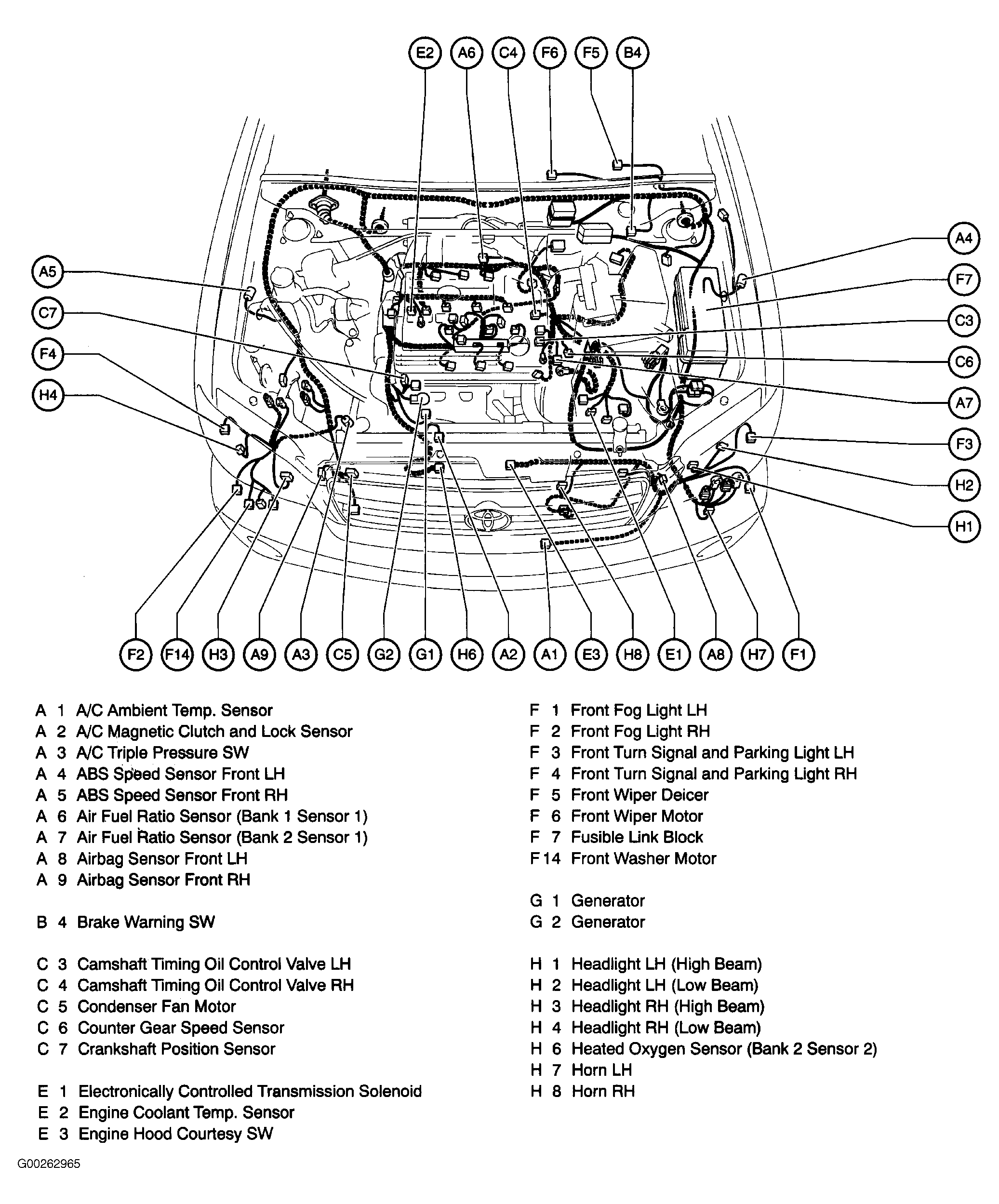

Fig 2: Engine Compartment (3.3L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

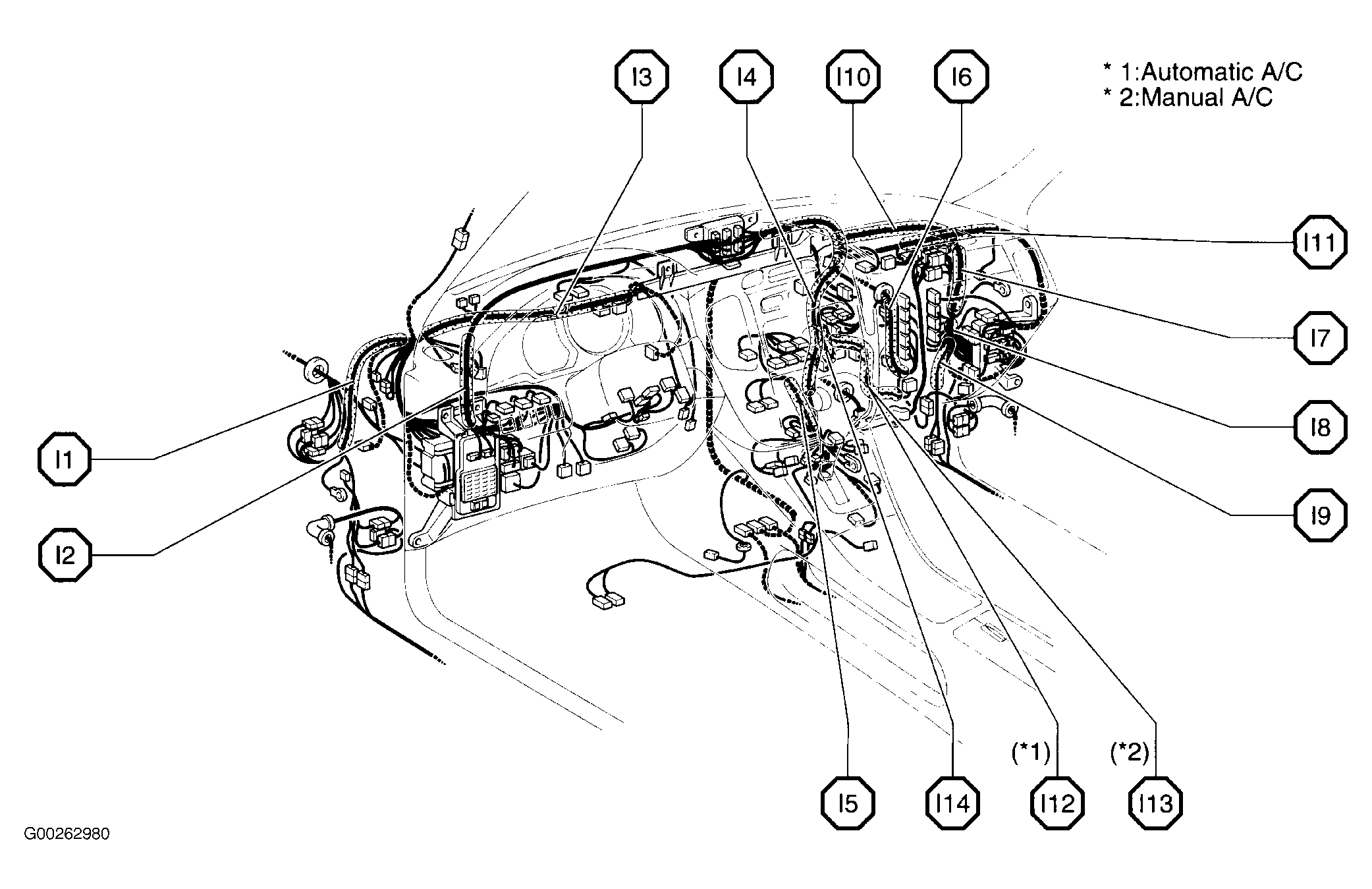

Fig 4: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

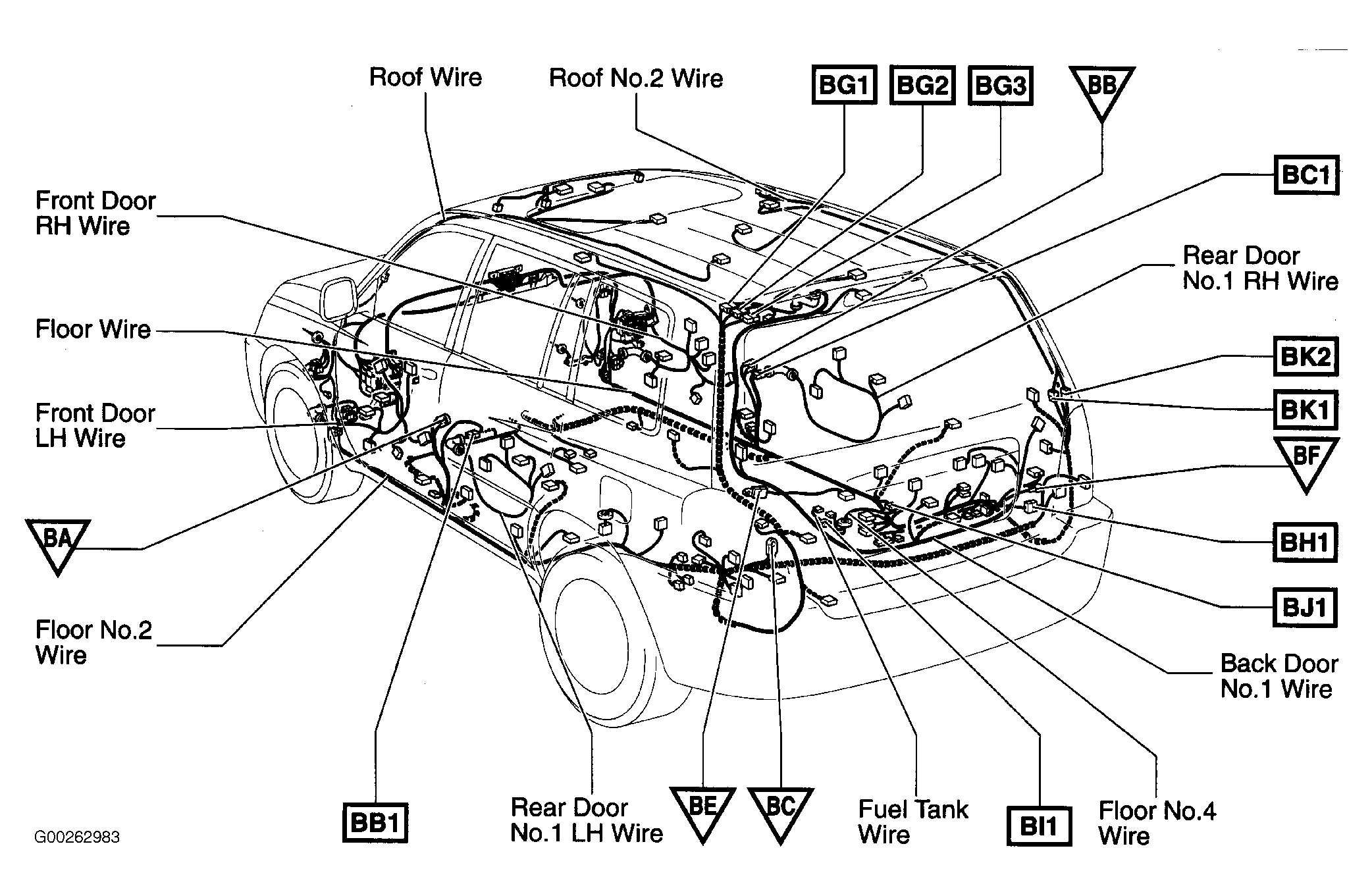

Fig 5: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

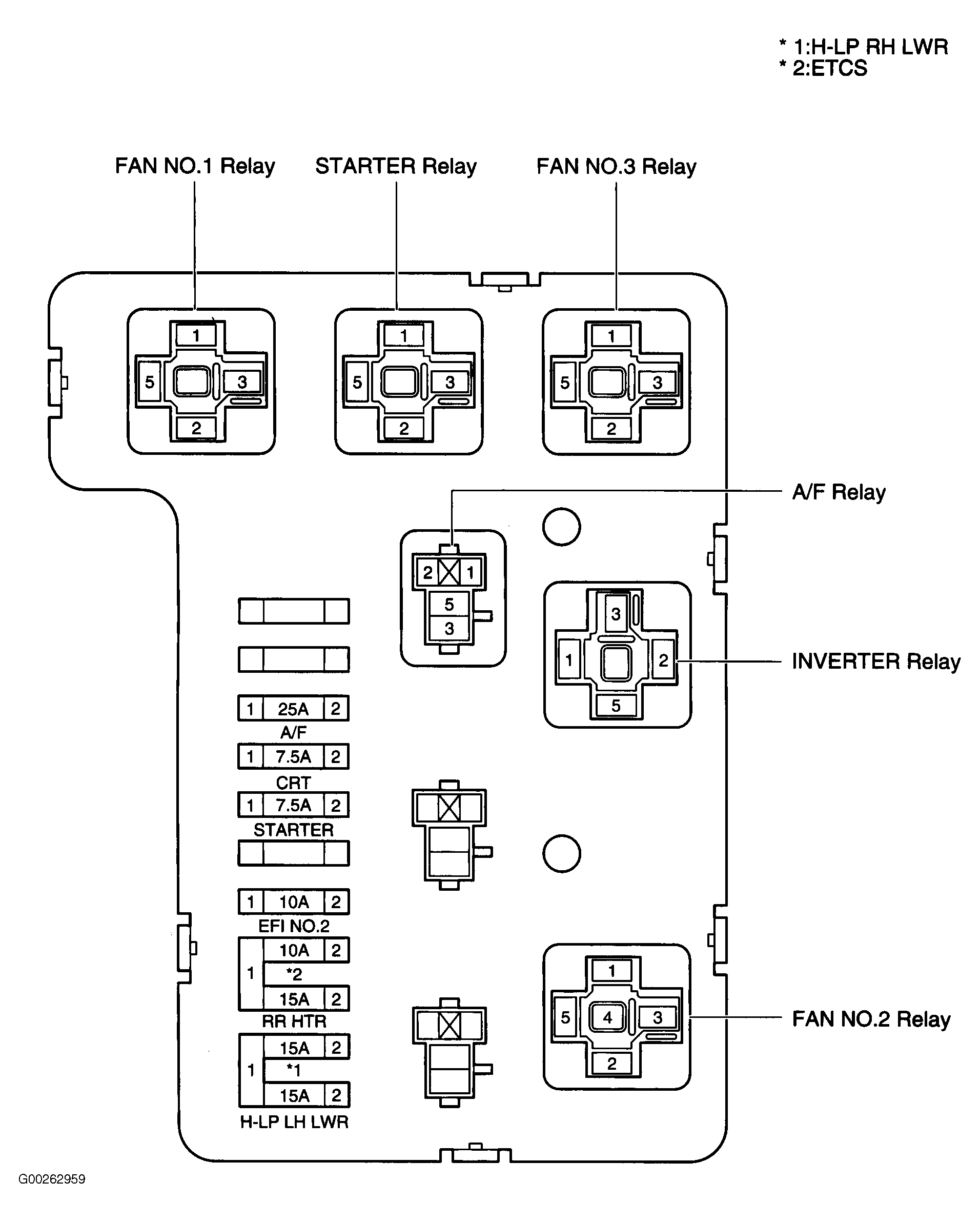

Fig 6: Engine Room R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Fan No.1 Relay
Starter Relay
Fan No.3 Relay
A/F Relay
Inverter Relay
Fan No.2 Relay

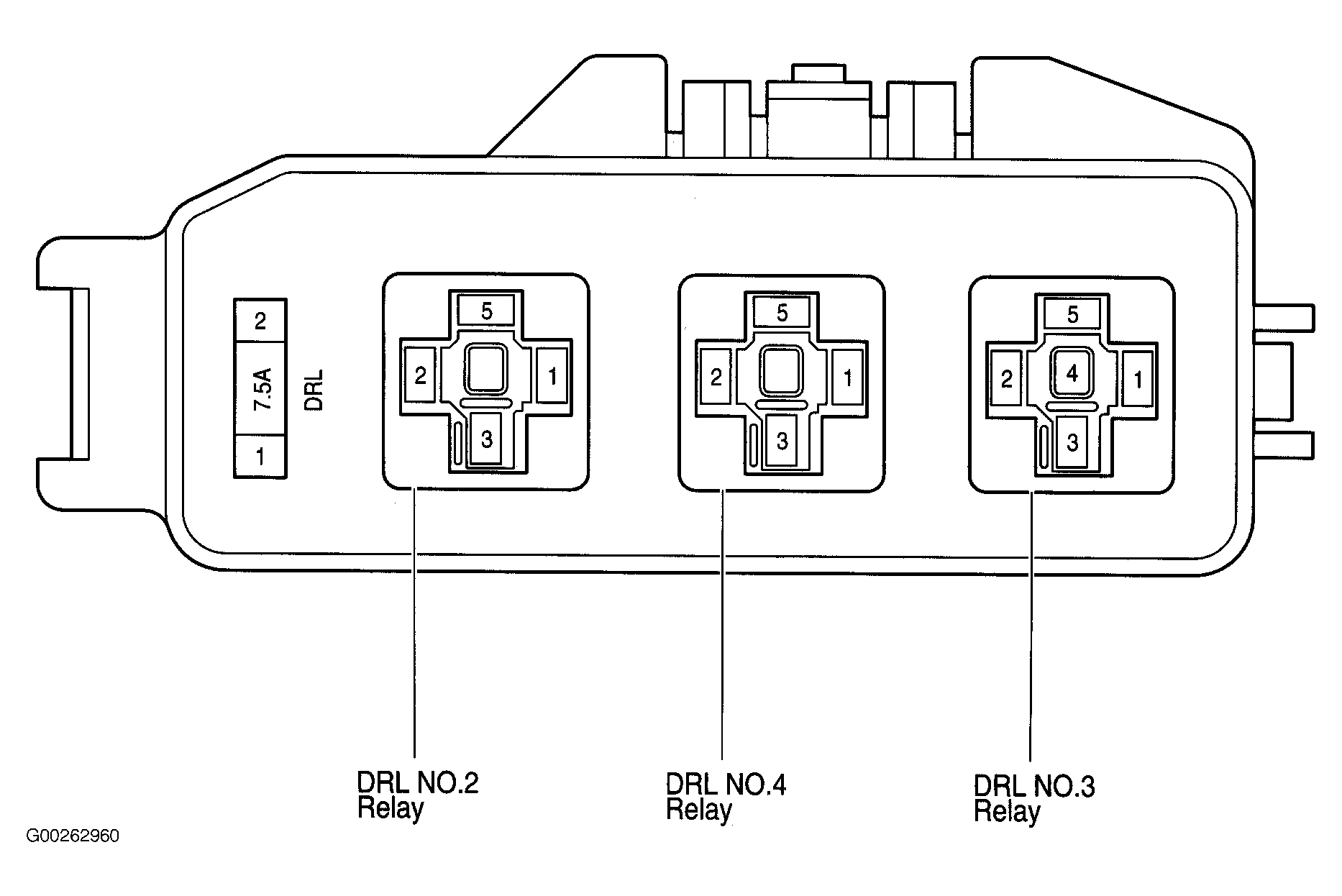

Fig 7: Engine Room R/B No. 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM RELAY BLOCK NO. 3 RELAY IDENTIFICATION

RELAY DESCRIPTION
DRL No.3 Relay
DRL No.4 Relay
DRL No.2 Relay

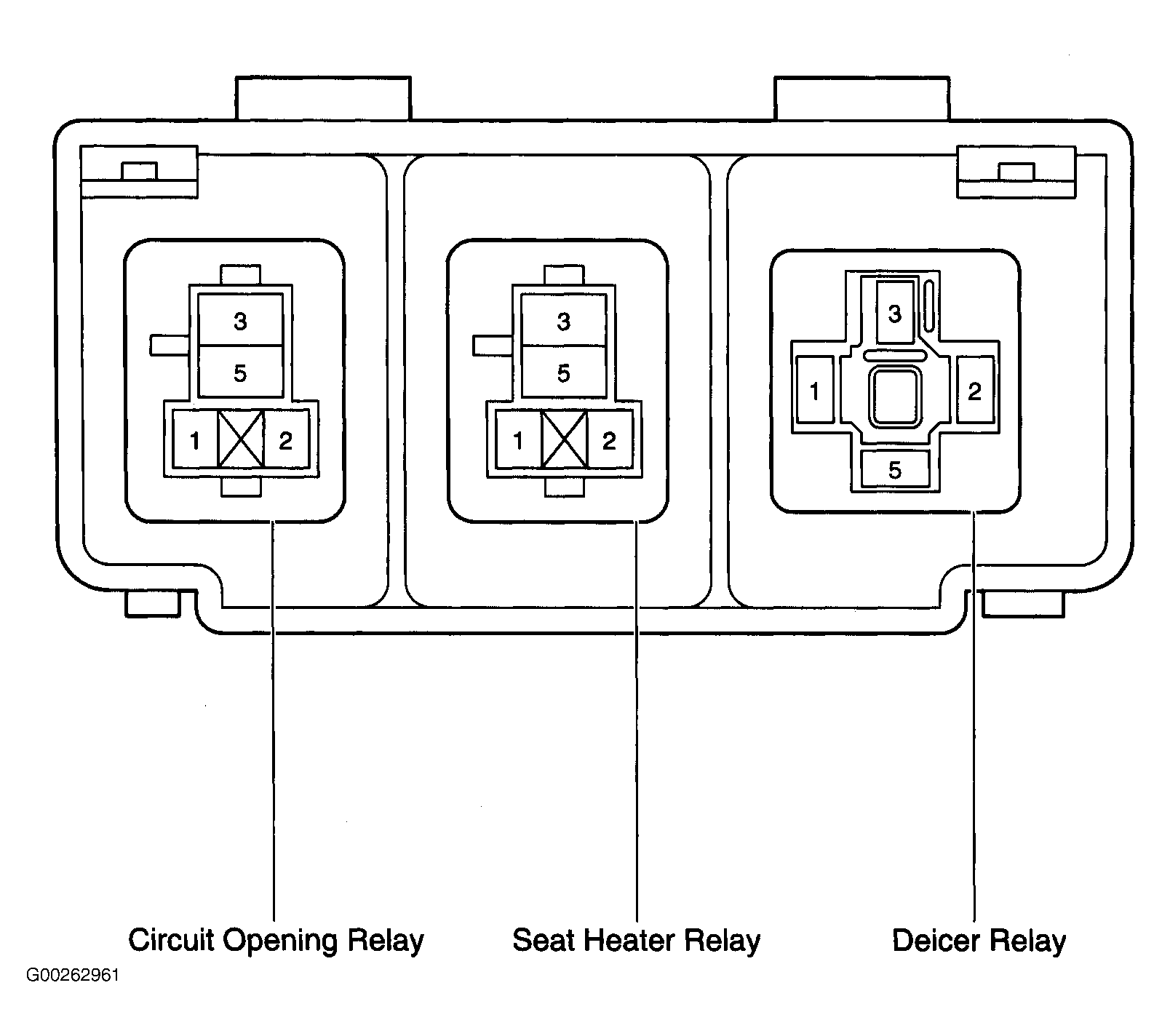

Fig 8: R/B No. 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

RELAY BLOCK NO. 1 RELAY IDENTIFICATION

RELAY DESCRIPTION
Deicer Relay
Seat Heater Relay
Circuit Opening Relay

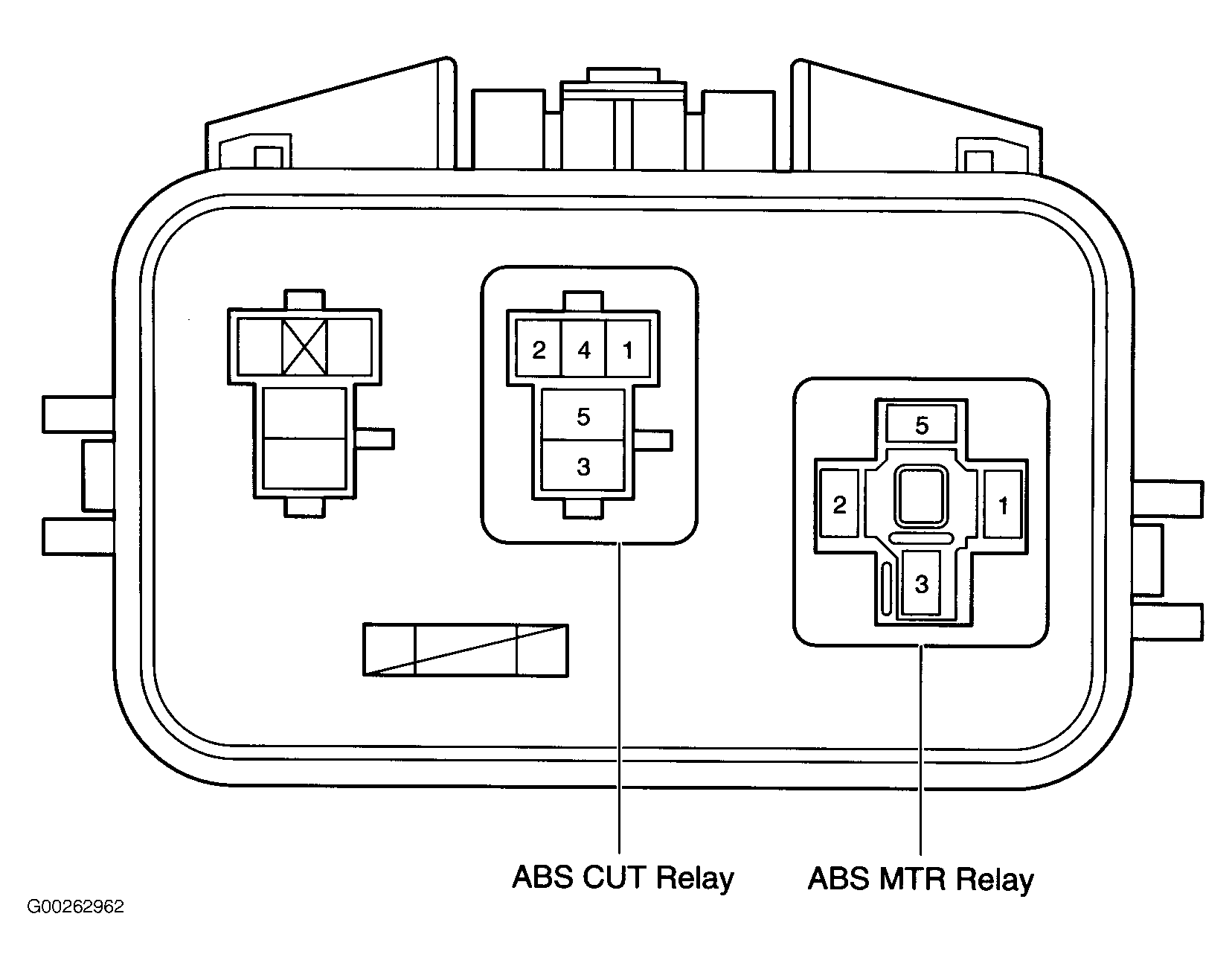

Fig 9: ABS R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ABS RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
ABS MTR Relay
ABS CUT Relay

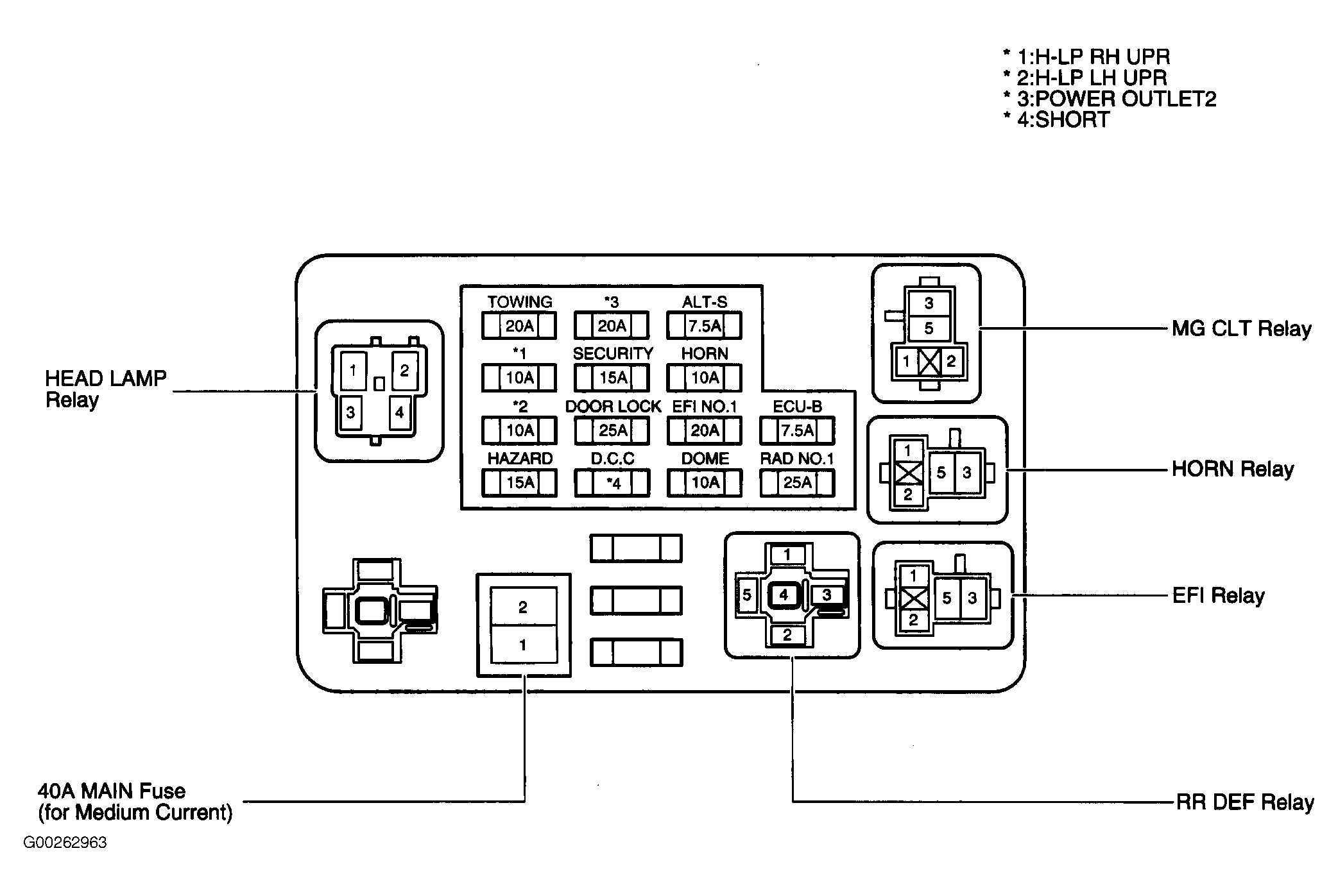

Fig 10: Engine Room J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Head LAMP Relay
MG CLT Relay
Horn Relay
EFI Relay
RR DEF Relay

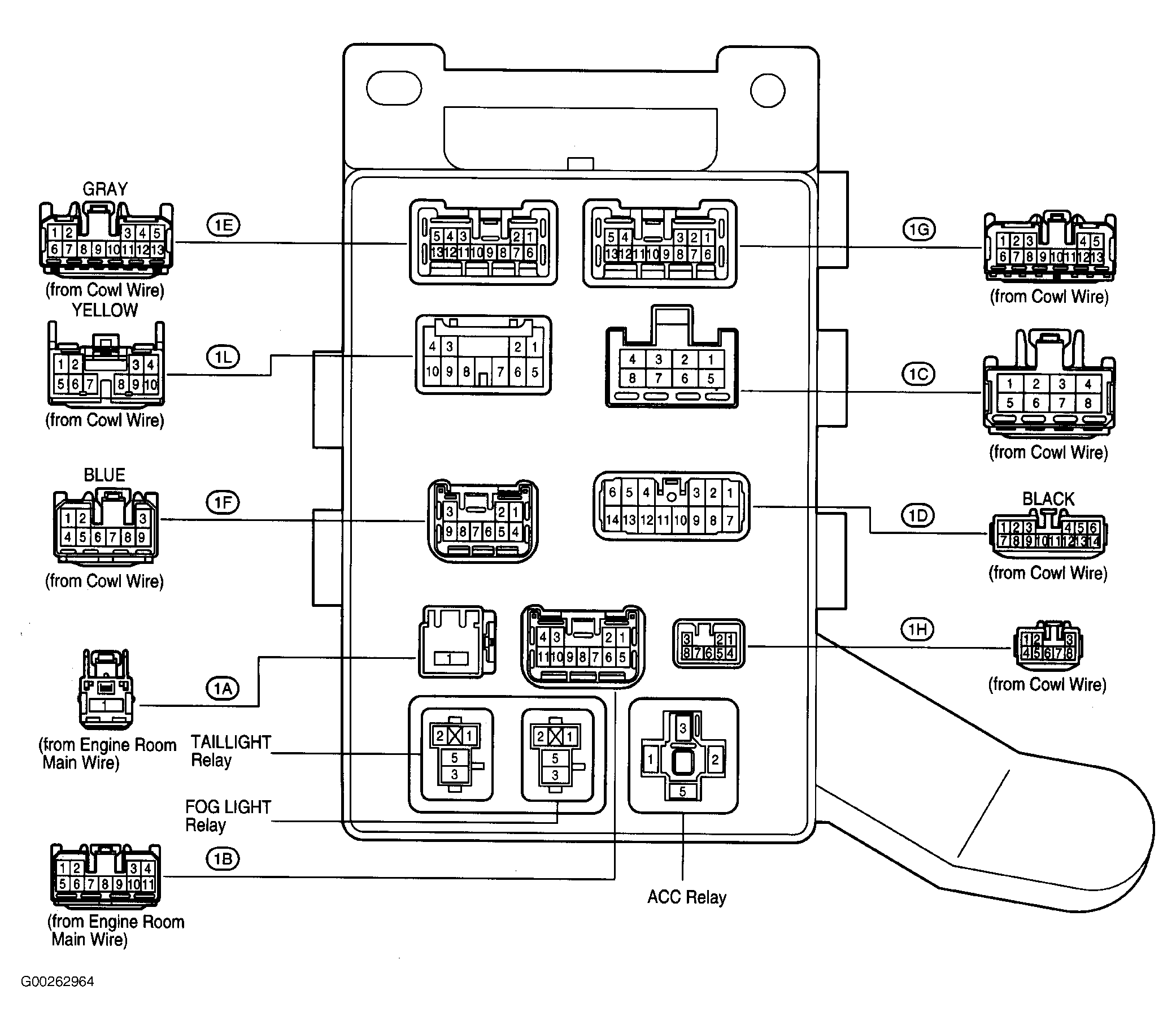

Fig 11: Instrument Panel J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Fog LIGHT Relay
Taillight Relay
ACC Relay

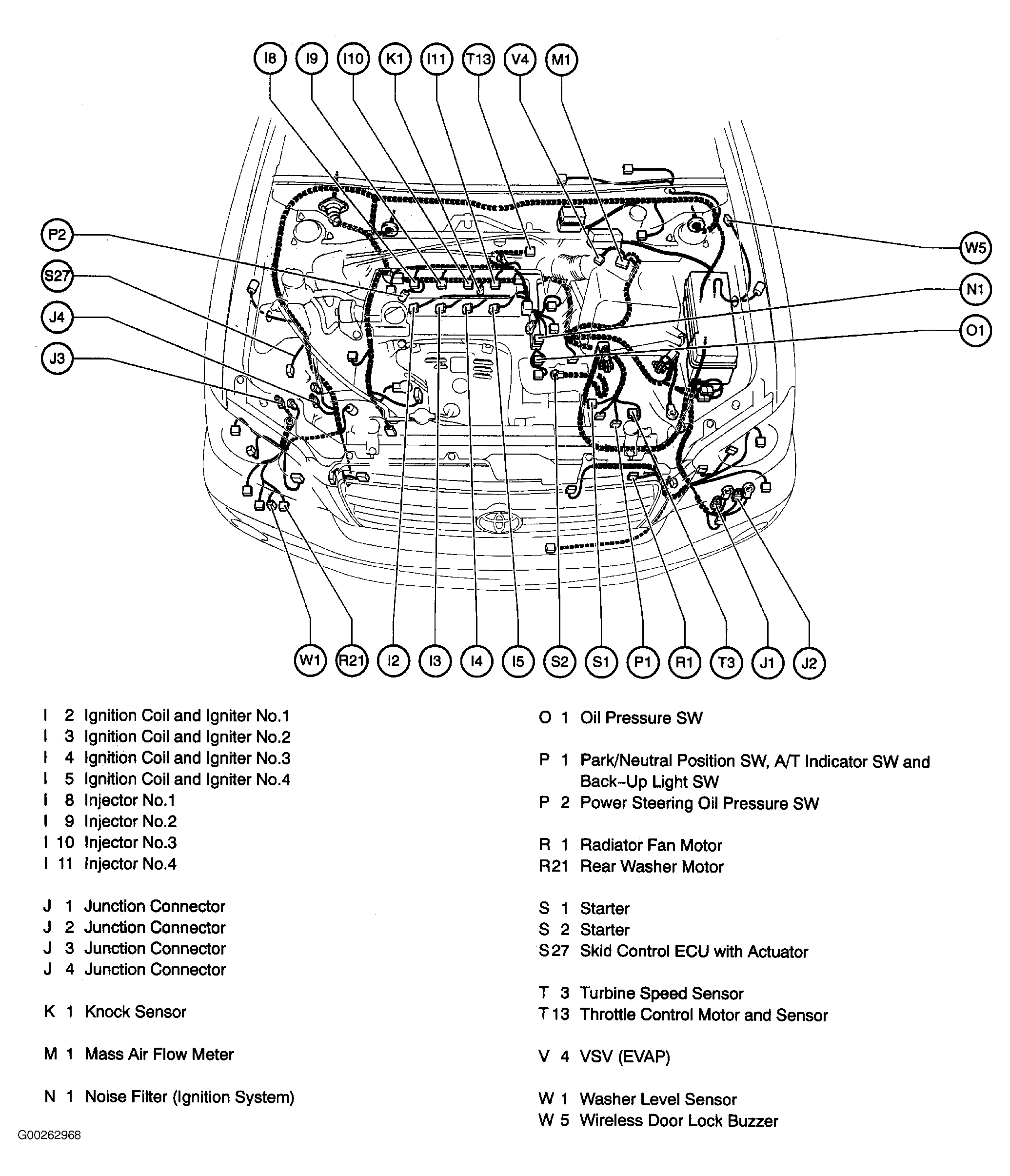

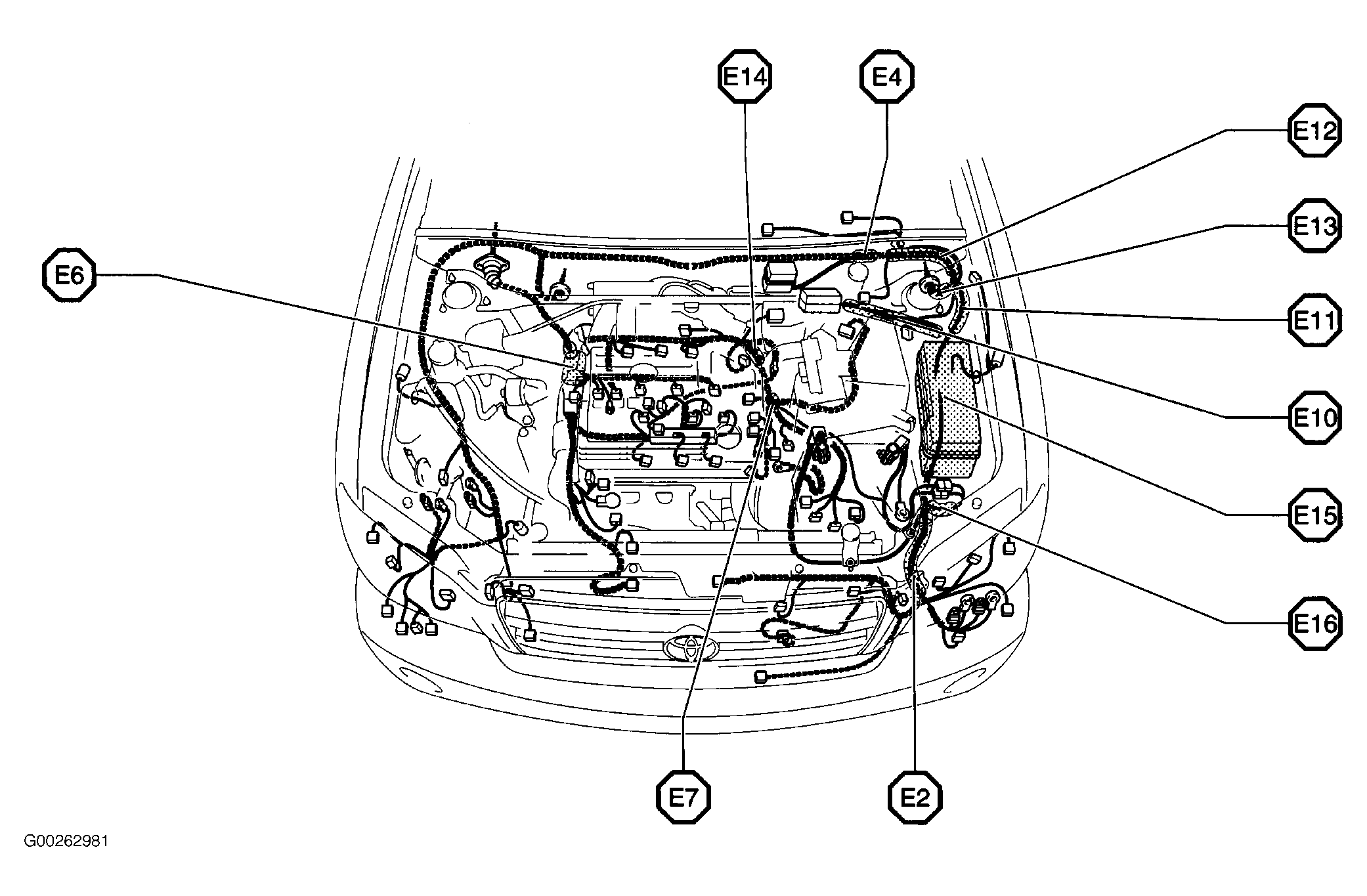

Fig 12: Engine Compartment (2.4L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Engine Compartment (2.4L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

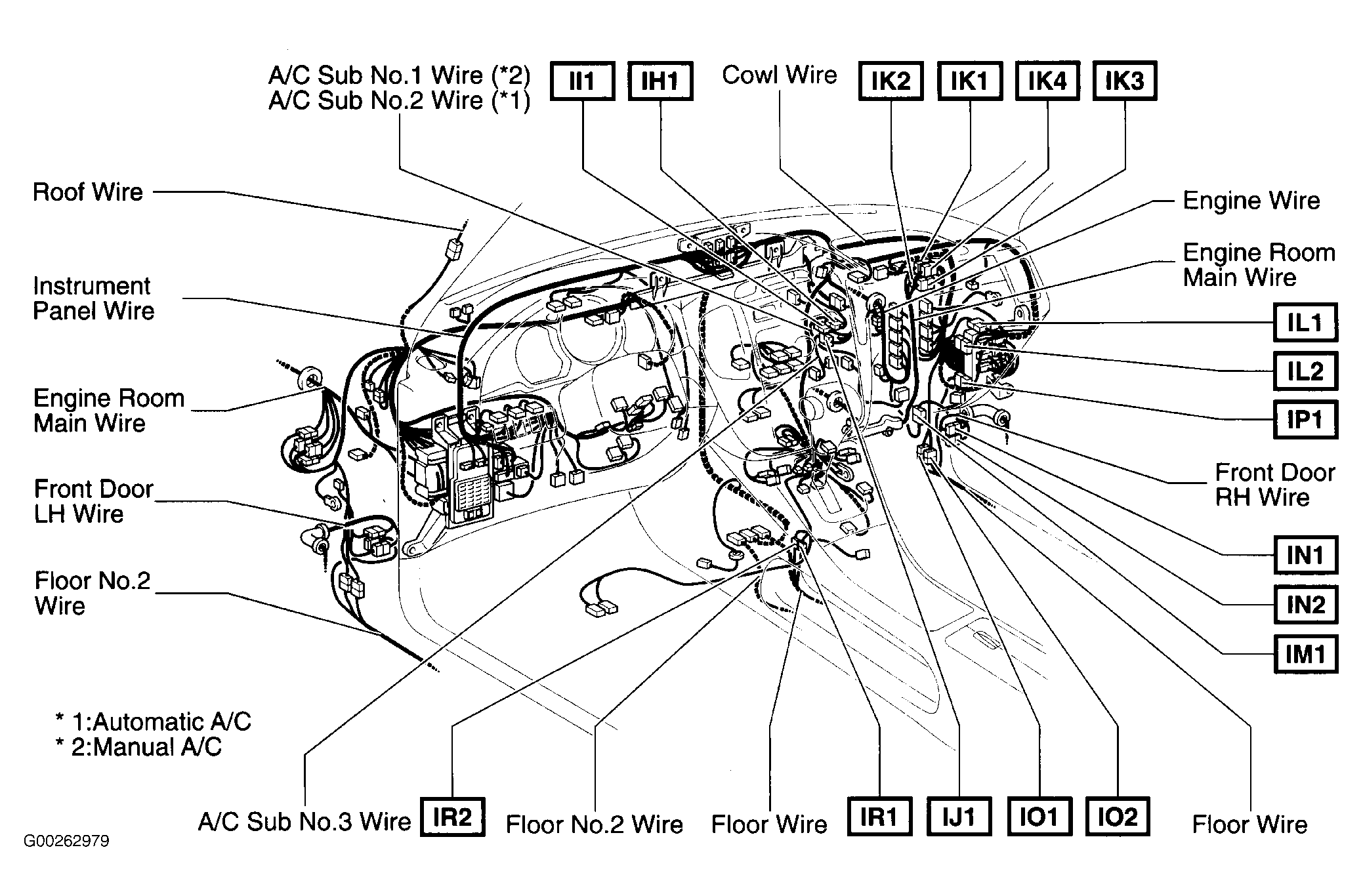

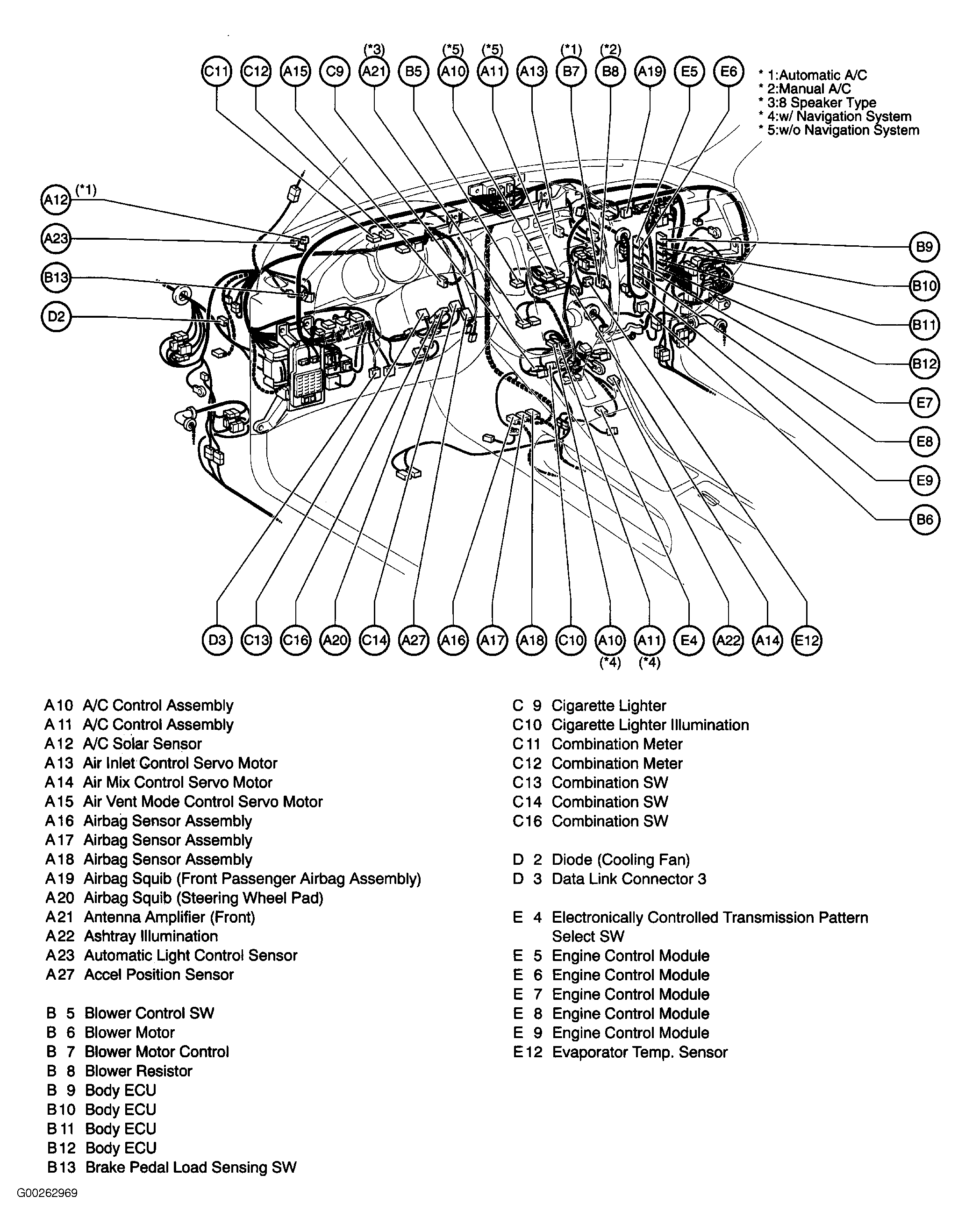

Fig 14: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

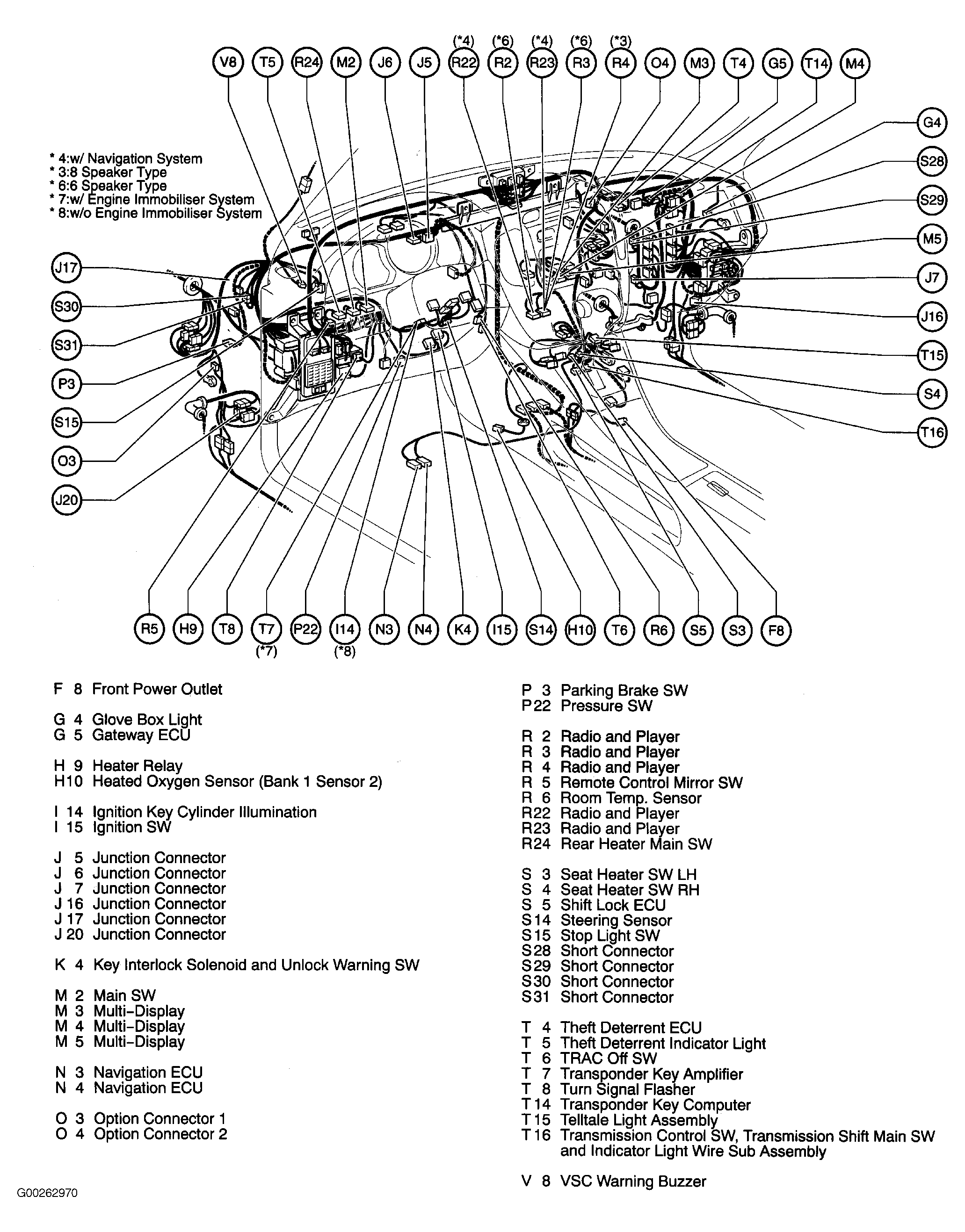

Fig 15: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

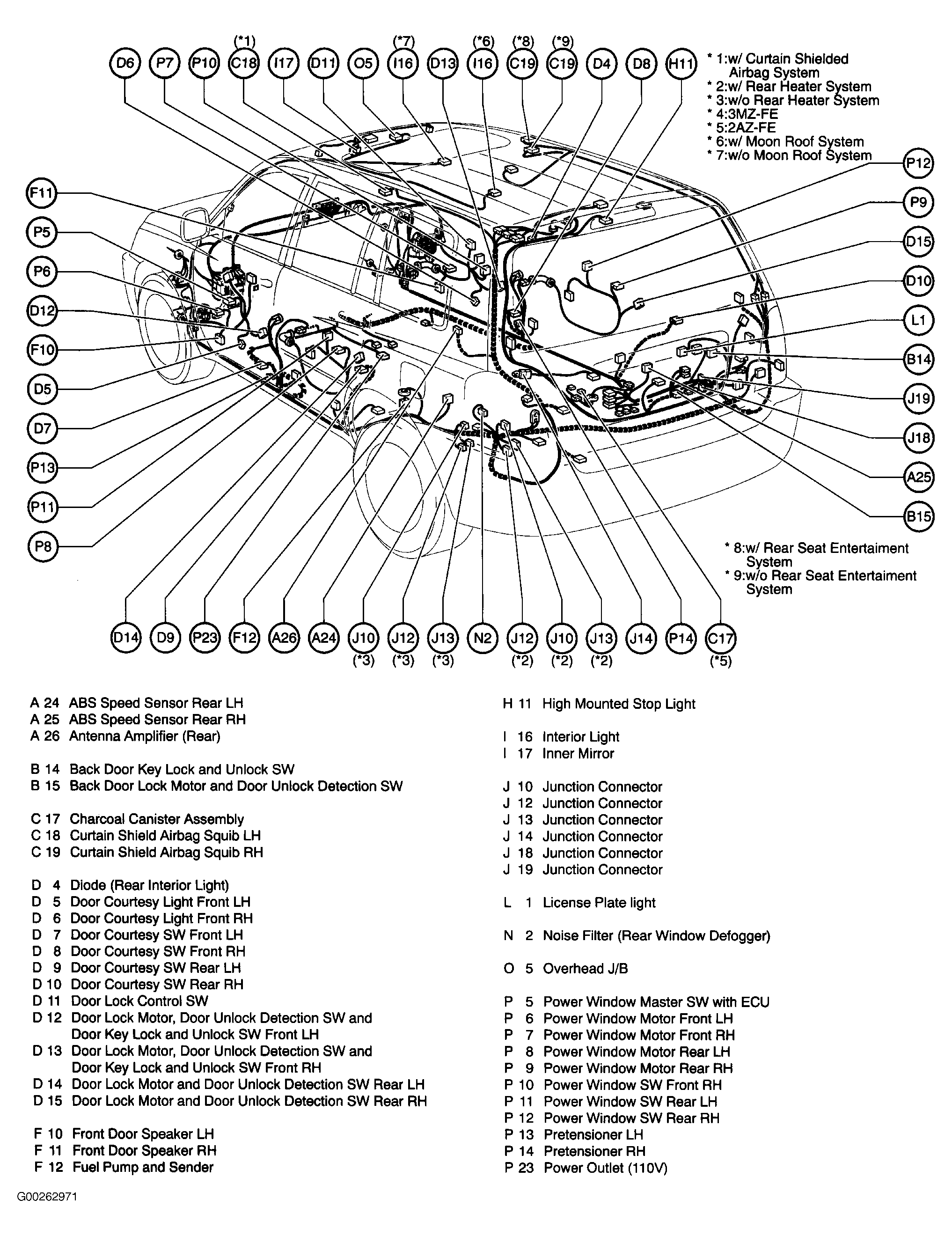

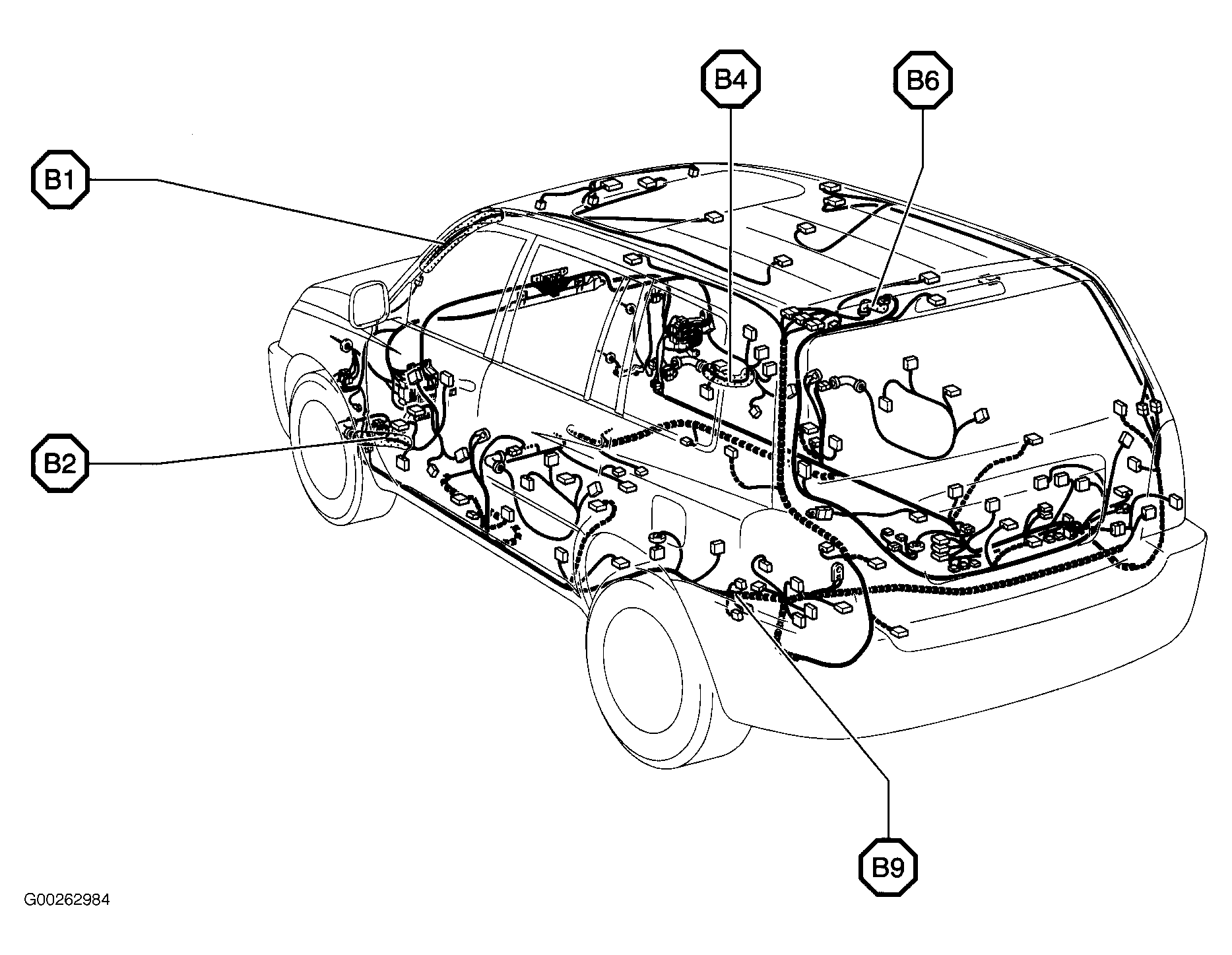

Fig 16: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

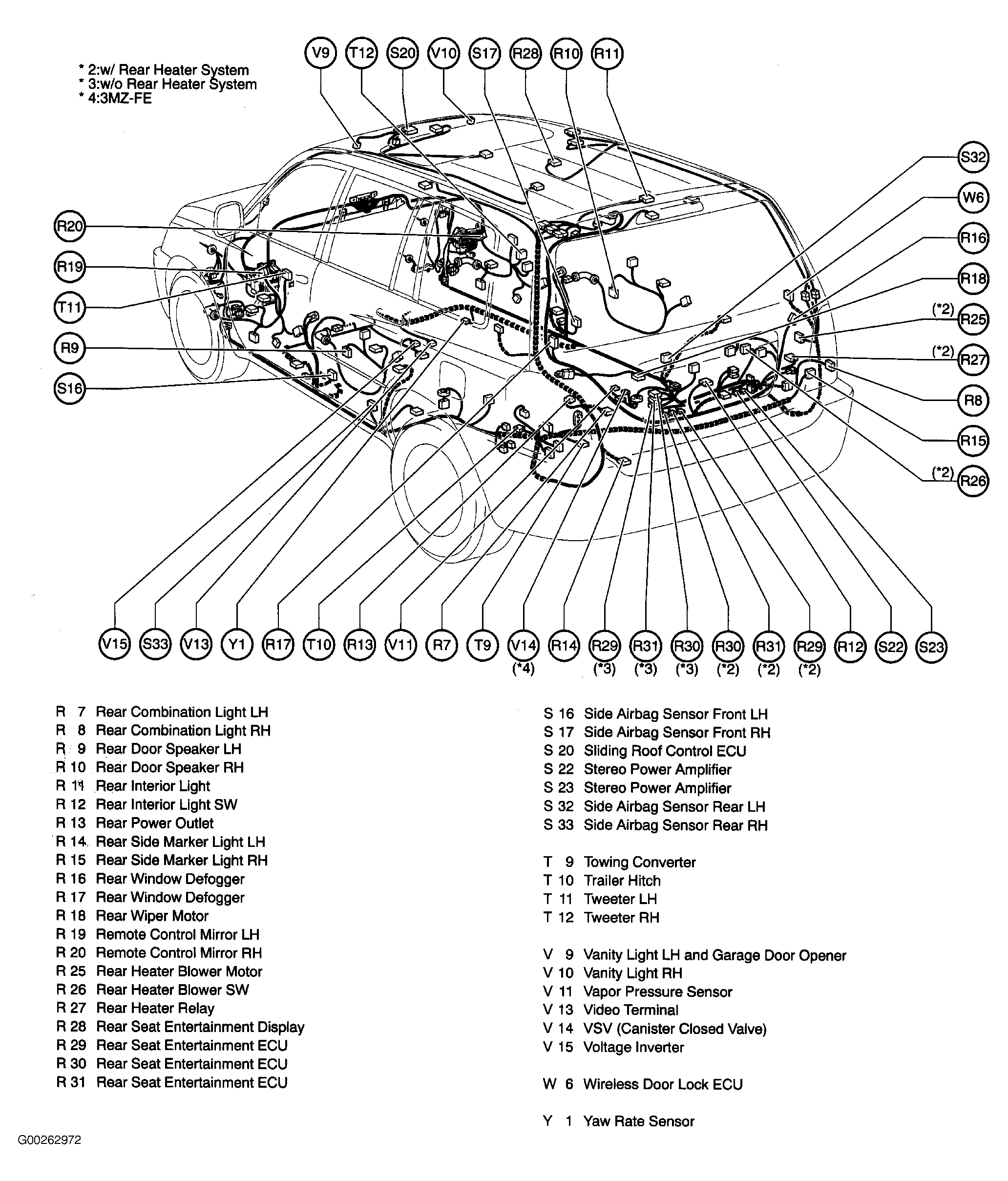

Fig 17: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

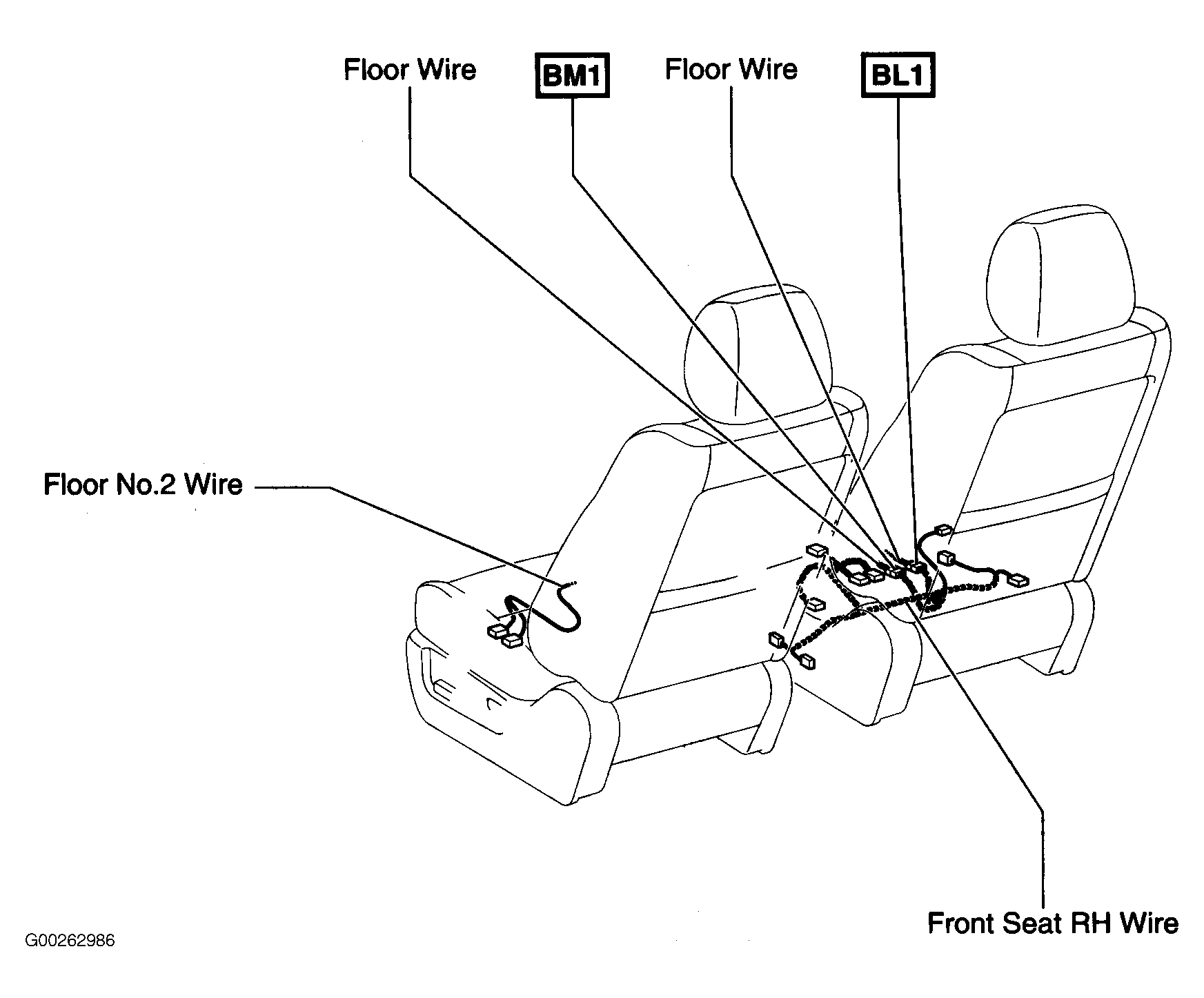

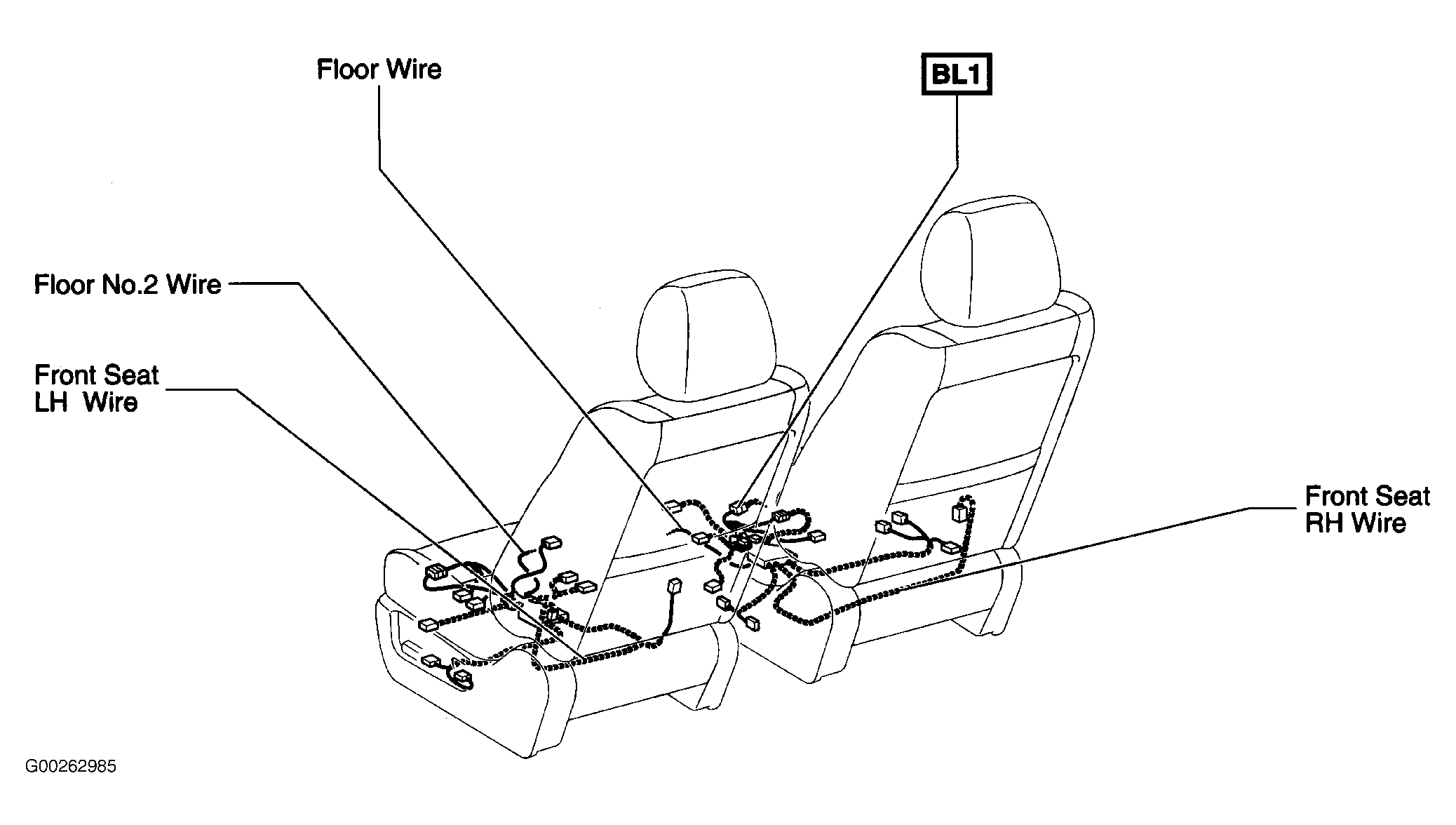

Fig 18: Front Seats

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

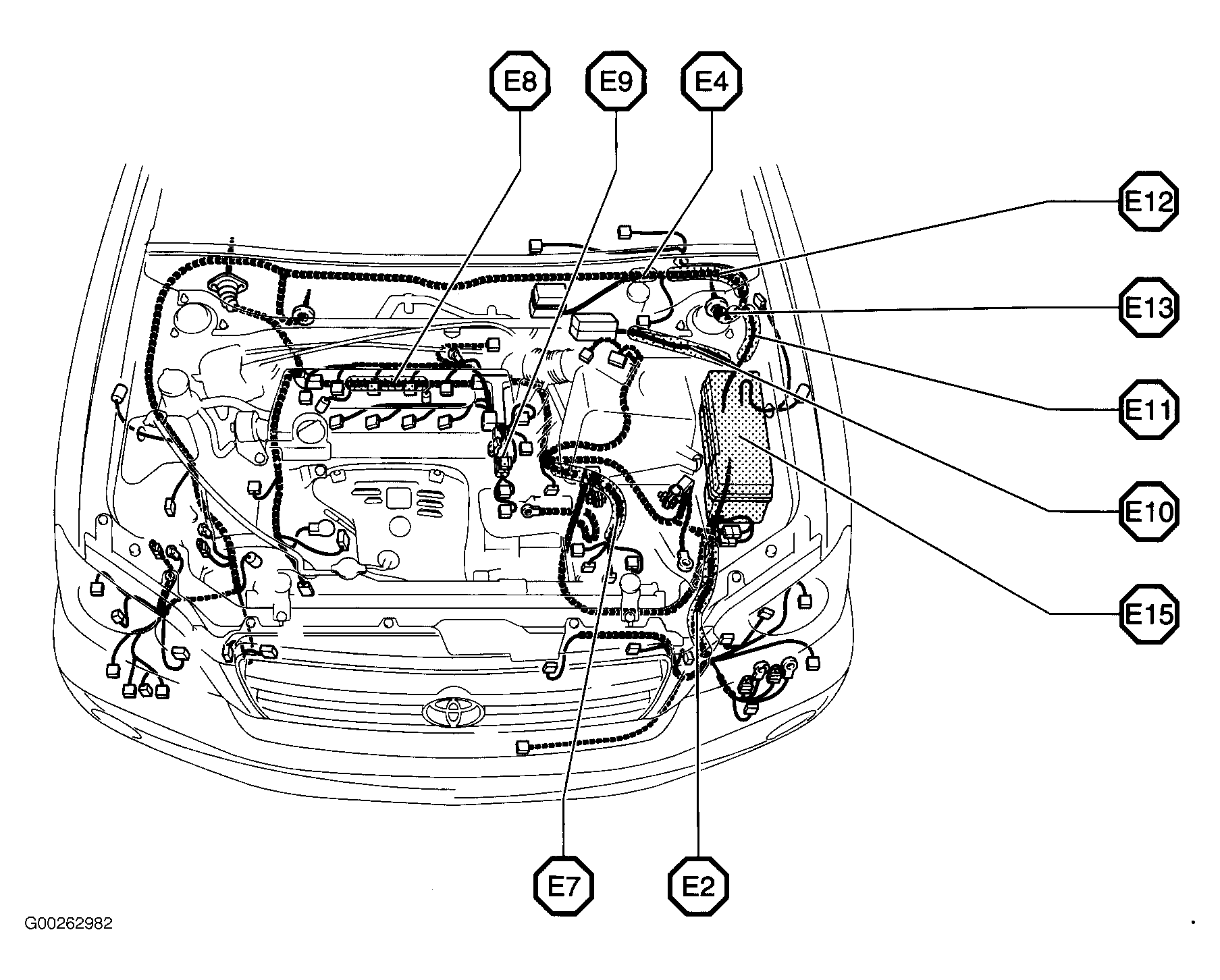

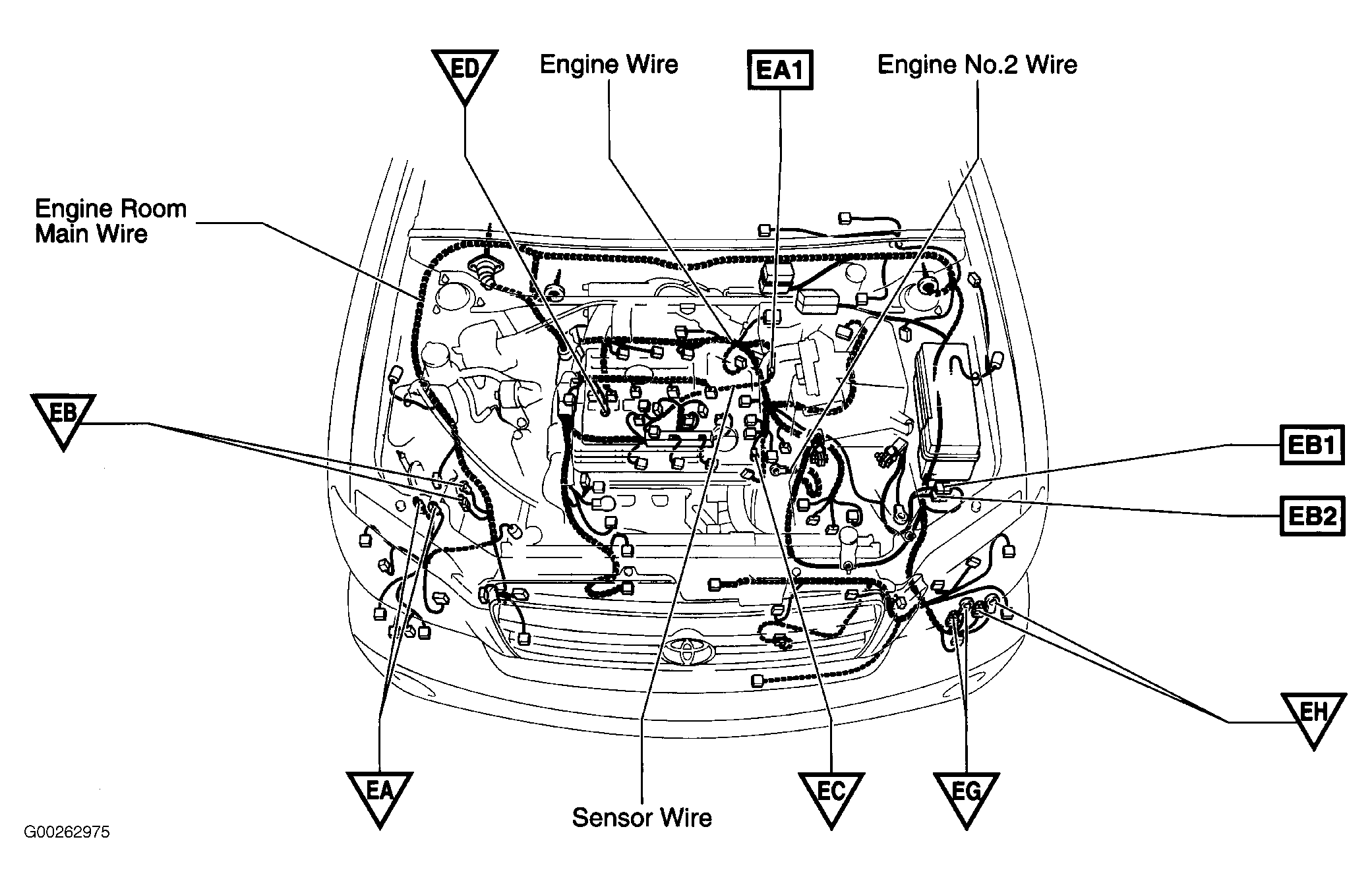

Fig 19: Engine Compartment (3.3L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

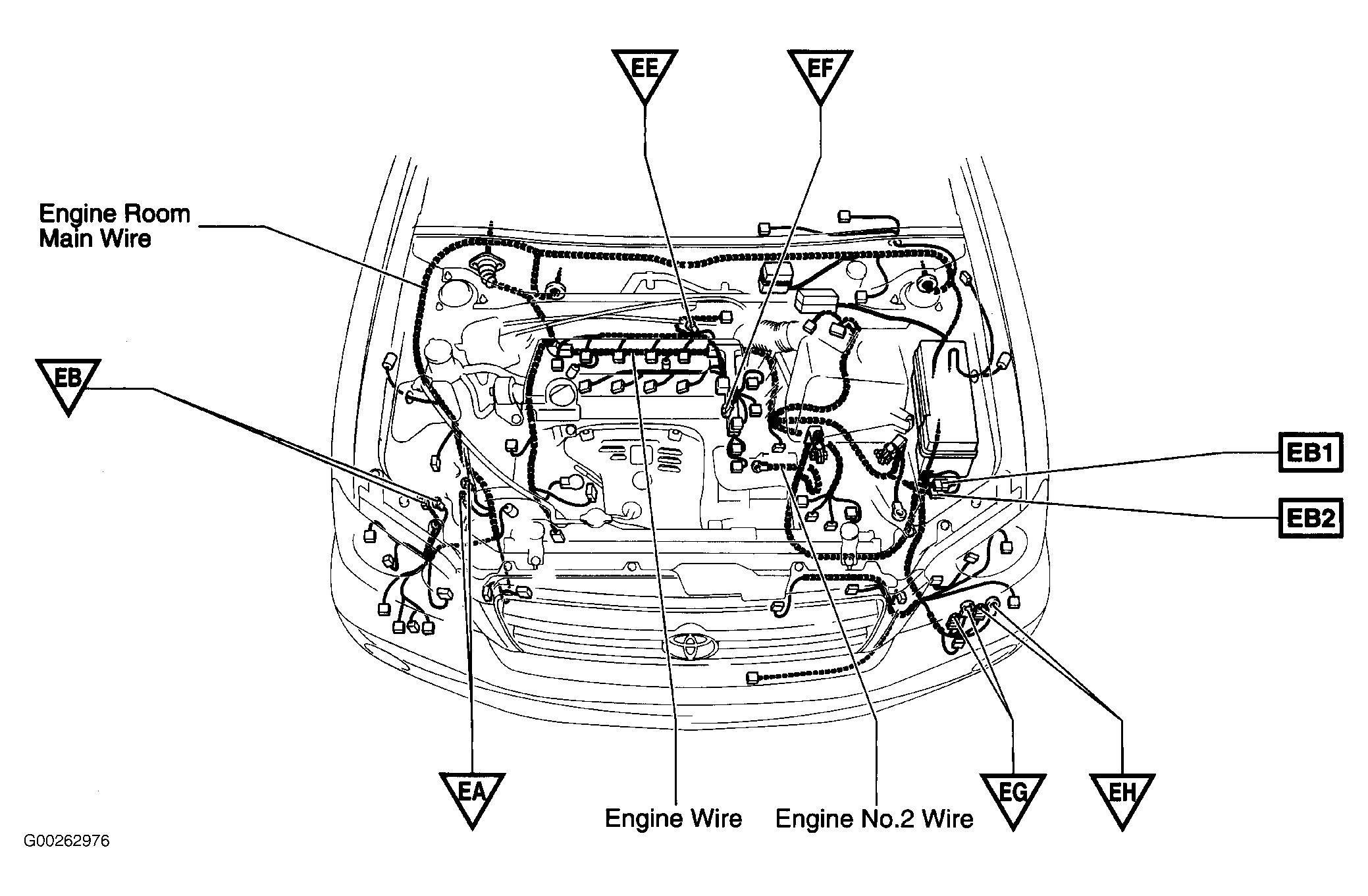

Fig 20: Engine Compartment (2.4L)

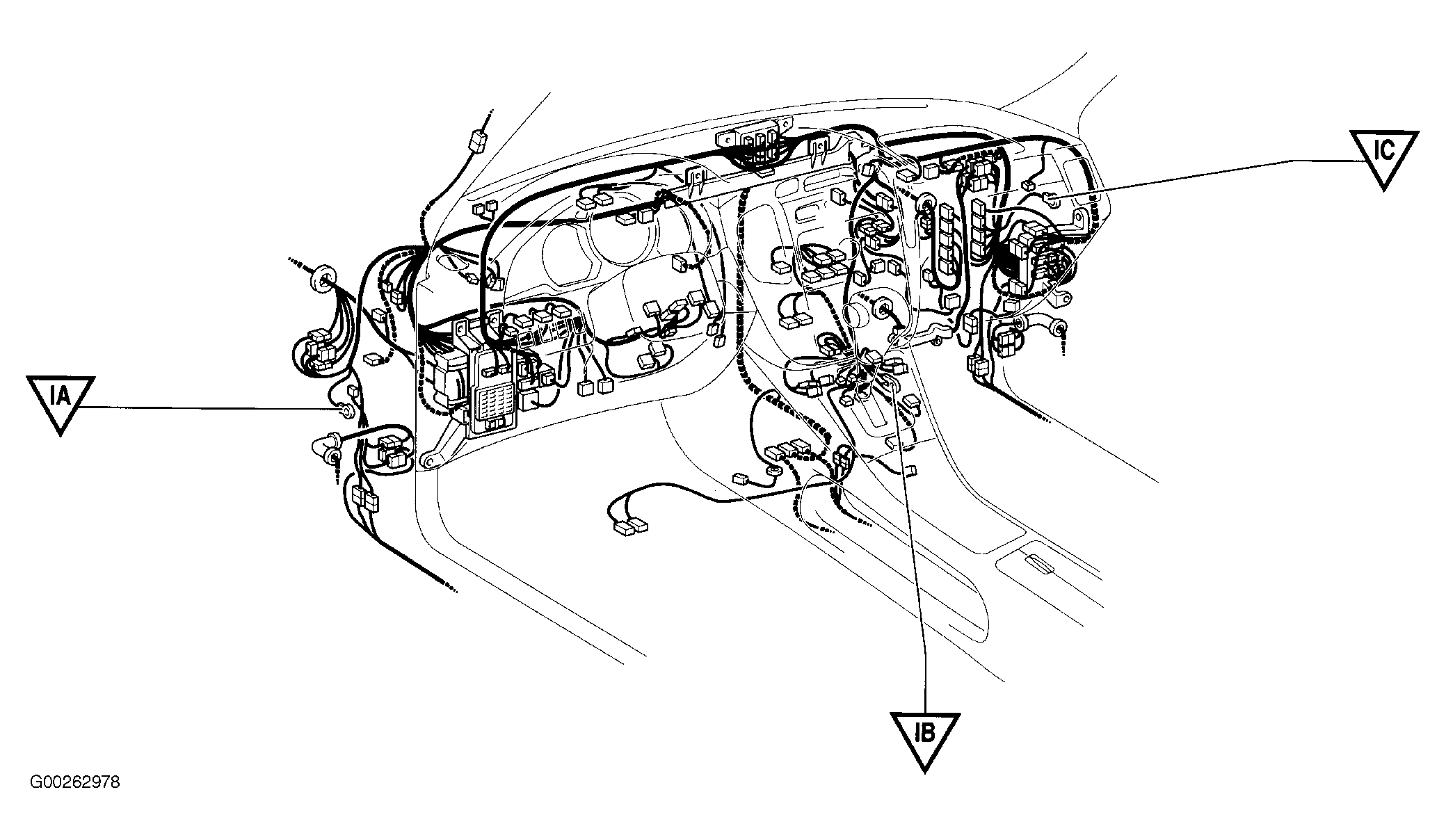

Fig 21: Dash

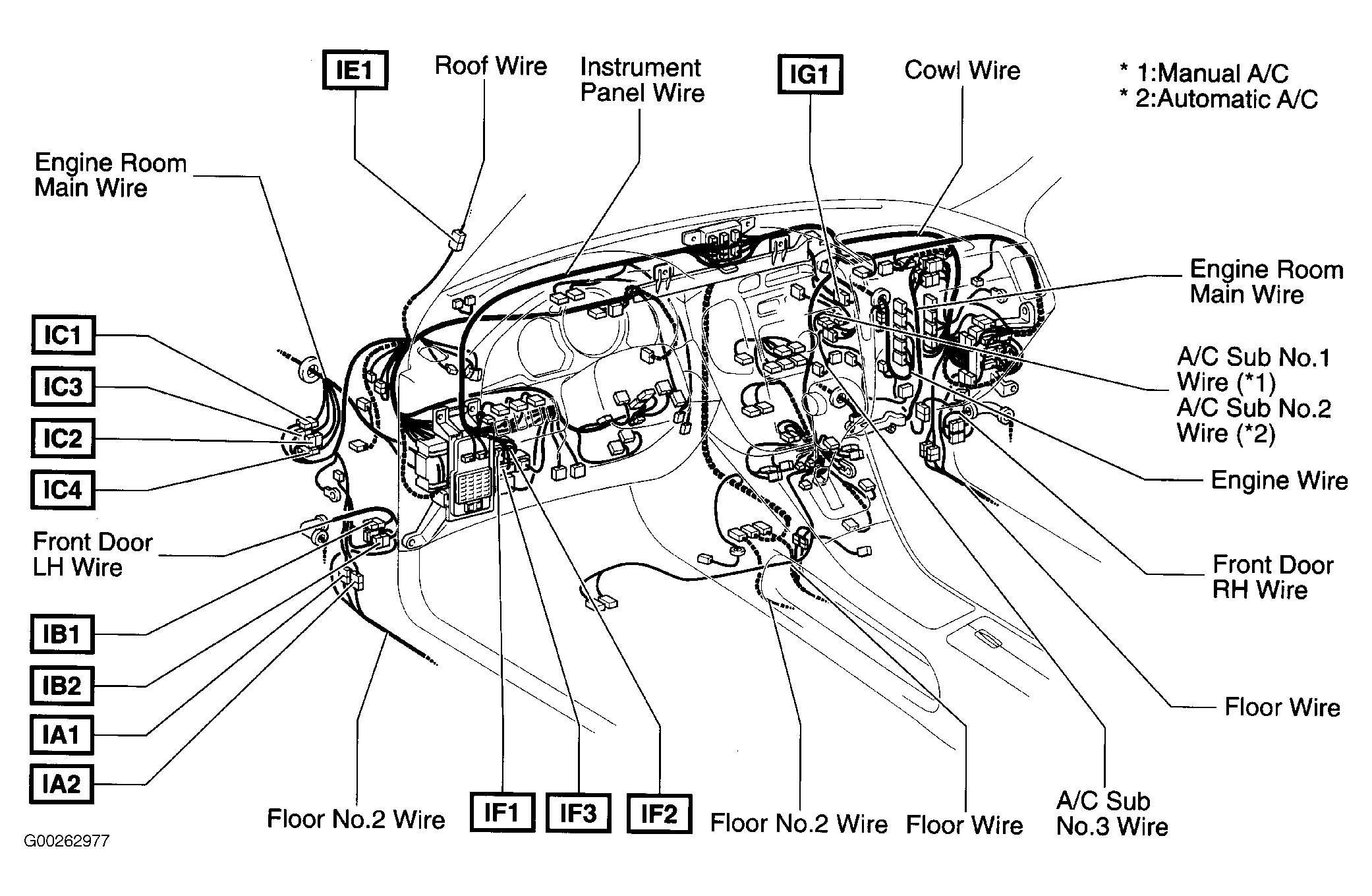

Fig 22: Dash

Fig 23: Dash

Fig 24: Dash

Fig 25: Engine Compartment (3.3L)

Fig 26: Engine Compartment (2.4L)

Fig 27: Vehicle Overview

Fig 28: Vehicle Overview

Fig 29: Front Seat Connectors (W/Power Seat)

Fig 30: Front Seat Connectors (W/O Power Seat)
