Power Window Control System: Location

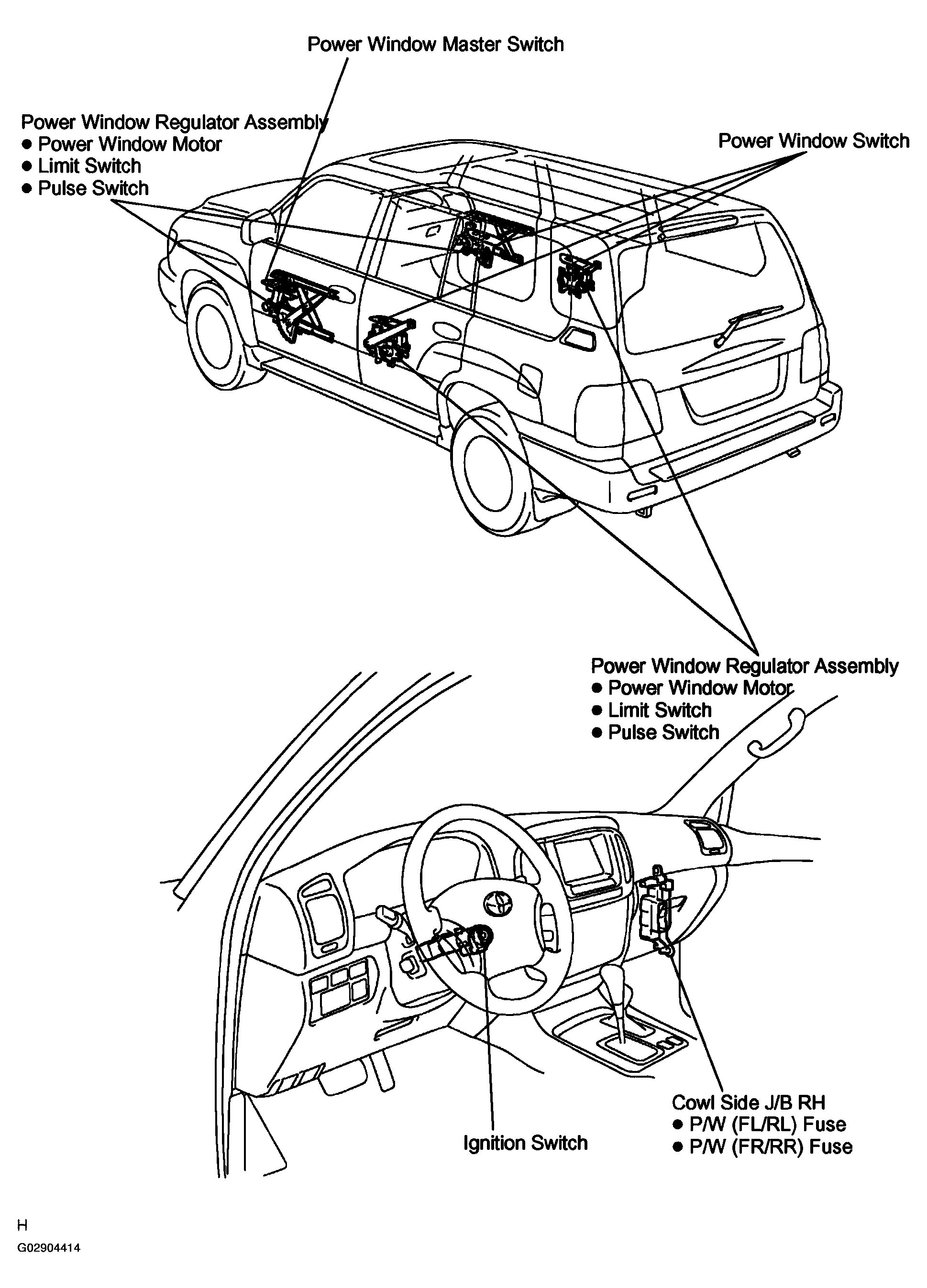

Fig 1: Identifying Power Window Control System Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

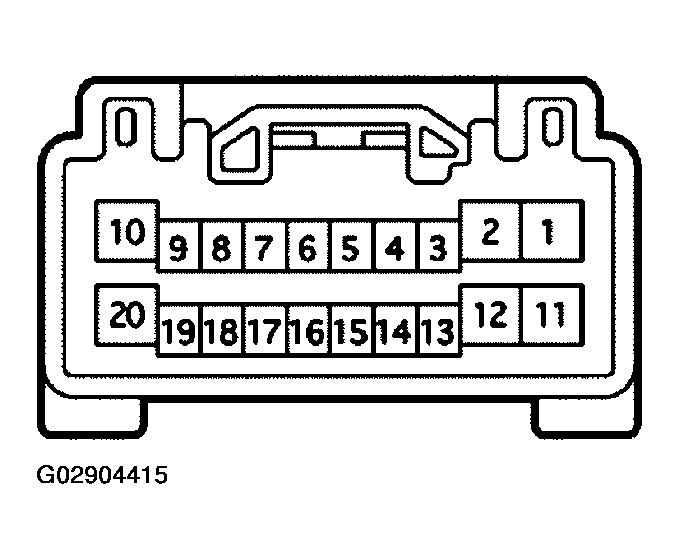

Fig 2: Power Window Master Switch Connector Terminal Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

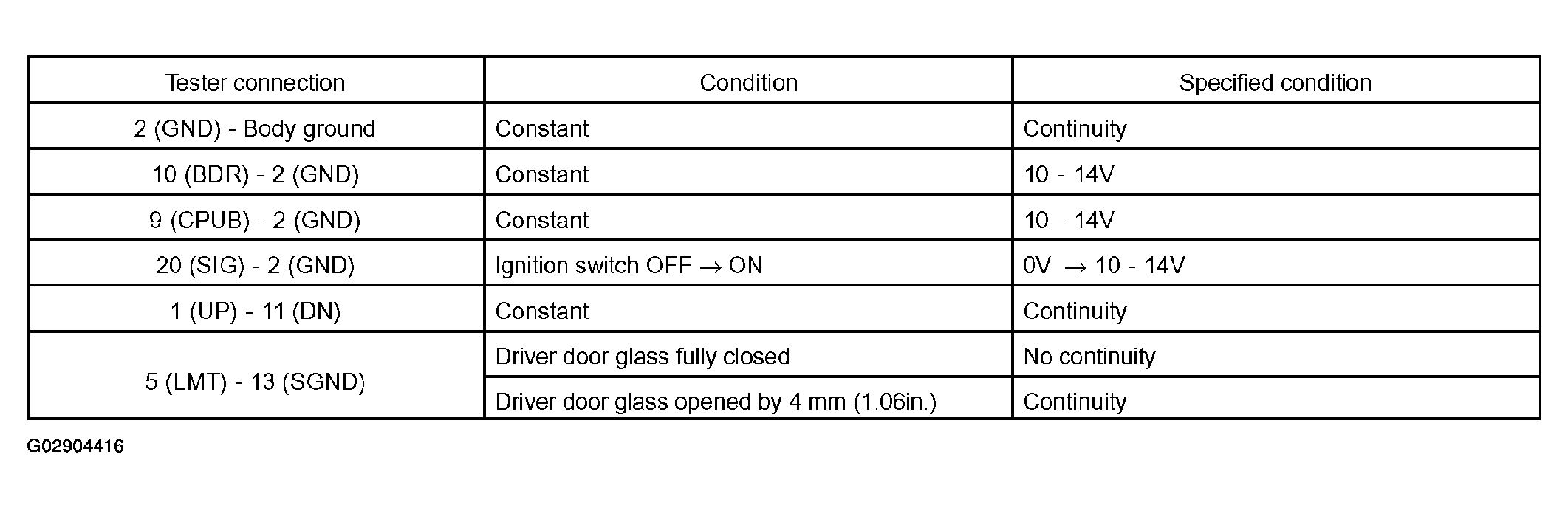

Fig 3: Tester Connection Specified Condition Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

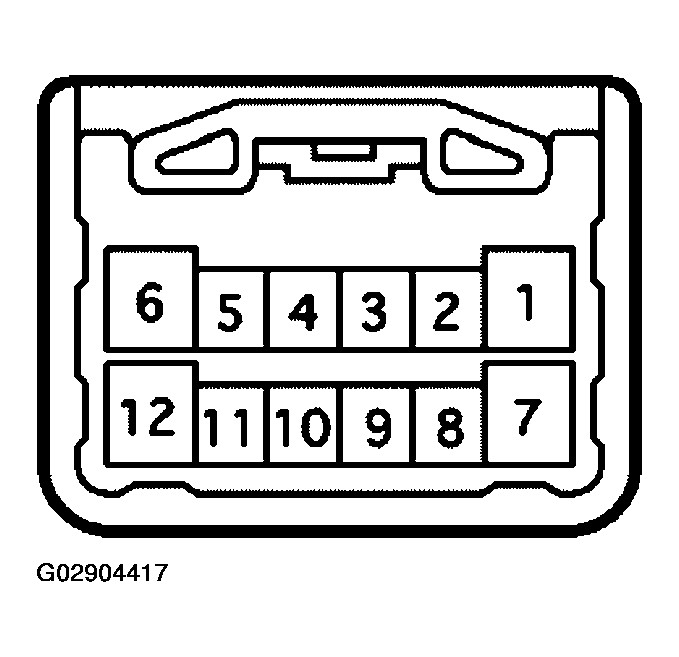

Fig 4: Power Window Switch Connector Terminal Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

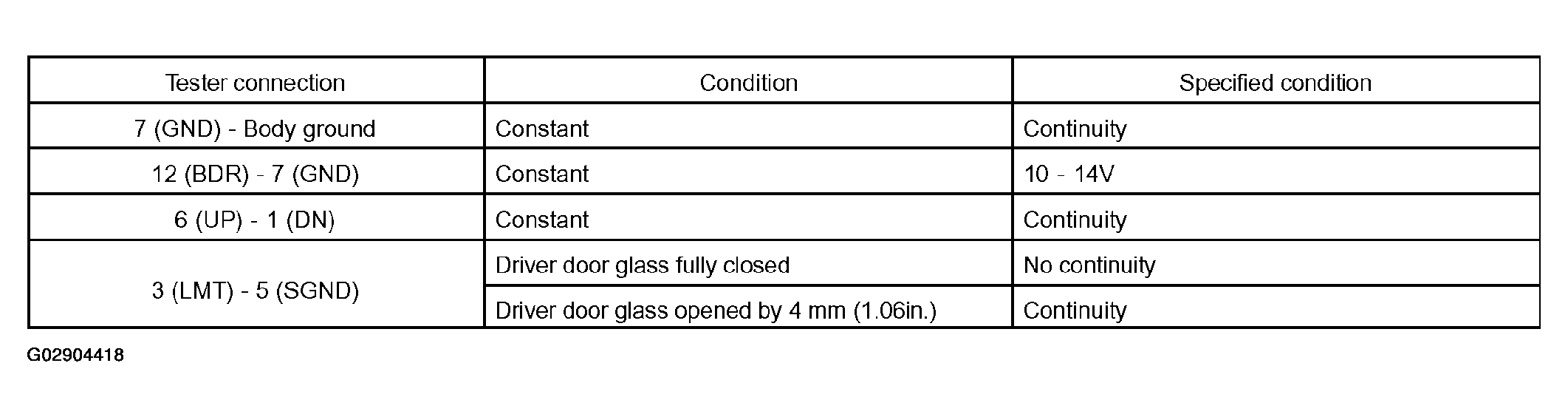

Fig 5: Tester Connection Specified Condition Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
