Home >> Toyota >> 2004 >> Land Cruiser >> Repair and Diagnosis >> Brakes >> Traction Control >> Rear Brake Speed Sensor >> Components

Rear Brake Speed Sensor: Components

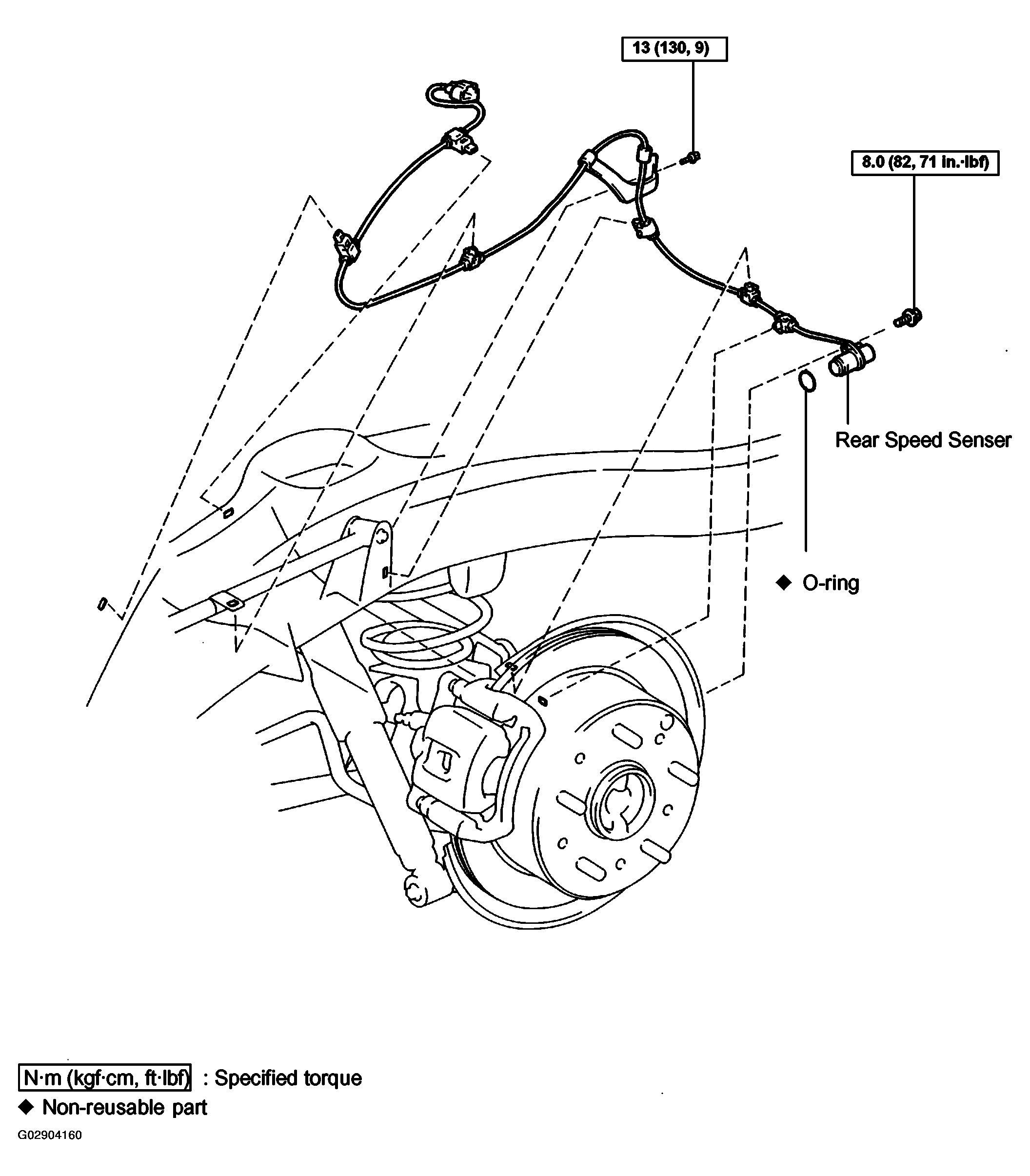

Fig 1: Identifying Rear Speed Sensor Components
G02904160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
