Remove Speed Sensor

  1. Disconnect the speed sensor connector.
  2. Remove the clamp bolt from the upper control bracket.
    1. Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

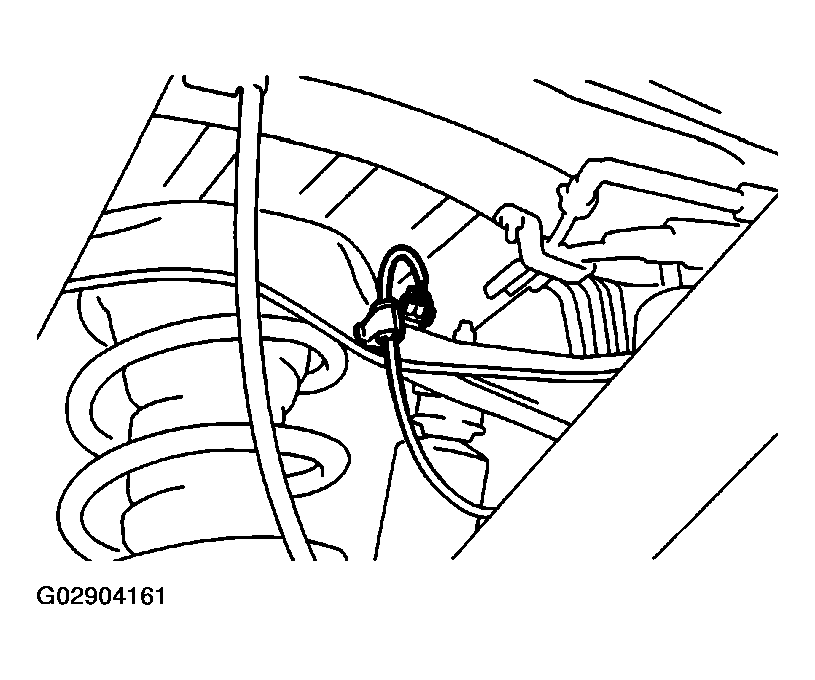

      Fig 1: Removing Speed Sensor Connector & Upper Control Bracket Clamp Bolt
      G02904161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Remove the 6 resin clips, holding the sensor wire harness from the frame, upper control arm and axle housing.
  4. Remove the mounting bolt and speed sensor.
    1. Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
  5. Remove the O-ring from the speed sensor.

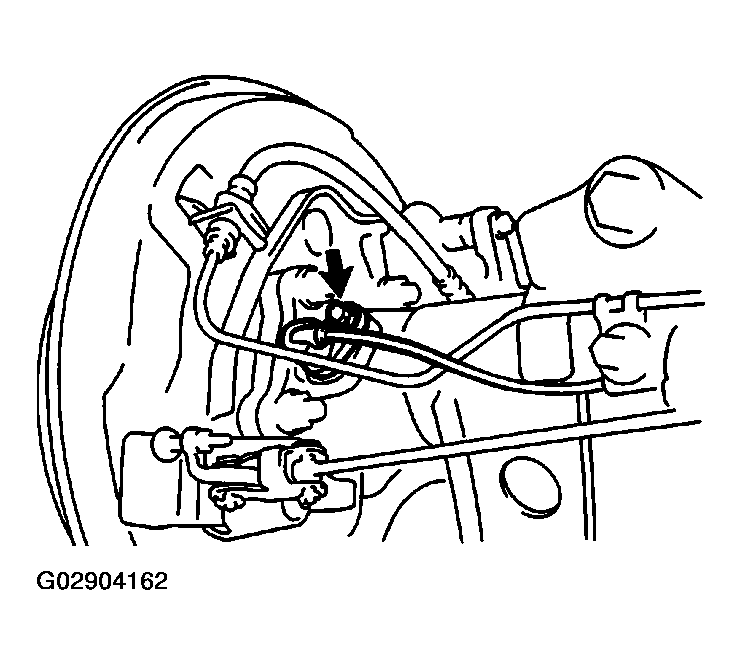

    Fig 2: Locating Speed Sensor Mounting Bolt
    G02904162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
