Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

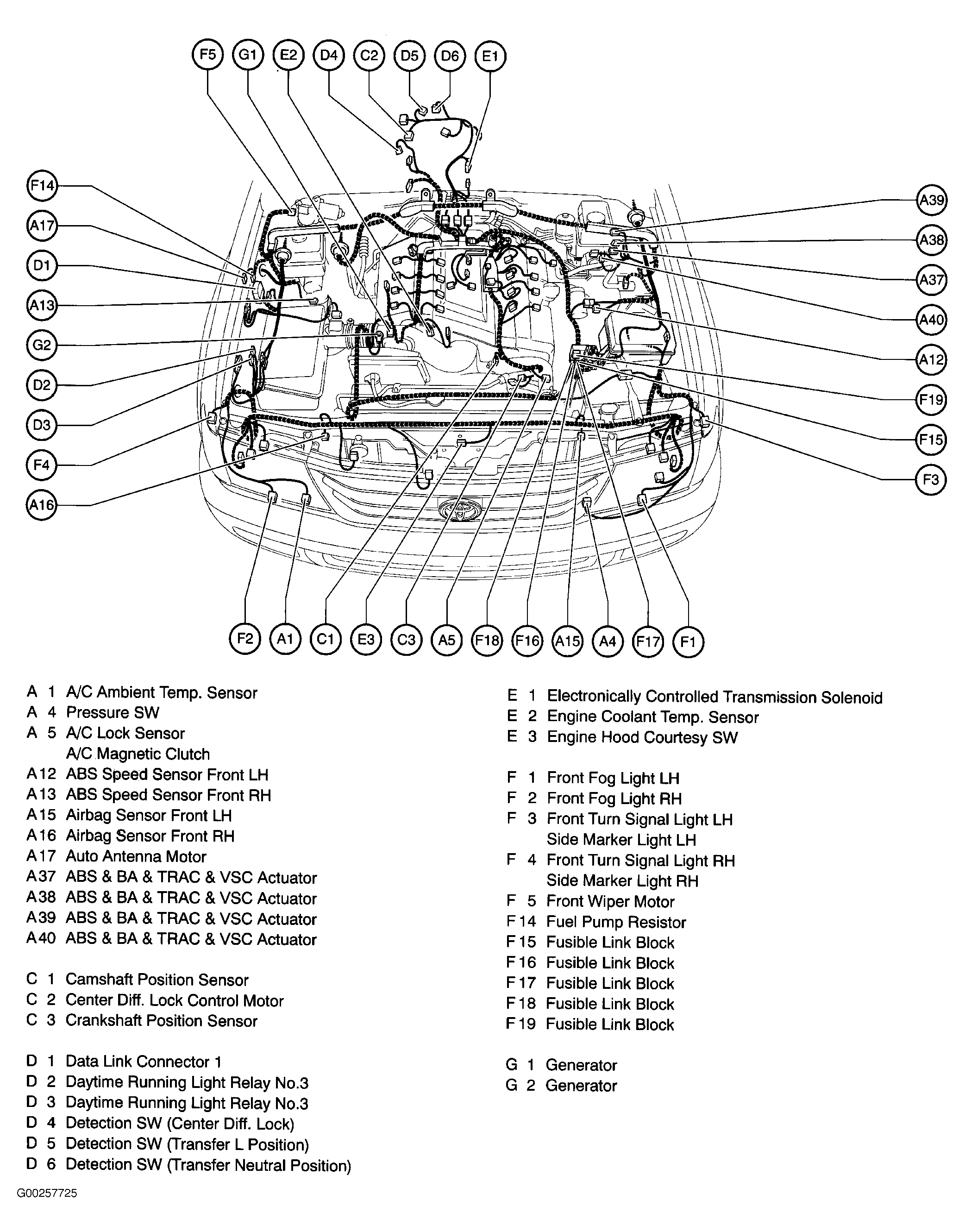

Fig 1: Engine Compartment

G00257725

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

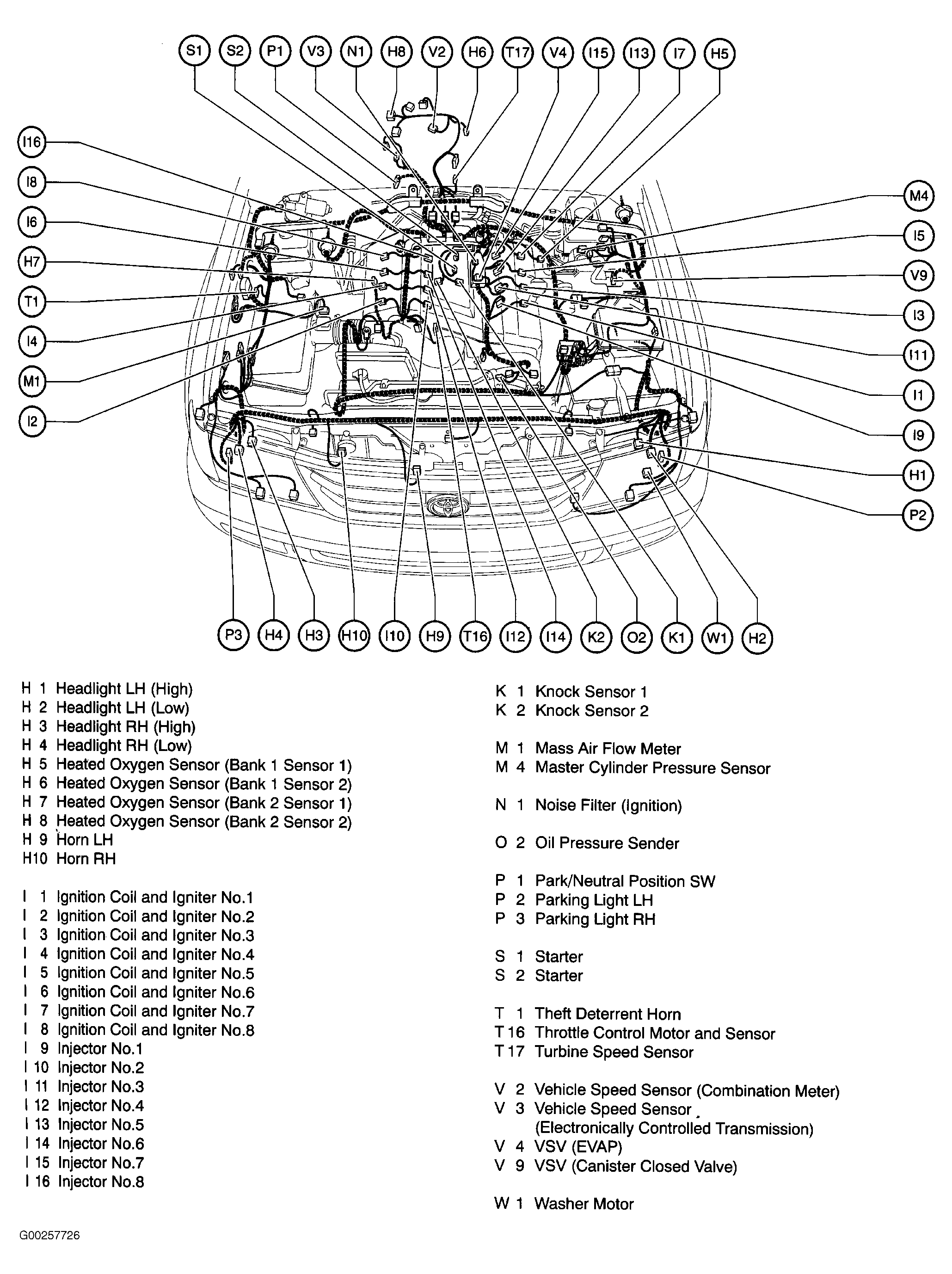

Fig 2: Engine Compartment

G00257726

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Dash

G00257727

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Dash

G00257728

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Vehicle Overview

G00257729

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

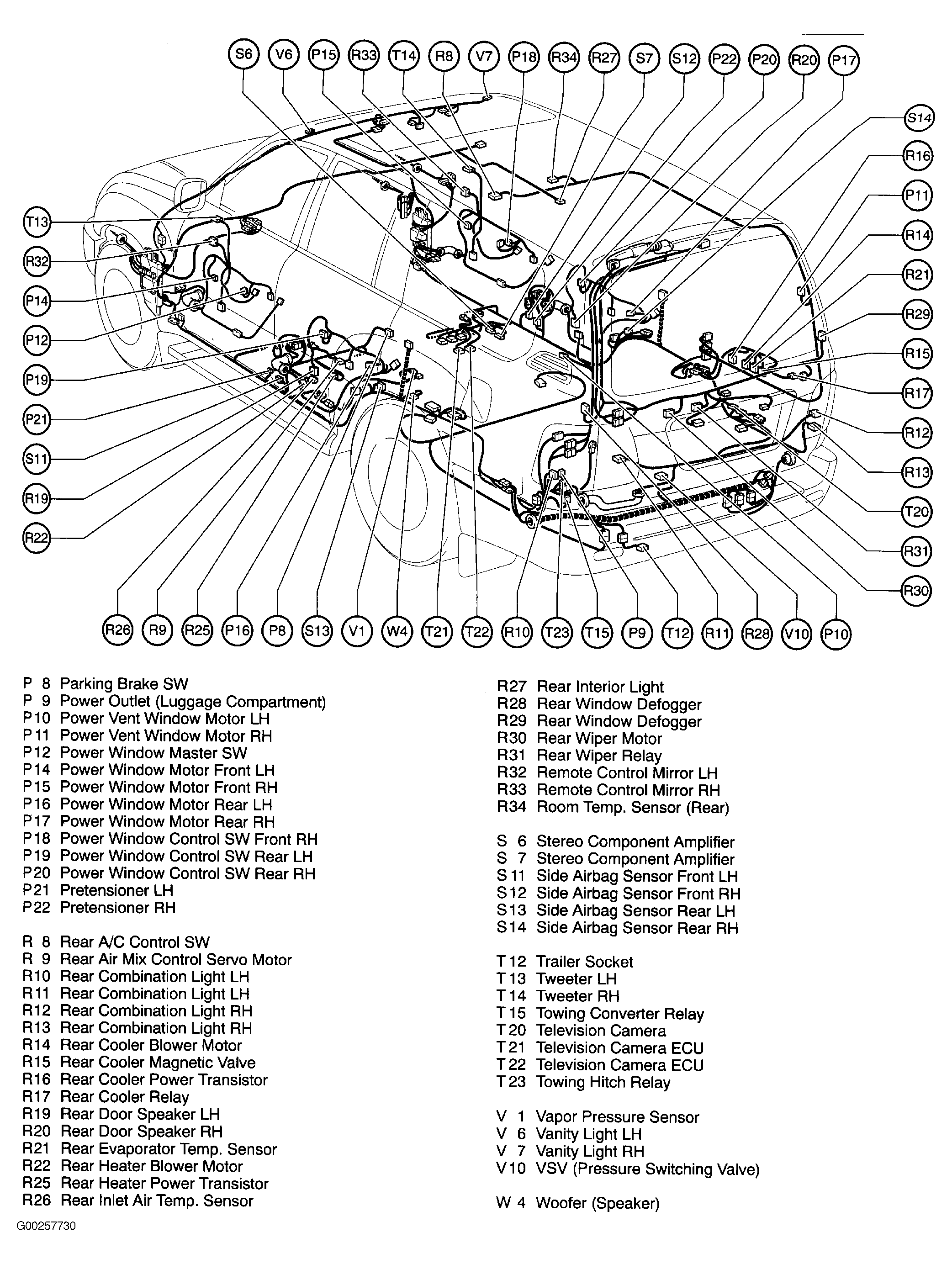

Fig 6: Vehicle Overview

G00257730

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

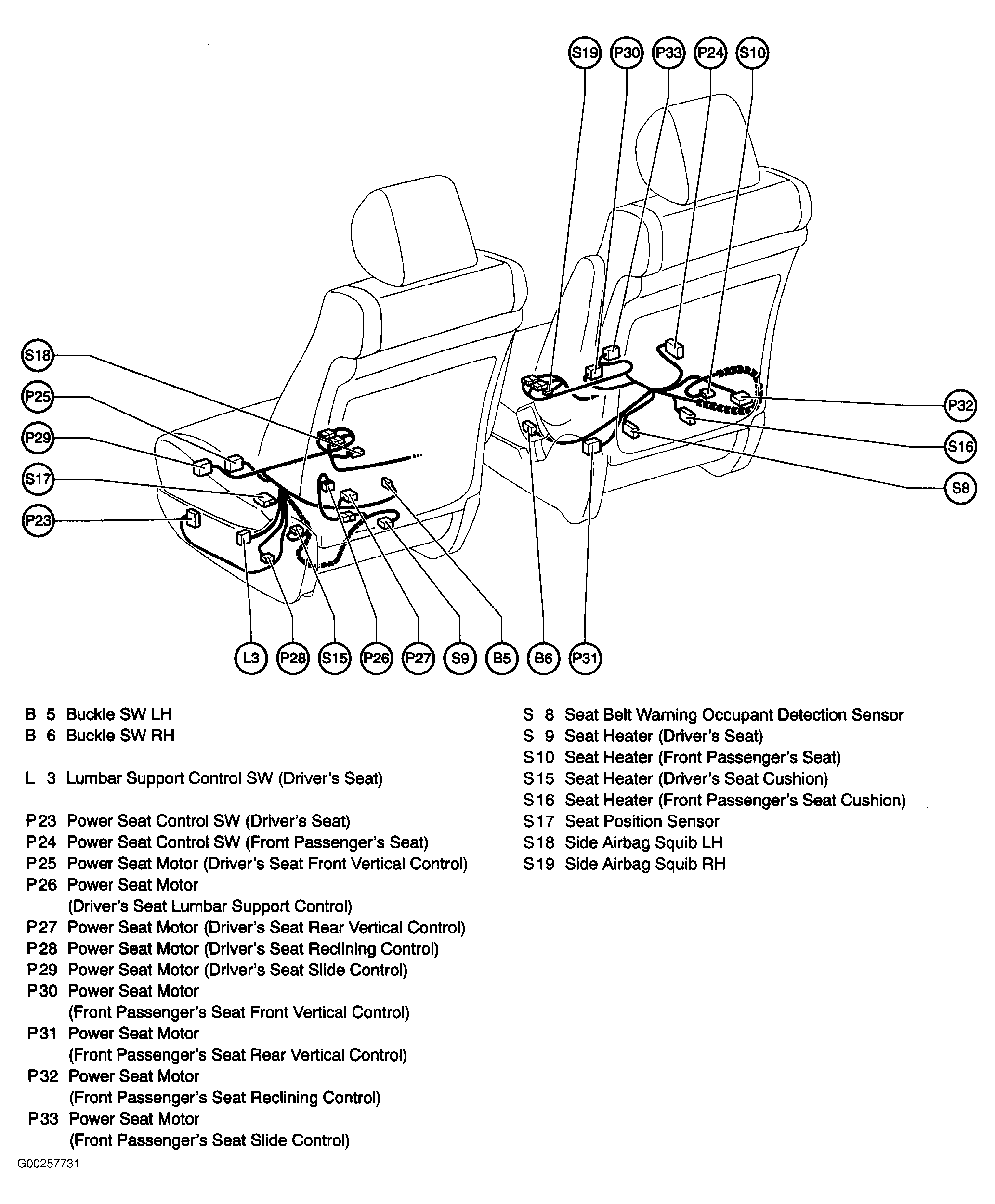

Fig 7: Front Seats

G00257731

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

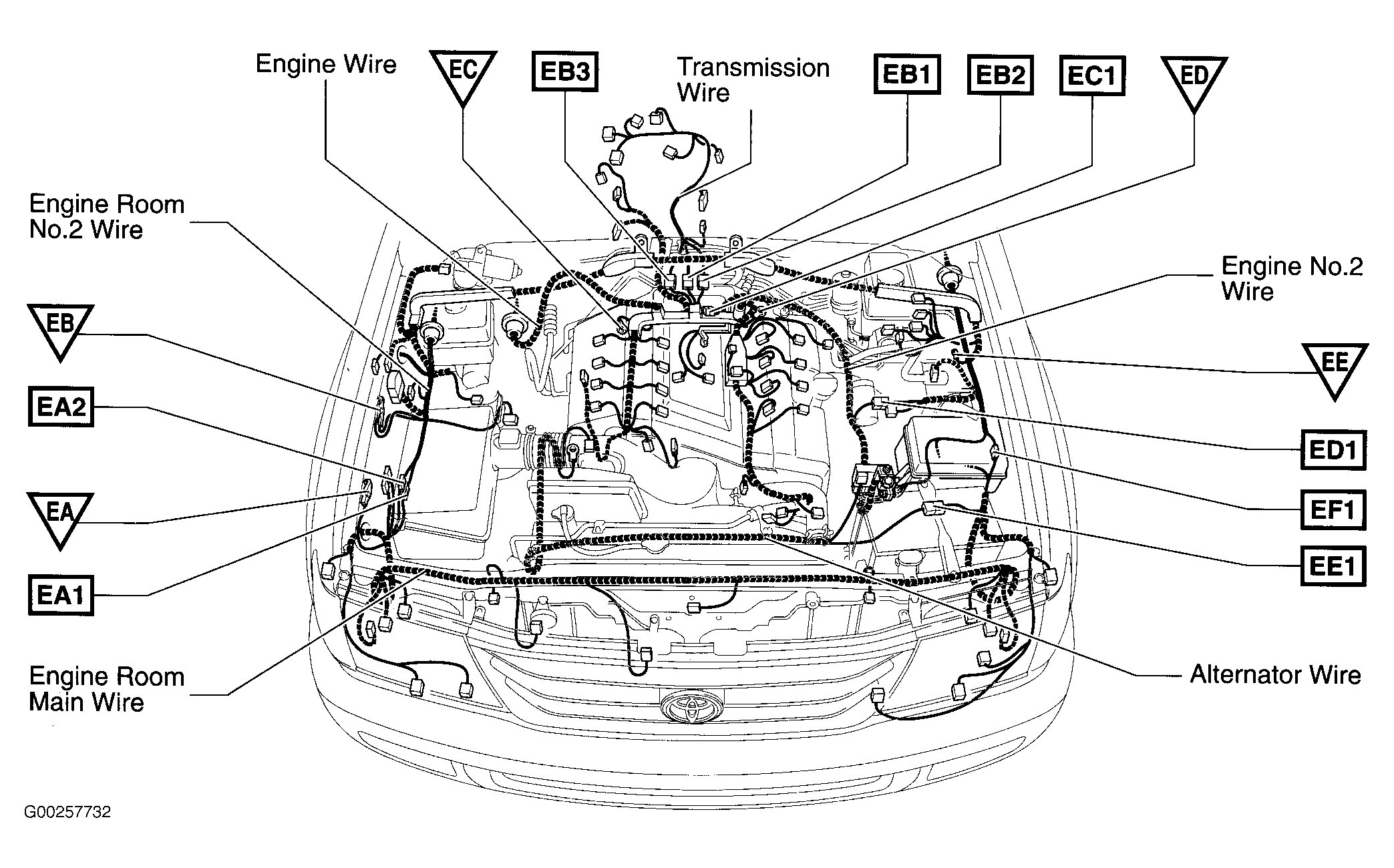

Fig 8: Engine Compartment

G00257732

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

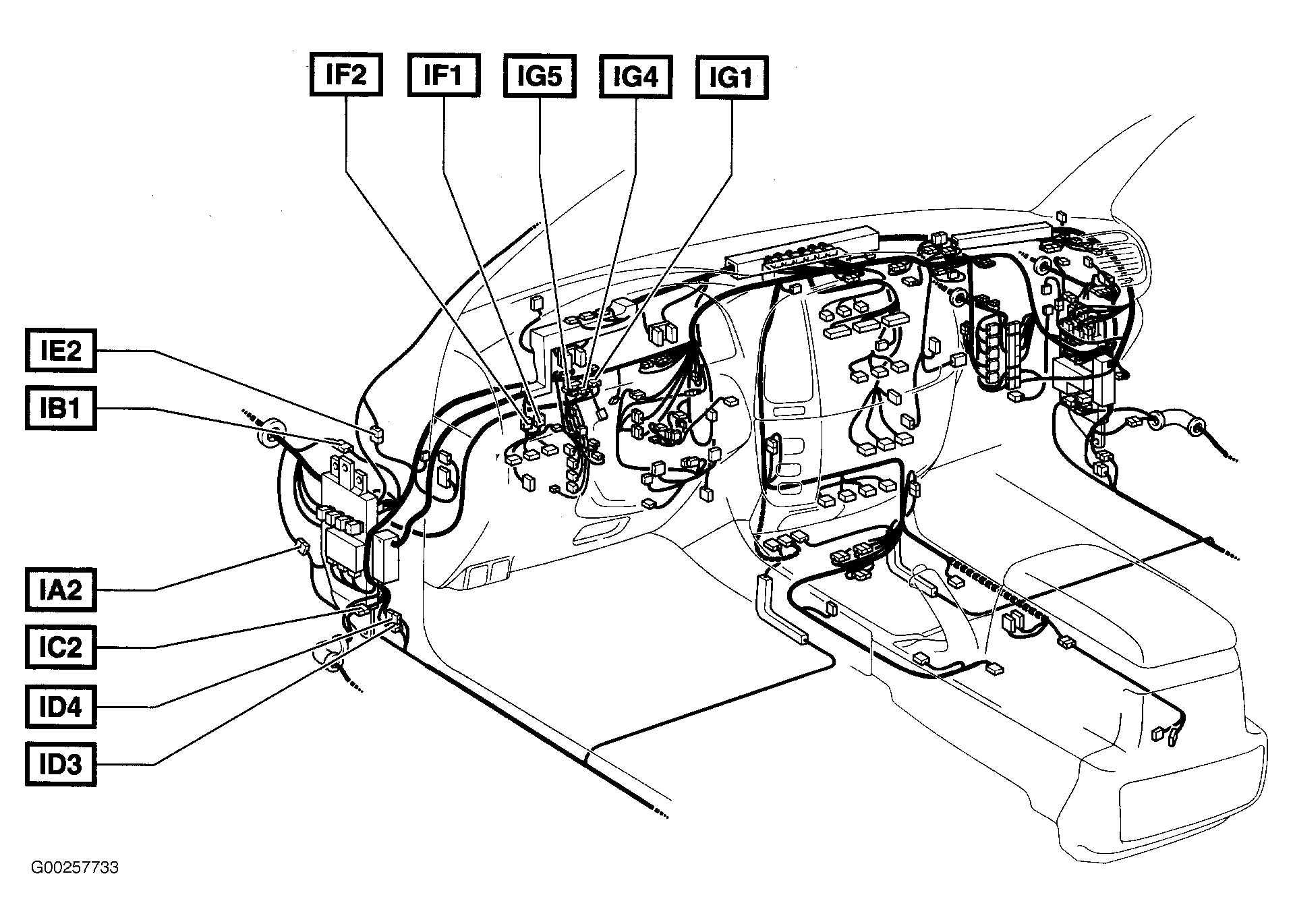

Fig 9: Dash

G00257733

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

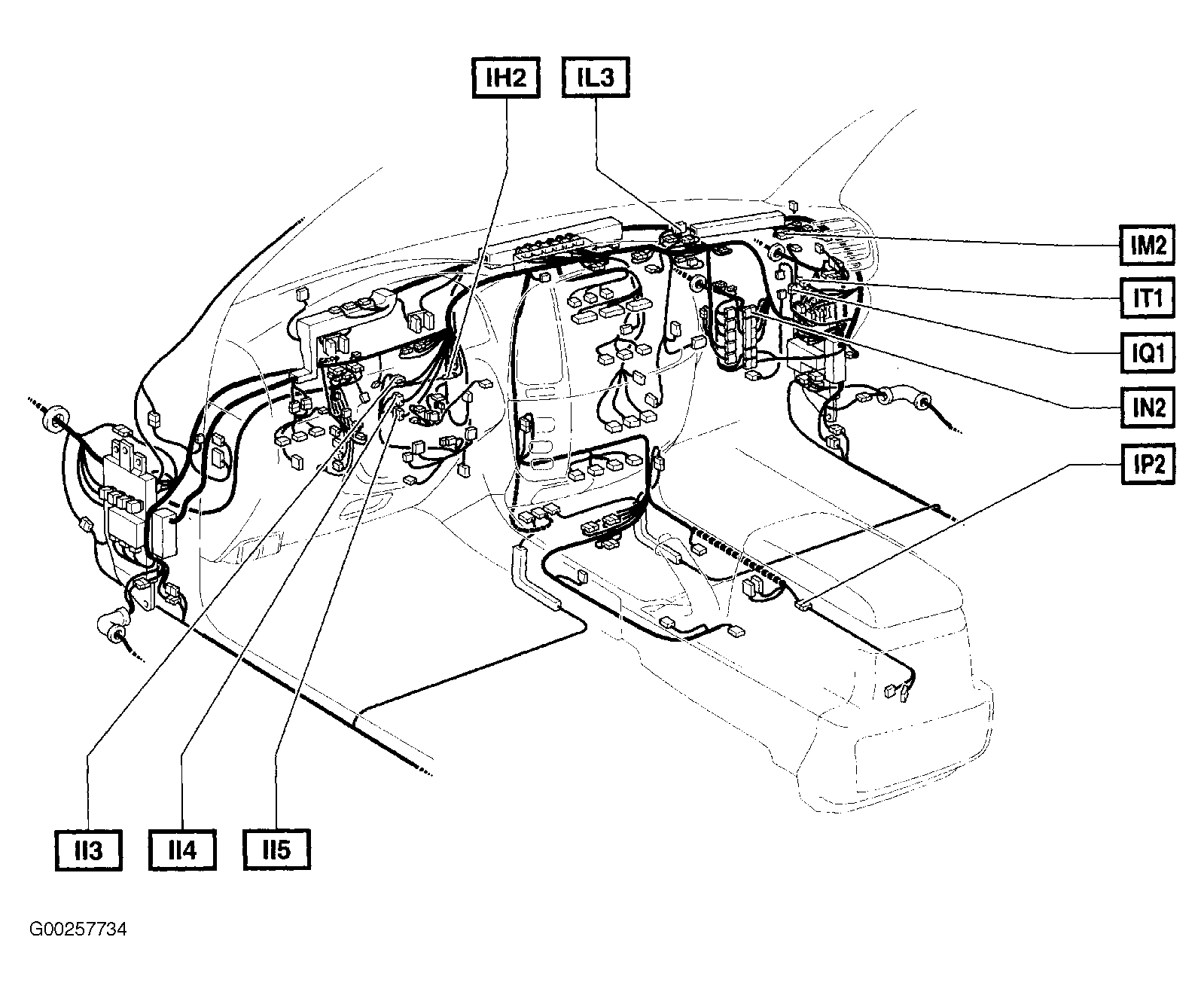

Fig 10: Dash

G00257734

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

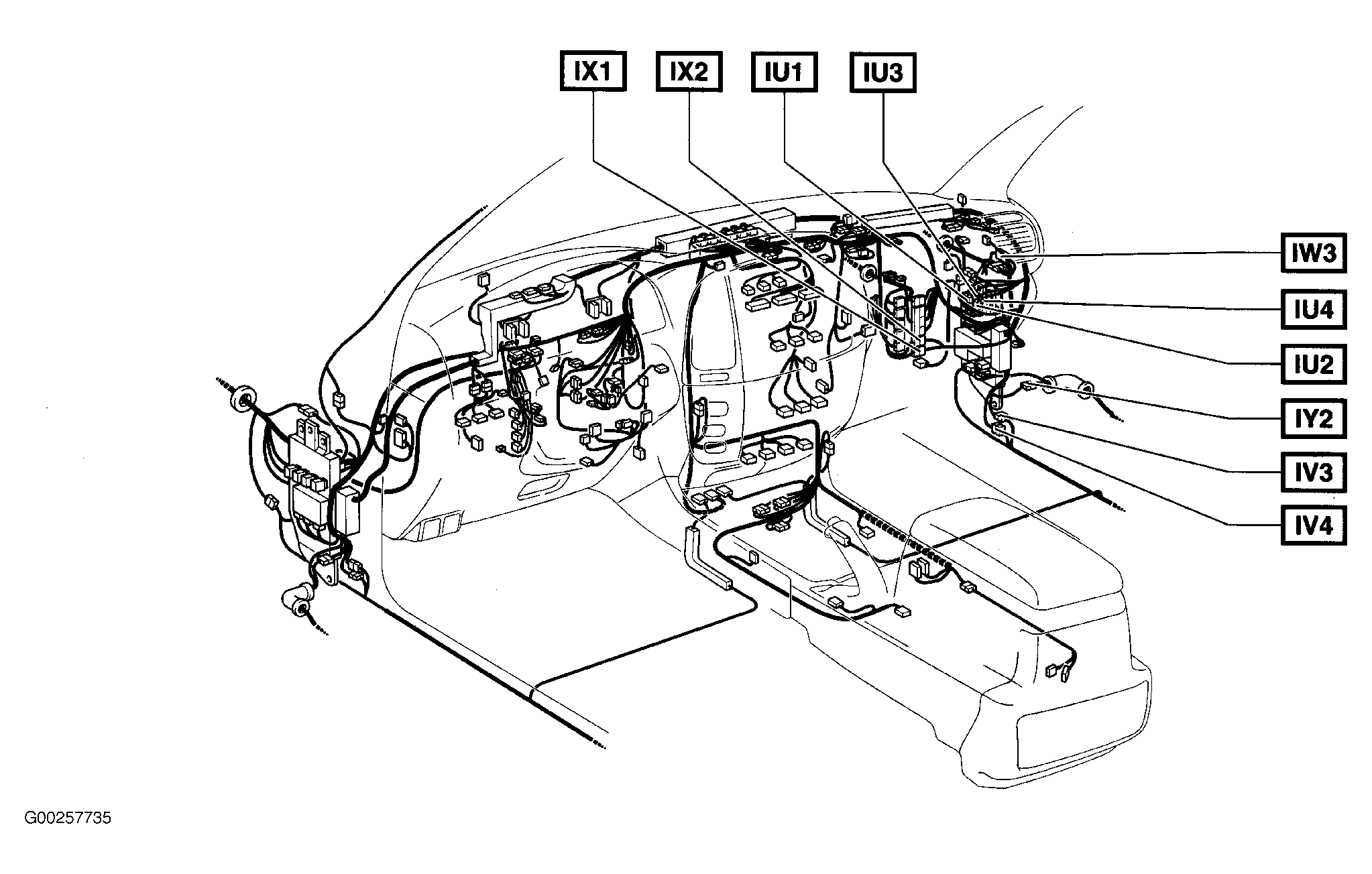

Fig 11: Dash

G00257735

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

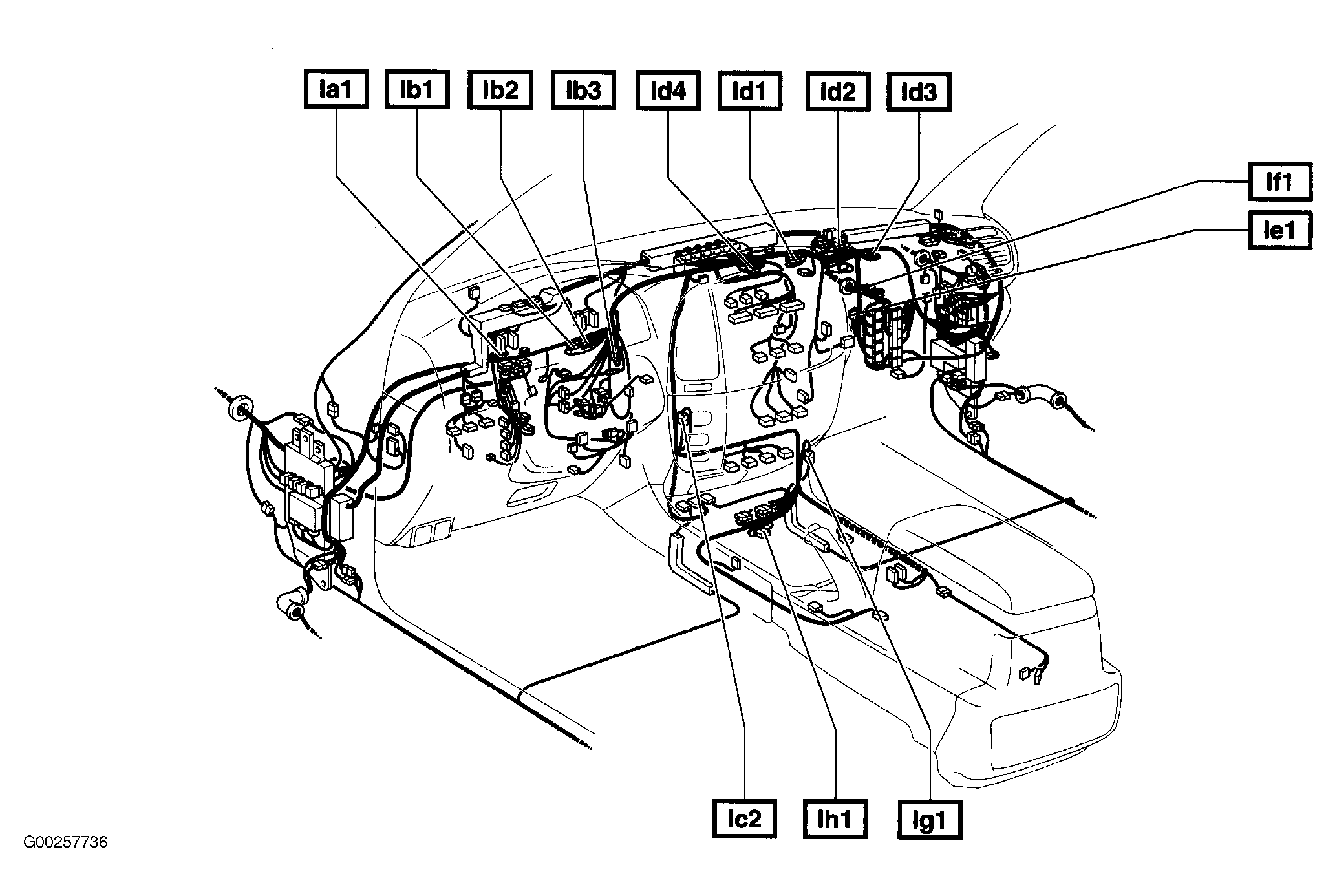

Fig 12: Dash

G00257736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

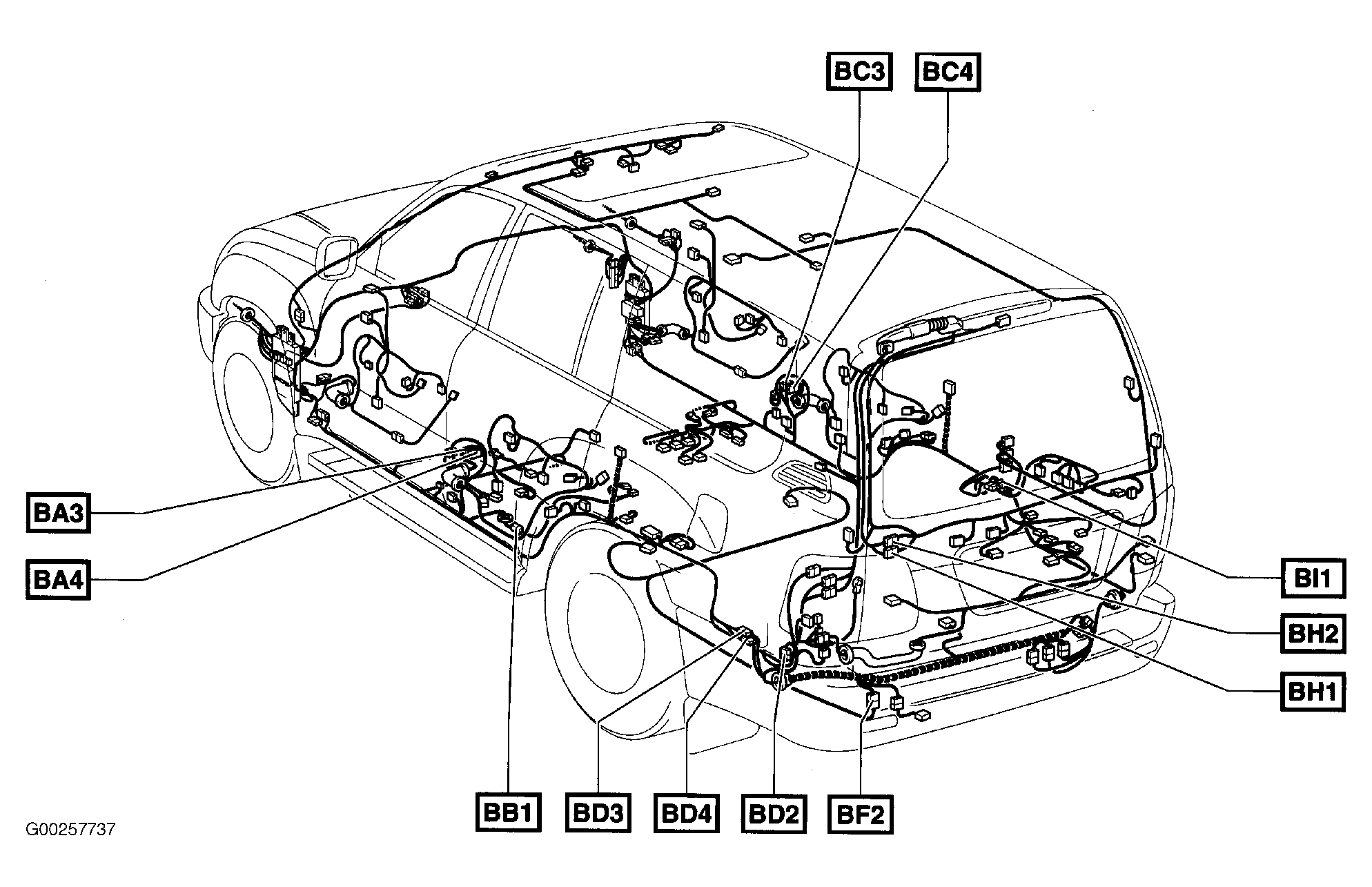

Fig 13: Vehicle Overview

G00257737

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

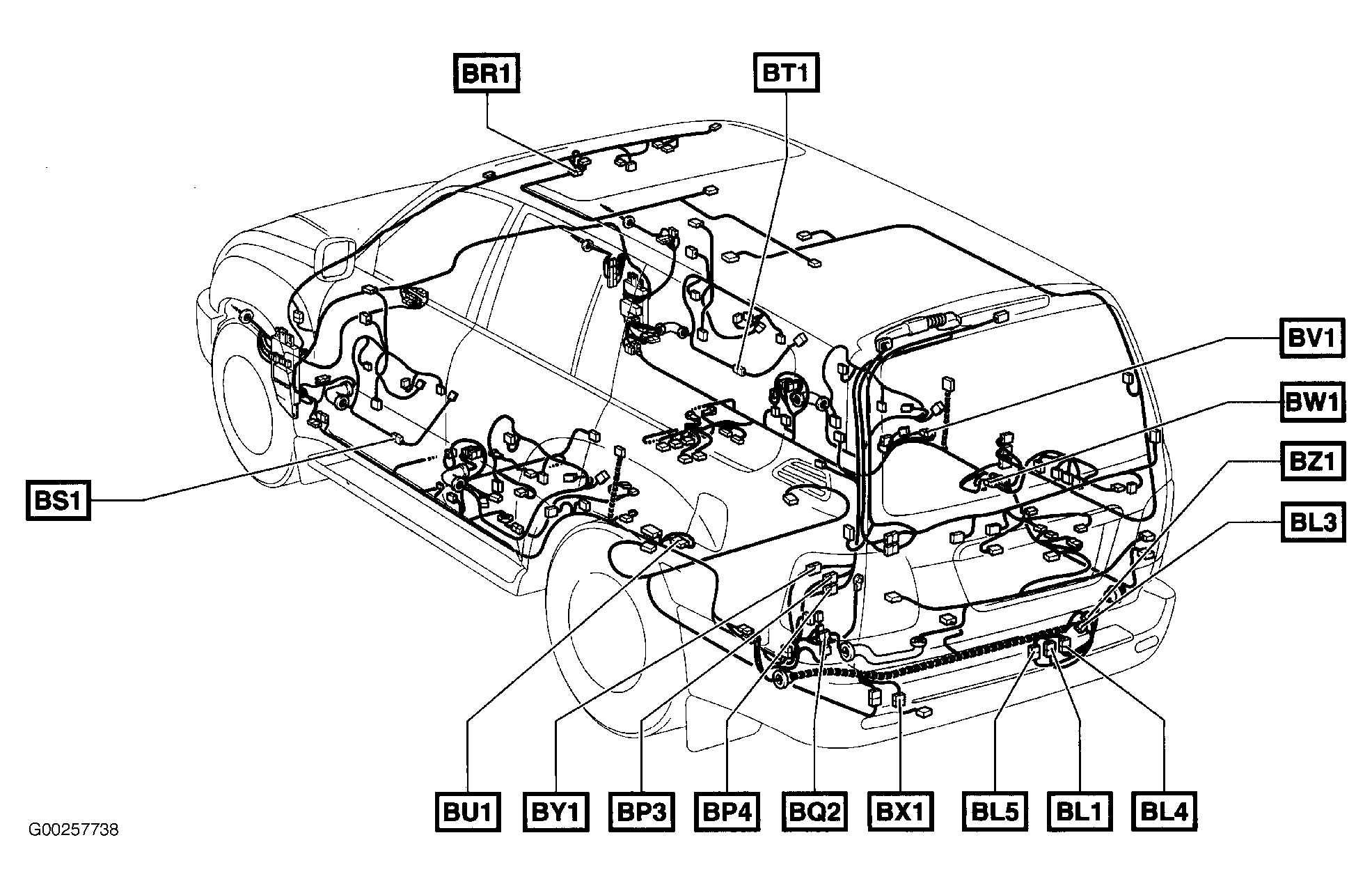

Fig 14: Vehicle Overview

G00257738

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

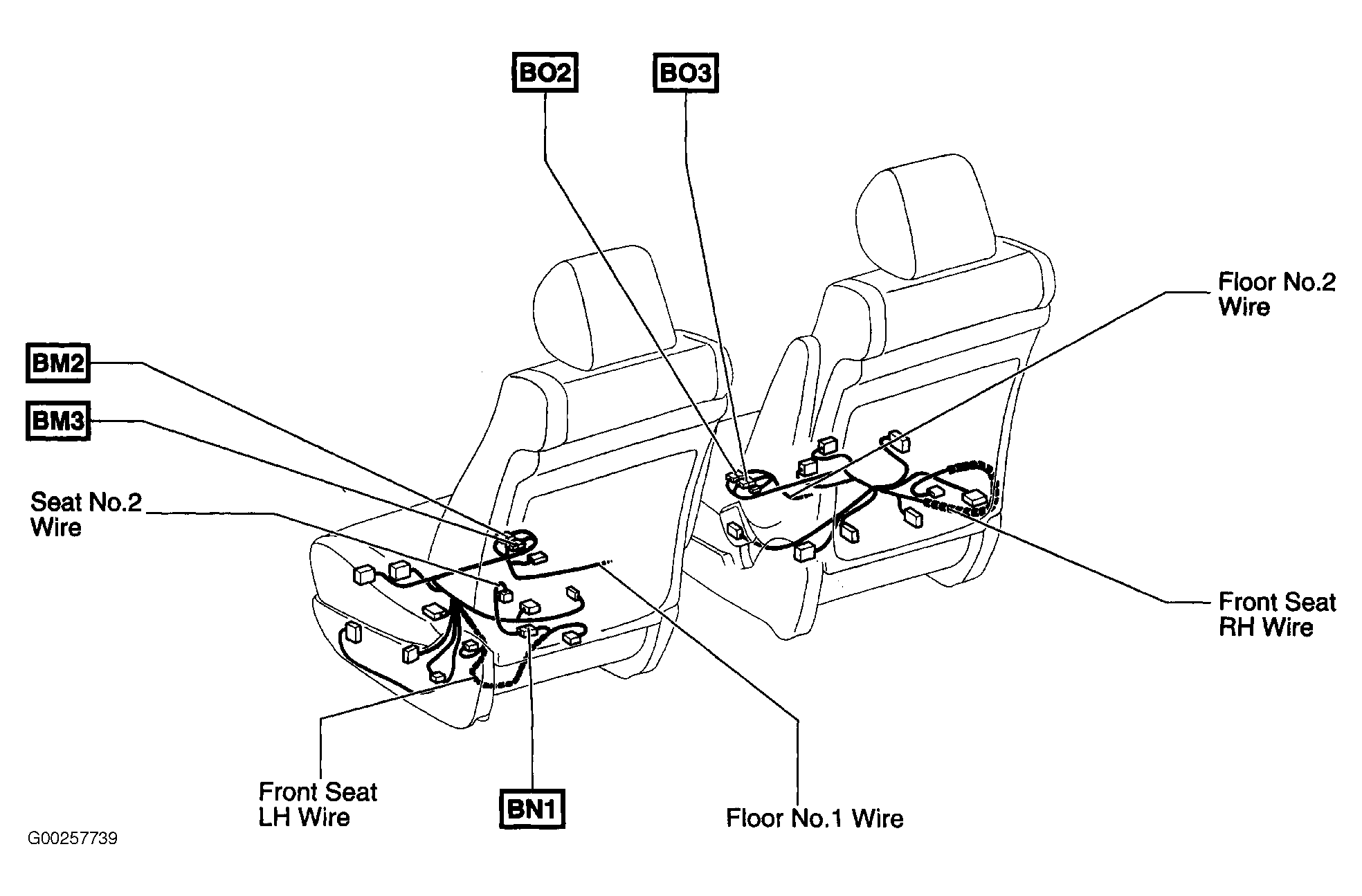

Fig 15: Front Seats

G00257739

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

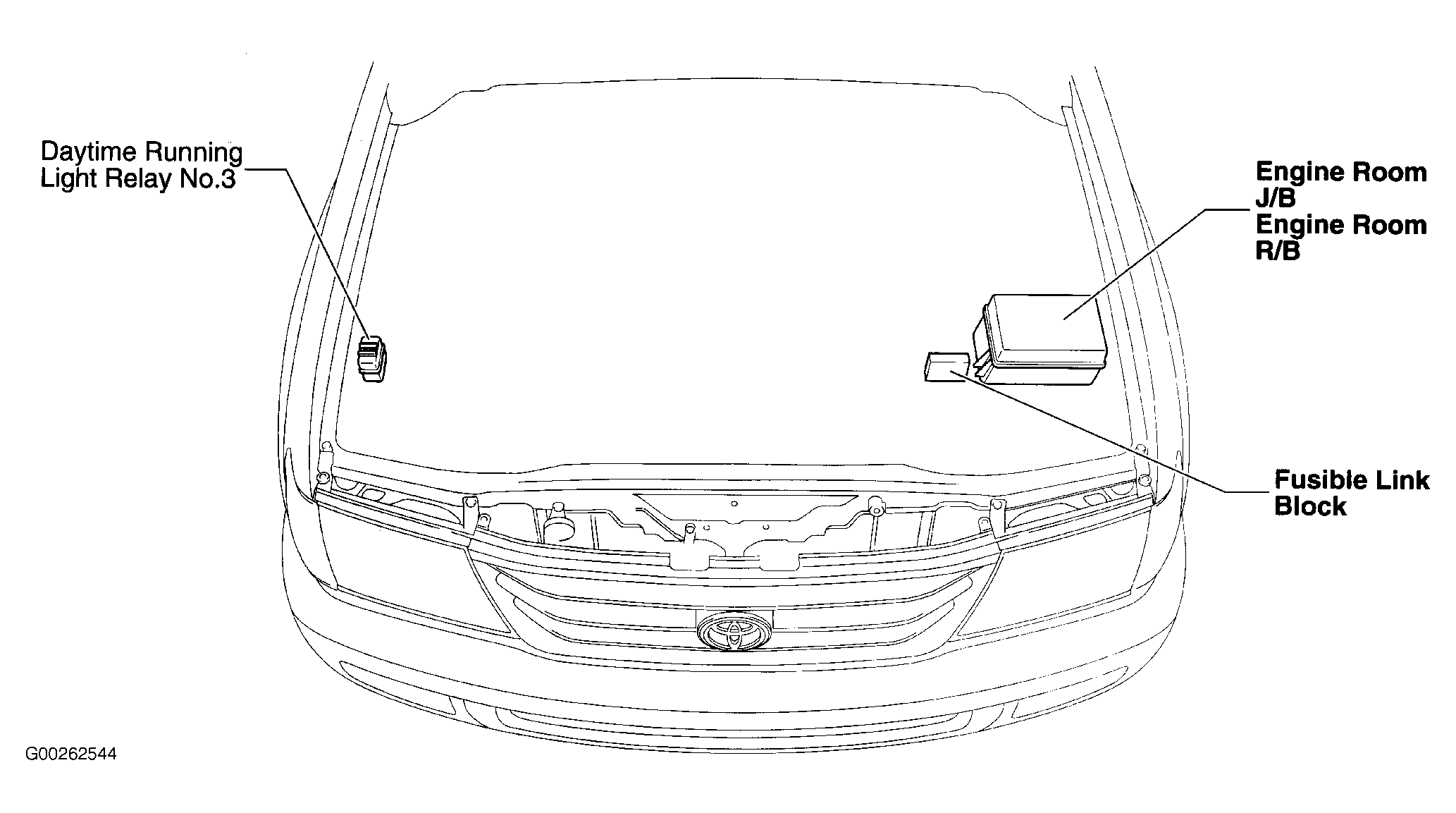

Fig 16: Engine Compartment

G00262544

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE COMPARTMENT RELAY IDENTIFICATION

RELAY DESCRIPTION
Daytime Running Light Relay No.3

Fig 17: Dash

G00262545

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY DESCRIPTION
Auto Antenna Control Relay
Center Diff. Lock Control Relay

Fig 18: Vehicle Overview

G00262546

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REAR VEHICLE RELAY IDENTIFICATION

RELAY DESCRIPTION
Rear Cooler Relay
Rear Wiper Relay
Towing Hitch Relay
Towing Converter Relay

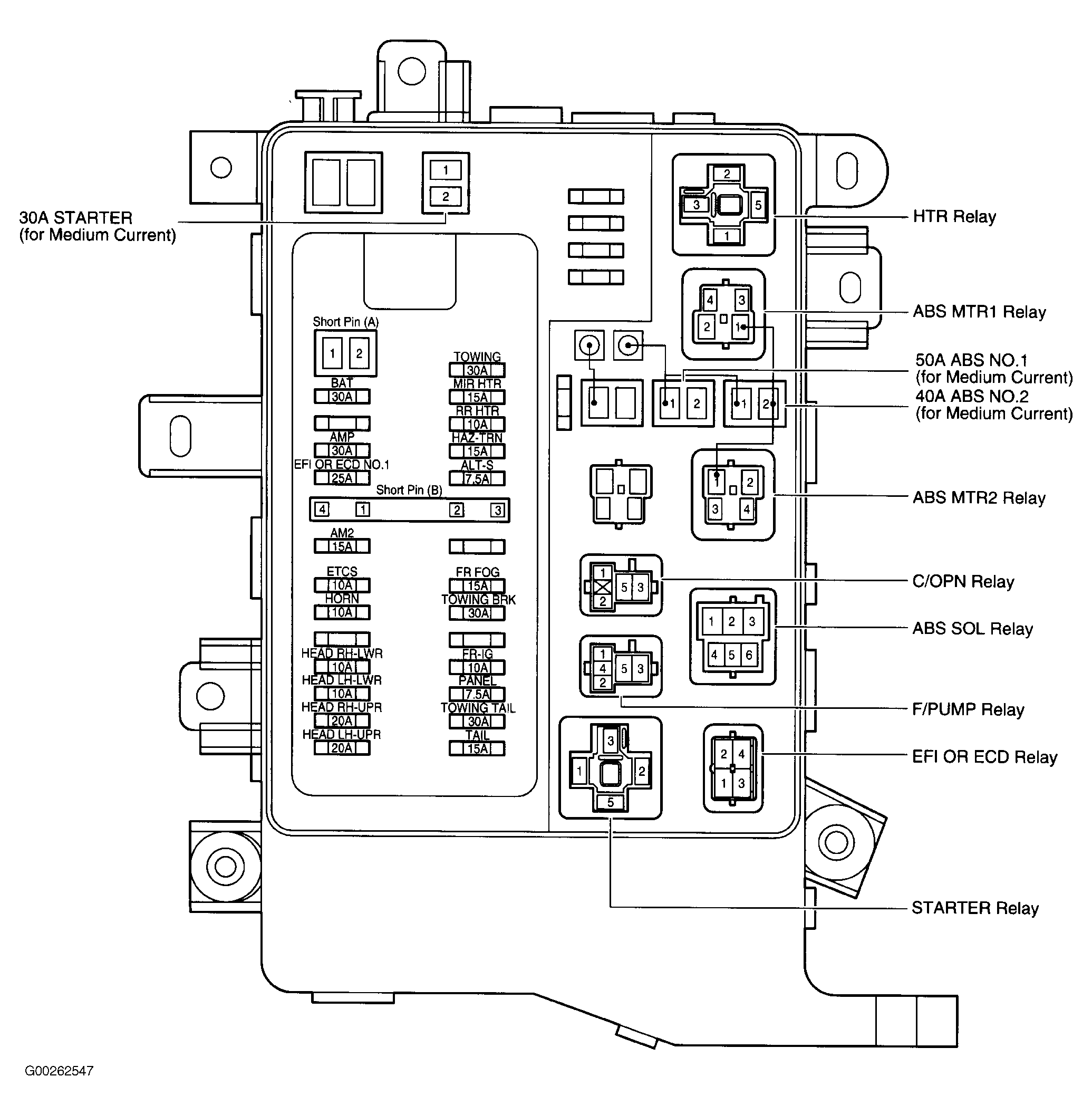

Fig 19: Engine Room J/B

G00262547

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

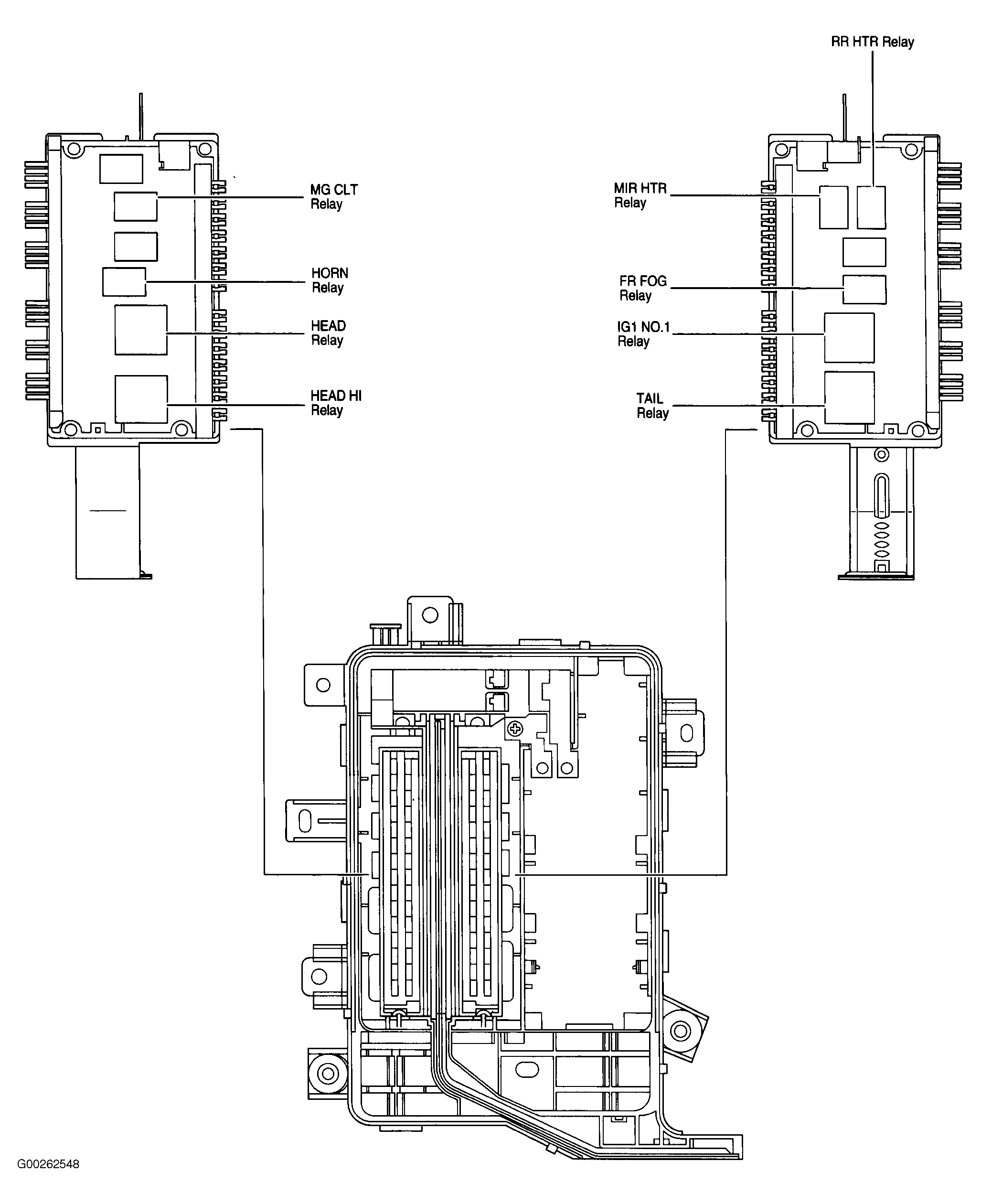

Fig 20: Engine Room J/B (Inner Circuit)

G00262548

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

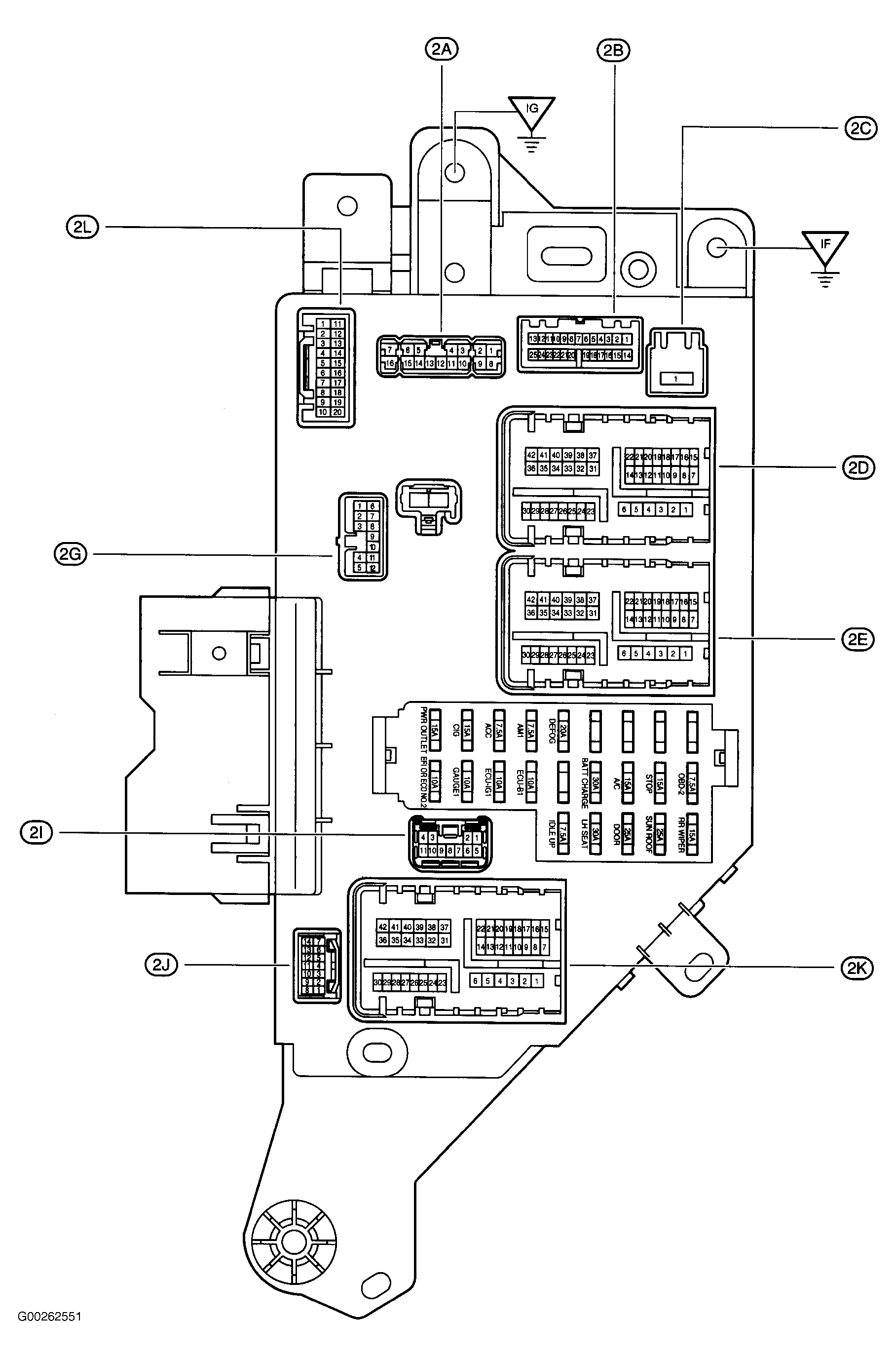

Fig 21: Cowl Side J/B LH

G00262551

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Cowl Side J/B LH

G00262552

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

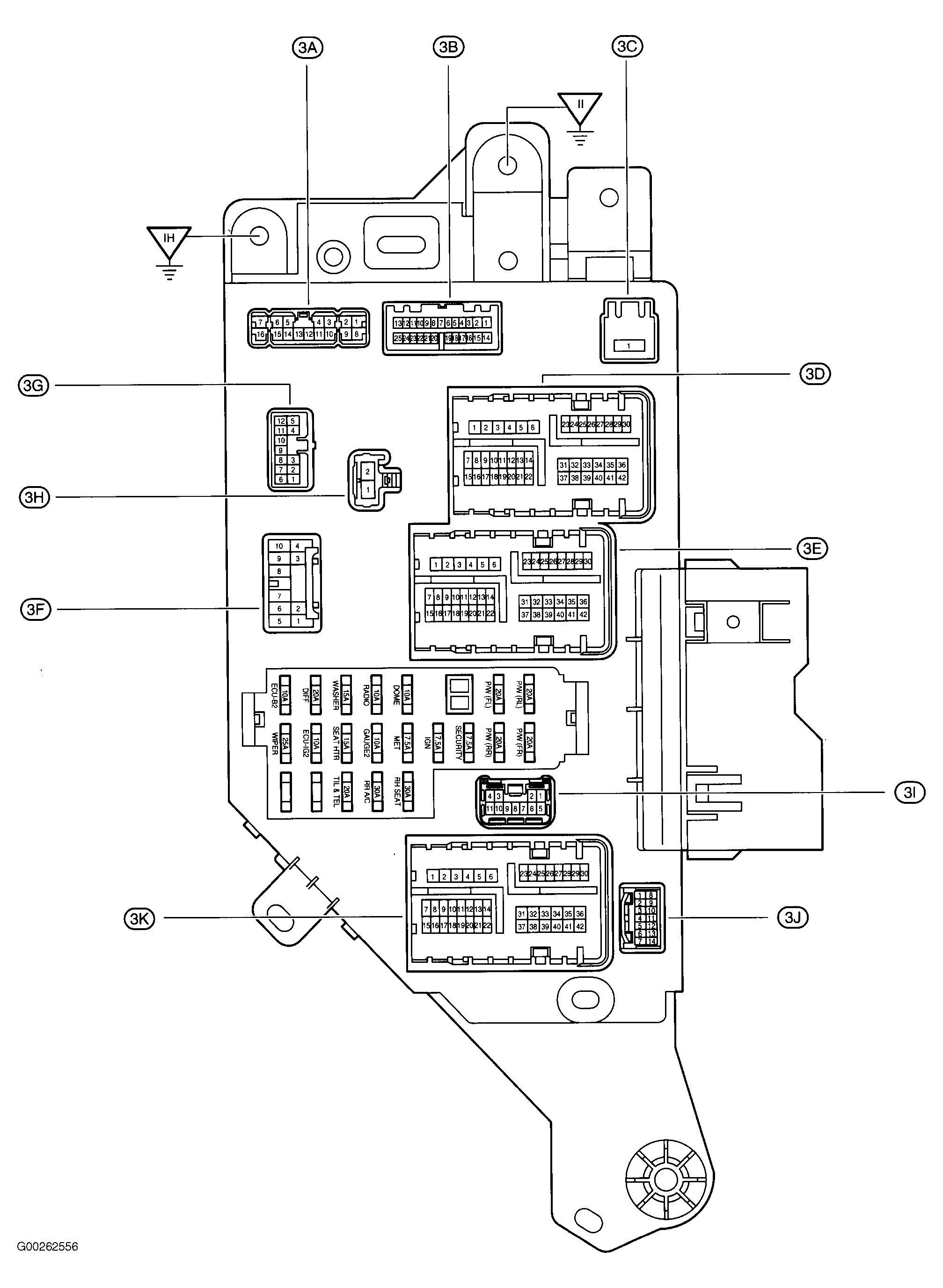

Fig 23: Right Kick Panel

G00262556

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

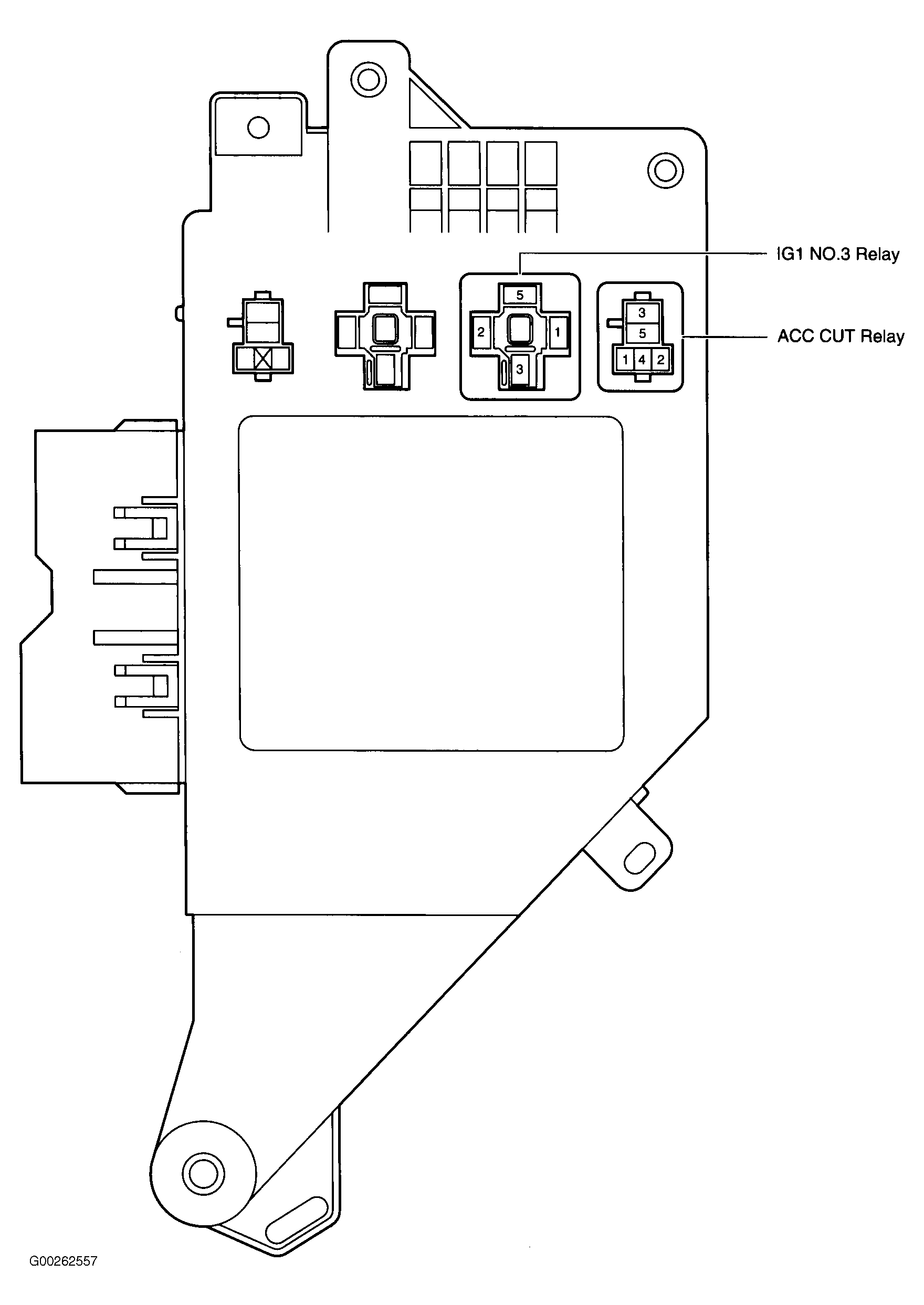

Fig 24: Cowl Side J/B RH

G00262557

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

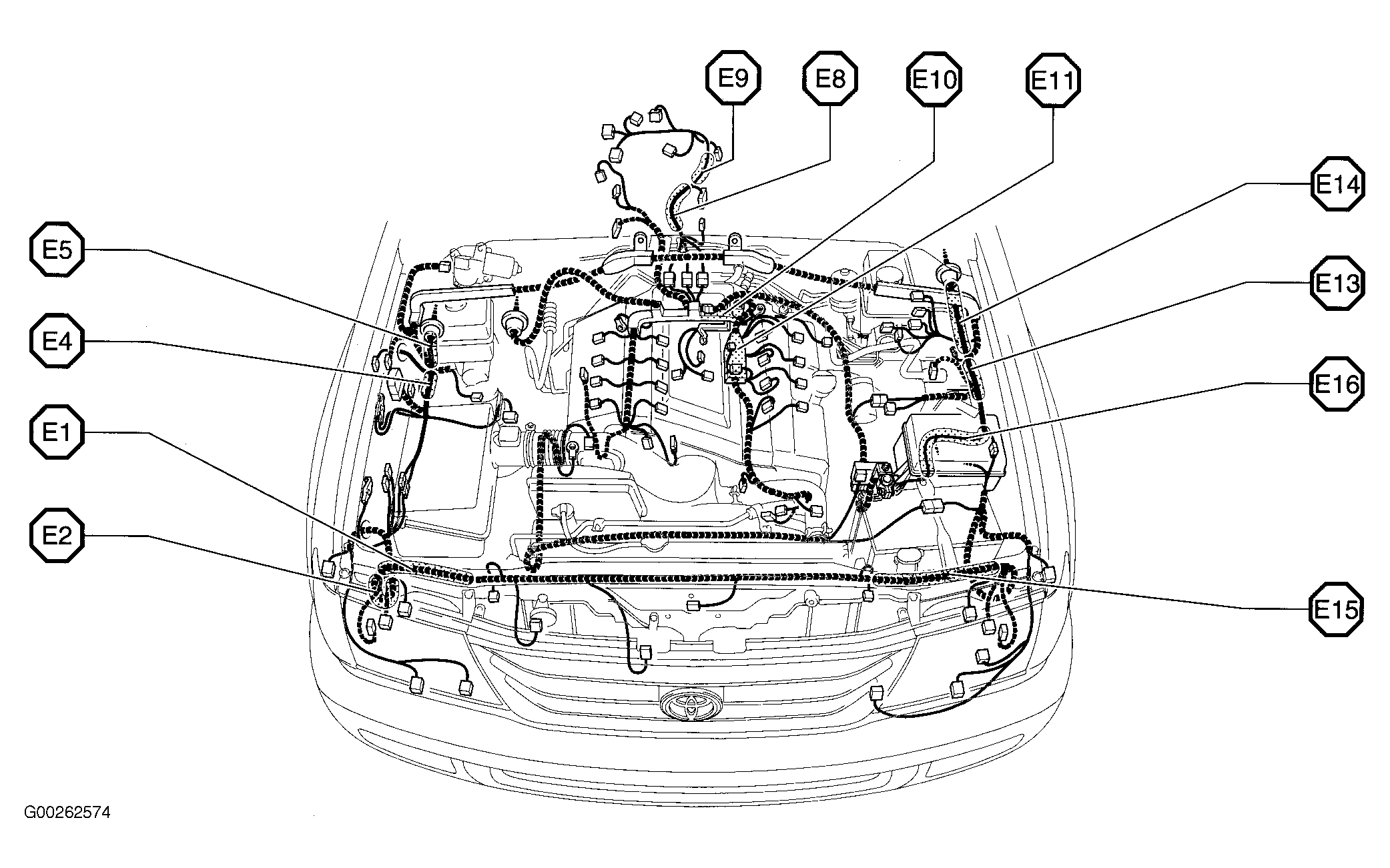

Fig 25: Engine Compartment

G00262574

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

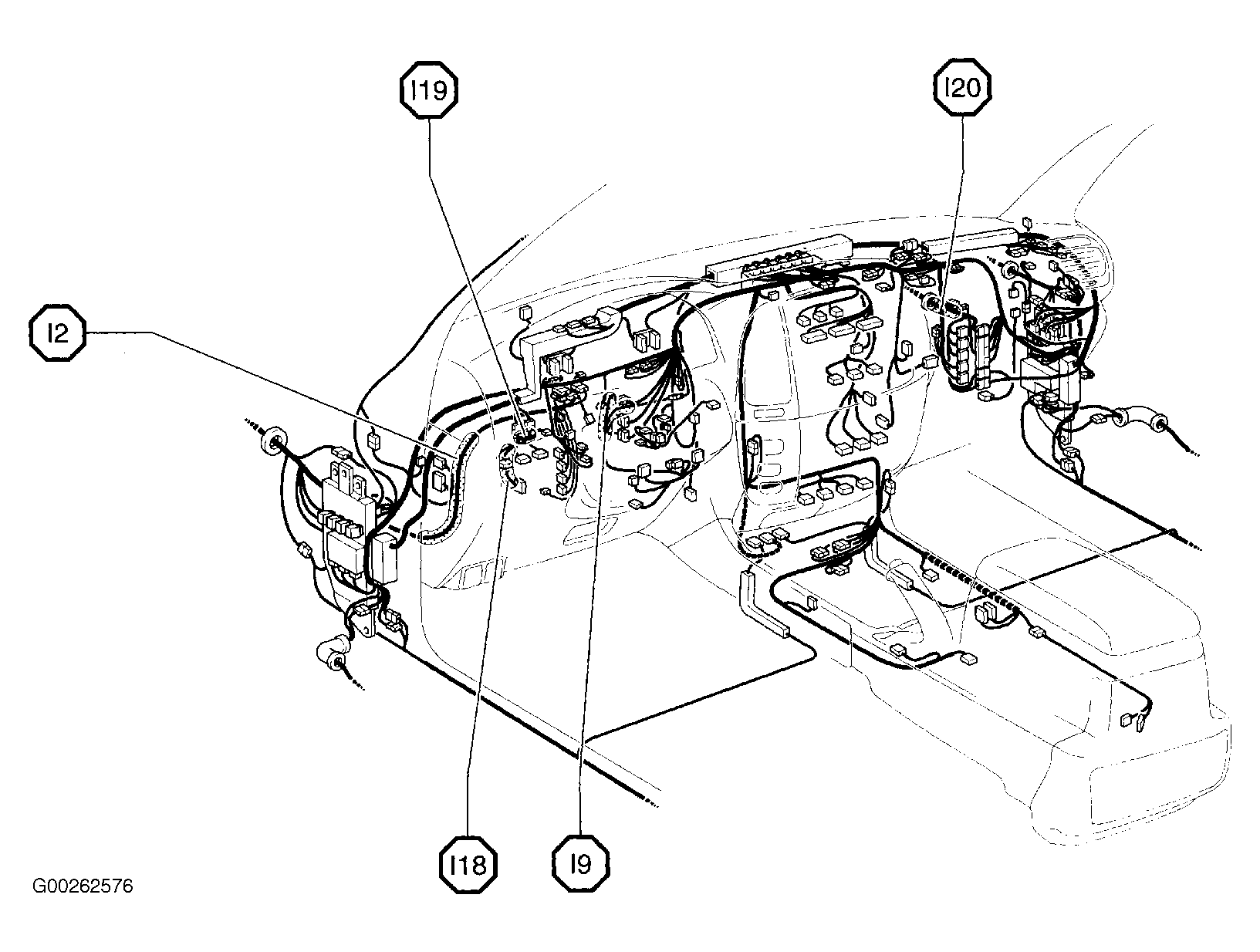

Fig 26: Dash

G00262576

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

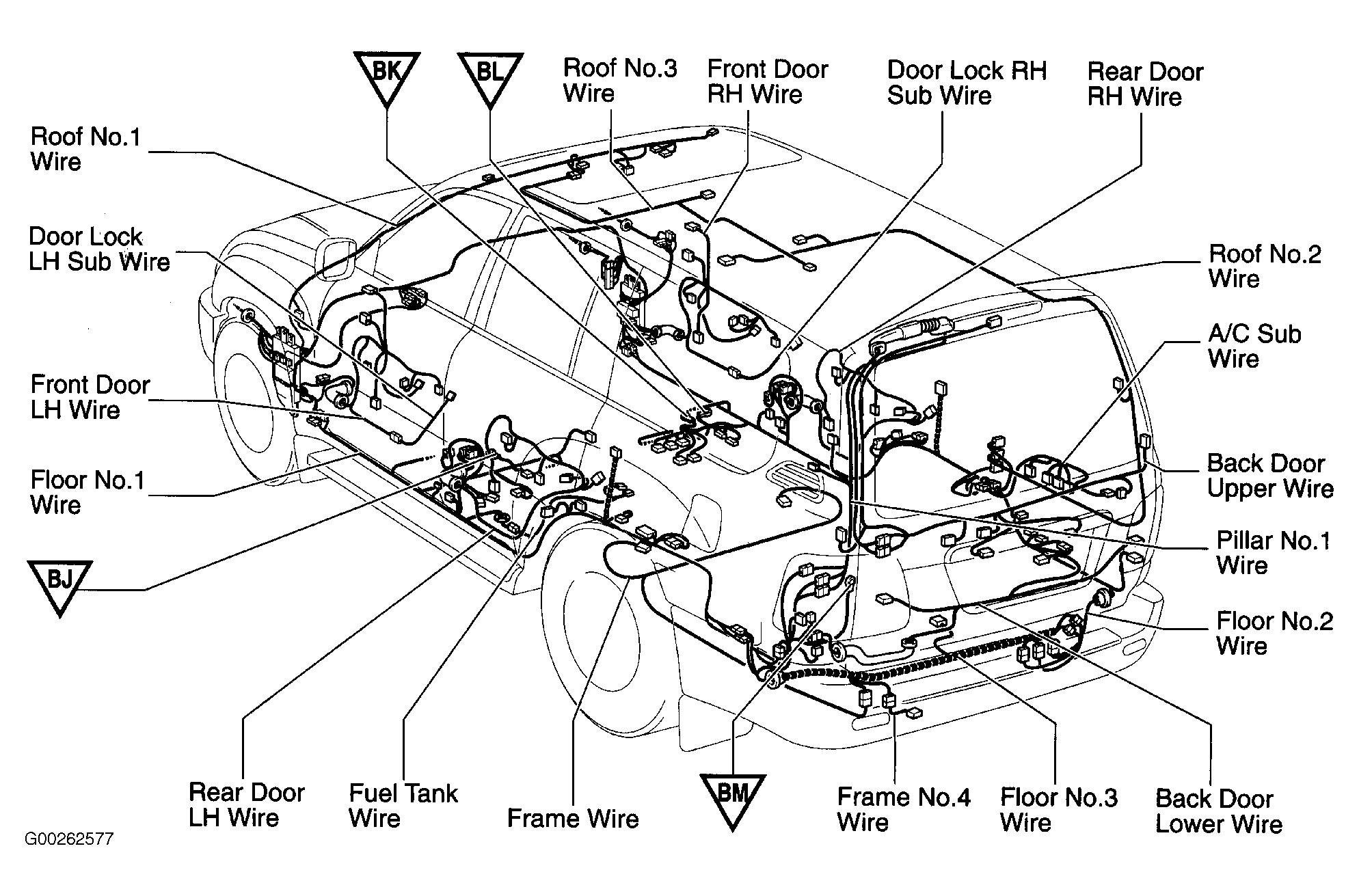

Fig 27: Vehicle Overview

G00262577

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

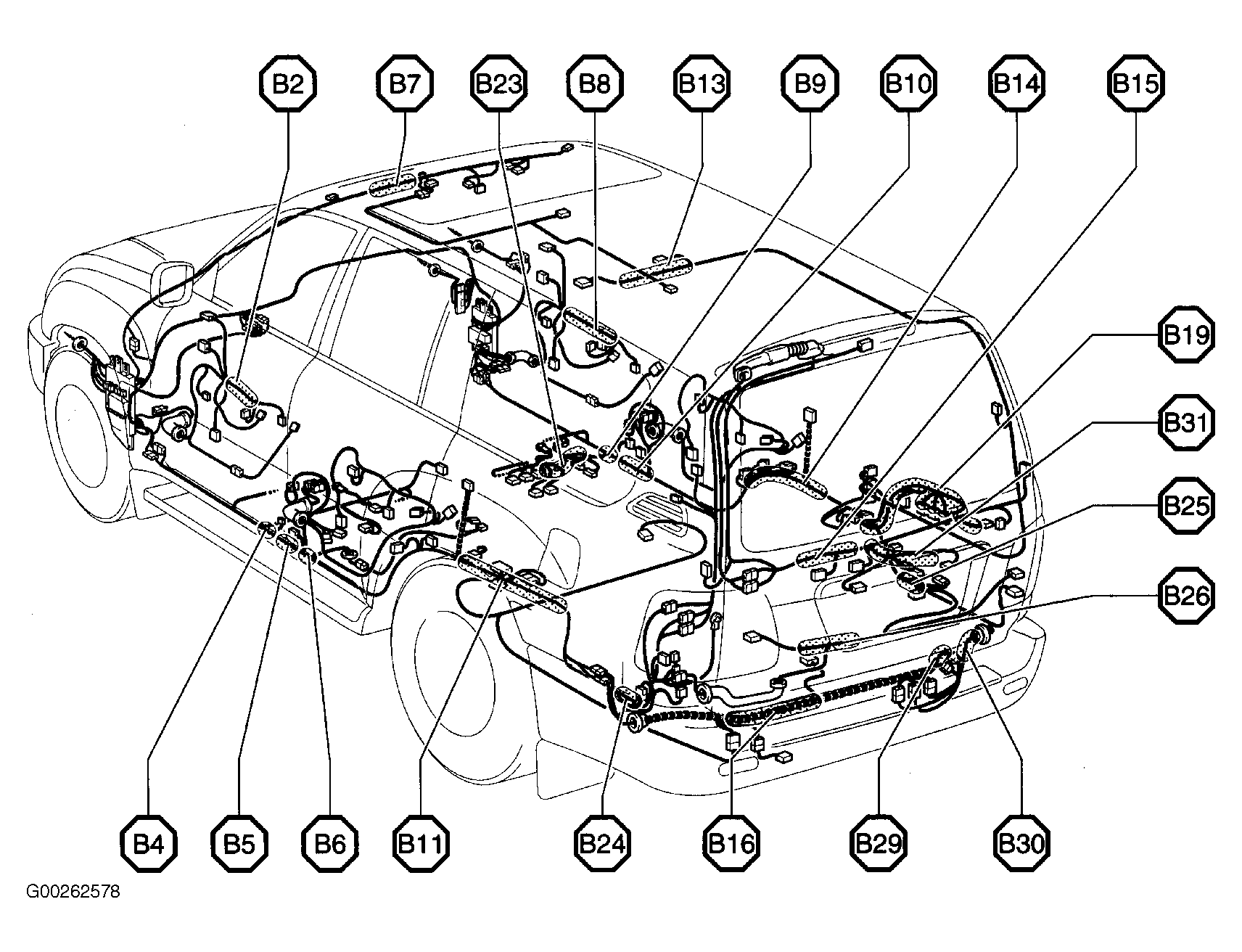

Fig 28: Vehicle Overview

G00262578

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

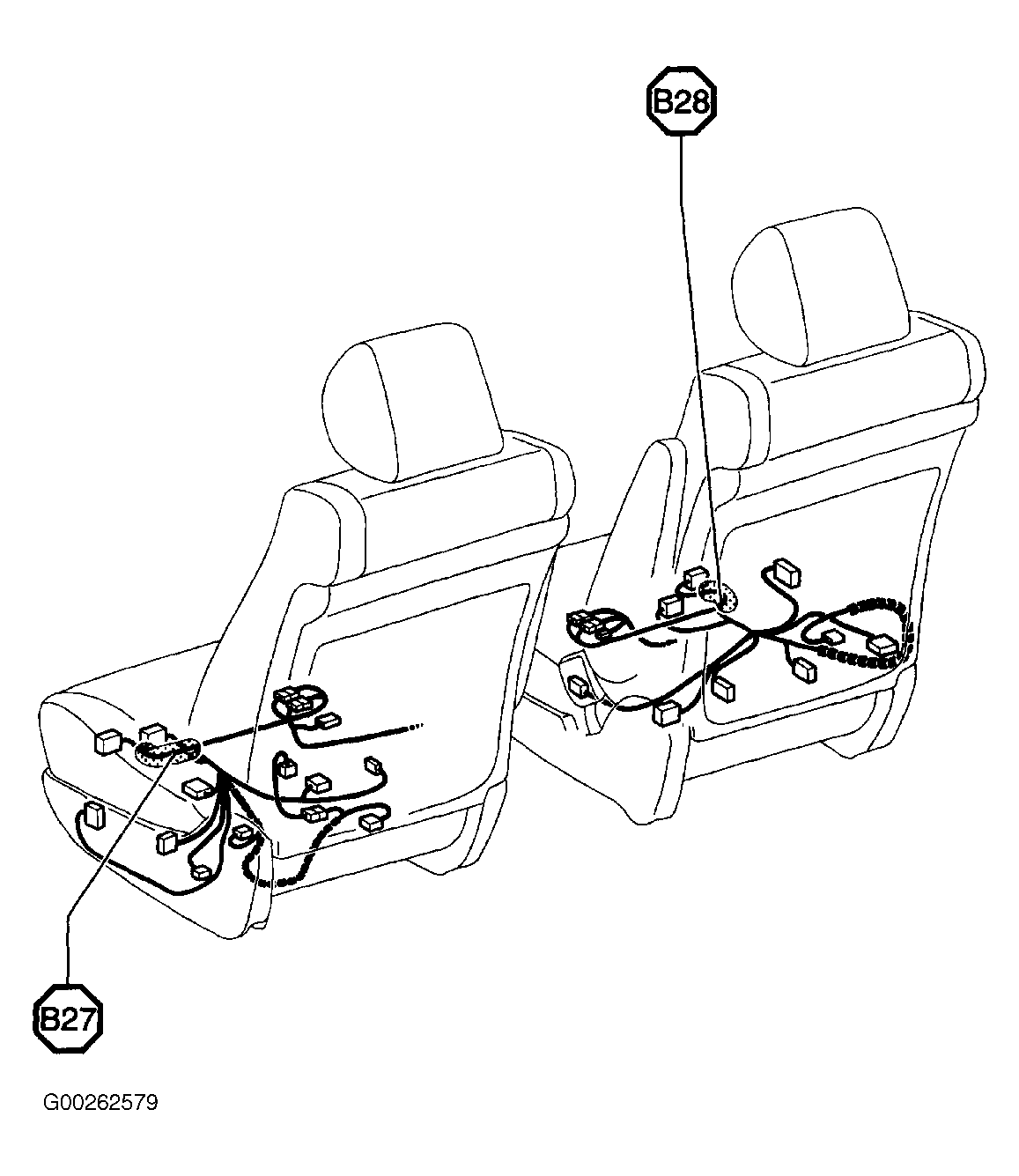

Fig 29: Front Seats

G00262579

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
