Combination Meter: Circuit

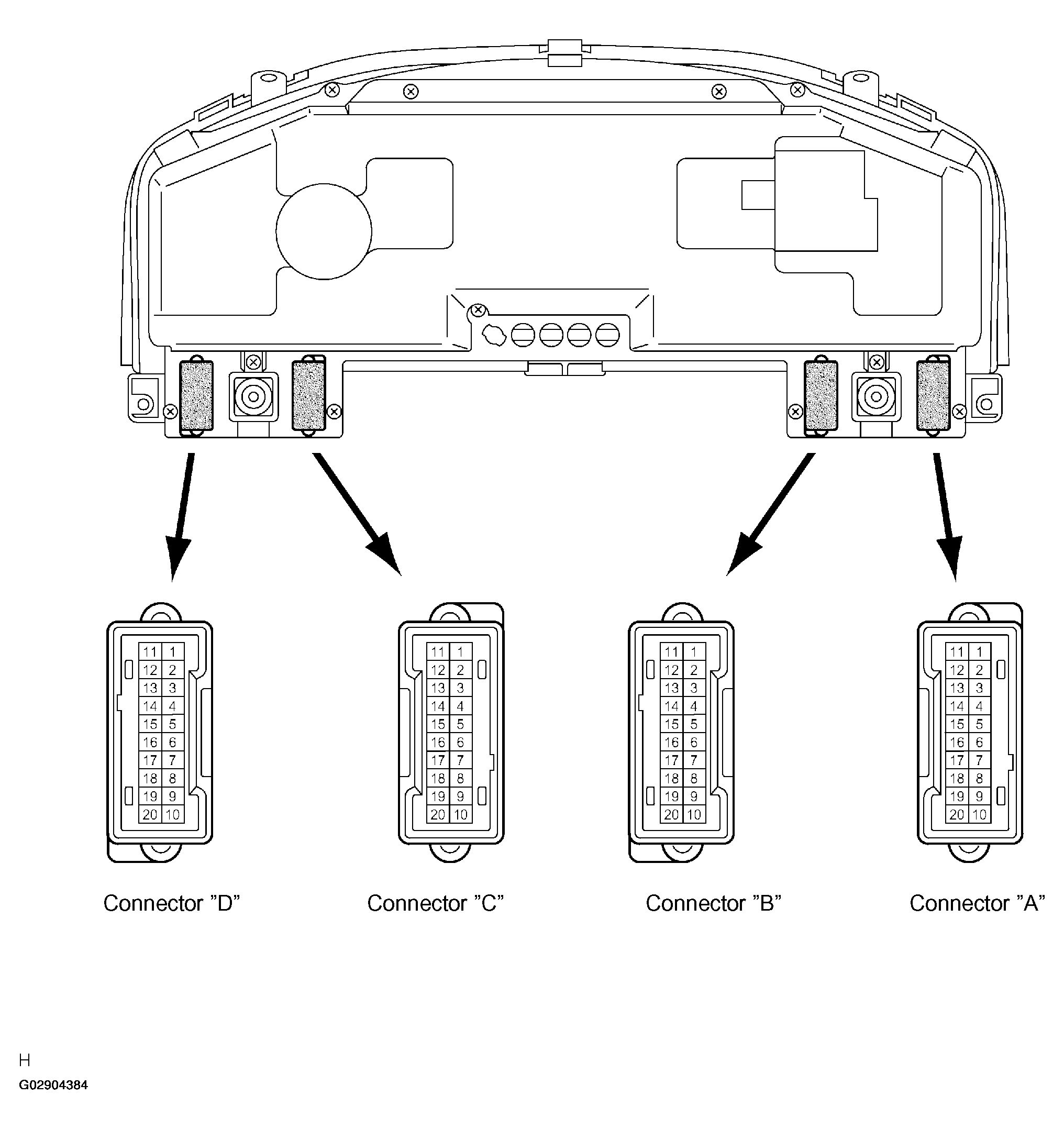

Fig 1: Inspecting D, C, B & A Connector In Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

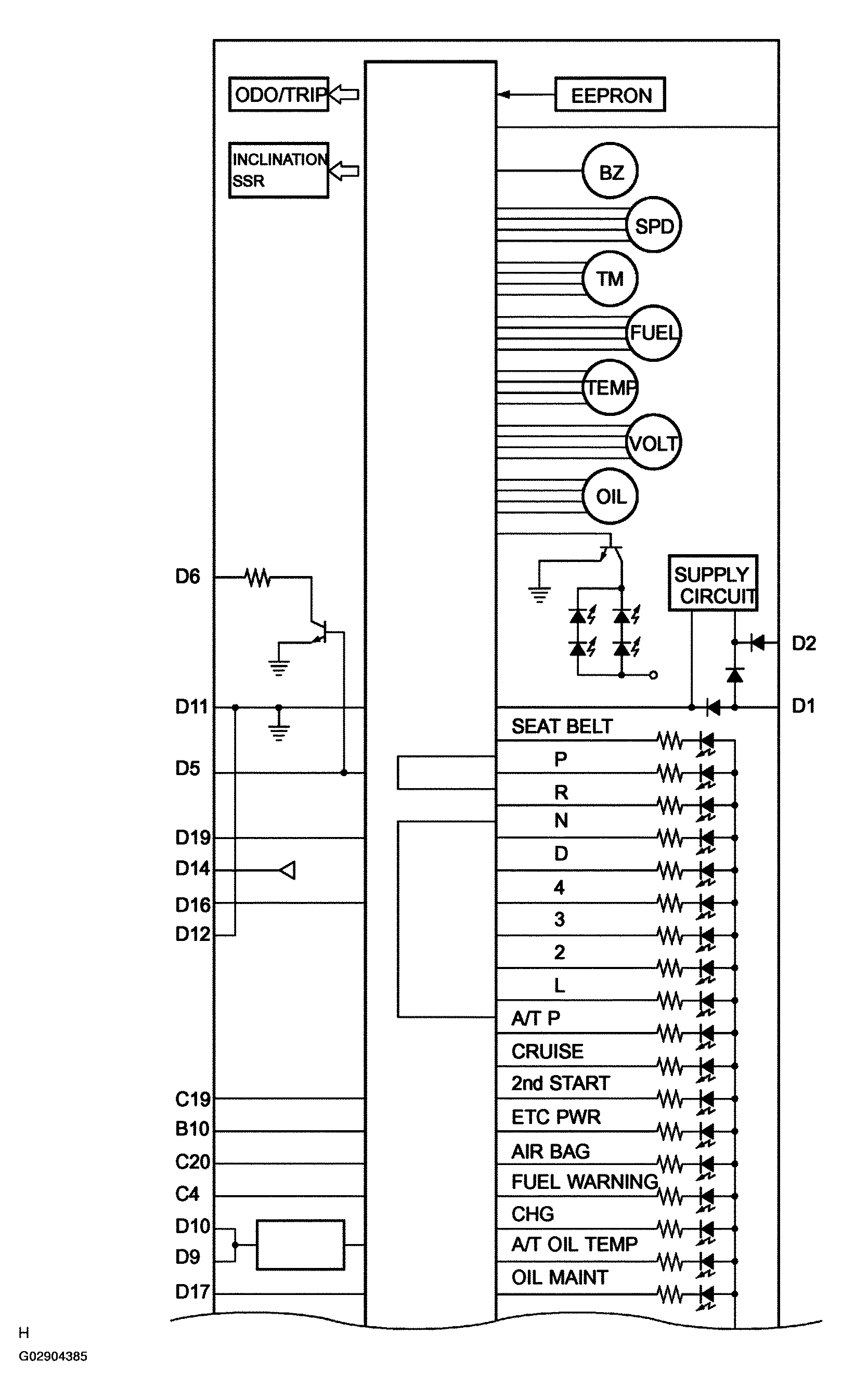

Fig 2: Combination Meter Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

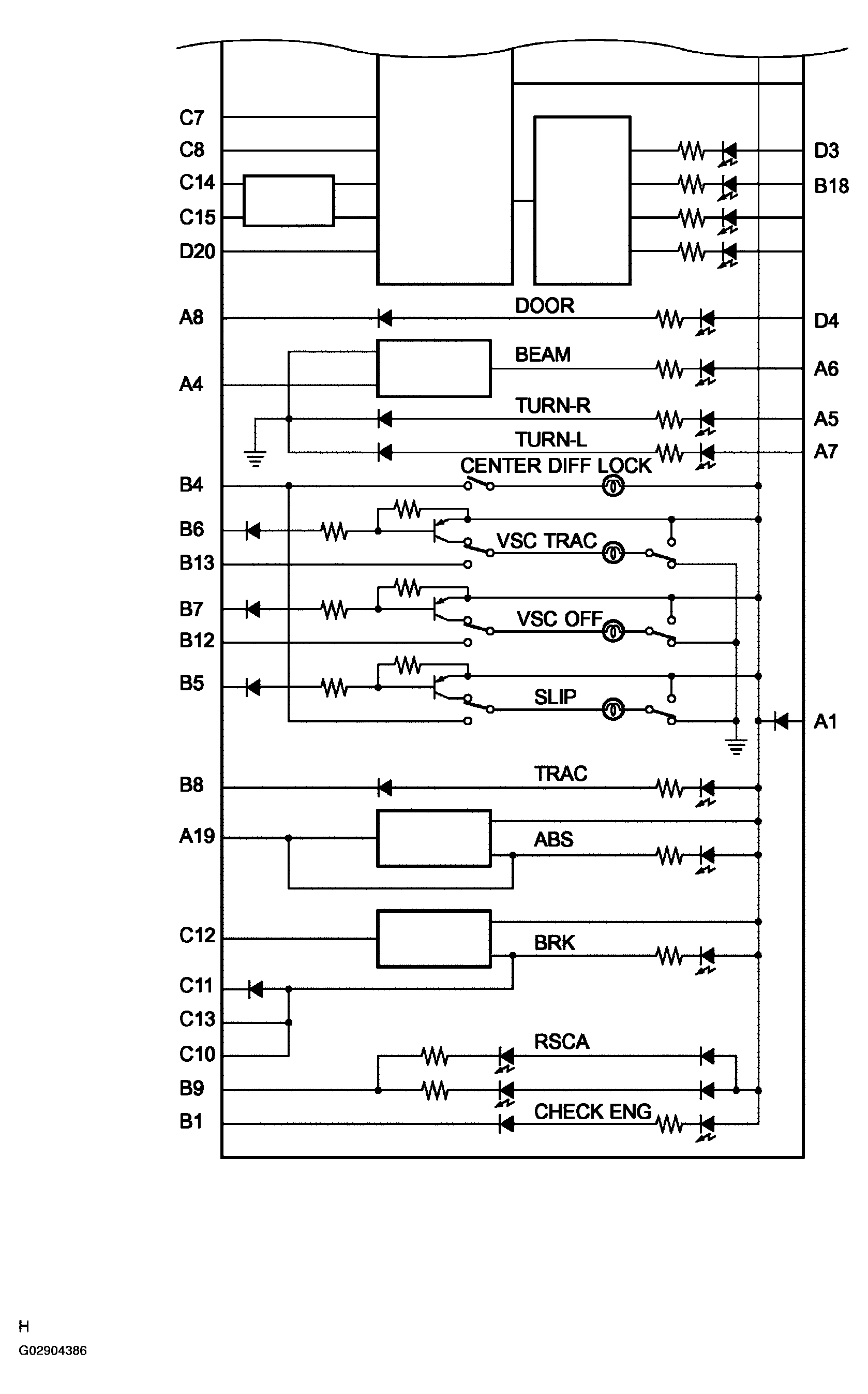

Fig 3: Combination Meter Wiring Diagram (2 Of 2)

WIRING CONNECTOR

No.		Wiring connector side
A	1 4 5 6 7 8 19	MET Fuse Light Control Switch Flasher Relay H/L R-HI Fuse Flasher Relay Body ECU ABS, TRC, VSC ECU
B	1 4 5 6 7 8 9 10 12 13 18	Engine ECU CTR DIFF Switch ABS, TRC, VSC ECU ABS, TRC, VSC ECU ABS, TRC, VSC ECU ABS, TRC, VSC ECU Airbag ECU Inclination Sensor FR DIFF Switch RR DIFF Switch PANEL Fuse
C	3 4 7 8 10 11 12 13 14 15 19 20	Oil Level Sensor Oil Pressure Sender Gauge Airbag ECU - Body ECU Brake Oil Level Switch ABS, TRC, VSC ECU ABS, TRC, VSC ECU Drive Monitor Drive Monitor ABS ECU Driver Seat Belt Buckle Switch
D	1 2 3 4 5 6 9 10 11 12 14 16 17 19 20	GAUGE1 Fuse ECU-B2 Fuse ACC Fuse DOME Fuse Speed Sensor Speed Control Unit Gateway ECU Engine ECU Engine Earth Main Fuel Sender Gauge Main Fuel Sender Gauge Main Fuel Sender Gauge Light Control Rheostat Key Unlock Warning Switch Door Courtesy Switch
