Home >> Toyota >> 2004 >> Land Cruiser >> Repair and Diagnosis >> Engine Mechanical >> Engine Exhaust Assembly >> Components

Engine Exhaust Assembly: Components

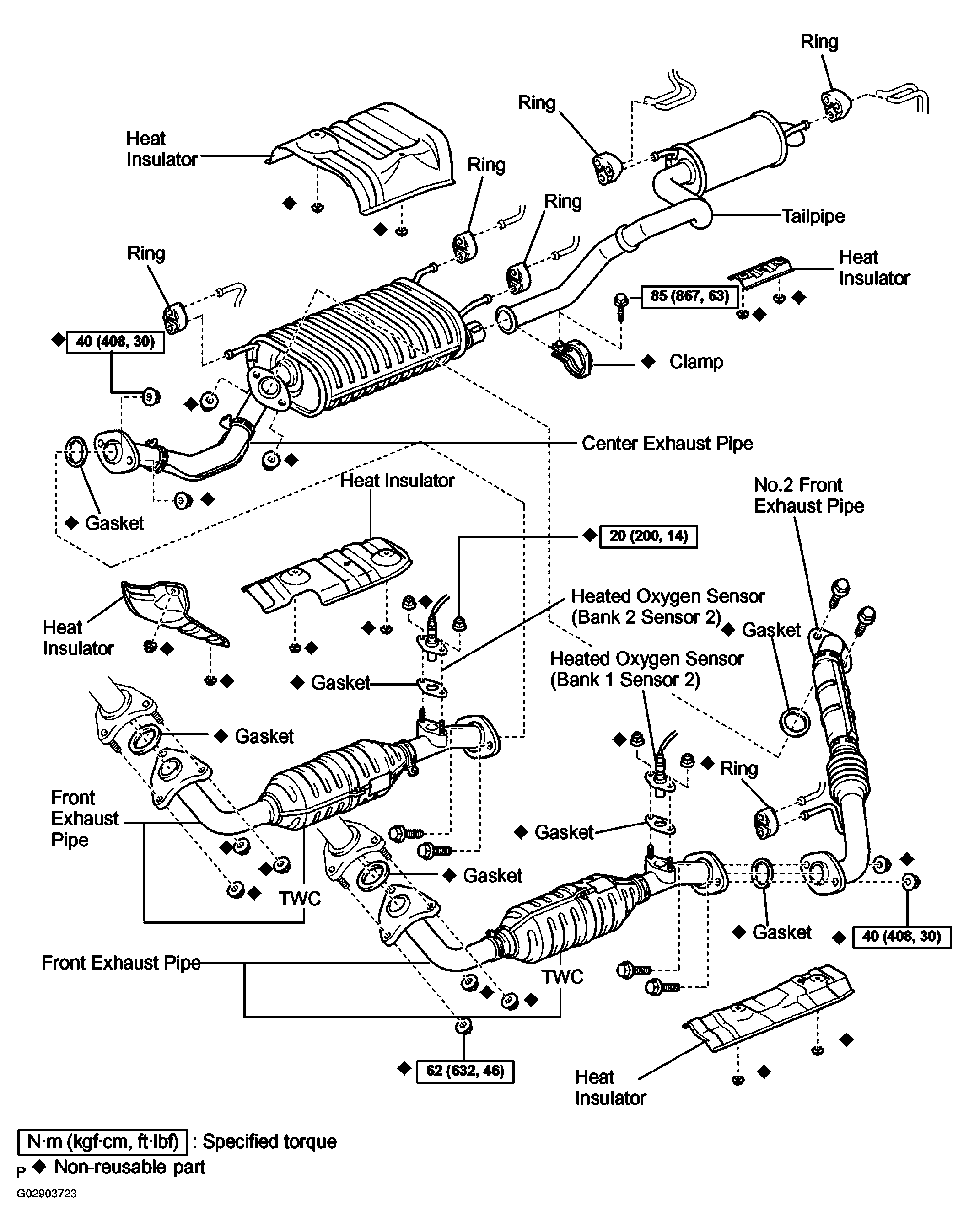

Fig 1: Exploded View Of Exhaust System Components
G02903723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
