Vehicle Lift And Support Locations

CAUTION: DO NOT use plate type lift or lift vehicle by body crimp joints. Lifting vehicle improperly may cause body warpage.

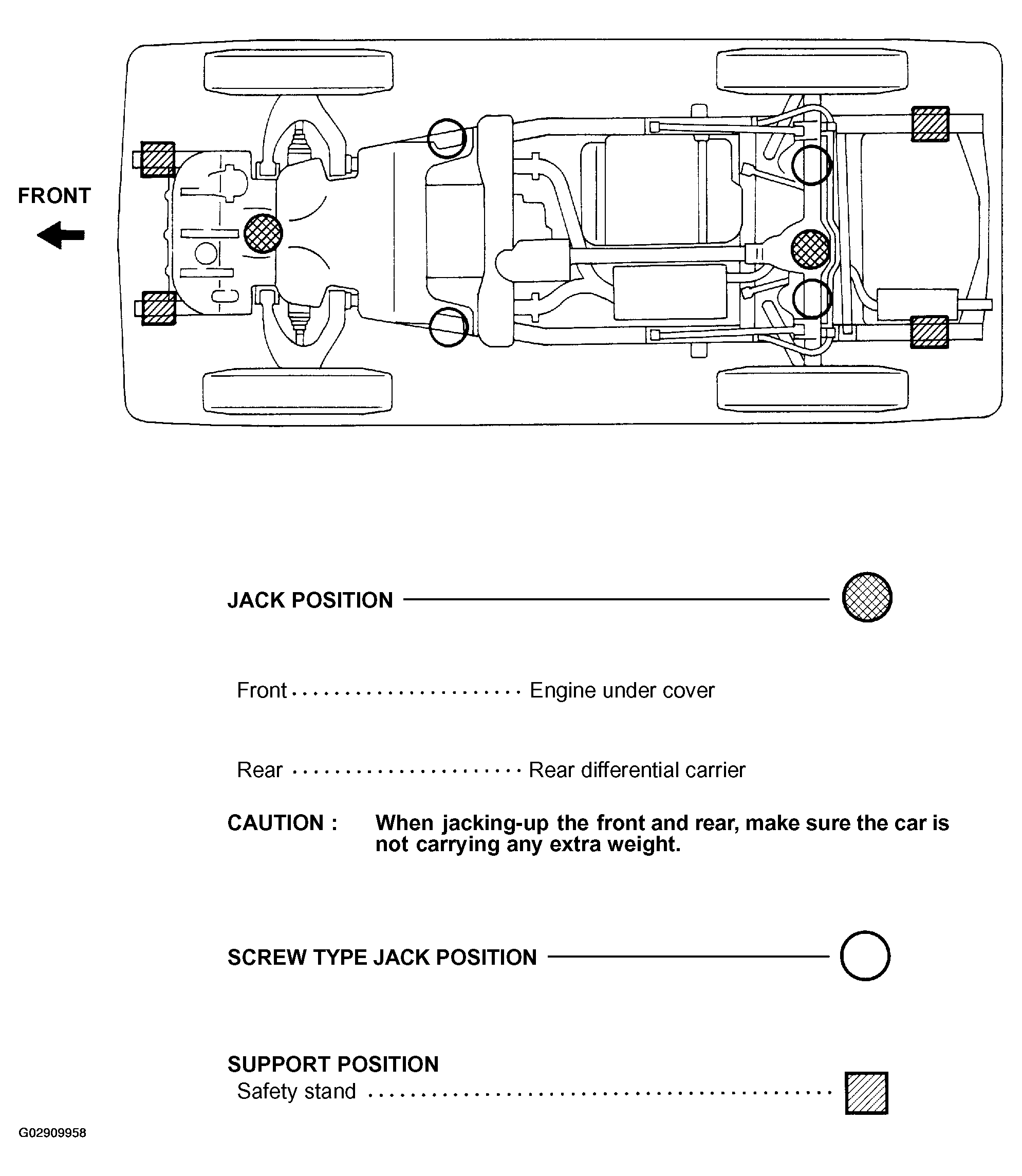

Fig 1: Locating Vehicle Lifting & Support Points

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

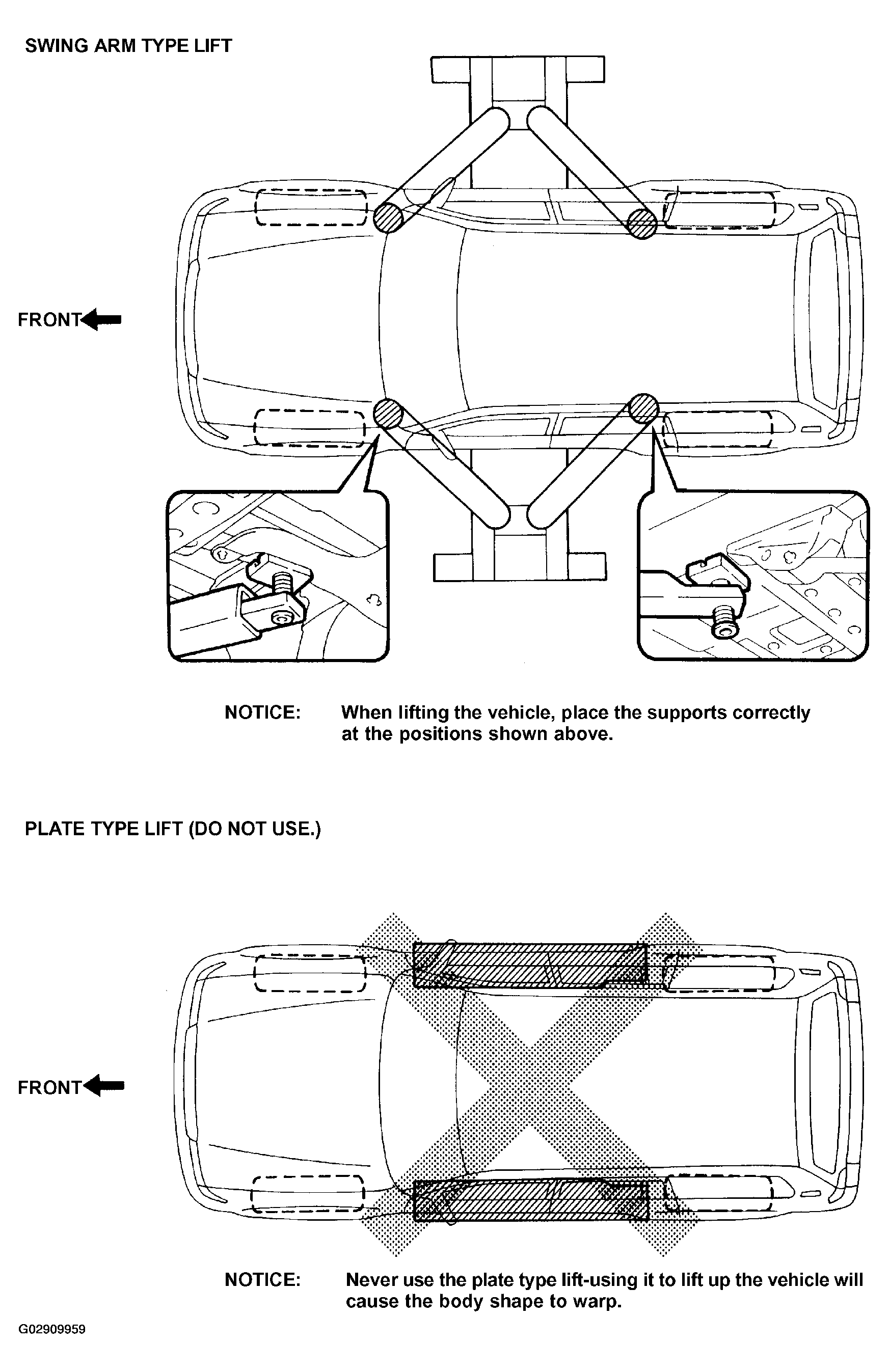

Fig 2: Using Swing Arm Lift
