Home >> Toyota >> 2004 >> Land Cruiser >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Components

Seat Belt: Components

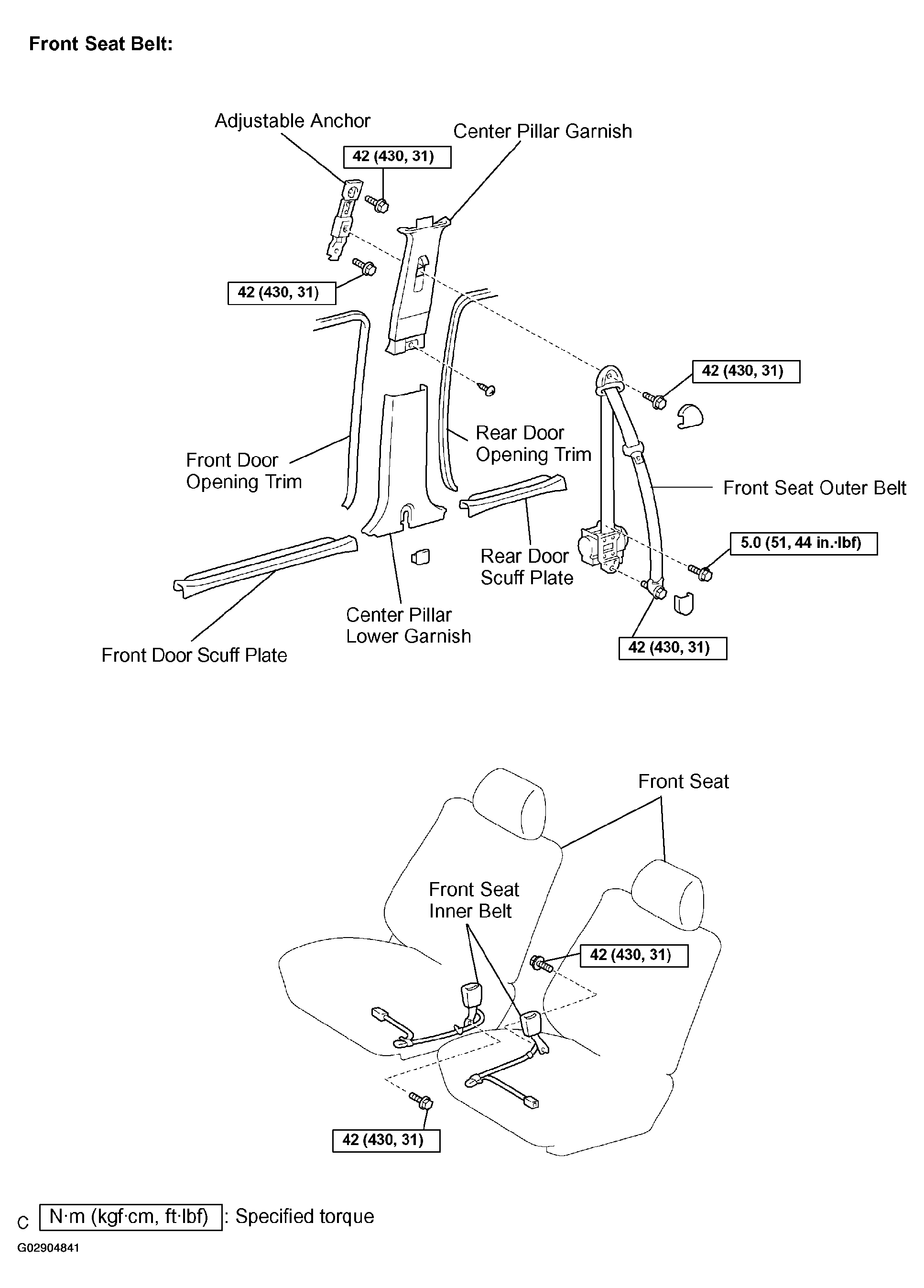

Fig 1: Exploded View Of V Seat Belt Components Front
G02904841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

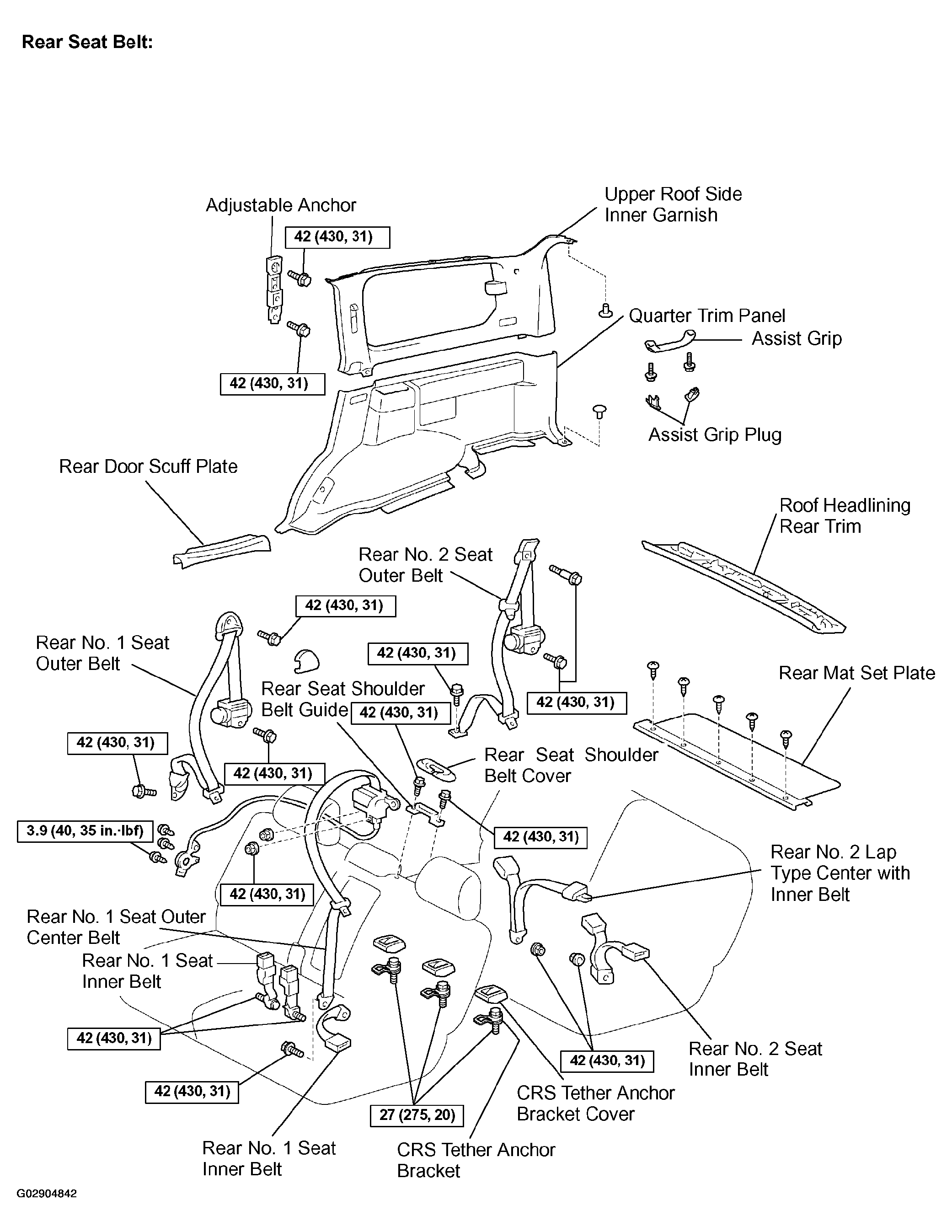

Fig 2: Exploded View Of Rear Seat Belt
G02904842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
