Home >> Toyota >> 2004 >> MR2 C65M >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System >> Location

Power Window Control System: Location

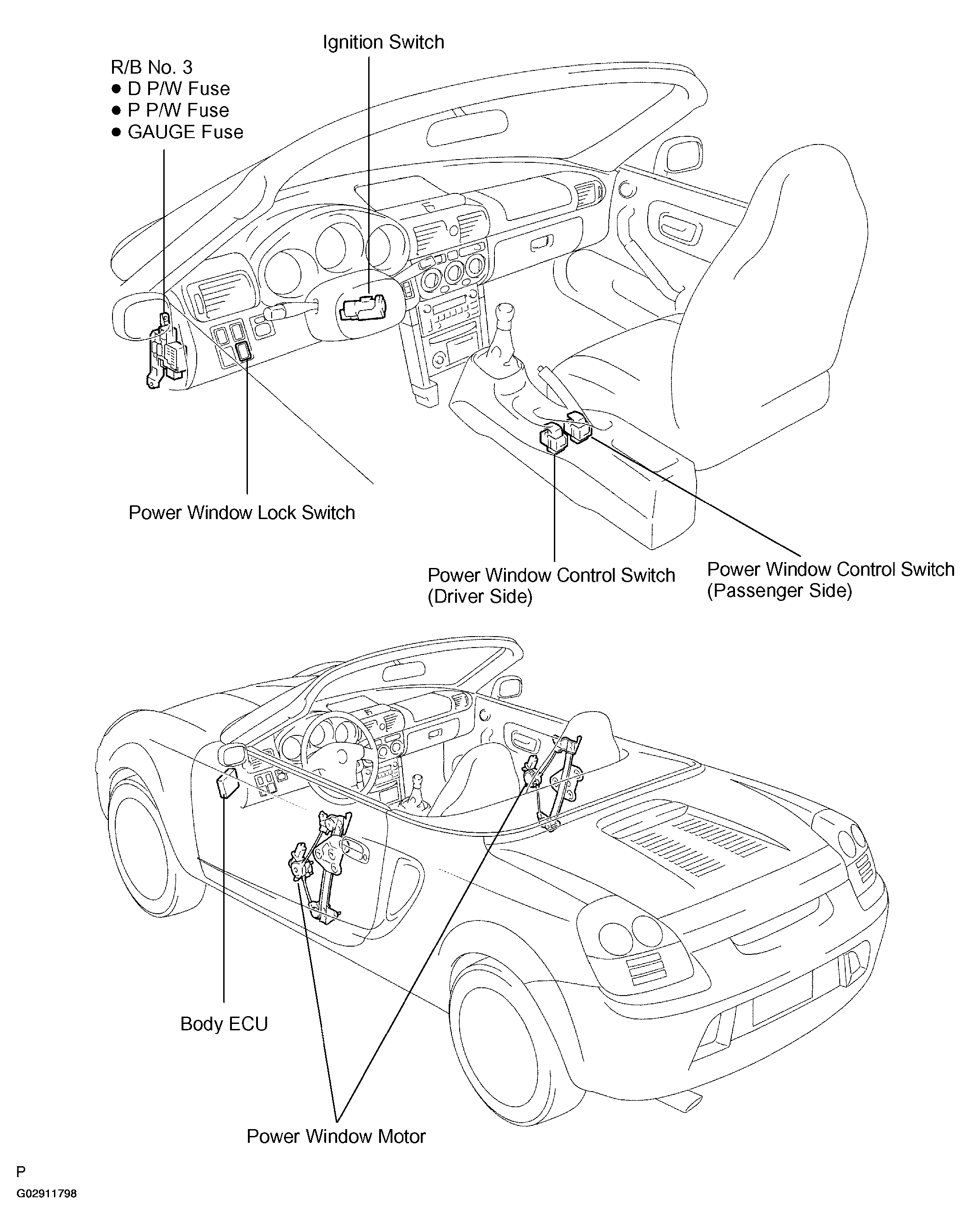

Fig 1: Identifying Power Window Control System Component Locations

G02911798

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
