Engine Controls - Diagnostics
>>
TC Terminal Circuit
>>
Wiring Diagram
TC Terminal Circuit: Wiring Diagram

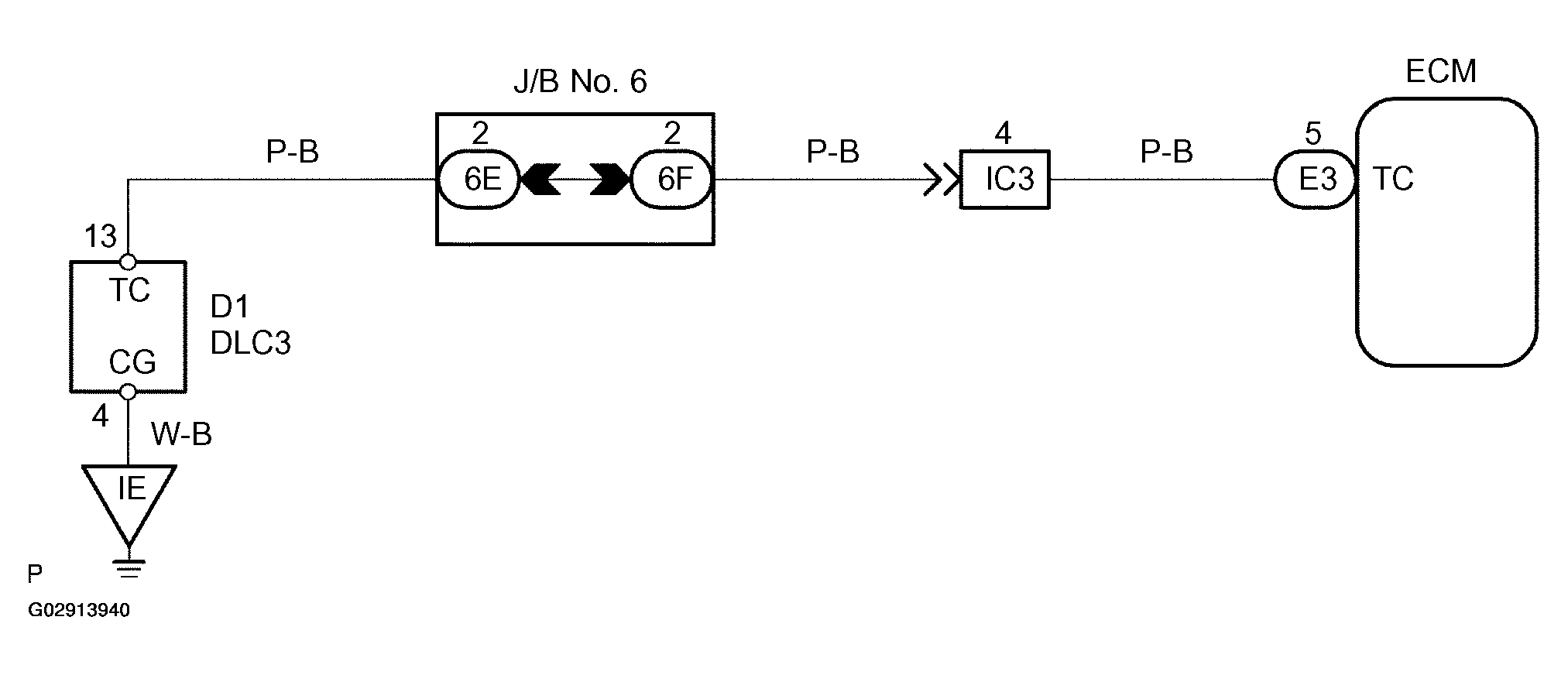

Fig 1: Wiring Diagram - TC & CG Connector Connector Terminal Of DLC 3
